640469-4 datasheet, PDF - EEWORLD Datasheet

640469-4: DescriptionTWO PART BOARD CONNECTOR; CategoryThe connector; File Size169KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

640469-4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	640469-4	-	-	View	Buy Now

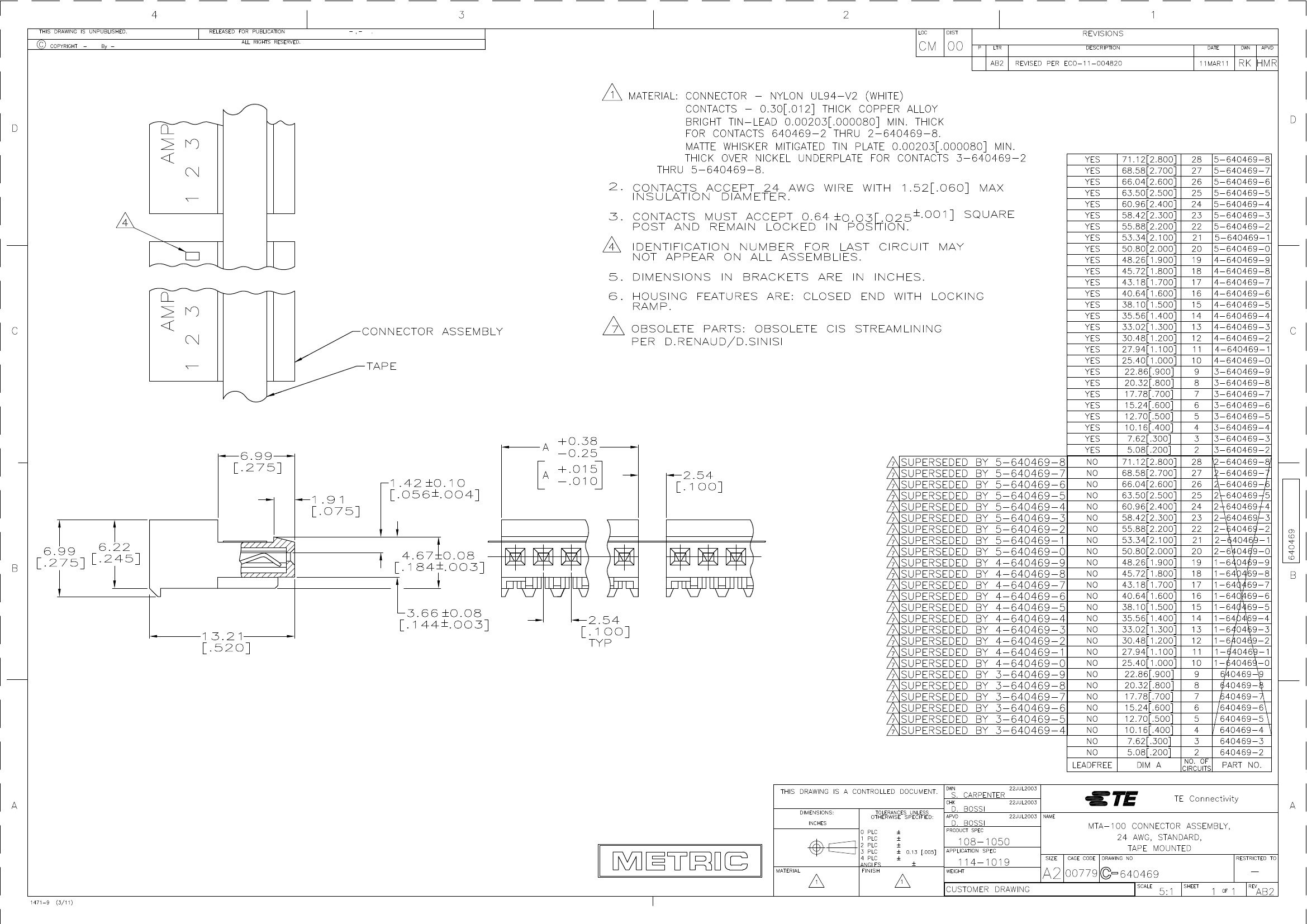

TWO PART BOARD CONNECTOR

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	TE Connectivity
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	CLOSED END, TAPE MOUNTED
body width	0.275 inch
subject depth	0.52 inch
body length	0.4 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	SN
Contact completed and terminated	Tin (Sn)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	6 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	750VAC V
Durability	25 Cycles
maximum insertion force	8.896 N
Insulation resistance	5000000000 Ω
Insulator color	WHITE
insulator material	NYLON
JESD-609 code	e3
Plug contact pitch	0.1 inch
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Plating thickness	80u inch
Rated current (signal)	5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	4
Maximum wire diameter	22 AWG
Minimum wire diameter	24 AWG
Evacuation force-minimum value	3.614 N
Base Number Matches	1

	640469-4	640469-8
Description	TWO PART BOARD CONNECTOR	HEADER CONNECTOR,CABLE MNT,PLUG,8 CONTACTS,SKT,0.1 PITCH,IDC TERMINAL,WHITE
Is it Rohs certified?	incompatible	incompatible
Maker	TE Connectivity	TE Connectivity
Reach Compliance Code	compliant	unknown
Is Samacsys	N	N
Other features	CLOSED END, TAPE MOUNTED	CLOSED END, TAPE MOUNTED
body width	0.275 inch	0.275 inch
subject depth	0.52 inch	0.52 inch
body length	0.4 inch	0.8 inch
Body/casing type	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contactor design	PREASSEM CONN	PREASSEM CONN
Contact to complete cooperation	SN	SN
Contact completed and terminated	Tin (Sn)	Tin (Sn)
Contact point gender	FEMALE	FEMALE
Contact material	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR
Contact resistance	6 mΩ	6 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	750VAC V	750VAC V
Durability	25 Cycles	25 Cycles
maximum insertion force	8.896 N	8.896 N
Insulation resistance	5000000000 Ω	5000000000 Ω
Insulator color	WHITE	WHITE
insulator material	NYLON	NYLON
JESD-609 code	e3	e3
Plug contact pitch	0.1 inch	0.1 inch
Installation type	CABLE	CABLE
Number of rows loaded	1	1
Maximum operating temperature	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C
Plating thickness	80u inch	80u inch
Rated current (signal)	5 A	5 A
Guideline	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL
Termination type	IDC	IDC
Total number of contacts	4	8
Maximum wire diameter	22 AWG	22 AWG
Minimum wire diameter	24 AWG	24 AWG
Evacuation force-minimum value	3.614 N	3.614 N
Base Number Matches	1	1
