NJM4565
DUAL OPERATIONAL AMPLIFIER
■
GENERAL DESCRIPTION
The NJM4565 is a high-gain, wide-bandwidth, dual low noise
operational amplifier capable of driving 20V peak-to-peak into
400Ω loads. The NJM4565 is good characteristics compared to
the NJM4560.
■
FEATURES
●
Operating Voltage
●
Wide Gain Bandwidth Product
●
Slew Rate
●
Package Outline
●
Bipolar Technology
■
PACKAGE OUTLINE
NJM4565D
( DIP8 )
NJM4565M
( DMP8 )
( ±4V~±18V )
( 4MHz typ. )
( 4V/μs typ. )
DIP8, DMP8, SSOP8, SIP8
SOP8 JEDEC 150mil
NJM4565E
( SOP8 )
NJM4565V
( SSOP8 )
■
PIN CONFIGURATION
( Top View )
1
2
3
4
A
B
NJM4565L
( SIP8 )
8
A
B
7
6
5
1
2
3
4
5
6
7
8
NJM4565D, NJM4565M, NJM4565E, NJM4565V
NJM4565L
PIN FUNCTION
1. A OUTPUT
2. A - INPUT
3. A +INPUT
4. V
-
5. B +INPUT
6. B - INPUT
7. B OUTPUT
+
■

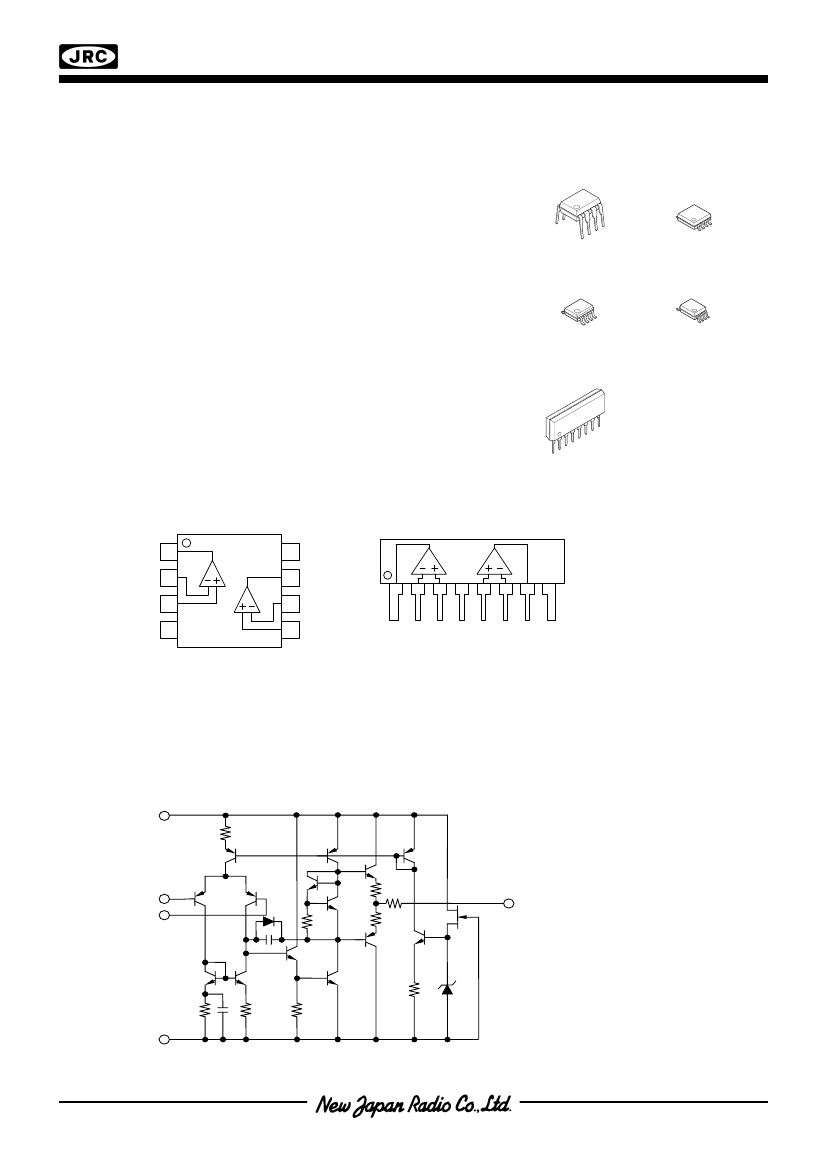

EQUIVALENT CIRCUIT
( 1/2 Shown )
V
+
- INPUT
+ INPUT
OUTPUT
V
-
Ver.2011-12-12
-1-
NJM4565
■
ABSOLUTE MAXIMUM RATINGS
( Ta=25˚C )
PARAMETER
Supply Voltage
Differential Input Voltage
Input Voltage
Power Dissipation
SYMBOL
V
+
/V
-
V
ID
V
IC
P
D
T
opr
T
stg
RATINGS
± 18
± 30
± 15 ( note )
( DIP8 ) 500
( DMP8 ) 300
( SOP8 ) 300
( SSOP8 ) 250
( SIP8 ) 800
-40~+85
-40~+125
UNIT
V
V
V
mW
Operating Temperature Range
Storage Temperature Range
˚C
˚C
( note ) For supply voltage less than ±15V,the absolute maximum input voltage is equal to the supply voltage.
■
ELECTRICAL CHARACTERISTICS
( Ta=25˚C,V
+
/V
-
=±15V )
PARAMETER
Input Offset Voltage
Input Offset Current
Input Bias Current
Input Resistance
Large Signal Voltage Gain
Maximum Output Voltage Swing 1
Maximum Output Voltage Swing 2
Input Common Mode Voltage Range
Common Mode Rejection Ratio
Supply Voltage Rejection Ratio
Operating Current
Slew Rate
Gain Bandwidth Product
Equivalent Input Noise Voltage
SYMBOL
V
IO
I
IO
I
B
R
IN
A
V
V
OM1
V
OM2
V
ICM
CMR
SVR
I
CC
SR
GB
V
NI
TEST CONDITION
R
S
≤
10kΩ
MIN.
-
-
-
0.3
86
± 12
± 10
± 12
70
76.5
-
-
-
-
TYP.
0.5
2
50
5
100
± 14
± 11.5
± 14
90
90
4.5
4
10
1.2
MAX.
3.0
50
200
-
-
-
-
-
-
-
7
-
-
-
UNIT
mV
nA
nA
MΩ
dB
V
V
V
dB
dB
mA
V/μs
MHz
μVrms
R
L
≥2kΩ,V
O
=±10V
R
L
≥2kΩ
I
O
=25mA
R
S
≤
10kΩ
R
S
≤
10kΩ
RIAA,R
S
=2.2kΩ,30kHz LPF
-2-
Ver.2011-12-12
NJM4565
■

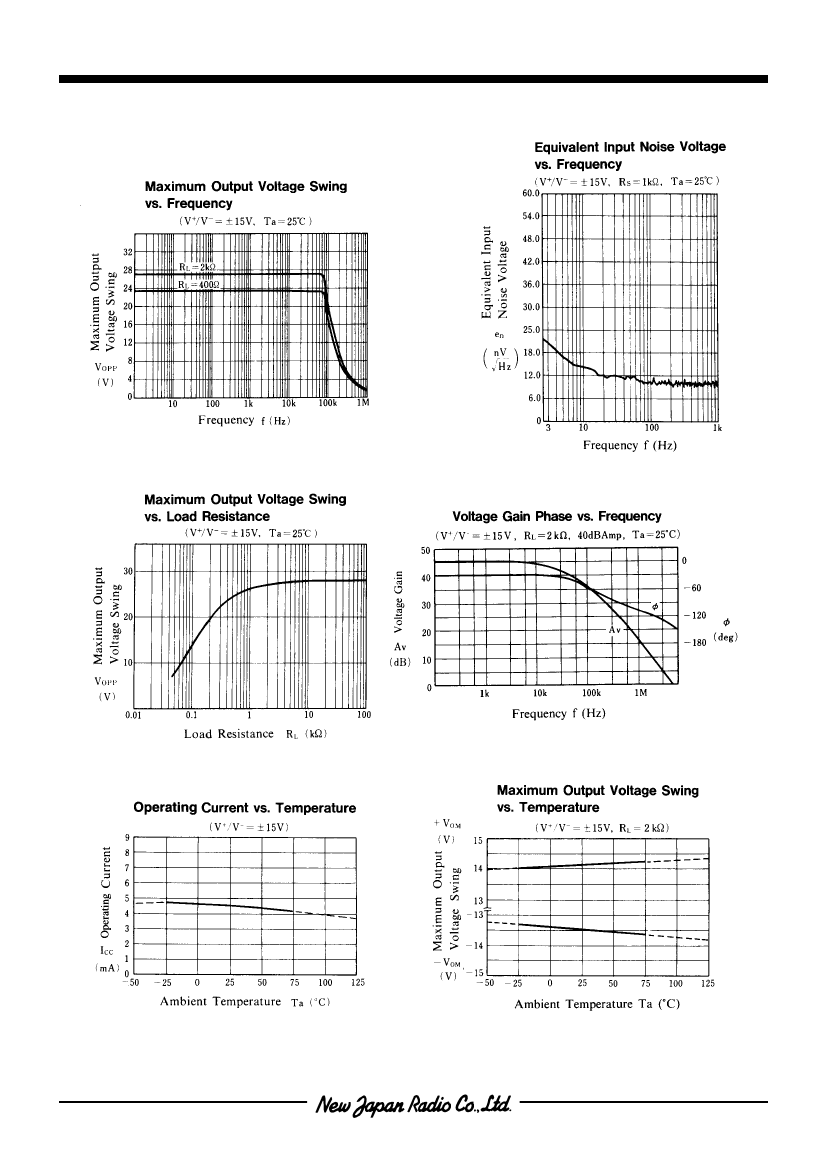

TYPICAL CHARACTERISTICS
Ver.2011-12-12
-3-
NJM4565
■

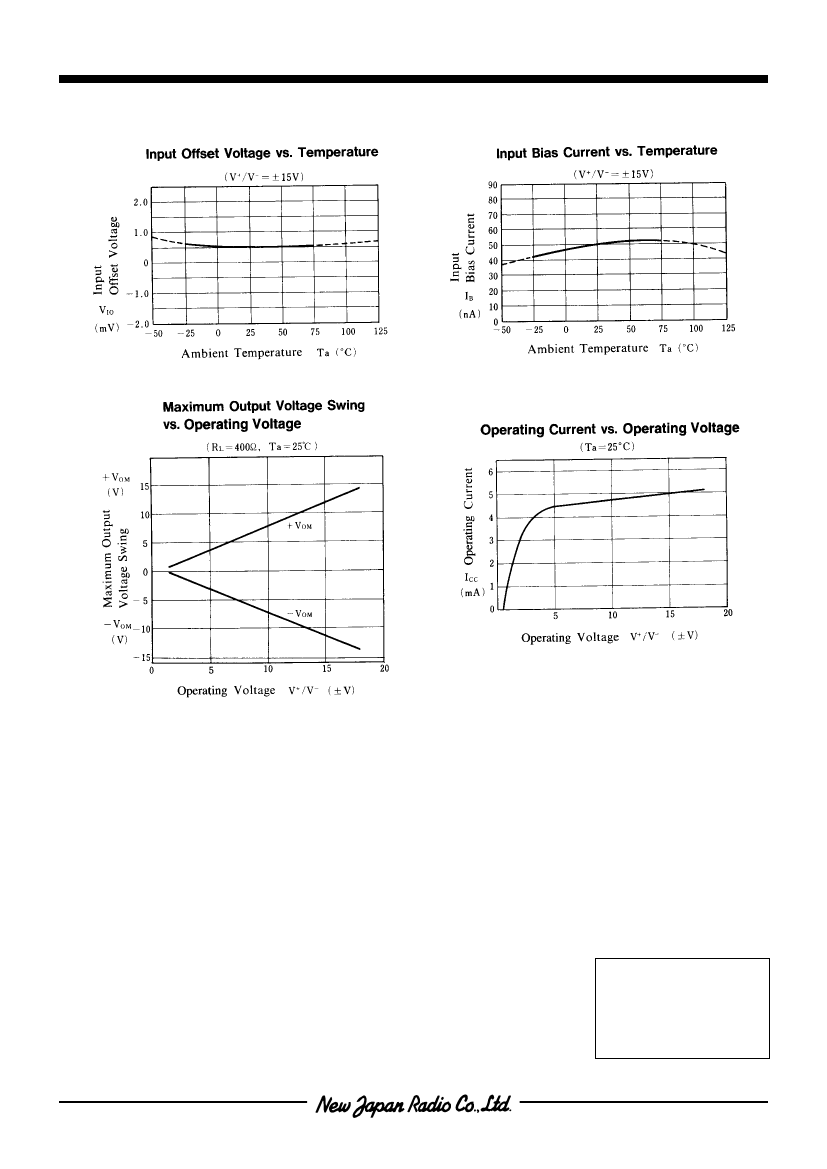

TYPICAL CHARACTERISTICS
[CAUTION]
The specifications on this databook are only
given for information , without any guarantee
as regards either mistakes or omissions. The
application circuits in this databook are
described only to show representative usages
of the product and not intended for the
guarantee or permission of any right including
the industrial rights.
-4-
Ver.2011-12-12
