PR1501/S - PR1505/S
1.5A FAST RECOVERY RECTIFIER
Features
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
Diffused Junction
Fast Switching for High Efficiency
High Current Capability and Low Forward Voltage Drop
Surge Overload Rating to 50A Peak
Low Reverse Leakage Current
Lead Free Finish, RoHS Compliant (Note 4)
A
B
A
C
Mechanical Data
Case: DO-41, DO-15
Case Material: Molded Plastic. UL Flammability
Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020C
Terminals: Finish - Bright Tin. Plated Leads Solderable per
MIL-STD-202, Method 208
Polarity: Cathode Band
Ordering Information: See Last Page
Marking: Type Number
DO-41 Weight: 0.3 grams (approximate)
DO-15 Weight: 0.4 grams (approximate)
Dim
A
B
C
D
DO-41 Plastic
Min
25.40
4.06
0.71
2.00
Max
¾
5.21
0.864
2.72
D
DO-15
Min
25.40
5.50
0.686
2.60
Max
¾
7.62
0.889
3.60
All Dimensions in mm
“S” Suffix Designates DO-41 Package
No Suffix Designates DO-15 Package
@ T
A
= 25°C unless otherwise specified
Maximum Ratings and Electrical Characteristics
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Average Rectified Output Current
(Note 1)
@ T
A
= 50°C
Non-Repetitive Peak Forward Surge Current
8.3ms Single half sine-wave Superimposed on Rated Load
(JEDEC Method)
Forward Voltage
Peak Reverse Current
at Rated DC Blocking Voltage
Reverse Recovery Time (Note 3)
Typical Junction Capacitance (Note 2)
Typical Thermal Resistance Junction to Ambient
Operating and Storage Temperature Range
Notes:
1.
2.
3.
4.
Symbol
V
RRM
V
RWM
V
R
V
R(RMS)
I
O
I
FSM
V
FM
I
RM
t
rr
C
j
R
qJA
T
j,
T
STG
PR
1501/S
50
35
PR
1502/S
100
70
PR
1503/S
200
140
1.5
50
1.2
5.0
100
150
20
35
-65 to +150
PR
1504/S
400
280
PR
1505/S
600
420
Unit
V
V
A
A
V
mA
@ I
F
= 1.5A
@ T
A
= 25°C
@ T
A
= 100°C
250
10
ns
pF
K/W
°C
Valid provided that leads are maintained at ambient temperature at a distance of 9.5mm from the case.
Measured at 1.0MHz and applied reverse voltage of 4.0V DC.
Measured with I
F
= 0.5A, I
R
= 1.0A, I
rr
= 0.25A. See figure 5.
RoHS revision 13.2.2003. Glass and High Temperature Solder Exemptions Applied, see
EU Directive Annex Notes 5 and 7.
DS26011 Rev. 4 - 2
1 of 3
www.diodes.com
PR1501/S - PR1505/S
ã
Diodes Incorporated
NOT RECOMMENDED FOR NEW DESIGN
I
(AV)
, AVERAGE FWD RECTIFIED CURRENT (A)
1.5
10
1.2
I
F
, INSTANTANEOUS FWD CURRENT (A)
Single phase half-wave
60 Hz resistive or inductive load
1.0
0.9
0.6
0.1
0.3
0
25
0.01
125
150
175
200
50
75
100
0.6
0.8
1.0
1.2
1.4
T
A
, AMBIENT TEMPERATURE (
°
C)

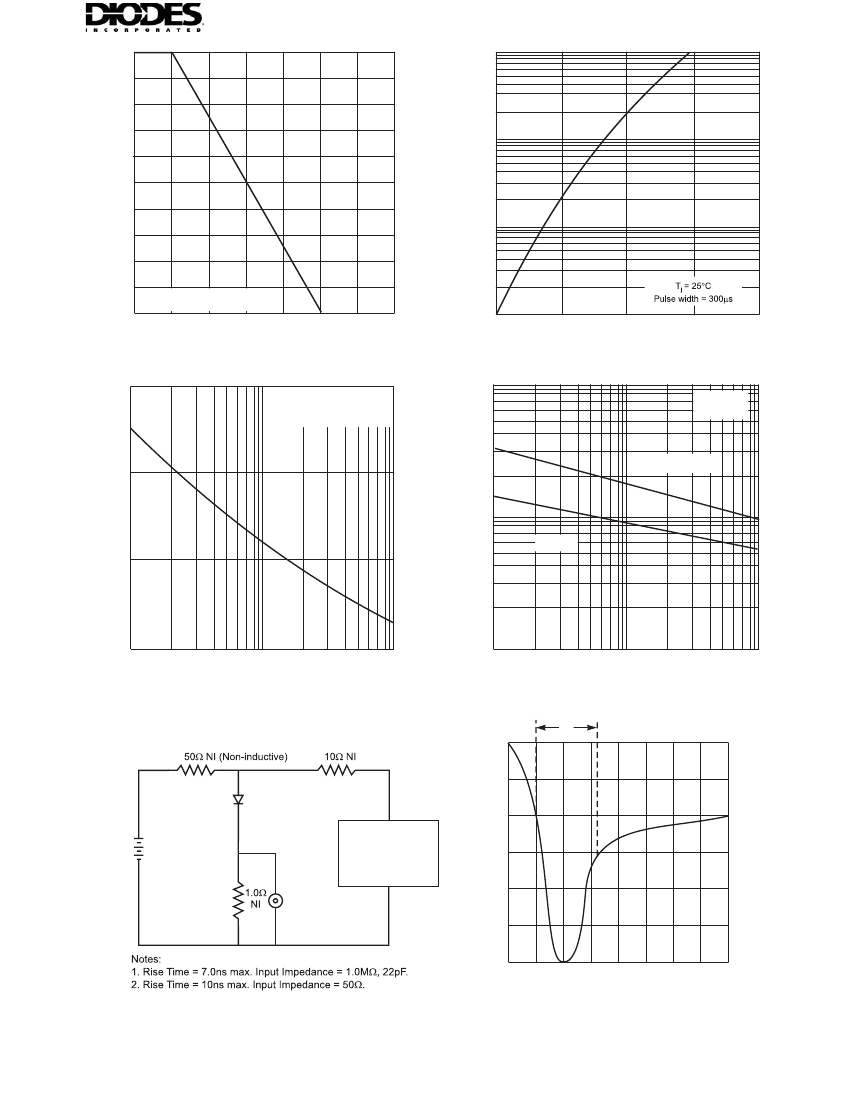

Fig. 1 Forward Derating Curve
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)
Fig. 2 Typical Forward Characteristics
60
100
Pulse Width 8.3ms
Single Half-Sine-Wave
(JEDEC Method)
I
FSM
, PEAK FORWARD SURGE CURRENT (A)
T
A
= 25
°
C
f = 1.0MHz
C
j
, CAPACITANCE (pF)
40
PR1501 - PR1504
10
PR1505
20
0
1
10
NUMBER OF CYCLES AT 60Hz
Fig. 3 Peak Forward Surge Current
100
1
1
10
V
R
, REVERSE VOLTAGE (V)
Fig. 4 Typical Junction Capacitance
t
rr
+0.5A
100
Device
Under
Test
(-)
Pulse
Generator
(Note 2)
0A
(+)
50V DC
Approx
-0.25A
(-)
Oscilloscope
(Note 1)
(+)
-1.0A
Set time base for 50/100 ns/cm
Fig. 5 Reverse Recovery Time Characteristic and Test Circuit
DS26011 Rev. 4 - 2
2 of 3
www.diodes.com
PR1501/S - PR1505/S
NOT RECOMMENDED FOR NEW DESIGN
Ordering Information
(Note 5)
Device
PR1501S-A
PR1501S-B
PR1501S-T
PR1502S-A
PR1502S-B
PR1502S-T
PR1503S-A
PR1503S-B
PR1503S-T
PR1504S-A
PR1504S-B
PR1504S-T
PR1505S-A
PR1505S-B
PR1505S-T
PR1501-B
PR1501-T
PR1502-B
PR1502-T
PR1503-B
PR1503-T
PR1504-B
PR1504-T
PR1505-B
PR1505-T
Notes:
Packaging
DO-41
DO-41
DO-41
DO-41
DO-41
DO-41
DO-41
DO-41
DO-41
DO-41
DO-41
DO-41
DO-41
DO-41
DO-41
DO-15
DO-15
DO-15
DO-15
DO-15
DO-15
DO-15
DO-15
DO-15
DO-15
Shipping
5K/Ammo Pack
1K/Bulk
5K/Tape & Reel, 13-inch
5K/Ammo Pack
1K/Bulk
5K/Tape & Reel, 13-inch
5K/Ammo Pack
1K/Bulk
5K/Tape & Reel, 13-inch
5K/Ammo Pack
1K/Bulk
5K/Tape & Reel, 13-inch
5K/Ammo Pack
1K/Bulk
5K/Tape & Reel, 13-inch
1K/Bulk
4K/Tape & Reel, 13-inch
1K/Bulk
4K/Tape & Reel, 13-inch
1K/Bulk
4K/Tape & Reel, 13-inch
1K/Bulk
4K/Tape & Reel, 13-inch
1K/Bulk
4K/Tape & Reel, 13-inch
5. For packaging details, visit our website at http://www.diodes.com/datasheets/ap02008.pdf
