MC74HC390ANG datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> MC74HC390ANG

MC74HC390ANG: DescriptionCounter Shift Registers 2-6V Dual 4-Stage Binary w/Divide-by-2; Categorylogic logic; File Size112KB，8 Pages; ManufacturerON Semiconductor; Websitehttp://www.onsemi.cn; Environmental Compliance

Download Datasheet Parametric Compare View All

MC74HC390ANG Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MC74HC390ANG	-	-	View	Buy Now

MC74HC390ANG Overview

Counter Shift Registers 2-6V Dual 4-Stage Binary w/Divide-by-2

MC74HC390ANG Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ON Semiconductor
Parts packaging code	DIP
package instruction	HALOGEN AND ROHS COMPLIANT, PLASTIC, DIP-16
Contacts	16
Reach Compliance Code	unknown
Factory Lead Time	1 week
Other features	ONE FUNCTION HAS 1 BIT
Counting direction	UP
series	HC/UH
JESD-30 code	R-PDIP-T16
JESD-609 code	e3
length	19.175 mm
Load capacitance (CL)	50 pF
Load/preset input	NO
Logic integrated circuit type	DECADE COUNTER
Maximum Frequency@Nom-Sup	25000000 Hz
MaximumI(ol)	0.004 A
Operating mode	ASYNCHRONOUS
Number of digits	3
Number of functions	2
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
method of packing	RAIL
Peak Reflow Temperature (Celsius)	260
power supply	2/6 V
propagation delay (tpd)	300 ns
Certification status	Not Qualified
Maximum seat height	4.44 mm
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Matte Tin (Sn) - annealed
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	40
Trigger type	NEGATIVE EDGE
width	7.62 mm
minfmax	40 MHz

Preview

Download Datasheet

View All

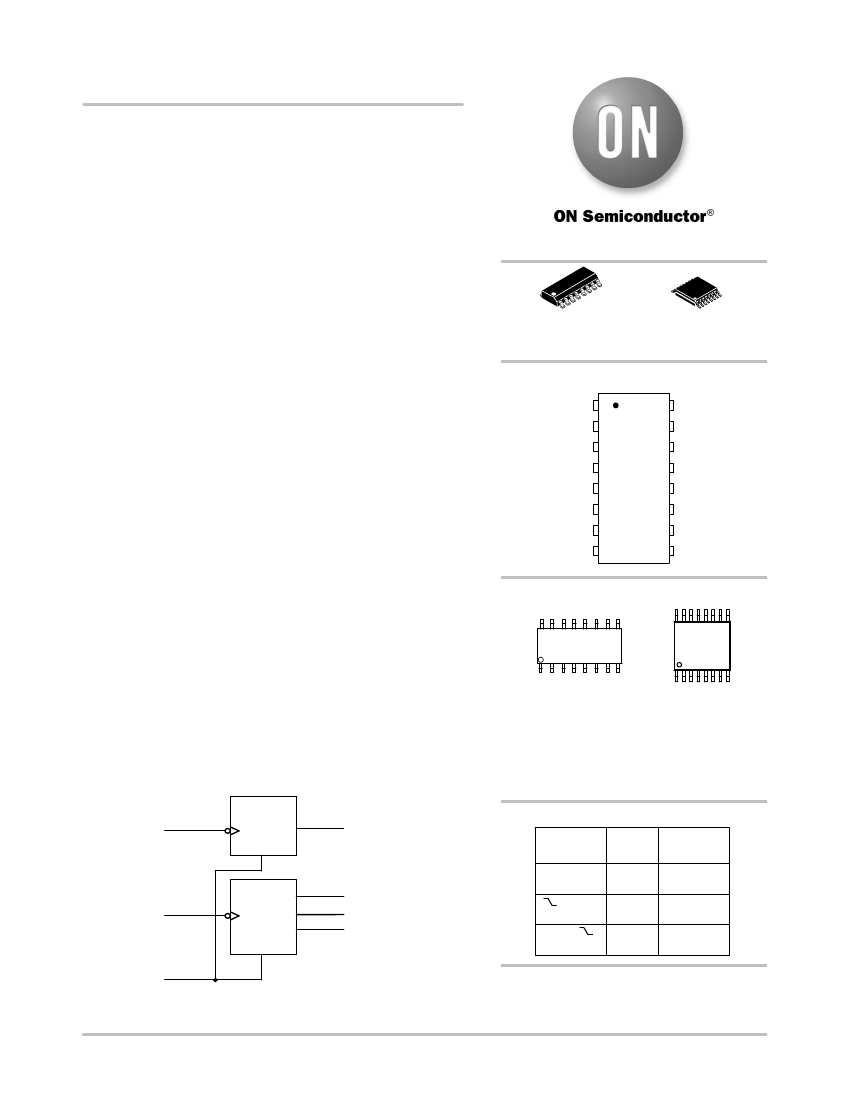

MC74HC390A

Dual 4-Stage Binary Ripple

Counter with

2 and

Sections

High−Performance Silicon−Gate CMOS

http://onsemi.com

The MC74HC390A is identical in pinout to the LS390. The device

inputs are compatible with standard CMOS outputs; with pullup

resistors, they are compatible with LSTTL outputs.

This device consists of two independent 4−bit counters, each

composed of a divide−by−two and a divide−by−five section. The

divide−by−two and divide−by−five counters have separate clock

inputs, and can be cascaded to implement various combinations of

and/or

5 up to a

100 counter.

Flip−flops internal to the counters are triggered by high−to−low

transitions of the clock input. A separate, asynchronous reset is

provided for each 4−bit counter. State changes of the Q outputs do not

occur simultaneously because of internal ripple delays. Therefore,

decoded output signals are subject to decoding spikes and should not

be used as clocks or strobes except when gated with the Clock of the

HC390A.

Features

SOIC−16

D SUFFIX

CASE 751B

TSSOP−16

DT SUFFIX

CASE 948F

PIN ASSIGNMENT

CLOCK A

RESET a

CLOCK B

GND

CLOCK A

RESET b

CLOCK B

•

Output Drive Capability: 10 LSTTL Loads

Outputs Directly Interface to CMOS, NMOS, and TTL

Operating Voltage Range: 2.0 to 6.0 V

Low Input Current: 1

High Noise Immunity Characteristic of CMOS Devices

In Compliance with the Requirements Defined by JEDEC Standard

No 7 A

•

Chip Complexity: 244 FETs or 61 Equivalent Gates

•

NLV Prefix for Automotive and Other Applications Requiring

Unique Site and Control Change Requirements; AEC−Q100

Qualified and PPAP Capable

•

These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS

Compliant

MARKING DIAGRAMS

HC390AG

AWLYWW

SOIC−16

L, WL

Y, YY

W, WW

G or

TSSOP−16

= Assembly Location

= Wafer Lot

= Year

= Work Week

= Pb−Free Package

390A

ALYWG

(Note: Microdot may be in either location)

COUNTER

3, 13

CLOCK A

1, 15

FUNCTION TABLE

Clock

PIN 16 = V

PIN 8 = GND

Reset

Action

Reset

2 and

Increment

5, 11

CLOCK B

4, 12

COUNTER

6, 10

7, 9

RESET

2, 14

ORDERING INFORMATION

See detailed ordering and shipping information in the package

dimensions section on page 6 of this data sheet.

Figure 1. Logic Diagram

Semiconductor Components Industries, LLC, 2014

August, 2014 − Rev. 7

Publication Order Number:

MC74HC390A/D

MC74HC390ANG Related Products

	MC74HC390ANG	MC74HC390AFELG
Description	Counter Shift Registers 2-6V Dual 4-Stage Binary w/Divide-by-2	Counter Shift Registers 2-6V Dual 4-Stage Binary w/Divide-by-2
Is it Rohs certified?	conform to	conform to
Maker	ON Semiconductor	ON Semiconductor
Parts packaging code	DIP	SOIC
package instruction	HALOGEN AND ROHS COMPLIANT, PLASTIC, DIP-16	SOP, SOP16,.3
Contacts	16	16
Reach Compliance Code	unknown	unknown
Factory Lead Time	1 week	1 week
Other features	ONE FUNCTION HAS 1 BIT	ONE FUNCTION HAS 1 BIT
Counting direction	UP	UP
series	HC/UH	HC/UH
JESD-30 code	R-PDIP-T16	R-PDSO-G16
JESD-609 code	e3	e4
length	19.175 mm	10.2 mm
Load capacitance (CL)	50 pF	50 pF
Load/preset input	NO	NO
Logic integrated circuit type	DECADE COUNTER	DECADE COUNTER
Maximum Frequency@Nom-Sup	25000000 Hz	25000000 Hz
MaximumI(ol)	0.004 A	0.004 A
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS
Number of digits	3	3
Number of functions	2	2
Number of terminals	16	16
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SOP
Encapsulate equivalent code	DIP16,.3	SOP16,.3
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE
method of packing	RAIL	TAPE AND REEL
Peak Reflow Temperature (Celsius)	260	260
power supply	2/6 V	2/6 V
propagation delay (tpd)	300 ns	300 ns
Certification status	Not Qualified	Not Qualified
Maximum seat height	4.44 mm	2.05 mm
Maximum supply voltage (Vsup)	6 V	6 V
Minimum supply voltage (Vsup)	2 V	2 V
Nominal supply voltage (Vsup)	5 V	3 V
surface mount	NO	YES
technology	CMOS	CMOS
Temperature level	MILITARY	MILITARY
Terminal surface	Matte Tin (Sn) - annealed	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal form	THROUGH-HOLE	GULL WING
Terminal pitch	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	40	40
Trigger type	NEGATIVE EDGE	NEGATIVE EDGE
width	7.62 mm	5.275 mm
minfmax	40 MHz	40 MHz
