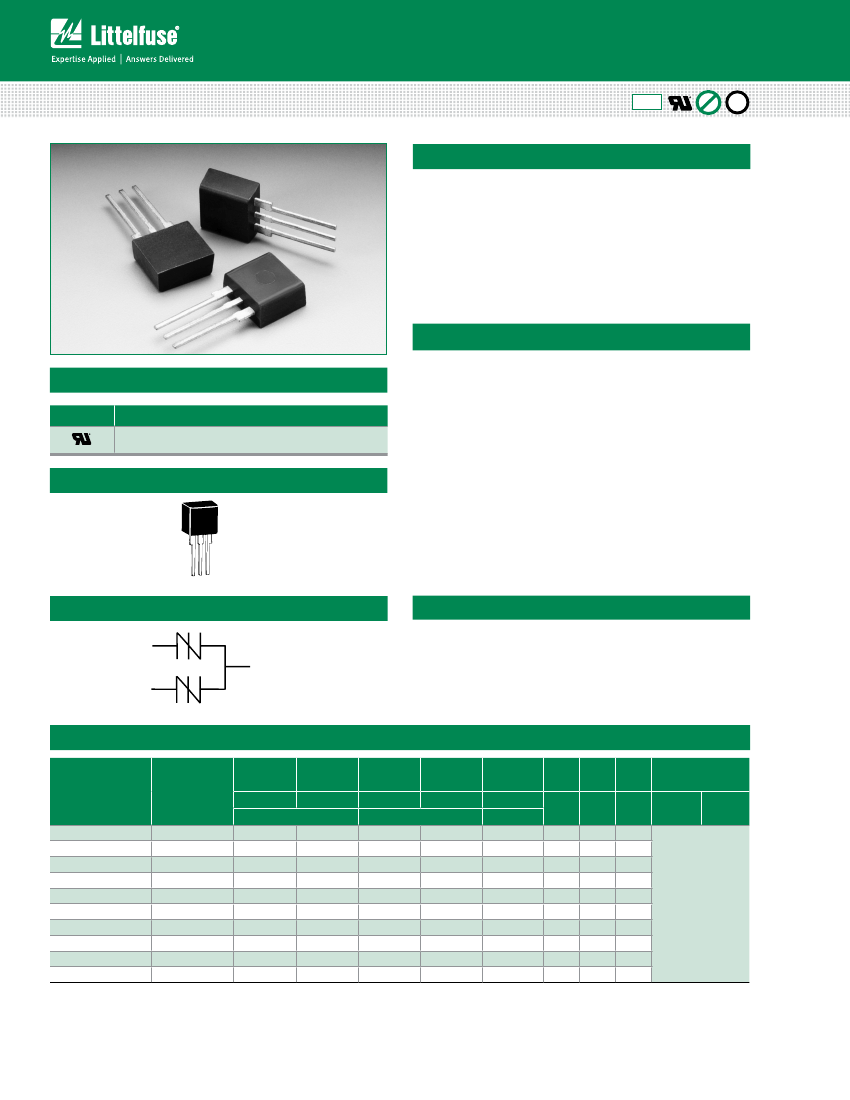

SIDACtor
®
Protection Thyristors

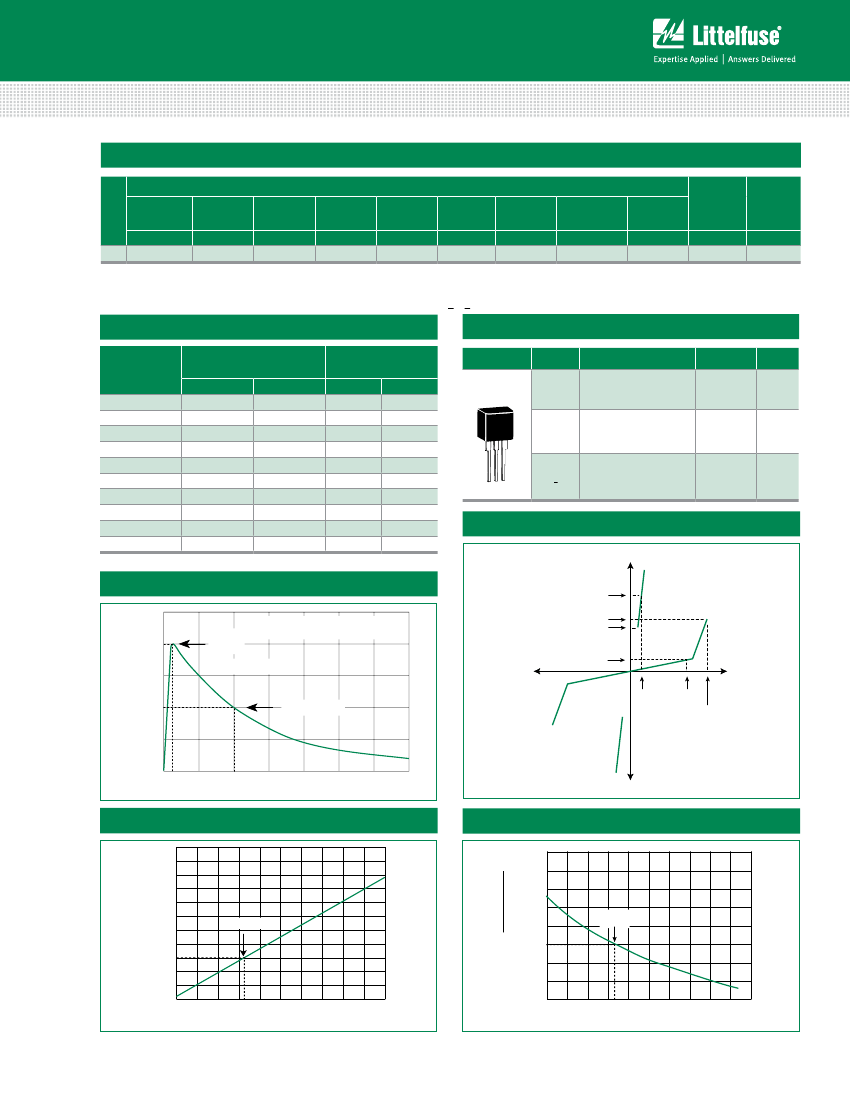

High Surge Current Protection
SIDACtor
®
Primary Protection Series - Modified TO-220
Description
RoHS
Pb
e3
The SIDACtor
®
Primary Protection Series Modified TO-220
thyristors are components designed for use in primary
protection applications.
The series provides a single port overvoltage solution that
enables applications to comply with GR-974 and a range of
other global regulatory standards. Please contact Littelfuse
to discuss your particular application and regulatory
requirements.
Features and Benefits
•
Agency Approvals
•
Agency
Agency File Number
E133083
High holding current
options available
Failsafe option
available
Low voltage overshoot
Low on-state voltage
Does not degrade
surge capability after
multiple surge events
within limit.
RoHS Compliant and
Halogen-Free
Fails short circuit
•
•
•
•
when surged in
excess of ratings
Single-port protection
Modified TO-220
Package
Lead forms available
Pb-free E3 means
2nd level interconnect
is Pb-free and the
terminal finish
material is tin(Sn)
(IPC/JEDEC J-STD-
609A.01)
•
•
•
Pinout Designation
•
PIN 1
PIN 2
PIN 3
•
Schematic Symbol
1
(T)
3
(R)
2
(G)
Applicable Global Standards
•
•
•
GR-974
UL 497
ITU K.28
Electrical Characteristics
V
S
V
DRM
V
S
V
T
V
DRM
@l
DRM
=5µA @100V/µs @l
DRM
=5µA @100V/µs @I
T
=2.2 A
V min
V max
V min
V max
Pins 1-3
V max
Pins 1-2, 3-2
Pins 1-2, 3-2
I
H
*
mA
min
I
S
mA
max
I
T
A max
Capacitance
@1MHz, 2V bias
Part Number
Marking
pF min
pF max
P0602ACLxx
P1402ACLxx
P1602ACLxx
P2202ACLxx
P2702ACLxx
P3002ACLxx
P3602ACLxx
P4202ACLxx
P4802ACLxx
P6002ACLxx
P0602AC
P1402AC
P1602AC
P2202AC
P2702AC
P3002AC
P3602AC
P4202AC
P4802AC
P6002AC
25
58
65
90
120
140
170
190
220
275
40
77
95
130
160
180
220
250
300
350
50
116
130
180
240
280
340
380
440
550
80
154
190
260
320
360
440
500
600
700
4
4
4
4
4
4
4
4
4
4
50
150
150
150
150
150
150
150
150
150
800
800
800
800
800
800
800
800
800
800
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
See
Capacitance
Values
Table
Notes:
* Higher holding current available by special order. Contact Littelfuse for additional information. -
xx
Part Number Suffix: ‘RP’ (Reel pack),
Blank
(Bulk pack),
‘60’
(Type 60 lead form bulk pack),
- Absolute maximum ratings measured at T
A
= 25ºC (unless otherwise noted).
‘FS1’ (Failsafe option bulk pack). Refer to Part Numbering section for additional details.
- Devices are bi-directional (unless otherwise noted).
© 2017 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 02/23/17
High Surge Current Protection
SIDACtor
®
Protection Thyristors
Surge Ratings
I
PP
0.2x310
1
0.5x700
2
A min
50
2x10
1
2x10
2
A min
500
8x20
1
1.2x50
2
A min
400
10x160
1
10x160
2
A min
200
10x560
1
10x560
2
A min
150
5x320
1
9x720
2
A min
200
10x360
1
10x360
2
A min
175
10x1000
1
10x1000
2
A min
100
5x310
1
10x700
2
A min
200
I
TSM
50/60 Hz
A min
50
Series
di/dt
A/µs min
500
C
Notes:
1 Current waveform in µs
2 Voltage waveform in µs
- Peak pulse current rating (I
PP
) is repetitive and guaranteed for the life of the product.
- I
PP
ratings applicable over temperature range of -40ºC to +85ºC
- The device must initially be in thermal equilibrium with -40°C < T
J
< +150°C
Capacitance Values
Part Number
P0602ACLxx
P1402ACLxx
P1602ACLxx
P2202ACLxx
P2702ACLxx
P3002ACLxx
P3602ACLxx
P4202ACLxx
P4802ACLxx
P6002ACLxx
Pin 1-2 / 3-2
Tip-Ground, Ring-Ground
pF min
35
105
95
75
70
65
65
60
60
55
pF max
65
155
145
115
105
95
90
85
85
80
Pin 1-3
Tip-Ring
pF min
20
60
50
40
40
35
35
35
30
30
pF max
40
90
85
65
60
55
50
50
50
45
Thermal Considerations
Package
Modified
TO-220
Symbol
T
J
T
S
Parameter
Operating Junction
Temperature Range
Storage Temperature
Range
Thermal Resistance:
Junction to Ambient
Value
-40 to
+150
-65 to
+150
60
Unit
°C
°C
PIN 1
PIN 2
PIN 3
R
0JA
°C/W
V-I Characteristics
+I
Note: Off-state capacitance (C
O
) is measured at 1 MHz with a 2 V bias.
t
r
x t
d
Pulse Waveform
I
PP
– Peak Pulse Current – %I
PP
t
r
= rise time to peak value
t
d
= decay time to half value
I
T
I
S
I
H
I
DRM
V
T
Half Value
100
Peak
Value
Waveform = t
r
x t
d
-V
+V
V
DRM
V
S
50
0
0
t
r
t
d
t – Time (µs)
-I
Normalized V
S
Change vs. Junction Temperature
14
Normalized DC Holding Current vs. Case Temperature
2.0
Percent of V
S
Change – %
10
8
6
4
2
0
-4
-6
-8
-40 -20
0
20
40 60
80 100 120 140 160
I
H
(T
C
= 25ºC)
12
1.8
1.6
1.4
1.2
1.0
0.8
0.6
0.4
-40
-20
0
20
40
60
80
100 120 140 160
I
H
25 °C
25°C
Ratio of
Junction Temperature (T
J
) – °C
© 2017 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 02/23/17
Case Temperature (T
C
) - ºC
SIDACtor
®
Protection Thyristors
High Surge Current Protection

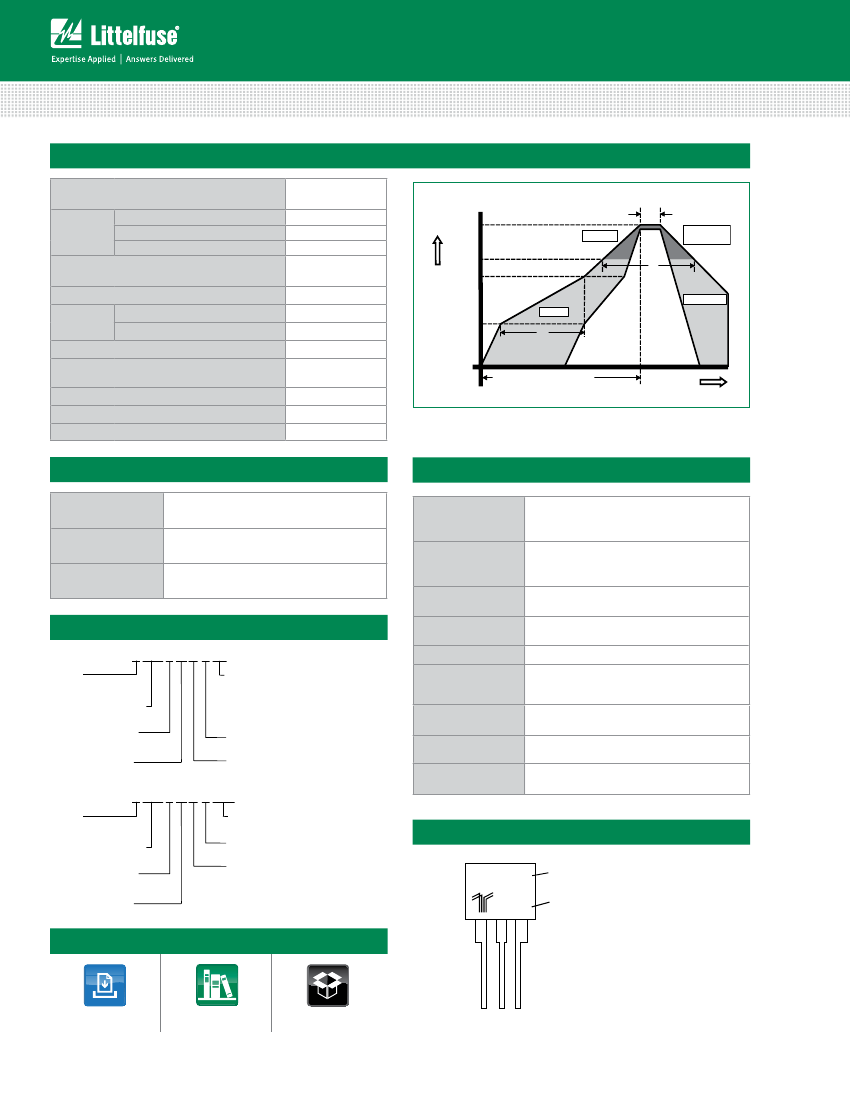

Soldering Parameters
Reflow Condition
- Temperature Min (T
s(min)
)
Pre Heat
- Temperature Max (T
s(max)
)
- Time (Min to Max) (t
s
)
Pb-Free assembly
(see Fig. 1)
+150°C
+200°C
60-180 secs.
Figure 1
T
P
Ramp-up
t
P
Critical Zone
T
L
to T
P
T
S(max)
to T
L
- Ramp-up Rate
Reflow
- Temperature (T
L
) (Liquidus)
- Temperature (t
L
)
3°C/sec. Max.
+217°C
60-150 secs.
+260(+0/-5)°C
30 secs. Max.
6°C/sec. Max.
8 min. Max.
+260°C
Temperature
Average ramp up rate (Liquidus Temp (T
L
)
to peak)
3°C/sec. Max.
T
L
T
S(max)
T
S(min)
Preheat
t
L
Ramp-down
t
S
Peak Temp (T
P
)
Time within 5°C of actual Peak Temp (t
p
)
Ramp-down Rate
Time 25°C to Peak Temp (T
P
)
Do not exceed
25
time to peak temperature
(t 25ºC to peak)
Time
Physical Specifications
Lead Material
Terminal Finish
Body Material
Copper Alloy
100% Matte-Tin Plated
UL Recognized epoxy meeting
flammability classification V-0
Environmental Specifications
High Temp Voltage
Blocking
80% Rated V
DRM
(V
AC
Peak ) +125°C or +150°C,
504 or 1008 hrs. MIL
-STD-750 (Method 1040)
JEDEC, JESD22-A-101
-65°C to +150°C, 15 min. dwell, 10 up to 100
cycles. MIL
-STD-750 (Method 1051) EIA/JEDEC,
JESD22-A104
52 V
DC
(+85°C) 85%RH, 504 up to 1008 hrs. EIA/
JEDEC, JESD22-A-101
+150°C 1008 hrs. MIL-STD-750 (Method 1031)
JEDEC, JESD22-A-101
-65°C, 1008 hrs.
0°C to +100°C, 5 min. dwell, 10 sec. transfer,
10 cycles. MIL
-STD-750 (Method 1056) JEDEC,
JESD22-A-106
+121°C, 100%RH, 2atm, 24 up to 168 hrs. EIA/
JEDEC, JESD22-A-102
+260°C, 30 secs. MIL
-STD-750 (Method 2031)
85%RH, +85°C, 168 hrs., 3 reflow cycles
(+260°C Peak). JEDEC-J-STD-020, Level 1
Temp Cycling
Biased Temp &
Humidity
High Temp Storage
Low Temp Storage
Part Numbering
P
xxx 2 A C L xx
TYPE
PACKING OPTIONS
Blank:
Bulk
RP:
Reel Pack
60:
Type 60 Lead Form
(for type 60 orders, contact factory).
P
= SIDACtor
Thermal Shock
Autoclave (Pressure
Cooker Test)
Resistance to Solder
Heat
Moisture Sensitivity
Level
MEDIAN VOLTAGE
CONSTRUCTION
VARIABLE
PACKAGE TYPE
RoHS COMPLIANT
I
PP
RATING
P
xxx 2 A C L FS1
TYPE
FAILSAFE OPTION*
RoHS COMPLIANT
I
PP
RATING
* Failsafe devices are only offered in
bulk pack, reel pack not available.
P
= SIDACtor
Part Marking
Part Marking Code
(Refer to Electrical Characteristics Table)
MEDIAN VOLTAGE
CONSTRUCTION
VARIABLE
PACKAGE TYPE
XXXXXXXXX
xxxxx
Date Code
Additional Information
Datasheet
Resources
Samples
© 2017 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 02/23/17
High Surge Current Protection
SIDACtor
®
Protection Thyristors

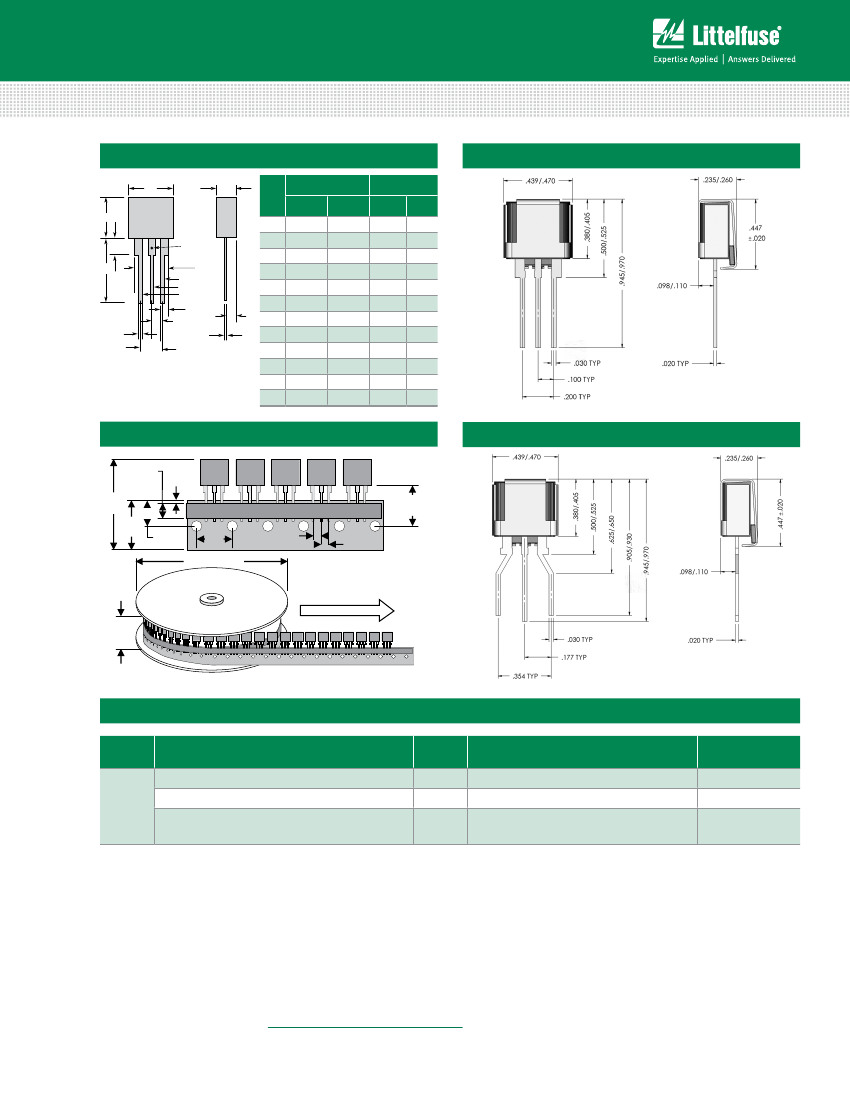

Dimensions - Modified TO-220
A
O
Dimensions - Modified TO-220 with Failsafe
Inches
Min
Max
0.410
0.375
0.130
0.575
0.035
0.205
0.105
0.075
0.085
0.024
0.188
0.310
Millimeters
Min
9.14
2.80
0.63
4.95
2.41
1.52
1.78
0.46
4.52
7
.37
Max
9.53
3.30
0.89
5.21
2.67
1.90
2.16
0.61
4.78
7
.87
D
A
F
Temperature
Measurement
Point
P
PIN 3
PIN 2
PIN 1
L
K
H
J
M
N
0.400
0.360
0.110
0.540
0.025
0.195
0.095
0.060
0.070
0.018
0.178
0.290
10.16 10.42
D
F
G
H
J
K
L
M
G
13.71 14.61
The modified TO-220 package is designed to
meet mechanical standards as set forth in
JEDEC publication number 95.
N
O
P
Tape and Reel Specification - Modified TO-220
0.240
(6.10)
1.626
(41.15)
0.720
(18.29)
0.360
(9.14)
0.500
(12.7)
Dimensions - Modified TO-220 Type 60 with Failsafe
0.019
(0.5)
0.750 ± 0.010
(19.05 ± 0.25)
0.100
(2.54)
0.100
(2.54)
14.173 (360.0)
Dimensions are in inches
(and millimeters).
Direction of Feed
1.968
(50.0)
Packing Options
Package
Type
Description
Modified TO-220 Tape and Reel Pack
A
Modified TO-220 Bulk Pack
Modified TO-220 Type 60 Lead Form Bulk Pack
Quantity
700
500
500
Added Suffix
RP
(no added suffix)
60
(special order item, contact factory for details)
Industry Standard
EIA-468-B
N/A
N/A
Disclaimer Notice - Information furnished is believed to be accurate and reliable. However, users should independently evaluate the suitability of and
test each product selected for their own applications. Littelfuse products are not designed for, and may not be used in, all applications.
Read complete Disclaimer Notice at
www.littelfuse.com/disclaimer-electronics.
© 2017 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 02/23/17
