ICL3221EIAZ: DescriptionRS-232 Interface IC RS232 3V 1D/1R 15KV AUTODWN 16SSOP IND; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size1MB，33 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/; Related ProductsFound17parts with similar functions to ICL3221EIAZ

Download Datasheet Parametric Compare View All

ICL3221EIAZ Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ICL3221EIAZ	-	-	View	Buy Now

ICL3221EIAZ Overview

RS-232 Interface IC RS232 3V 1D/1R 15KV AUTODWN 16SSOP IND

ICL3221EIAZ Parametric

Parameter Name	Attribute value
Brand Name	Intersil
Maker	Renesas Electronics Corporation
Parts packaging code	SSOP, TSSOP
package instruction	ROHS COMPLIANT, PLASTIC, MO-150AC, SSOP-16
Contacts	16, 16
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	6 weeks
Samacsys Description	RS-232 Transmitters/Receivers
Differential output	NO
Number of drives	1
Input properties	SCHMITT TRIGGER
Interface integrated circuit type	LINE TRANSCEIVER
Interface standards	EIA-232; TIA-232; V.24; V.28
JESD-30 code	R-PDSO-G16
JESD-609 code	e3
length	6.2 mm
Humidity sensitivity level	3
Number of functions	1
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Minimum output swing	10 V
Maximum output low current	0.0016 A
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Encapsulate equivalent code	SSOP16,.3
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260
power supply	3.3/5 V
Certification status	Not Qualified
Maximum receive delay
Number of receiver bits	1
Maximum seat height	2 mm
Maximum slew rate	1 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	3 V
Nominal supply voltage	3.15 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Matte Tin (Sn) - annealed
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
width	5.3 mm
Base Number Matches	1

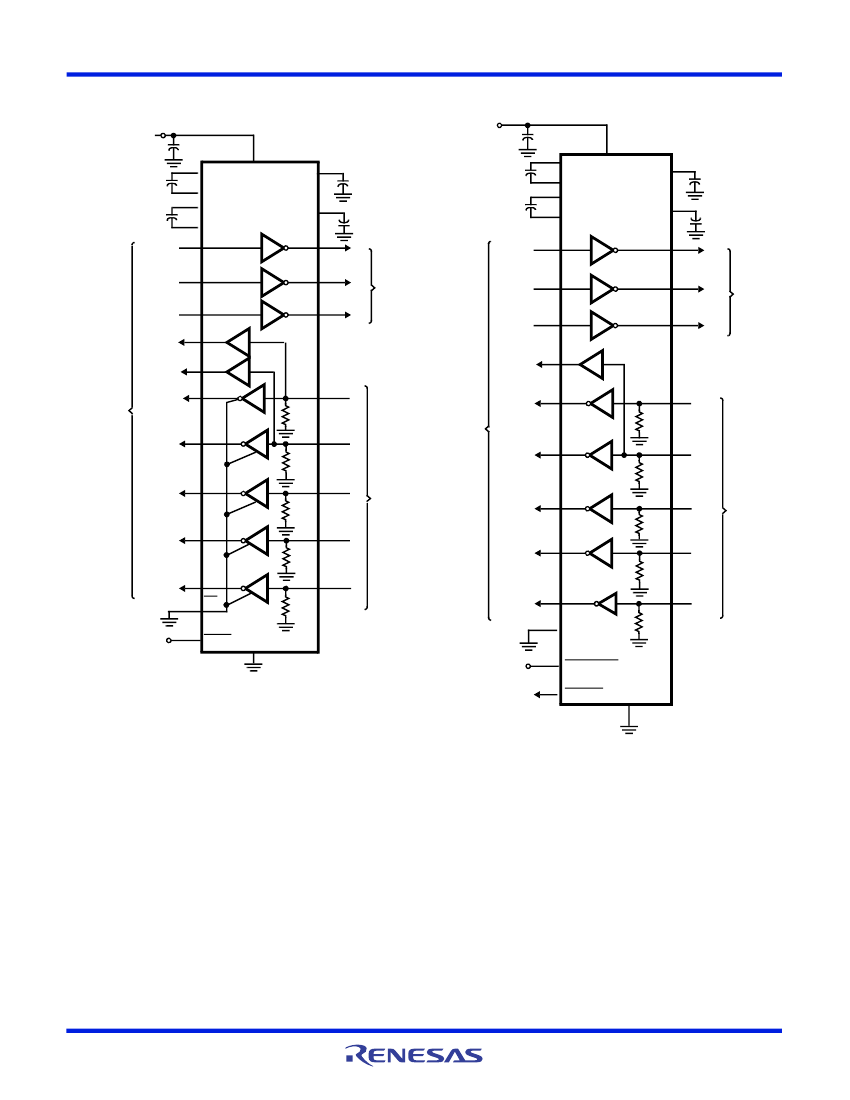

Preview

Download Datasheet

View All

DATASHEET

ICL3221E, ICL3222E, ICL3223E, ICL3232E, ICL3241E,

ICL3243E

The Intersil ICL32xxE devices are 3.0V to 5.5V

powered RS-232 transmitters/receivers which meet

ElA/TIA-232 and V.28/V.24 specifications, even at V

= 3.0V. Additionally, they provide

15kV ESD

protection (IEC61000-4-2 Air Gap and Human Body

Model) on transmitter outputs and receiver inputs (RS-

232 pins). Targeted applications are PDAs, Palmtops,

and notebook and laptop computers where the low

operational, and even lower standby, power

consumption is critical. Efficient on-chip charge pumps,

coupled with manual and automatic power-down

functions (except for the ICL3232E), reduce the

standby supply current to a 1µA trickle. Small footprint

packaging, and the use of small, low value capacitors

ensure board space savings as well. Data rates greater

than 250kbps are guaranteed at worst case load

conditions. This family is fully compatible with 3.3V-

only systems, mixed 3.3V and 5.0V systems, and

5.0V-only systems.

The ICL324XE are 3-driver, 5-receiver devices that

provide a complete serial port suitable for laptop or

notebook computers. Both devices also include

noninverting always-active receivers for “wake-up”

capability.

The

ICL3221E, ICL3223E and ICL3243E,

feature

automatic power-down

function which powers

down the on-chip power-supply and driver circuits.

This occurs when an attached peripheral device is shut

off or the RS-232 cable is removed, conserving system

power automatically without changes to the hardware

or operating system. These devices power up again

when a valid RS-232 voltage is applied to any receiver

input.

Table 1 summarizes the features of the devices

represented by this data sheet, while Application Note

AN9863

summarizes the features of each device

comprising the ICL32xxE 3V family.

FN4910

Rev 22.00

December 9, 2015

Features

• ESD Protection for RS-232 I/O Pins to

15kV

(IEC61000)

• Drop in Replacements for MAX3221E, MAX3222E,

MAX3223E, MAX3232E, MAX3241E, MAX3243E,

SP3243E

• ICL3221E is a Low Power, Pin Compatible Upgrade

for 5V MAX221E

• ICL3222E is a Low Power, Pin Compatible Upgrade

for 5V MAX242E, and SP312E

• ICL3232E is a Low Power Upgrade for HIN232E,

ICL232 and Pin Compatible Competitor Devices

• RS-232 Compatible with V

= 2.7V

• Meets EIA/TIA-232 and V.28/V.24 Specifications at 3V

• Latch-Up Free

• On-Chip Voltage Converters Require Only Four

External 0.1µF Capacitors

• Manual and Automatic Power-Down Features

• Guaranteed Mouse Driveability (ICL324xE Only)

• Receiver Hysteresis For Improved Noise Immunity

• Guaranteed Minimum Data Rate 250kbps

• Wide Power Supply Range Single +3V to +5.5V

• Low Supply Current in Power-Down State1µA

• Pb-Free Available (RoHS Compliant)

Applications

• Any System Requiring RS-232 Communication

Ports

- Battery Powered, Hand-Held, and Portable

Equipment

- Laptop Computers, Notebooks, Palmtops

- Modems, Printers and other Peripherals

- Digital Cameras

- Cellular/Mobile Phones

Related Literature

• Technical Brief

TB363

“Guidelines for Handling and

Processing Moisture Sensitive Surface Mount

Devices (SMDs)”

FN4910 Rev 22.00

December 9, 2015

Page 1 of 33

ICL3221EIAZ Related Products

	ICL3221EIAZ	ICL3241EIAZ	ICL3232EIBZ	ICL3222EIBZ-T	ICL3221EIAZ-T7A	ICL3221EIAZ-T	ICL3241EIAZ-T	ICL3241EIBZ
Description	RS-232 Interface IC RS232 3V 1D/1R 15KV AUTODWN 16SSOP IND	RS-232 Interface IC RS232 3V 3D/5R 15KV SHTDWN IND	RS-232 Interface IC RS232 3V 2D/2R 15KV 16 IND	RS-232 Interface IC RS232 3V 2D/2R 15KV SHTDWN 18 INDEL	RS-232 Interface IC RS232 3V 1D/1R 15KV AUTODWN IND	RS-232 Interface IC RS232 3V 1D/1R 15KV AUTODWN IND	RS-232 Interface IC RS232 3V 3D/5R 15KV SHTDWN INDEL	RS-232 Interface IC RS232 3V 3D/5R 15KV SHTDWN 28 IND
Maker	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation
package instruction	ROHS COMPLIANT, PLASTIC, MO-150AC, SSOP-16	SSOP, SSOP28,.3	SOP, SOP16,.4	SOP, SOP18,.4	,	ROHS COMPLIANT, PLASTIC, MO-150AC, SSOP-16	SSOP, SSOP28,.3	ROHS COMPLIANT, PLASTIC, MS-013AE, SOIC-28
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Base Number Matches	1	1	1	1	1	1	1	1
Brand Name	Intersil	Intersil	Intersil	Intersil	-	Intersil	Intersil	Intersil
Parts packaging code	SSOP, TSSOP	SSOP, TSSOP	SOIC, SSOP, TSSOP, TSSOP	SOIC, SSOP, TSSOP	-	SSOP, TSSOP	SSOP, TSSOP	SOIC, SSOP, TSSOP
Contacts	16, 16	28, 28	16, 16, 16, 20	18, 20, 20	-	16, 16	28, 28	28, 28, 28
ECCN code	EAR99	EAR99	EAR99	EAR99	-	EAR99	EAR99	EAR99
Factory Lead Time	6 weeks	3 weeks	24 weeks	10 weeks	-	6 weeks	3 weeks	-
Differential output	NO	NO	NO	NO	-	NO	NO	NO
Number of drives	1	3	2	2	-	1	3	3
Input properties	SCHMITT TRIGGER	SCHMITT TRIGGER	SCHMITT TRIGGER	SCHMITT TRIGGER	-	SCHMITT TRIGGER	SCHMITT TRIGGER	SCHMITT TRIGGER
Interface integrated circuit type	LINE TRANSCEIVER	LINE TRANSCEIVER	LINE TRANSCEIVER	LINE TRANSCEIVER	-	LINE TRANSCEIVER	LINE TRANSCEIVER	LINE TRANSCEIVER
Interface standards	EIA-232; TIA-232; V.24; V.28	EIA-232; TIA-232; V.24; V.28	EIA-232; TIA-232; V.24; V.28	EIA-232; TIA-232; V.24; V.28	-	EIA-232; TIA-232; V.24; V.28	EIA-232; TIA-232; V.24; V.28	EIA-232; TIA-232; V.24; V.28
JESD-30 code	R-PDSO-G16	R-PDSO-G28	R-PDSO-G16	R-PDSO-G18	-	R-PDSO-G16	R-PDSO-G28	R-PDSO-G28
JESD-609 code	e3	e3	e3	e3	-	e3	e3	e3
length	6.2 mm	10.2 mm	10.3 mm	11.55 mm	-	6.2 mm	10.2 mm	17.9 mm
Humidity sensitivity level	3	2	3	3	-	3	2	3
Number of functions	1	3	2	2	-	1	3	3
Number of terminals	16	28	16	18	-	16	28	28
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	-	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-	-40 °C	-40 °C	-40 °C
Minimum output swing	10 V	10 V	10 V	10 V	-	10 V	10 V	10 V
Maximum output low current	0.0016 A	0.0016 A	0.0016 A	0.0016 A	-	0.0016 A	0.0016 A	0.0016 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SSOP	SSOP	SOP	SOP	-	SSOP	SSOP	SOP
Encapsulate equivalent code	SSOP16,.3	SSOP28,.3	SOP16,.4	SOP18,.4	-	SSOP16,.3	SSOP28,.3	SOP28,.4
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE	SMALL OUTLINE	-	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260	260	260	260	-	260	260	260
power supply	3.3/5 V	3.3/5 V	3.3/5 V	3.3/5 V	-	3.3/5 V	3.3/5 V	3.3/5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified
Number of receiver bits	1	5	2	2	-	1	5	5
Maximum seat height	2 mm	2 mm	2.65 mm	2.65 mm	-	2 mm	2 mm	2.65 mm
Maximum slew rate	1 mA	1 mA	1 mA	1 mA	-	1 mA	1 mA	1 mA
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	-	5.5 V	5.5 V	5.5 V
Minimum supply voltage	3 V	3 V	3 V	3 V	-	3 V	3 V	3 V
Nominal supply voltage	3.15 V	3.15 V	3.15 V	3.15 V	-	3.15 V	3.15 V	3.15 V
surface mount	YES	YES	YES	YES	-	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	-	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	-	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Matte Tin (Sn) - annealed	Matte Tin (Sn) - annealed	Matte Tin (Sn) - annealed	Matte Tin (Sn) - annealed	-	Matte Tin (Sn) - annealed	Matte Tin (Sn) - annealed	Matte Tin (Sn) - annealed
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	-	GULL WING	GULL WING	GULL WING
Terminal pitch	0.65 mm	0.65 mm	1.27 mm	1.27 mm	-	0.65 mm	0.65 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	-	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	30	30	30	30	-	30	30	30
width	5.3 mm	5.3 mm	7.5 mm	7.5 mm	-	5.3 mm	5.3 mm	7.5 mm
