3517PC

Description
RCA Phono Connectors PHONO JACK R/A PCB
CategoryThe connector    The connector
File Size118KB,2 Pages
ManufacturerSwitchcraft
Download Datasheet Parametric View All

3517PC Online Shopping

Suppliers Part Number Price MOQ In stock
3517PC - - View Buy Now

3517PC Overview

RCA Phono Connectors PHONO JACK R/A PCB

3517PC Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
Reach Compliance Codecompliant
Body/casing typeJACK
Configuration1X1 HORIZONTAL
Connector typeAUDIO/RCA CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact completed and terminatedTin (Sn)
DIN complianceNO
IEC complianceNO
JESD-609 codee3
MIL complianceNO
Installation typeBOARD
Number of poles2
Number of ports1
OptionsGENERAL PURPOSE
Termination typeSOLDER
Base Number Matches1
0.025
3° APPROXIMATELY
TYPICAL FOR PC
BOARD RETENSION
0.125
TYP (2)
0.062
0.285
0.541
0.31
MOUNTING HOLES
0.328
0.57
0.32
0.26
0.45
0.12
0.05
0.57
0.10
0.28
0.58
0.62
NOTES:
1. MATERIAL:
FRAME AND SHELL - STEEL, TIN PLATED
INSULATORS - CERAMIC AND GLASS FILLED THERMOPLASTIC.
CENTER TERMINAL - BRASS, TIN PLATED OVER COPPER.
2. ALL DIMENSIONS FOR REFERENCE PURPOSES ONLY.
3. THIS PRODUCT IS RoHS COMPLIANT.
A
REV

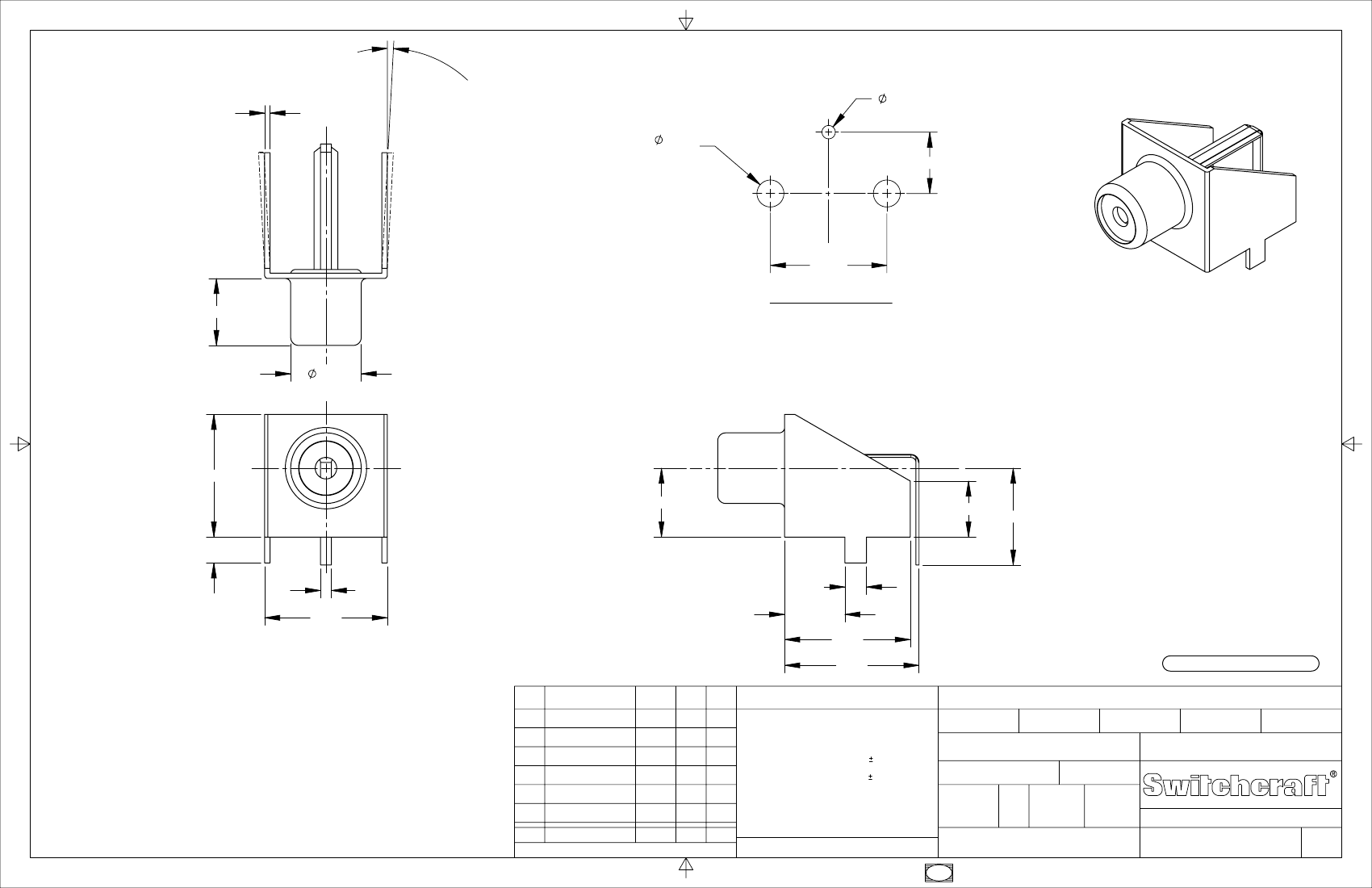

CUSTOMER DRAWING
THIS DRAWING DESCRIBES A DESIGN CONSIDERED PROPRIETARY IN NATURE, DEVELOPED AND MANUFACTURED
BY SWITCHCRAFT INC. AND IS RELEASED ON A CONFIDENTIAL BASIS FOR IDENTIFICATION PURPOSES ONLY.
UNLESS OTHERWISE SPECIFIED
1. ALL DIMENSIONS IN INCHES
- TWO PLACE DECIMALS
- THREE PLACE DECIMALS
0.02
0.005
SIZE
FINISH
WIDTH
MULT
LBS/M
MATERIAL
SPEC No.
TEMPER
SPEC No.
FIRST USED ON
DATE DRAWN
BY
CHKD
1:0.375
RF
8-31-06
TJK
04-23-10
PART No.
APVD
SCALE
26102
ECO NUMBER
07-19-06
DATE
JEB
BY
TJK
APVD
8-31-06
RF
SHEET
1
OF
1
REV
REVISIONS
DO NOT SCALE DRAWING
NAME
PHONE JACK WITH PC
MOUNTING RIGHT ANGLE, RoHS
3517PCX
A
SolidWorks CAD File
B
