Power Dividers
500 MHz - 18.0 GHz High Performance
Full Octave, Multi-Octave, and Ultra-Wideband Performance
Excellent Phase and Amplitude Tracking
Small Lightweight Rugged Stripline Construction
Meets Mil-E-5400 and Mil-E16400
Two Way Isolated
Midwest Microwave's series of high performance isolated Power Dividers are
small, lightweight, ruggedly constructed stripline units that possess inherently
low insertion loss and VSWR with high isolation and excellent phase and
amplitude tracking. Units are available in octave, multi-octave, and ultra-
wideband frequency bandwidths covering the entire range of 0.5 - 18.0 GHz.

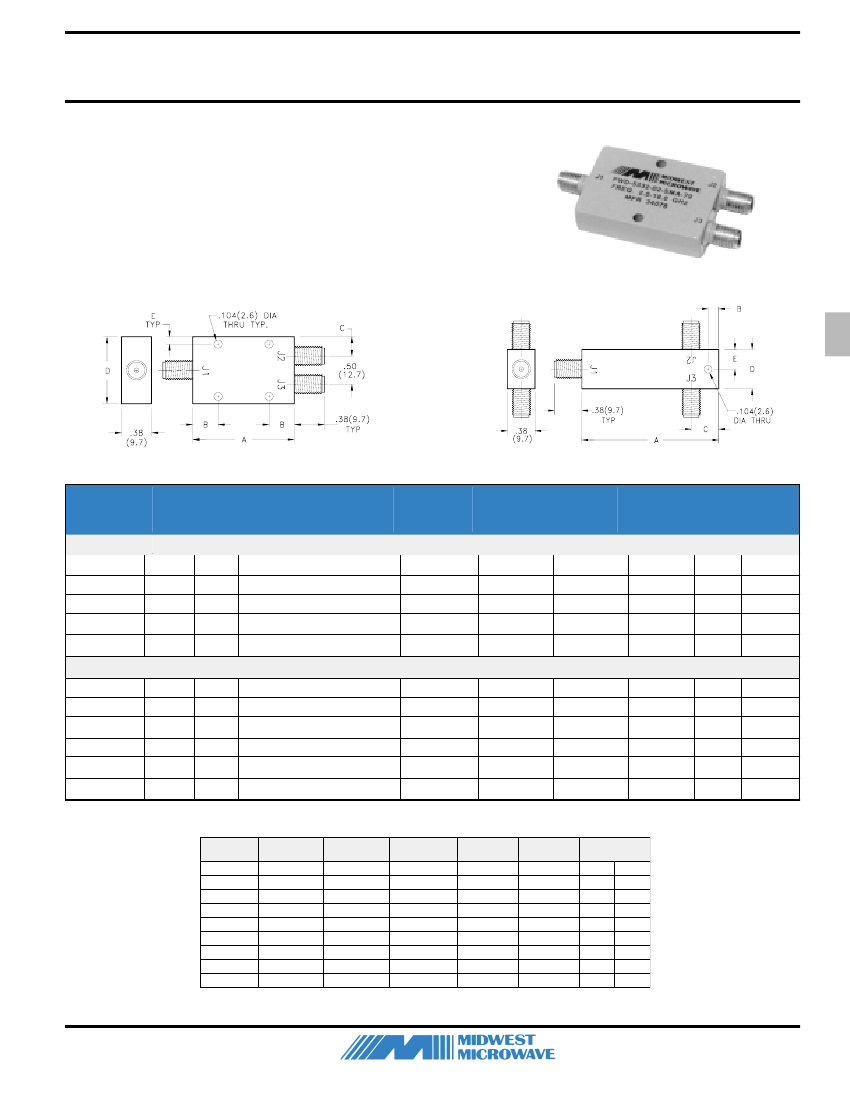

CASE STYLE 1, 2, & 3
CASE STYLE 4
ELECTRICAL SPECIFICATIONS
FR EQU EN C Y
R AN GE
(GH z )
C ASE
STYLE
IN -LIN E TEE**
MOD EL
N U MB ER
AMPLITU D E
B ALAN C E
(dB )
PH ASE
B ALAN C E
(degrees)
IN SER TION
LOSS
(dB ) max
ISOLATION
(dB ) min
VSWR
max
IN PU T
POWER
max (W)
OC TAVE B AN D WID TH TYPES
1.0-2.0
2.0-4.0
4.0-8.0
8.0-12.4
12.4-18.0
2
2
1
1
1
6
7
5
5
5
PWD -5511-02-SMA-79
PWD -5512-02-SMA-79
PWD -5514-02-SMA-79
PWD -5515-02-SMA-79
PWD -5517-02-SMA-79
0.2
0.2
0.2
0.3
0.3
2
2
3
5
5
0.4
0.4
0.5
0.5
0.5
20
20
20
20
20
1.25
1.35
1.35
1.5
1.5
3
3
3
3
3
MU LTI-OC TAVE B AN D WID TH TYPES
.5-2.0
2.0-8.0
6.0-18.0
2.0-18.0
2.0-18.0
0.5-18.0
2
2
1
3
2
4
8
7
5
N/A
7
9
PWD -5520-02-SMA-79
PWD -5522-02-SMA-79
PWD -5526-02-SMA-79
PWD -5532-02-SMA-79
PWD -5533-02-SMA-79
PWD -5530-02-SMA-79
0.2
0.3
0.3
0.25
0.3
0.3
4
4
5
8
5
5
0.5
0.5
0.5
1.0
0.8
0.3+0.1f
20
20
18
15
17
10
1.25
1.35
1.50
1.60
1.50
1.50
3
5
3
10
10
10
** Note: for TEE Type Case Style, substitute "T2" for "02" in Model Number
MECHANICAL SPECIFICATIONS
-
C AS E
S TYLE
1
2
3
4
5
6
7
8
9
A
1.00 (25.4)
2.00 (50.8)
2.25 (57.1)
5.50 (139.7)
1.00 (25.4)
2.00 (50.8)
2.00 (50.8)
2.00 (50.8)
5.50 (139.7)
B
0.50 (12.7)
0.50 (12.7)
0.50 (12.7)
0.75 (19.1)
0.50 (12.7)
0.50 (12.7)
0.50 (12.7)
0.50 (12.7)
0.75 (19.1)
C
0.250(6.35)
0.250 (6.35)
0.250 (6.35)
0.250 (6.35)
0.22 (5.58)
0.22 (5.58)
0.22 (5.58)
0.22 (5.58)
0.40 (10.16)
D
INCHES (mm)
E
0.08 (1.91)
0.08 (1.91)
0.08 (1.91)
0.20 (5.08)
0.08 (1.91)
0.08 (1.91)
0.08 (1.91)
0.08 (1.91)
0.08 (1.91)
WE IGH T
Oz
Gr
1.00
1.60
1.70
3.50
0.60
1.20
1.10
1.40
1.80
27
44
46
96
16
33
30
38
49
1.00 (25.4)
1.00 (25.4)
1.00 (25.4)
1.00 (25.4)
0.050 (12.7)
0.070 (17.8)
0.050 (12.7)
1.00 (25.4)
0.050 (12.7)
Note:
1. Specifications assume that all of the outputs are terminated with a load that has a VSWR not greater than 2.0:1.
2. TNC or NType output connectors are available by substituting "TNC" or "NNN" for "SMA" in the Model Number.
