TECHNICAL DATA SHEET
1/3

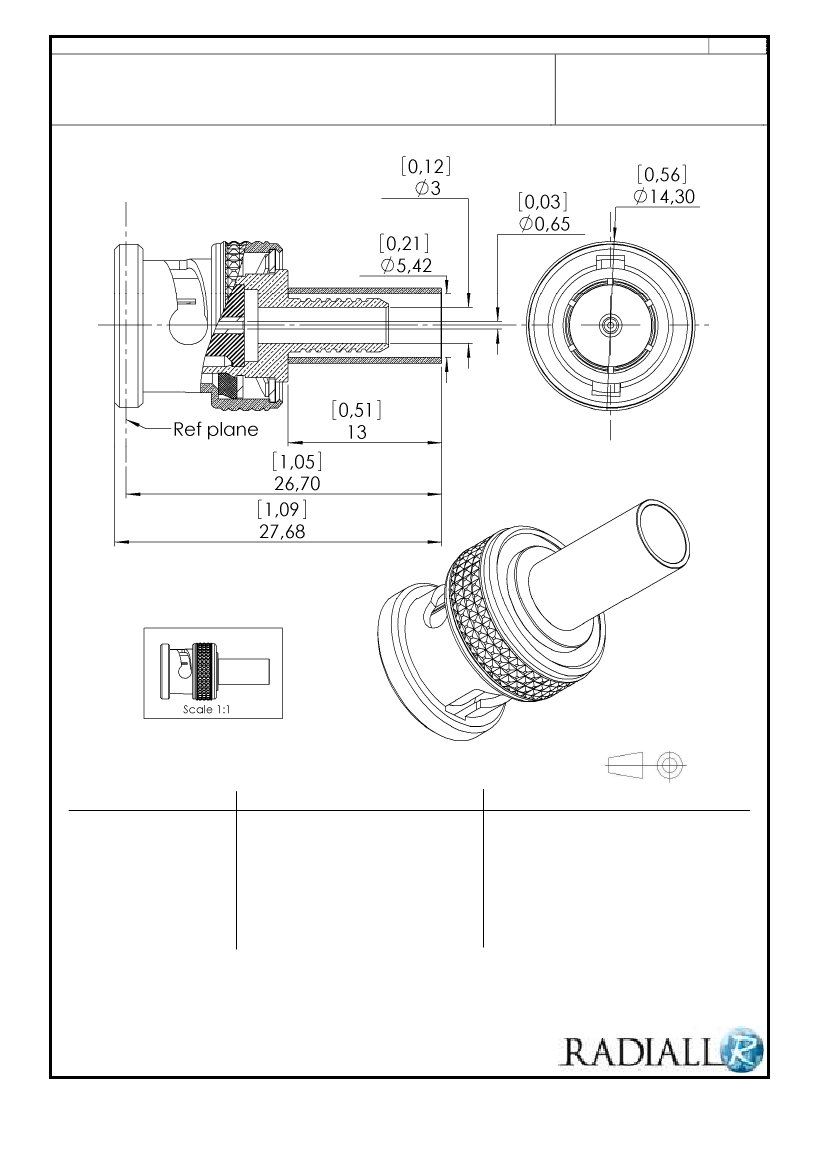

STRAIGHT PLUG FULL CRIMP TYPE
CABLE 0.6/2.95 COND.100
R142.077.712
Series :
BNC 75 HDTV
All dimensions are in mm.
.
pn
.
ao
COMPONENTS
BODY
CENTER CONTACT
OUTER CONTACT
INSULATOR
GASKET
OTHERS PARTS
-
-
MATERIALS
BRASS
BRASS
BRASS
PTFE
SILICONE RUBBER
BRASS
-
-
NPGR
NPGR
NPGR
PLATING
(µm)
BBR
-
-
Issue : 1001 C
In the effort to improve our products, we reserve the right to make changes judged to
be necessary.
TECHNICAL DATA SHEET
2/3
STRAIGHT PLUG FULL CRIMP TYPE
CABLE 0.6/2.95 COND.100
R142.077.712
Series :
BNC 75 HDTV
PACKAGING
SPECIFICATION
Standard
100
Unit
‘W’ option
Other
Contact us
ELECTRICAL CHARACTERISTICS
Impedance
75
Ω
Frequency
DC-6
GHz
VSWR
1.05 + 0,0350
x F(GHz) Maxi
Insertion loss
0.1
√F(GHz)
dB Maxi
RF leakage
-(
AD
- F(GHz)) dB Maxi
Voltage rating
500
Veff Maxi
Dielectric withstanding voltage
1500
Veff mini
Insulation resistance
5000
MΩ mini
Stripping
CABLE ASSEMBLY
a
3,50
b
10,8
c
18,0
d
0,00
e
0,00
f
0,00
mm
Assembly instruction
:
Crimp 02
Recommended cable(s)
ARGOSY IMAGE 360
Characteristics indicated on this data sheet are those that can be
achieved with the highest performance cable. Intrinsic limitations of
the cable may diminish the performance of the assembly
Cable retention
MECHANICAL CHARACTERISTICS
Center contact retention
Axial force – Mating end
Axial force – Opposite end
Torque
10
N mini
10
N mini
NA
N.cm mini
- pull off
- torque
110
N mini
NA
N.cm
TOOLING
Part Number Description
.
.
R282.235.011 CRIMPING DIES
M22520/5-11
R282.233.000 CRIMPING TOOL
Hexagon
.
5.41_square
1.1
5.41
Recommended torque
Mating
Panel nut
Clamp nut
A/F clamp nut
Mating life
Weight
N.cm
N.cm
N.cm
0,0000
mm
1000
Cycles mini
8,7510
g
OTHER CHARACTERISTICS
ENVIRONMENTAL
Operating temperature
Hermetic seal
Panel leakage
-65/+165
° C
Atm.cm3/s
Issue : 1001 C
In the effort to improve our products, we reserve the right to make changes judged to
be necessary.
TECHNICAL DATA SHEET
3/3
STRAIGHT PLUG FULL CRIMP TYPE
CABLE 0.6/2.95 COND.100
COMPONENTS
Ferrule
Centre contact
R142.077.712
Series :
BNC 75 HDTV

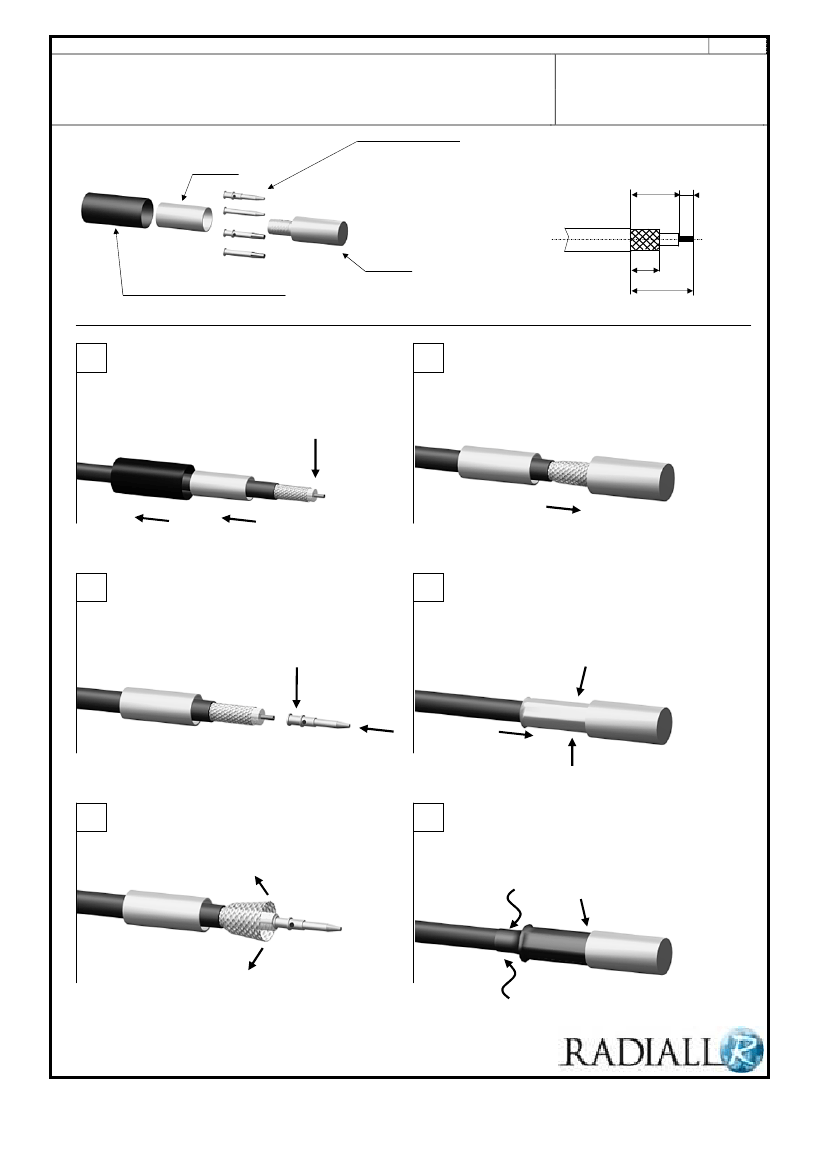

STRIPPING DIMENSIONS
e
a
Body
Heatshring sleeve
(option)
b
c
1
Slide the heatshrink sleeve onto the cable (Option).
Slide the ferrule onto the cable.
Strip the cable.
4
Slide the cable into the body until it bottoms against
insulator.
3
1
1
2
2
Slide the centre contact on until it bottoms against the
cable dielectric.
Crimp the centre contact with crimping tool ( see
connector TDS ).
2
5
Slide the ferrule over the braid.
Crimp the ferrule with crimping tool ( see connector TDS
1
1
2
3
Fan the braid.
6
Cut the excess of braid if necessary.
Slide the sleeve over the ferrule and heatshrink it in place
(Option).
1
2
1
Issue : 1001 C
In the effort to improve our products, we reserve the right to make changes judged to
be necessary.
