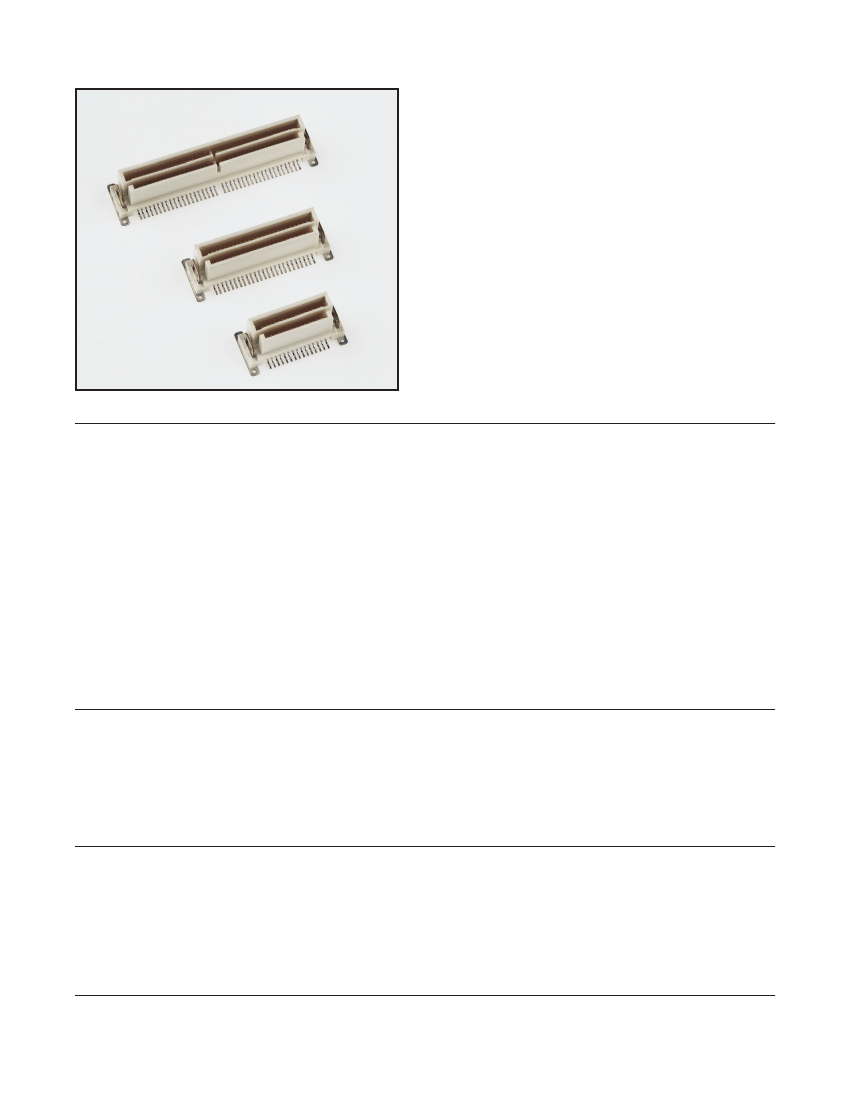

0.8 mm, Vertical, Surface Mount, 11.5 mm Stack Height, Solder Brackets
P08 Series
• 0.8 mm pitch Hermaphroditic Connector System
• Unigender connector functions as both plug and socket
• Surface mount design with solder brackets to increase
solder joint integrity
• 11.5 mm stacking height
• High temperature insulator compatible with lead-free
assembly
• Polarized alignment posts insure correct assembly and
mating
• Available suction tape or molded plug for pick and place
operations
• Available tape and reel packaging
• RoHS Compliant. See the Regulatory Information
Appendix (RIA) in the “RoHS compliance” section of
www.3M.com/Interconnects for compliance information
(RIA E1 & C1 apply)
Date Modified: September 8, 2009
TS-2096-B
Sheet 1 of 3
Physical
Insulation:
Material: Liquid Crystal Polymer
Flammability: UL 94V-0
Color: Natural (off white)
Contact:
Material: Copper Alloy
Plating:
Underplating: 50 μ" (1.27 μm) Nickel
Wiping Area: 8 μ" (0.2 μm) minimum Gold
Solder Tails: Gold Flash
Solder Brackets: Sn plated Copper Alloy
Electrical
Current Rating:
Voltage Rating:
Insulation Resistance:
Withstanding Voltage:
0.5 A
60 V
>1×10
6
Ω
at 500 V
DC
250 V
AC
for 1 minute
Environmental
Temperature Rating:
-55°C to +85°C
Process Rating:
260°C (per J-Std-020)
3
Electronic Solutions Division
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Pak 8 Hermaphroditic Connector
0.8 mm, Vertical, Surface Mount, 11.5 mm Stack Height, Solder Brackets
Pos #
30
40
50
D
E±0.15
0.80±0.1
0.80±0.1
X
0.35±0.1
P08 Series
F
14.0
18.0
22.0
34.8
42.8
G
11.2
15.2
19.2
32.0
40.0
H
19.5
23.5
27.5
40.3
48.3
A
18.9
22.9
26.9
39.7
47.7
0.70
B
15.3
19.3
23.3
36.1
44.1
C
14.0
18.0
22.0
34.8
42.8
D
18.9
22.9
26.9
39.7
47.7
E
11.2
15.2
19.2
32.0
40.0
80
100
8.35
6.20
8.60
9.00
Y
A
B
X-Y cross section
8.35

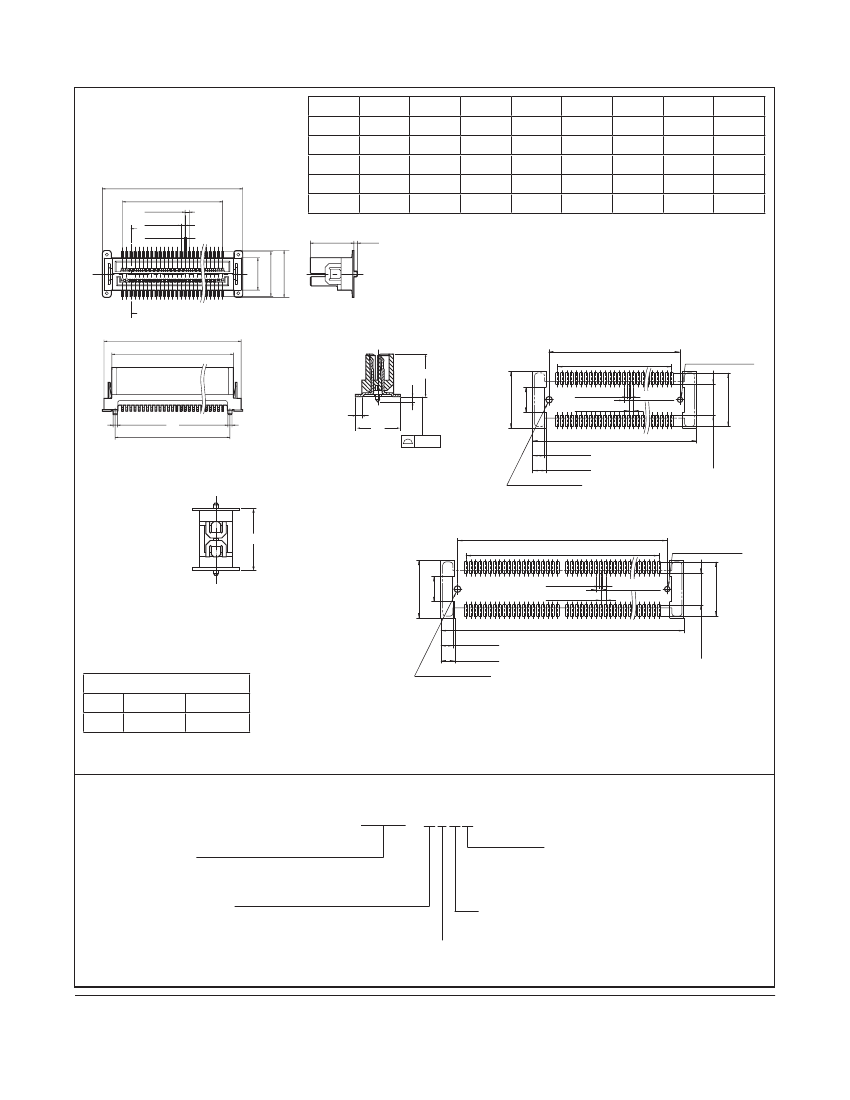

Recommended PC board pattern
(TOP VIEW)
F±0.05
G±0.05
9.60±0.1
4.20±0.1
0.50±0.05
0.80±0.05
H±0.1
0.80±0.05
0.9
+0.1
dia. hole
0
9.00±0.1
Terminal coplanarity
0.15
2.00±0.1
2.30±0.1
+0.1
1.2
0
dia. hole
30, 40, 50 Contacts
11.5
F±0.05
G±0.05
9.60±0.1
4.20±0.1
0.50±0.05
0.80±0.05
H±0.1
0.80±0.05
0.9
+0.1
dia. hole
0
9.00±0.1
5.20±0.1
TS-2096-B
Sheet 2 of 3
Mated Stack Height
mm
[inch]
Tolerance Unless Noted
.0
mm
±.1
.00
±.10
2.00±0.1
2.30±0.1
+0.1
1.2
0
dia. hole
80,100 Contact"
"Center contact is removed"
[ ] Dimensions for Reference Only
Ordering Information
P08 - XXX - HLXX - E - G
Contact Quantity
(see table)
C = Adhesive Suction Cover
M = Molded Suction Cover (Recommended for 260°C
Process Temperature)
Blank = No Cover
Hermaphroditic
T = Tape & Reel Packaging
Blank = Tube Pack
Locator Posts
3
Electronic Solutions Division
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
5.20±0.1
1.1±0.1 dia. 0.8±0.1 dia.
C±0.15
1.2
0.7
8.6
3M
™
Pak 8 Hermaphroditic Connector
0.8 mm, Vertical, Surface Mount, 11.5 mm Stack Height, Solder Brackets
P08 Series

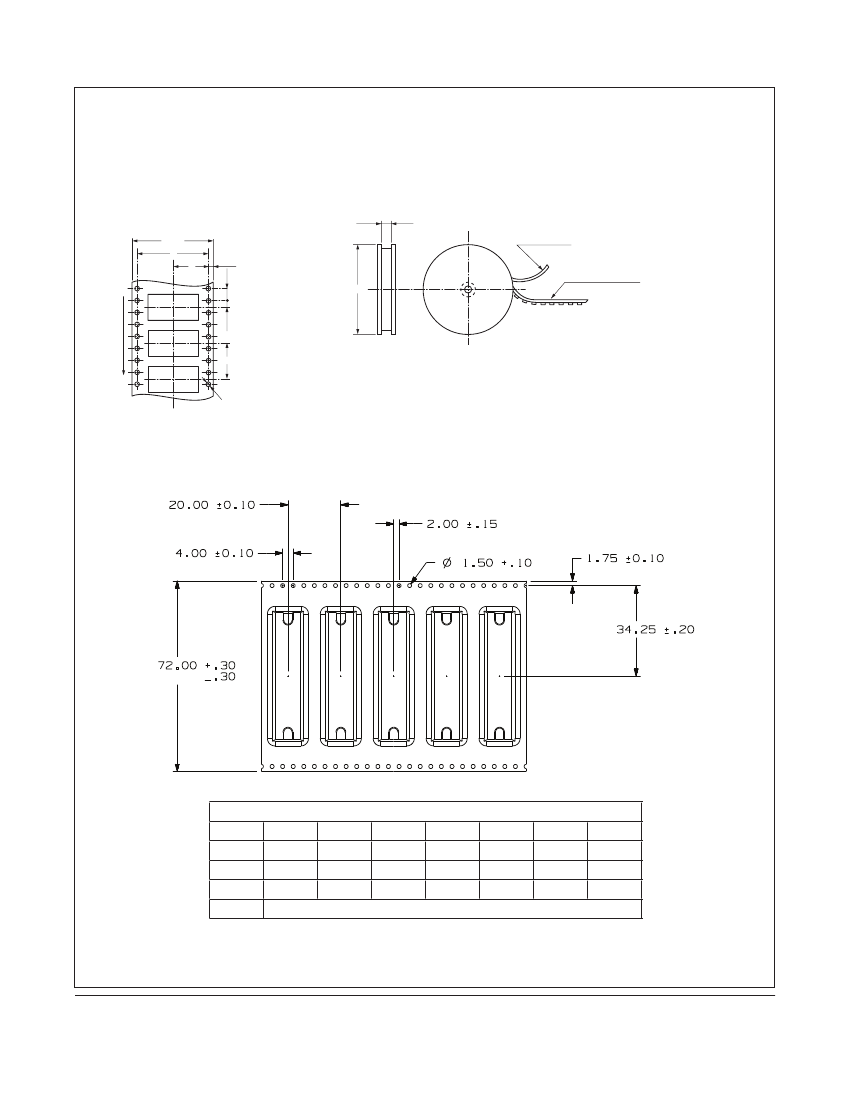

Packaging
30, 40, 50, 80 Contact Connectors
Tape II
A±0.3
B
C
1.75
4
2
F
Emboss carrier tape
E
+2
0
Top cover tape
Pull out direction
D
Paper Reel Dimensions Conforming to JIS 0806-1990
1.5
+0.1
dia.
0
100 Contact Connector
Tape and Reel Dimensions
A
30,40
50
80
100
32
44
56
B
28.4
40.4
52.4
C
14.2
20.2
26.2
D
24
24
24
Contact 3M
E
32.4
44.4
56.4
F
370 dia.
370 dia.
370 dia.
ea/reel
350
350
250
TS-2096-B
Sheet 3 of 3
3
Electronic Solutions Division
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Important Notice
All statements, technical information, and recommendations related to 3M’s products are based on information believed to be reliable, but the accuracy or completeness
is not guaranteed. Before using this product, you must evaluate it and determine if it is suitable for your intended application. You assume all risks and liability associated
with such use. Any statements related to the product which are not contained in 3M’s current publications, or any contrary statements contained on your purchase order
shall have no force or effect unless expressly agreed upon, in writing, by an authorized officer of 3M.
Warranty; Limited Remedy; Limited Liability.
This product will be free from defects in material and manufacture for a period of one (1) year from the time of purchase.
3M MAKES NO OTHER WARRANTIES
INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
If this product is defective within the
warranty period stated above, your exclusive remedy shall be, at 3M’s option, to replace or repair the 3M product or refund the purchase price of the 3M product.
Except
where prohibited by law, 3M will not be liable for any indirect, special, incidental or consequential loss or damage arising from this 3M product, regardless of
