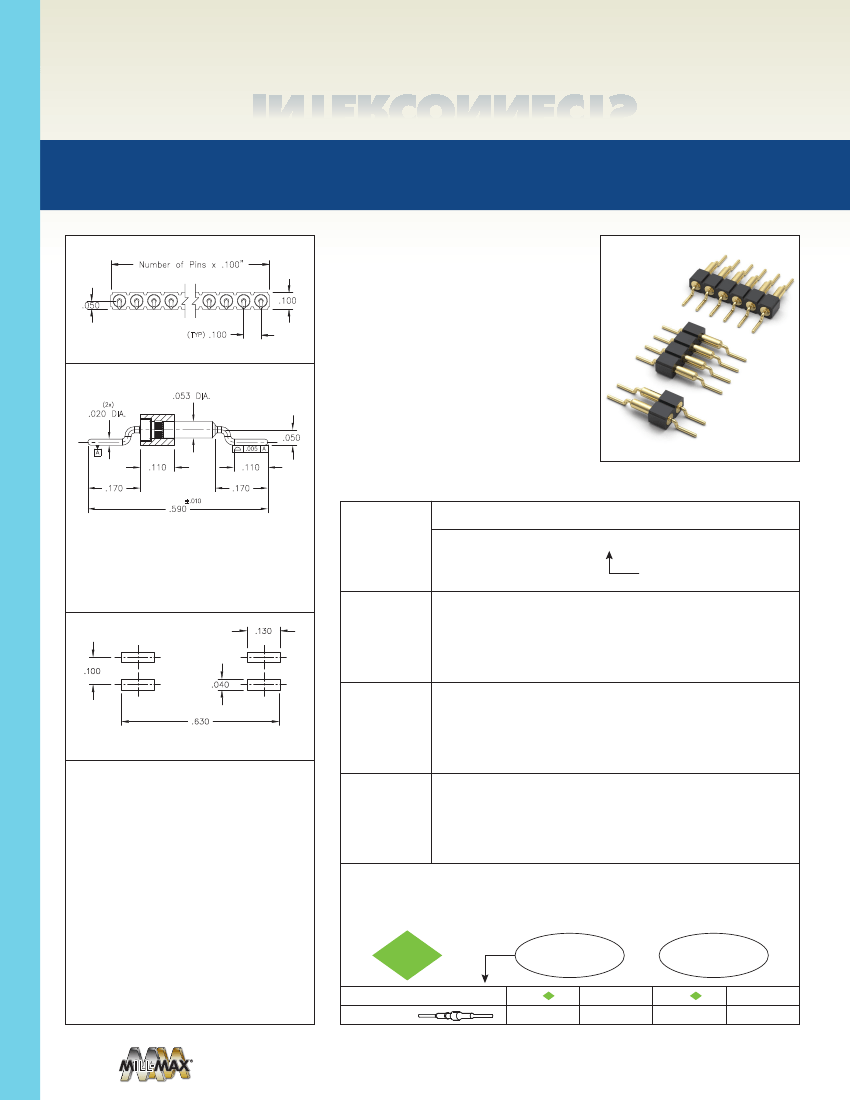

INTERCONNECTS
SERIES 339 • .100” GRID HORIZONTAL SURFACE MOUNT JUMPER •
SINGLE ROW STRIPS
•
Series 339 single row Horizontal surface
Number of Pins x .100"
mount jumpers on .100” grid centers
.100
.050
.100
•
Series 339 use MM #3900 pins. See page 214
for details
(TYP)
•
Insulators are high temperature thermoplastic,
suitable for all soldering operations
.053 DIA.
(2x)
•
Ideal for daisy chaining parallel boards
.050
.020 DIA.
A
.005 A
.110
.170
.590
±.010
.110
.170
ORDERING INFORMATION
Series 339...000
Single Row Surface Mount Jumper
339-XX-1_ _-40-000000
Specify number of pins
02-10
Coplanarity .005”. For pin counts >10 positions,
consult Technical Support.
FIG. 1
FIG. 1
.130
.100
.040
.630
Footprint
PAGE 50.1 | INTERCONNECTS
2011/65/EU
RoHS - 2
XX=Plating Code
See Below
10
10
μ”
Au
For
Electrical, Mechanical
& Enviromental Data,
See page 264
SPECIFY PLATING CODE XX=
Pin Plating
40
200
μ”
Sn
Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
