TECHNICAL DATA SHEET
1/3

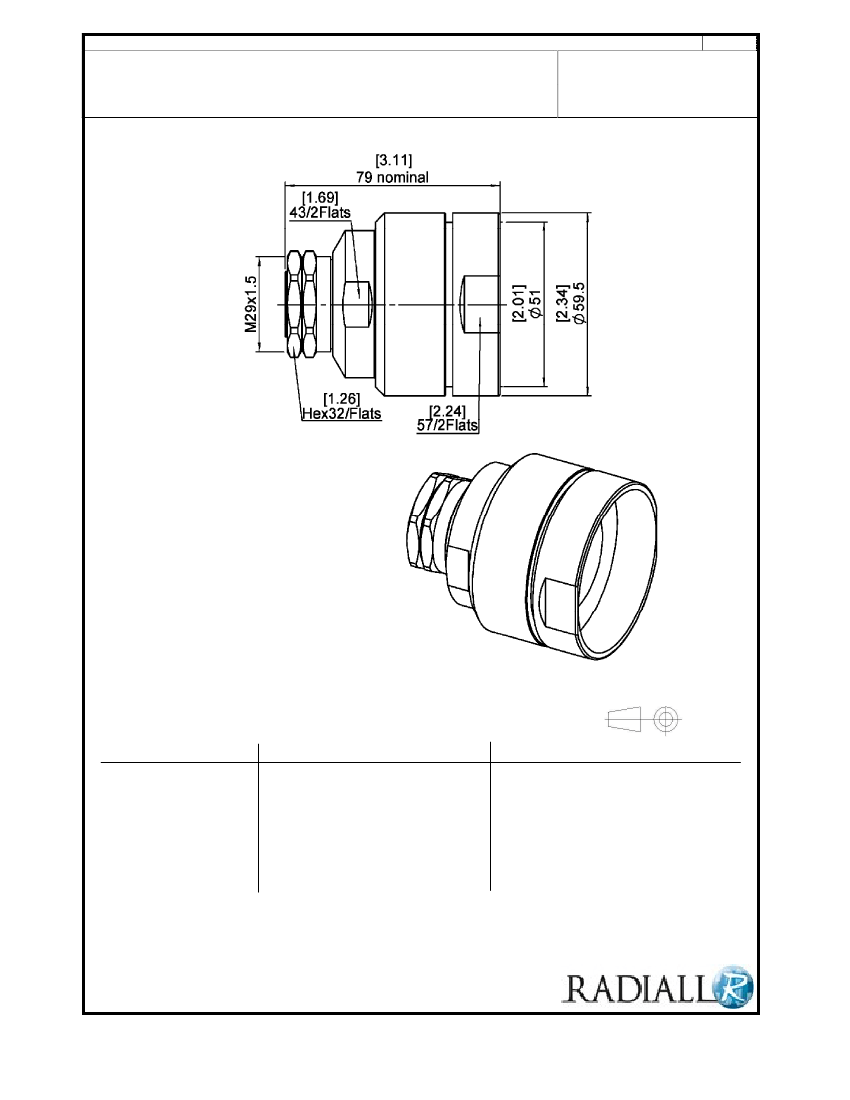

STRAIGHT PLUG EZ FIT TYPE
1 5/8" CORRUGATED CABLE
R185A.037.020
Series :
ECO 7/16
All dimensions are in mm.
.
pn
.
an
COMPONENTS
BODY
CENTER CONTACT
OUTER CONTACT
INSULATOR
GASKET
OTHERS PARTS
-
-
BRASS
BRASS
MATERIALS
BBR
SILVER
PLATING
(µm)
PTFE
SILICONE RUBBER
BRASS
-
-
BBR
-
-
Issue : 0926 A
In the effort to improve our products, we reserve the right to make changes judged to
be necessary.
TECHNICAL DATA SHEET
2/3
STRAIGHT PLUG EZ FIT TYPE
1 5/8" CORRUGATED CABLE
R185A.037.020
Series :
ECO 7/16
PACKAGING
SPECIFICATION
Standard
1
Unit
-
Other
Contact us
ELECTRICAL CHARACTERISTICS
Impedance
50
Ω
Frequency
0-3
GHz
VSWR
1.1 + 0.000
x F(GHz) Maxi
Insertion loss
0.05
√F(GHz)
dB Maxi
RF leakage
-(
NA
- F(GHz)) dB Maxi
Voltage rating
2000
Veff Maxi
Dielectric withstanding voltage
4000
Veff mini
Insulation resistance
10000
MΩ mini
Stripping
CABLE ASSEMBLY
a
31.0
b
0.00
c
0.00
d
0.00
e
0.00
f
0.00
mm
Assembly instruction
:
Recommended cable(s)
LDF7-50A - 1-5/8”
LCF 1-5/8”Cu2Y
Characteristics indicated on this data sheet are those that can be
achieved with the highest performance cable. Intrinsic limitations of
the cable may diminish the performance of the assembly
MECHANICAL CHARACTERISTICS
Center contact retention
Axial force – Mating end
Axial force – Opposite end
Torque
200
N mini
100
N mini
NA
N.cm mini
Cable retention
- pull off
- torque
500
N mini
NA
N.cm
TOOLING
Part Number
.
Description
.
Hexagon
.
Recommended torque
Mating
Panel nut
Clamp nut
A/F clamp nut
Mating life
Weight
3500
NA
2500
57.000
N.cm
N.cm
N.cm
mm
OTHER CHARACTERISTICS
Watertightness:IP67
100
Cycles mini
572.000
g
ENVIRONMENTAL
Operating temperature
Hermetic seal
Panel leakage
-40/+85
° C
NA
Atm.cm3/s
NA
Issue : 0926 A
In the effort to improve our products, we reserve the right to make changes judged to
be necessary.
TECHNICAL DATA SHEET
3/3
STRAIGHT PLUG EZ FIT TYPE
1 5/8" CORRUGATED CABLE
C-ring
Clamp nut
O-ring1
O-ring2
Center
conductor
R185A.037.020
Series :
ECO 7/16
Body
Clamp nut
O-ring1

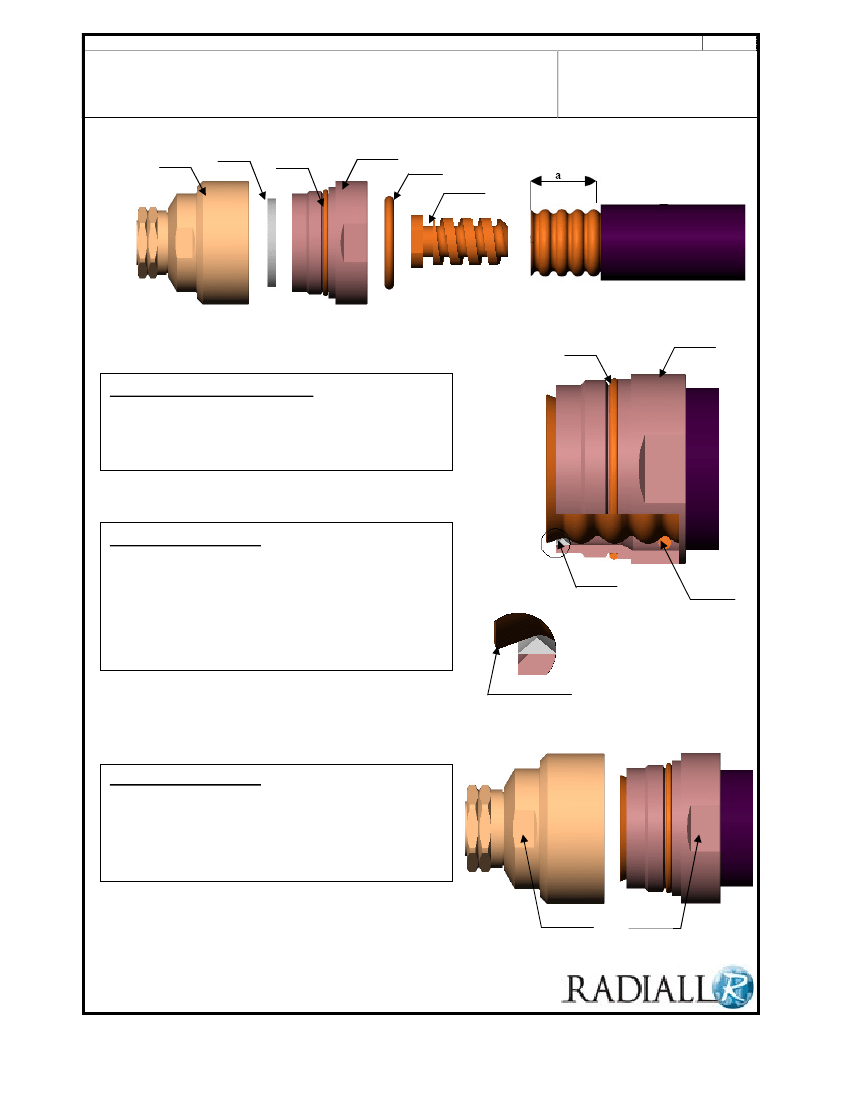

1) STRIPPING OF THE SHEAT
- Strip the cable .
- Do not damage the outer conductor .
- Remove impurities such as copper scrap and burr
on the end surface of the cable.
2) CABLE MOUNTING
-
Put the O-ring2 and C-ring in the trough of the cable.
- Mount the clamp nut on the cable, expand outer
conductor from dielectric
- Screw center conductor into the hole of cable center
using wrenche.
C-ring
O-ring2
Outer conductor
expand
3) MOUNTING CABLE
- Mount the clamp nut with the cable in the body of the
connector.
Couple of tightening recommended: 2500N.cm
43/2Flats
57/2Flats
Issue : 0926 A
In the effort to improve our products, we reserve the right to make changes judged to
be necessary.
