55456-2059: DescriptionHeaders & Wire Housings MiniMi2SMT AssyW/Bos W/Boss20CktEmbsTpPkg; CategoryThe connector The connector; File Size25KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

55456-2059 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	55456-2059	-	-	View	Buy Now

55456-2059 Overview

Headers & Wire Housings MiniMi2SMT AssyW/Bos W/Boss20CktEmbsTpPkg

55456-2059 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	LEAD FREE
Reach Compliance Code	compliant
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	BRASS
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	1.25 mm
Termination type	SURFACE MOUNT
Total number of contacts	20
UL Flammability Code	94V-0
Base Number Matches	1

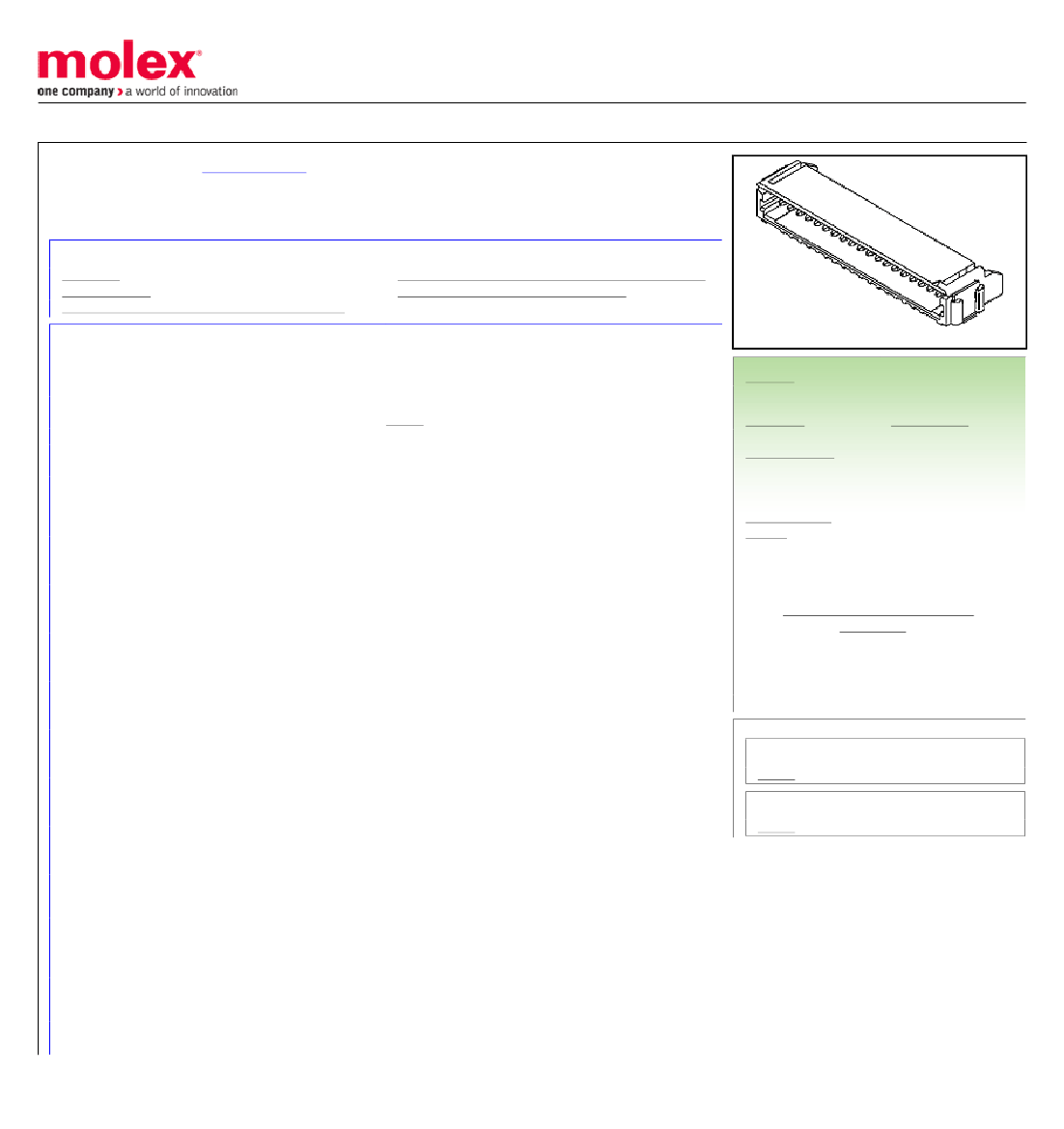

Preview

Download Datasheet

View All

This document was generated on 05/21/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0554562059

Active

1.25mm Pitch Mi ll System Wire-to-Board Header, Single Row, Right Angle, Surface

Mount, 20 Circuits, with Plastic Peg

Documents:

3D Model

Drawing (PDF)

Product Specification PS-54596-022-001 (PDF)

Agency Certification

General

Product Family

Series

Application

Product Name

UPC

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Glow-Wire Capable

Lock to Mating Part

Mated Height

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

Orientation

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Polarized to Mating Part

Stackable

Temperature Range - Operating

Termination Interface: Style

Electrical

Current - Maximum per Contact

Voltage - Maximum

Material Info

Reference - Drawing Numbers

Packaging Specification

Product Specification

Sales Drawing

Packaging Specification SPK-55456-001-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

E29179

PCB Headers

55456

Signal, Wire-to-Board

Mini Mi II

822348869442

Natural

Yes

4.50mm

Brass

Tin

Nylon

883.400/mg

Right Angle

Yes

Embossed Tape on Reel

1.25mm

Yes

-40°C to +105°C

Surface Mount

1.5A

100V AC (RMS)/DC

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per

-ED/01/2018 (15

January 2018)

Halogen-Free

Status

Not Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

Search Parts in this Series

55456 Series

Mates With

54596 IDT Receptacle Housing

SPK-55456-001-001

PS-54596-022-001

554560250-000, 554560259-000
