Datasheet> All Categories > The connector> socket> D0828-42

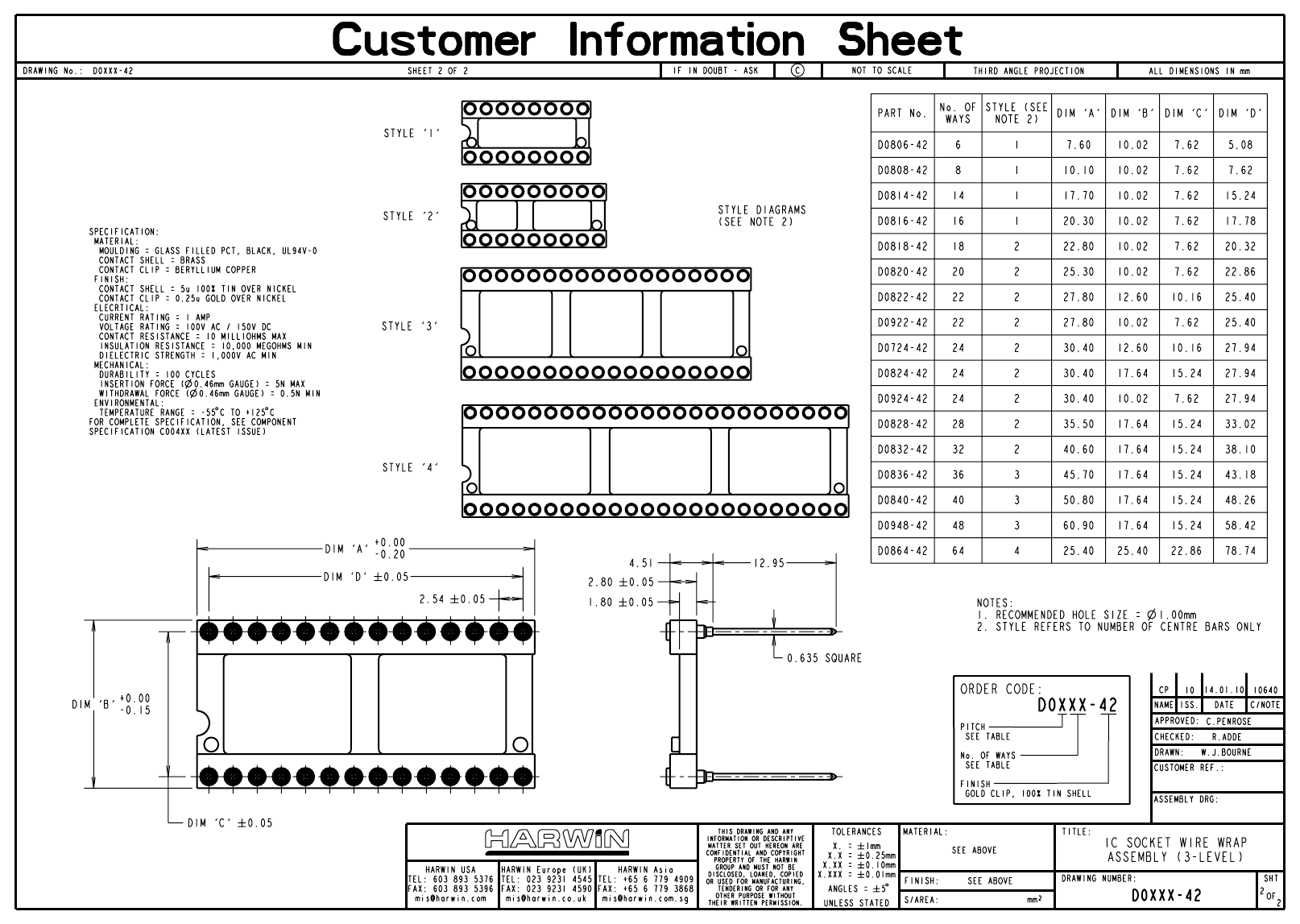

Preview

D0828-42: DescriptionIC & Component Sockets 28 WAY 3 LEVEL WIRE WRAP IC SKT; CategoryThe connector socket; File Size139KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

D0828-42 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	D0828-42	-	-	View	Buy Now

D0828-42 Overview

IC & Component Sockets 28 WAY 3 LEVEL WIRE WRAP IC SKT

D0828-42 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Harwin
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARD: UL 94V-0
body width	0.694 inch
subject depth	0.178 inch
body length	1.398 inch
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn)
Contact material	NOT SPECIFIED
Contact style	RND PIN-SKT
current rating	1 A
Device slot type	IC SOCKET
Type of equipment used	DIP28
Dielectric withstand voltage	1000VAC V
Shell material	POLYCYCLOHEXYDIMETHYLENE TEREPHTHALATE-POLYESTER
Insulation resistance	10000000000 Ω
JESD-609 code	e3
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of contacts	28
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Termination type	WIRE WRAP
Base Number Matches	1

Preview

Download Datasheet

View All

D0828-42 Related Products

	D0828-42	D0840-42	D0824-42	D0836-42	D0948-42	D0818-42	D0922-42	D0924-42
Description	IC & Component Sockets 28 WAY 3 LEVEL WIRE WRAP IC SKT	IC & Component Sockets 40 WAY 3 LEVEL WIRE WRAP IC SKT	IC & Component Sockets 24 WAY 3 LEVEL WIRE WRAP IC SKT	IC & Component Sockets 36 WAY 3 LEVEL WIRE WRAP IC SKT	IC & Component Sockets 48 WAY 3 LEVEL WIRE WRAP IC SKT	IC & Component Sockets 18 WAY 3 LEVEL WIRE WRAP IC SKT	IC & Component Sockets 22 WAY 3 LEVEL WIRE WRAP IC SKT	IC & Component Sockets 24 WAY 3 LEVEL WIRE WRAP IC SKT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	STANDARD: UL 94V-0	STANDARD: UL 94V-0	STANDARD: UL 94V-0	STANDARD: UL 94V-0	STANDARD: UL 94V-0	STANDARD: UL 94V-0	STANDARD: UL 94V-0	STANDARD: UL 94V-0
body width	0.694 inch	0.694 inch	0.694 inch	0.694 inch	0.694 inch	0.394 inch	0.394 inch	0.394 inch
subject depth	0.178 inch	0.178 inch	0.178 inch	0.178 inch	0.178 inch	0.178 inch	0.178 inch	0.178 inch
body length	1.398 inch	2 inch	1.197 inch	1.799 inch	2.398 inch	0.898 inch	1.094 inch	1.197 inch
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact completed and terminated	Tin (Sn)	Matte Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
current rating	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A
Device slot type	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET
Type of equipment used	DIP28	DIP40	DIP24	DIP36	DIP48	DIP18	DIP22	DIP24
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V
Shell material	POLYCYCLOHEXYDIMETHYLENE TEREPHTHALATE-POLYESTER	POLYCYCLOHEXYDIMETHYLENE TEREPHTHALATE-POLYESTER	POLYCYCLOHEXYDIMETHYLENE TEREPHTHALATE-POLYESTER	POLYCYCLOHEXYDIMETHYLENE TEREPHTHALATE-POLYESTER	POLYCYCLOHEXYDIMETHYLENE TEREPHTHALATE-POLYESTER	POLYCYCLOHEXYDIMETHYLENE TEREPHTHALATE-POLYESTER	POLYCYCLOHEXYDIMETHYLENE TEREPHTHALATE-POLYESTER	POLYCYCLOHEXYDIMETHYLENE TEREPHTHALATE-POLYESTER
Insulation resistance	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Number of contacts	28	40	24	36	48	18	22	24
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Termination type	WIRE WRAP	WIRE WRAP	WIRE WRAP	WIRE WRAP	WIRE WRAP	WIRE WRAP	WIRE WRAP	WIRE WRAP
Base Number Matches	1	1	1	1	1	1	1	1
Maker	Harwin	Harwin	Harwin	Harwin	-	Harwin	-	-
