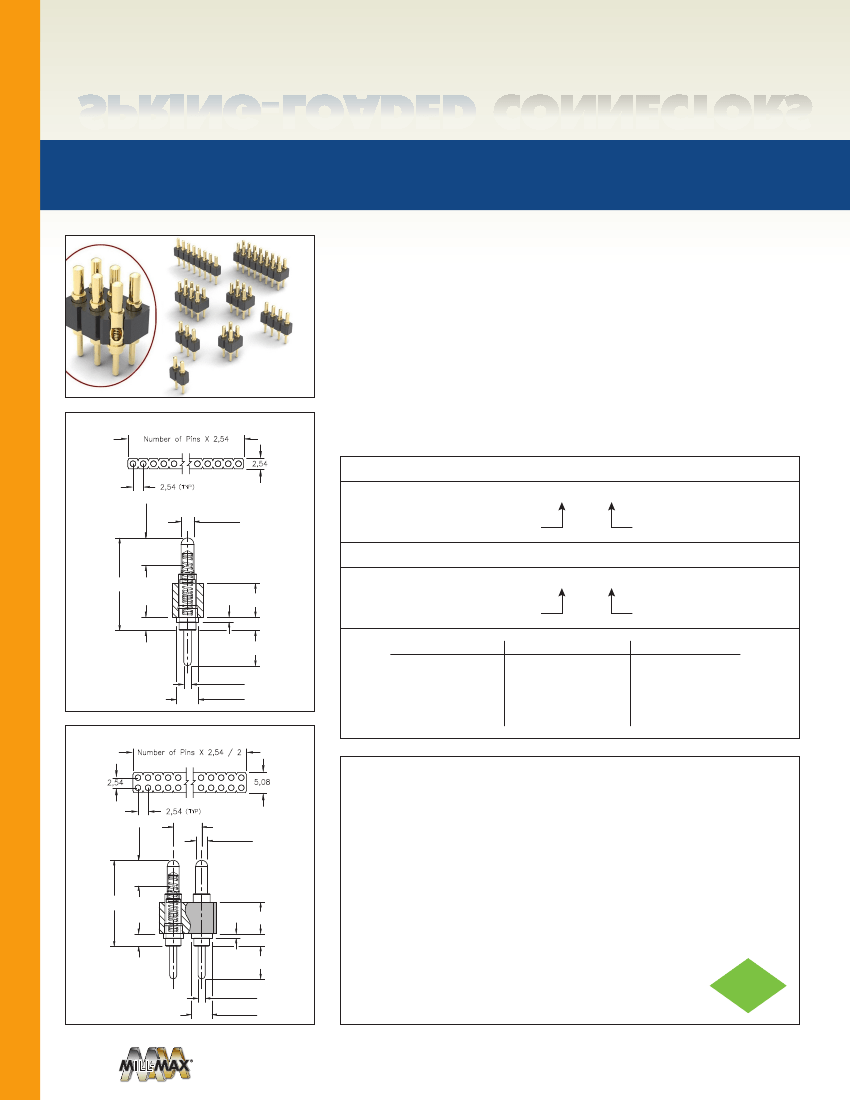

SPRING-LOADED
CONNECTORS
SERIES 825 & 827 • 2,54 GRID THROUGH
-
HOLE MOUNT, LONG STROKE •
SINGLE AND DOUBLE ROW STRIPS
• Modular contacts for use on 2,54 grid, available in four heights from 7,67 to 9,96, supplied
in single and double row contact strips
• Precision-machined piston / base and gold-plated components assure up to 1,000,000
cycle life durability
• Pistons have a 1,14 mid. stroke and a 2,29 max. stroke
• Low resistance, high current contacts are rated at 2 amps continuous, 3 amps peak
• High temperature thermoplastic insulators are suitable for surface mount processes
• Both 825 & 827 series contact strips are designed for manual placement into Ø0,76±0,08
plated through-holes in the circuit board prior to hand, wave or reflow soldering
SINGLE ROW Series 825
Number of Pins X 2,54
2,54
2,54
ORDERING INFORMATION
Single Row Series 825
825-22-0XX-10-00X101
Stroke
1,07 DIA.
Specify number of contacts
02-64
Specify contact style
1-4
B
A
0,41
1,12
2,92
2,79
Double Row Series 827
827-22-0XX-10-00X101
Specify number of contacts
04-72
CONTACT STYLE
1
2
3
4
INITIAL HEIGHT A
7,67
8,43
9,19
9,96
Specify contact style
1-4
MAX. STROKE B
2,29
2,29
2,29
2,29
0,64 DIA.
1,83 DIA.
DOUBLE ROW Series 827
Number of Pins X 2,54 / 2
PAGE 14 | SPRING-LOADED CONNECTORS
2,54
5,08
2,54
Stroke
2,54
1,07 DIA.
Materials:
Contact piston & base: Machined copper alloy plated 0,51μm gold over
2,54μm nickel
Spring: Beryllium copper-plated 0,25μm gold
Insulator: High temperature thermoplastic, rated UL94 V-0
Mechanical:
Spring force @ initial height (A): 25 grams
Spring force @ mid stroke (B/2): 60 grams
Durability: Up to 1,000,000 cycles
Electrical:
Voltage rating: 100Vrms/150Vdc
Current rating: 2A (continous), 3A (peak) per contact
Contact resistance: 20mW max.
Insulation resistance: 10,000MW min.
Dielectric strength: 700Vrms min.
Capacitance: 1pF max.
Technical Specifications
B
A
0,41
1,12
2,92
2,79
0,64 DIA.
1,83 DIA.
2011/65/EU
RoHS - 2
Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
