AISC-0805-68NJ-T datasheet, PDF

Datasheet> All Categories > Passive components> inductor> AISC-0805-68NJ-T

AISC-0805-68NJ-T: DescriptionGeneral Purpose Inductor, 0.068uH, 5%, 1 Element, Ceramic-Core, SMD, 0805, CHIP, 0805, ROHS COMPLIANT; CategoryPassive components inductor; File Size5MB，4 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance; Related ProductsFound3parts with similar functions to AISC-0805-68NJ-T

Download Datasheet Parametric View All

AISC-0805-68NJ-T Overview

General Purpose Inductor, 0.068uH, 5%, 1 Element, Ceramic-Core, SMD, 0805, CHIP, 0805, ROHS COMPLIANT

AISC-0805-68NJ-T Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	0805
Reach Compliance Code	compli
ECCN code	EAR99
uppercase and lowercase codes	0805
core material	CERAMIC
DC Resistance	0.38 Ω
Nominal inductance(L)	0.068 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Manufacturer's serial number	AISC-0805
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Minimum quality factor (at nominal inductance)	55
Maximum rated current	0.5 A
self resonant frequency	1450 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
special characteristics	Q MEASURED AT 500 MHZ
surface mount	YES
Terminal surface	Tin (Sn) - with Nickel (Ni) barrie
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	200 MHz
Tolerance	5%
Base Number Matches	1

Preview

Download Datasheet

View All

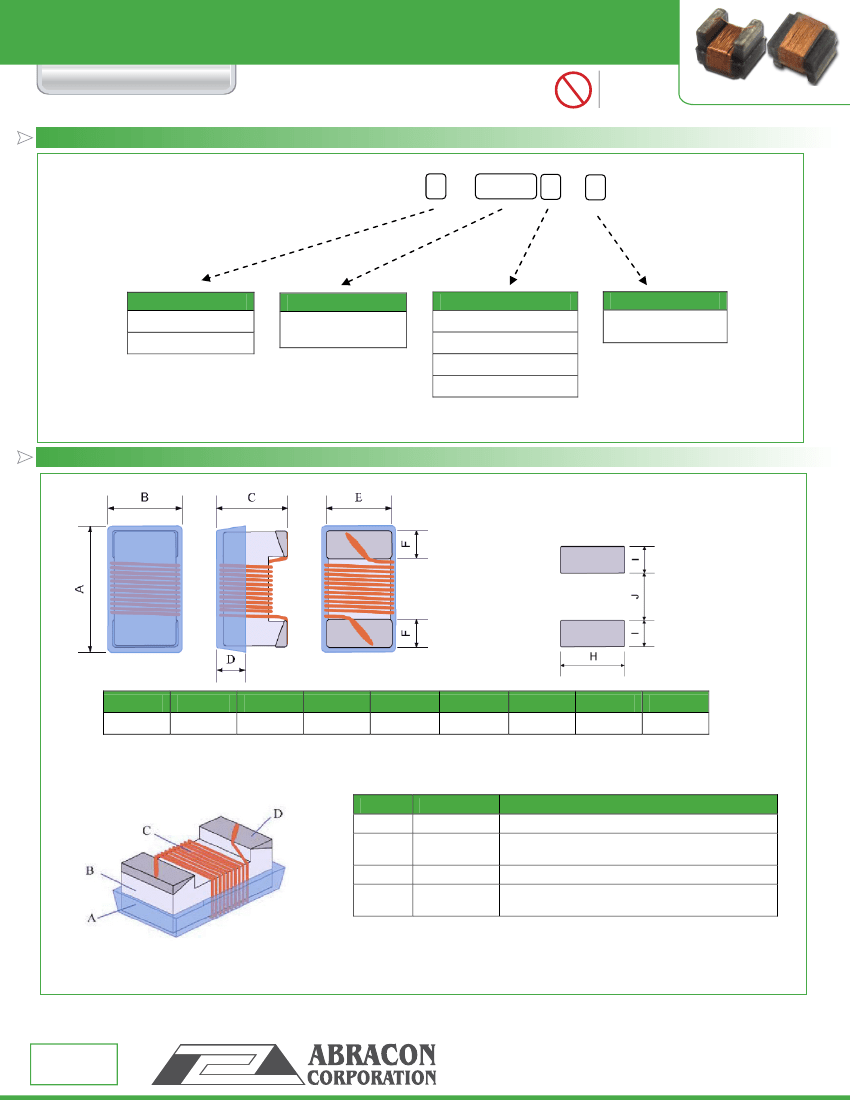

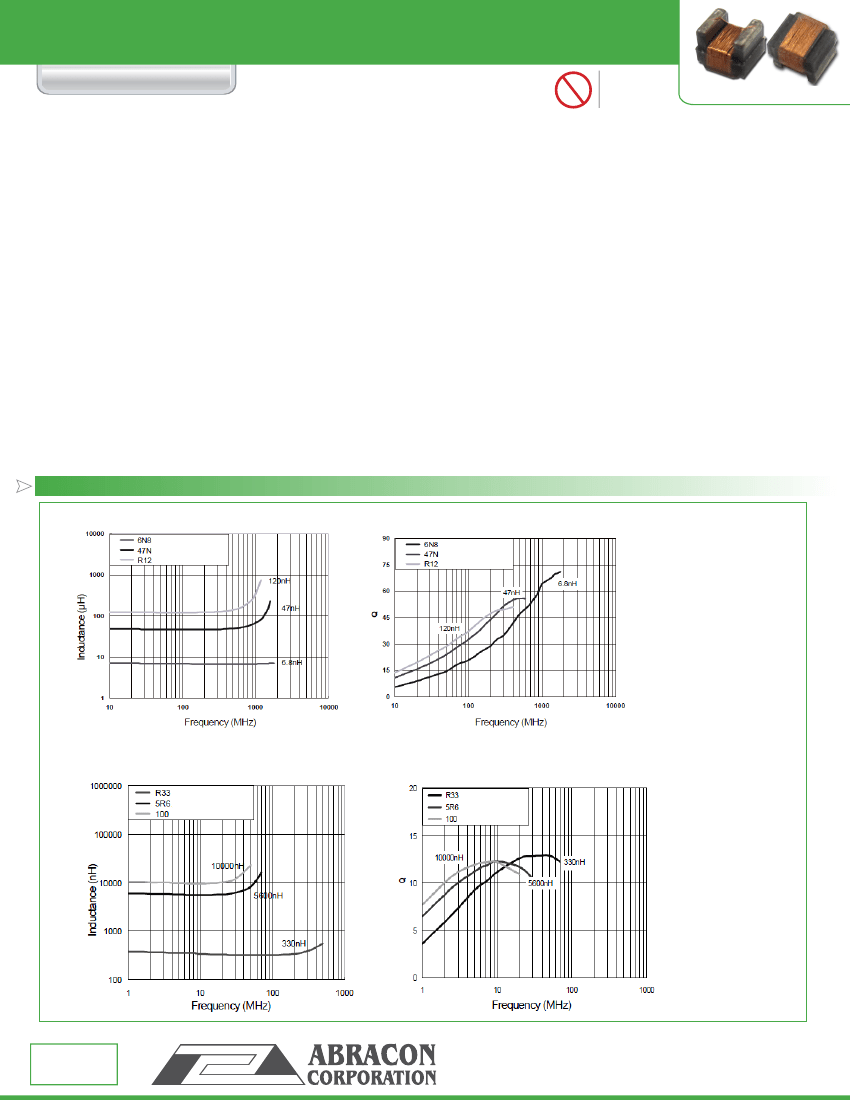

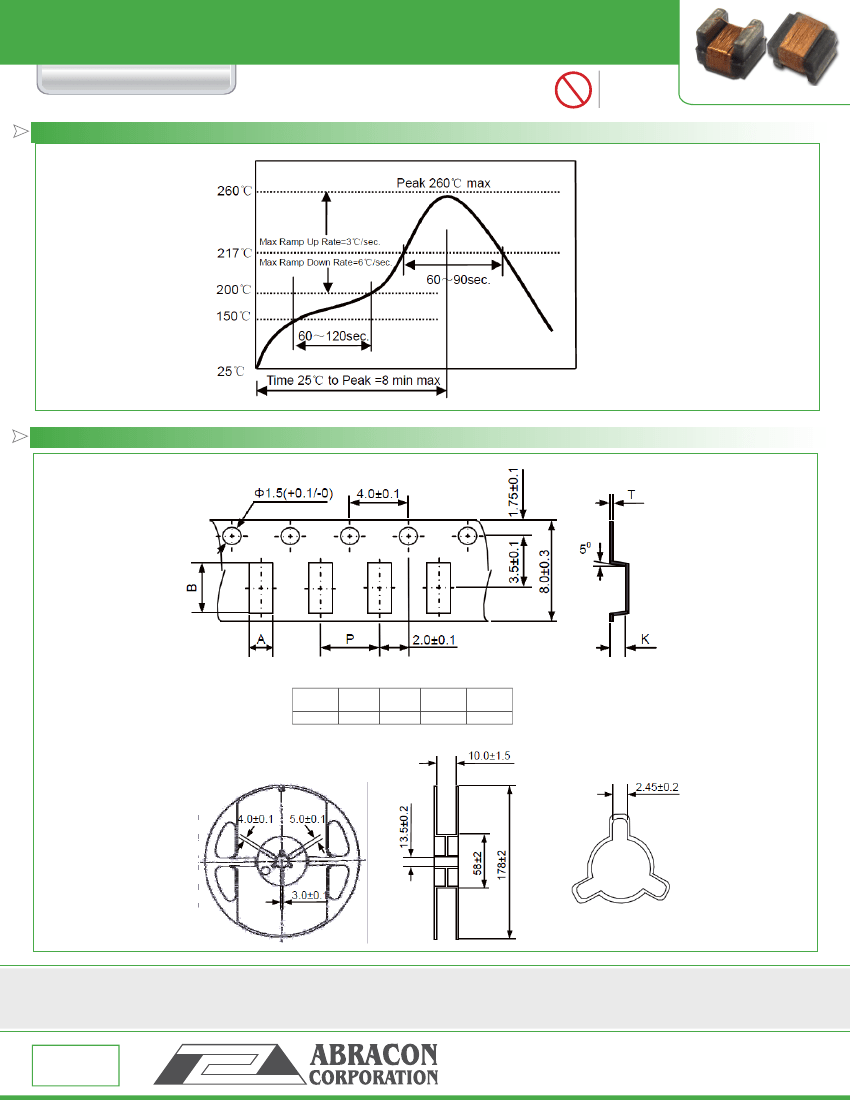

WIRE WOUND INDUCTOR - CERAMIC or FERRITE

AISC-0805(F)

FEATURES:

• Exceptional high Q and SRF for high frequency applications

• Excellent DCR and current carrying characteristics

• Small size suitable for surface mounting

• Epoxy coating protects wound wire

APPLICATIONS:

RoHS

Compliant

2.29 x 1.73 x 1.55mm

| | | | | | | | | | | | | |

• Widely applied in mobile phones such as GSM, CDMA, PDC, etc.

• Bluetooth, W-LAN, Broadband Network

• High Frequency Communication Circuits

• Video cameras, liquid crystal television, and other electronic devices

STANDARD SPECIFICATIONS:

Part Number

AISC-0805-

Inductance Code

AISC-0805-2N2

AISC-0805-3N3

AISC-0805-6N8

AISC-0805-8N2

AISC-0805-12N

AISC-0805-15N

AISC-0805-18N

AISC-0805-22N

AISC-0805-27N

AISC-0805-33N

AISC-0805-39N

AISC-0805-47N

AISC-0805-56N

AISC-0805-68N

AISC-0805-82N

AISC-0805-R10

AISC-0805-R12

AISC-0805-R15

AISC-0805-R18

AISC-0805-R22

AISC-0805-R27

AISC-0805-R33

AISC-0805-R39

AISC-0805-R47

AISC-0805-R56

AISC-0805-R68

AISC-0805-R75

AISC-0805-R82

AISC-0805-R91

AISC-0805-1R0

AISC-0805F-R27

AISC-0805F-R47

AISC-0805F-R56

AISC-0805F-1R0

AISC-0805F-1R5

AISC-0805F-1R8

AISC-0805F-2R2

AISC-0805F-3R3

AISC-0805F-3R9

AISC-0805F-4R7

AISC-0805F-6R8

AISC-0805F-8R2

AISC-0805F-100

AISC-0805F-150

AISC-0805F-220

AISC-0805F-330

AISC-0805F-470

AISC-0805F-680

ABRACON IS

ISO9001:2008

CERTIFIED

CE RTIFIED

L(nH)

@Test Freq.

2.2 @ 250 MHz

3.3 @ 250 MHz

6.8 @ 250 MHz

8.2 @ 250 MHz

12 @ 250 MHz

15 @ 250 MHz

18 @ 250 MHz

22 @ 250 MHz

27 @ 250 MHz

33 @ 250 MHz

39 @ 250 MHz

47 @ 200 MHz

56 @ 200 MHz

68 @ 200 MHz

82 @ 150 MHz

100 @ 150 MHz

120 @ 150 MHz

150 @ 100 MHz

180 @ 100 MHz

220 @ 100 MHz

270 @ 100 MHz

330 @ 100 MHz

390 @ 100 MHz

470 @ 50 MHz

560 @ 25 MHz

620 @ 25 MHz

680 @ 25 MHz

750 @ 25 MHz

820 @ 25 MHz

910 @ 25 MHz

1000 @ 25 MHz

270@25MHz

470@100MHz

560@25MHz

1000@7.9MHz

1500@7.9MHz

1800@7.9MHz

2200@7.9MHz

3300@7.9MHz

3900@7.9MHz

4700@7.9MHz

6800@7.9MHz

8200@7.9MHz

10000@2.5MHz

15000@2.5MHz

22000@2.5MHz

33000@2.5MHz

47000@2.5MHz

68000@2.5MHz

Tolerance

(±%)

J, K

G, J, K

J, K, M

Q, Min

@Test Freq.

40 @ 1500 MHz

25 @ 1500 MHz

40 @ 1000 MHz

40 @ 500 MHz

50 @ 500 MHz

55 @ 500 MHz

60 @ 500MHz

50 @ 500MHz

55 @ 500MHz

50 @ 500MHz

50 @ 250 MHz

45 @ 250 MHz

38 @ 250 MHz

40 @ 250 MHz

35 @ 250 MHz

33 @ 100 MHz

23 @ 50 MHz

22 @ 50 MHz

20 @ 50 MHz

15@25MHz

8@100MHz

15@25MHz

15@7.9MHz

10@50MHz

15@7.9MHz

10@7.9MHz

15@7.9MHz

10@2.5MHz

8@2.5MHz

SRF Min

(MHz)

>6000

5000

4600

4000

2900

3300

2000

2500

2000

1600

1550

1450

1300

1200

1100

920

870

850

650

600

560

375

320

280

270

240

250

230

200

550

500

360

200

Max

(

Ω

)

0.10

0.20

0.11

0.19

0.15

0.17

0.20

0.22

0.25

0.27

0.29

0.31

0.32

0.38

0.42

0.46

0.51

0.56

0.64

1.10

1.00

1.40

1.50

1.72

1.90

1.95

2.05

2.10

2.30

2.40

2.50

0.91

0.72

0.60

1.20

1.45

2.50

2.30

2.50

2.80

3.40

4.50

4.70

6.50

8.00

10.7

13.8

17.5

Max

(mA)

600

500

400

350

310

290

250

230

200

190

180

160

150

350

300

145

245

225

200

100

175

140

115

100

PARAMETERS

ABRACON P/N:

AISC-0805(F)-xxx

Operating temperature:

-40°C to +125°C

Storage temperature:

-10°C to +40°C

70% RH max.

Revised: 07.19.12

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

fax 949-546-8001

| www.abracon.com

Visit

www.abracon.com

for Terms & Conditions of Sale

Recommended Resources

LS7538/TT6061/4KA514 touch step dimming desk lamp circuit diagram

Two-channel audio power amplifier circuit

Base amplitude modulation application circuit

Short pulse relay circuit diagram

Overvoltage protection circuit for logic circuit power supply

Four gate monostable circuit

AISC-0805-68NJ-T Similar Products

Part Number	Manufacturer	Description
CI0805-R068-JBW	RCD Components Inc.	General Purpose Inductor, 0.068uH, 5%, 1 Element, Ceramic-Core, SMD, 0805, CHIP, 0805, ROHS COMPLIANT
CI0805-R068-JTW	RCD Components Inc.	General Purpose Inductor, 0.068uH, 5%, 1 Element, Ceramic-Core, SMD, 0805, CHIP, 0805, ROHS COMPLIANT
KQ0805TTD68NJ	KOA Speer	General Purpose Inductor, 0.068uH, 5%, 1 Element, Ceramic-ferrite-Core, SMD, 0805, CHIP, 0805, ROHS COMPLIANT
