43810-0332 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 43810-0332

43810-0332: DescriptionHeaders & Wire Housings MF SMC RA HDR Tin 6Ckt; CategoryThe connector The connector; File Size49KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

43810-0332 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	43810-0332	-	-	View	Buy Now

43810-0332 Overview

Headers & Wire Housings MF SMC RA HDR Tin 6Ckt

43810-0332 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	MINI-FIT SMC
body width	0.591 inch
subject depth	0.815 inch
body length	0.906 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN (100) OVER NICKEL
Contact completed and terminated	TIN (100) OVER NICKEL
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Durability	30 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	6.672 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	NYLON
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	43810
Plug contact pitch	0.165 inch
Match contact row spacing	0.165 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.5118 mm
Plating thickness	100u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	8 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.2 inch
Terminal pitch	4.2 mm
Termination type	SOLDER
Total number of contacts	6
UL Flammability Code	94V-0
Evacuation force-minimum value	3.0024 N
Base Number Matches	1

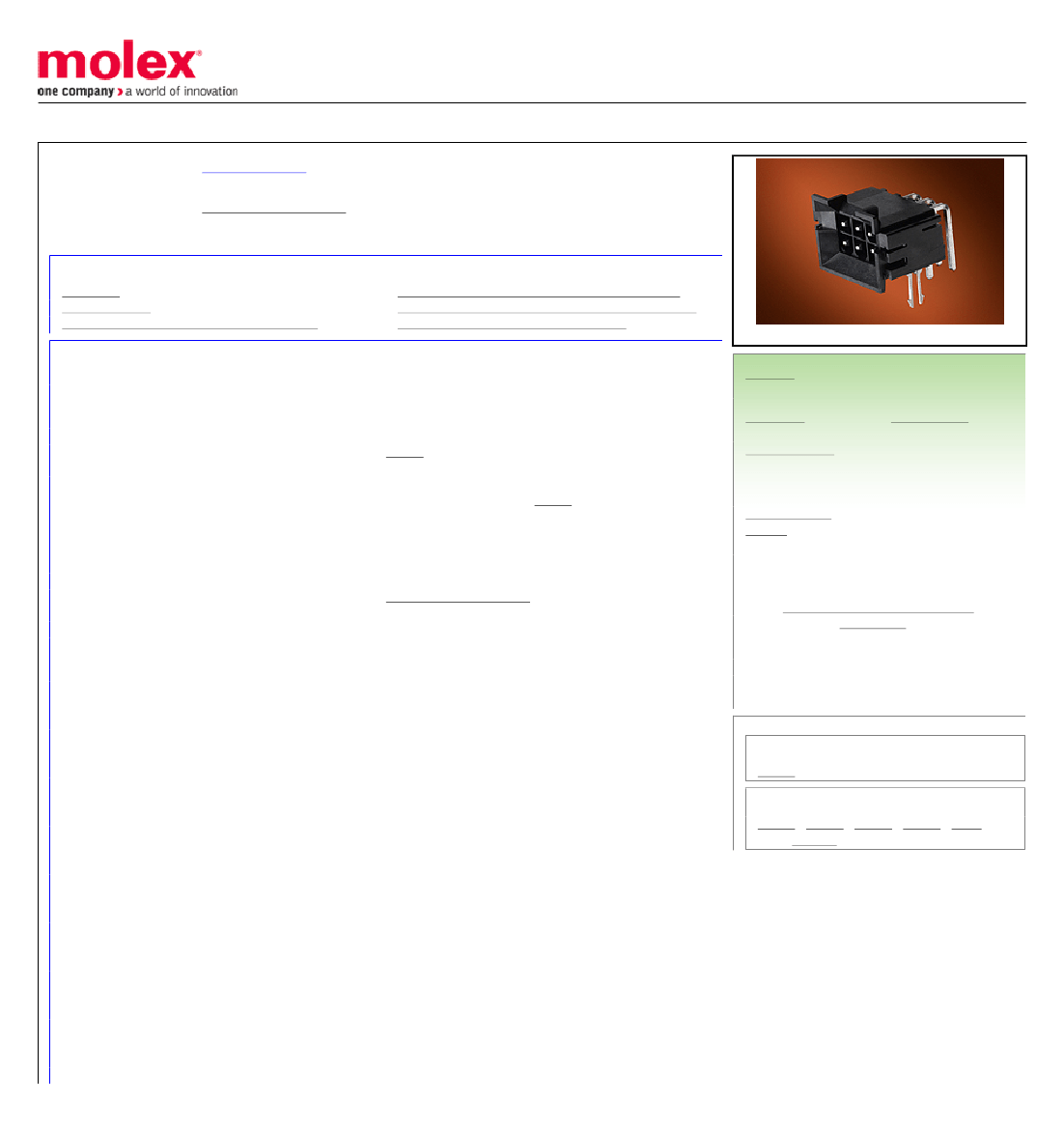

Preview

Download Datasheet

View All

This document was generated on 03/02/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0438100332

Active

Mini-Fit BMI Connectors

Mini-Fit BMI Header, Dual Row, Right Angle, for 3.18mm PCB, 6 Circuits, Tin (Sn)

Plating, 260C Wave Solderable, without Retention Clip

Documents:

3D Model

Drawing (PDF)

Product Specification PS-43810-001 (PDF)

Agency Certification

CSA

General

Product Family

Series

Application

Comments

Product Specification PS-45750-001-001 (PDF)

Packaging Specification PK-43810-001-000 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per

-ED/01/2018 (15

January 2018)

Halogen-Free

Status

Not Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

LR19980

E29179

PCB Headers

43810

Board-to-Board, Power, Wire-to-Board

Current = 13A max. per circuit when header is mated to

a receptacle loaded with 45750 Mini-Fit Plus HCS Crimp

Terminal Crimped to 16 AWG wire., See Molex product

specification PS-45750-001 for additional current de-

rating information.

Post Go-Live Rev. Not Verified

0438090006, 0440371004, 0440371005

Mini-Fit BMI Connectors

Mini-Fit BMI

800753310308

Black

94V-0

Brass

Tin

High Temperature Thermoplastic

4.225/g

Right Angle

4.50mm

None

3.17mm

Tray

4.20mm

2.540µm

Yes

Fully

Data Load Status

Made From

Overview

Product Name

UPC

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Flammability

Glow-Wire Capable

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Plating min - Mating

Plating min - Termination

Polarized to Mating Part

Polarized to PCB

Shrouded

Search Parts in this Series

43810 Series

Mates With

42385 , 42474 , 44475 , 44516 , 5557 Dual

Row, 245135 Mini-Fit Jr. Cable Assembly
