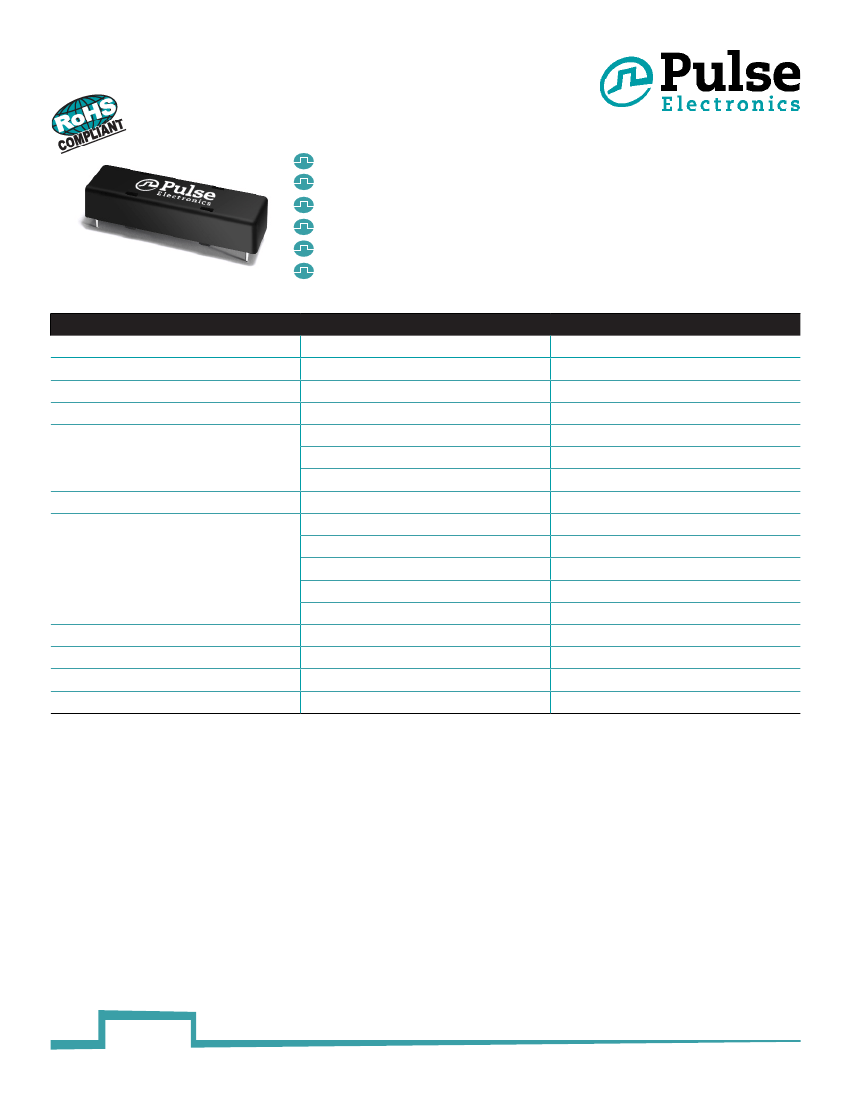

XDSL Splitter Filter Module
POTS Central Office Splitter for standard ADSL applications
Complies with option A of ETSI specification TS 101-952-1-1
Part of a standard series which has footprint compaibility
ADLS2+ compatible
Low profile version of B8049: 12.5 mm height
NL version: RoHS-6 compliant
Electrical Specifications @ 25°C
PARAMETER
POTS Impedance
POTS Insertion Loss
POTS Insertion Loss Distortion relative to 1 kHz
POTS Return Loss
POTS Group Delay
FREQUENCY
100Hz to 4Hz
1Hz
200Hz to 4kHz
300Hz to 2kHz
2kHz to 3.4kHz
3.4kHz to 4kHz
200Hz to 4kHz
100Hz to 4kHz
4kHz to 30kHz
Longitudinal Balance
30kHz to 1.1MHz
1.1MHz to 3.0MHz
3.0MHz to 5.0 MHz
ADSL Insertion Loss
DC Current
Total Side Resistance
Line Side Impedance
400kHz to 2.2mHz
*Notes:
Exception - Typical Return Loss meets published ETSI specification TS101-952-1-3.
32kHz to 2.2MHz
270Ω + 750Ω
/
150nF
-1.0dB MAX
-1.0dB MAX
-14dB MIN
-12dB MIN
-8dB MAX
200μSec MAX
-46 dB MIN
-25 dB MIN
-45 dB MIN
-30 dB MIN
-20 dB MIN
-55 dB MIN
100mA MAX
40Ω MAX
1.0kΩ MIN
USA 858 674 8100
1
Germany 49 7032 7806 0
Singapore 65 6287 8998
Shanghai 86 21 62787060
China 86 755 33966678
Taiwan 886 3 4356768
B882.E (02/12)
pulseelectronics.com
XDSL Splitter Filter Module

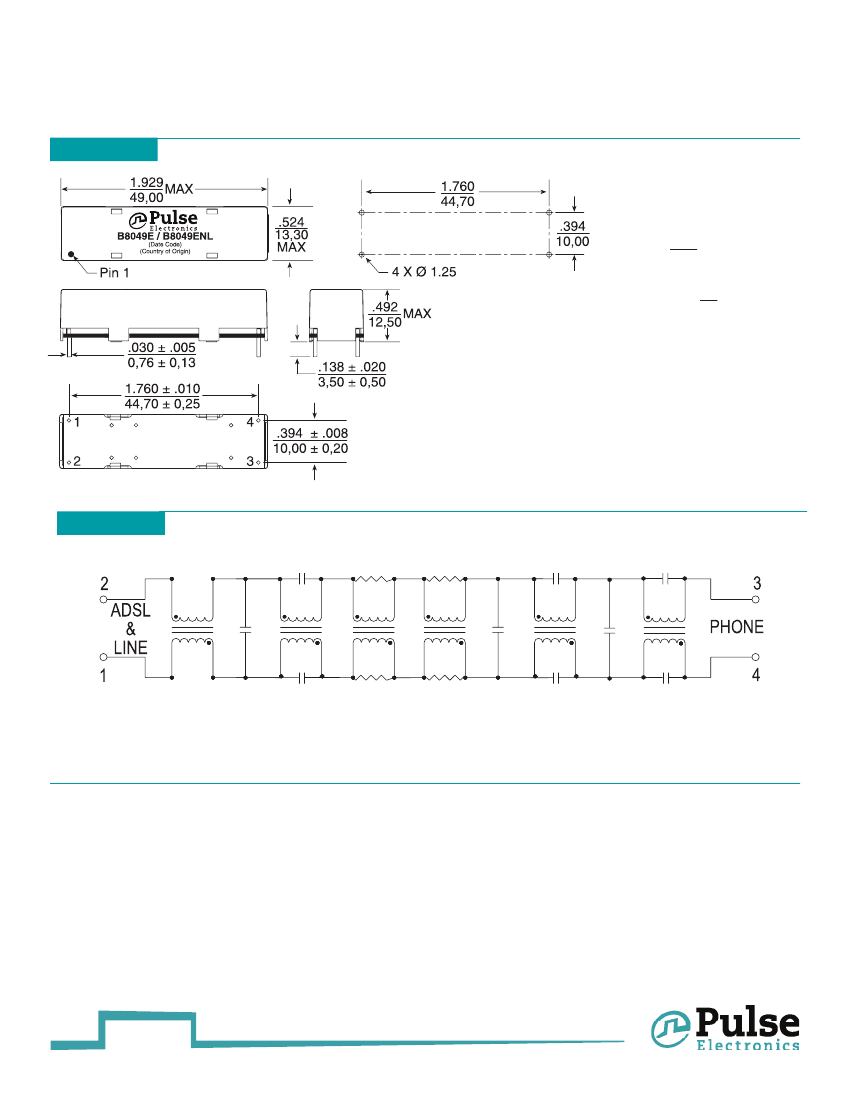

Mechanical
B8049E/B8049ENL
Weight
......................11 grams
Tube
............................35/tube
Inches
Dimensions:
mm
Unless otherwise specified,
all tolerances are
±
.010
0,25
Schematic
B8049E/B8049ENL
