Document 633-1
Shielded Power Inductors – EPL3314

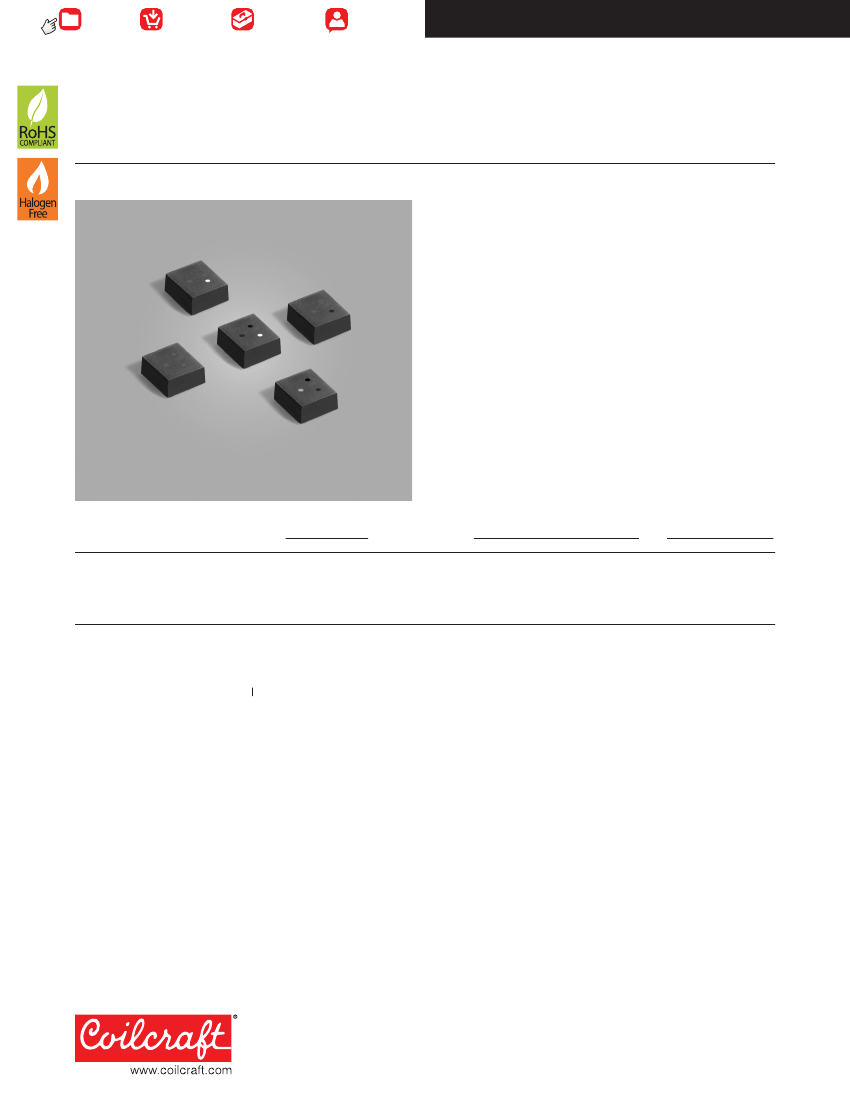

• Small footprint, very low profile shielded power inductor
• Extremely low DCR,
Isat
ratings as high as 2.3 A
Core material
Ferrite
Core and winding loss
See
www.coilcraft.com/coreloss
Environmental
RoHS compliant, halogen free
Terminations
RoHS compliant tin-silver-copper (96.5/3/0.5) over tin
over nickel over silver-platinum. Other terminations available at ad-
ditional cost.
Weight
53 – 60 mg
Ambient temperature
–40°C to +85°C with (40°C rise)
Irms
current.
Maximum part temperature
+125°C (ambient + temp rise).
Derating.
Storage temperature
Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Mean Time Between Failures (MTBF)
26,315,789 hours
Packaging
2000/7″ reel; 7500/13″ reel Plastic tape: 12 mm wide,
0.20 mm thick, 8 mm pocket spacing, 1.55 mm pocket depth
PCB washing
Tested to MIL-STD-202 Method 215 plus an additional
aqueous wash. See
Doc787_PCB_Washing.pdf.
Inductance
2
±20% (µH)
1.0
2.2
3.3
4.7
8.2
10
15
47
DCR (Ohms)
3
nom
max
0.052
0.082
0.116
0.139
0.252
0.313
0.408
1.087
0.060
0.094
0.133
0.160
0.290
0.360
0.469
1.246
SRF typ
4
(MHz)
125
80
60
52
37
35
25
12.5
Isat
(A)
5
10% drop 20% drop 30% drop
1.1
0.70
0.60
0.55
0.35
0.32
0.27
0.16
1.8
1.2
1.0
0.87
0.58
0.56
0.47
0.24
2.3
1.6
1.4
1.2
0.82
0.77
0.66
0.35
Irms
(A)
6
20°C rise 40°C rise
1.9
1.5
1.3
1.2
0.84
0.78
0.67
0.40
2.5
2.0
1.7
1.6
1.1
1.0
0.89
0.53
Part number
1
EPL3314-102ML_
EPL3314-222ML_
EPL3314-332ML_
EPL3314-472ML_
EPL3314-822ML_
EPL3314-103ML_
EPL3314-153ML_
EPL3314-473ML_
1. When ordering, please specify
packaging
code:
EPL3314-473MLC
Packaging: C
= 7″ machine-ready reel. EIA-481 embossed plastic tape (2000 per full reel).
B
= Less than full reel. In tape, but not machine ready.
To have a leader and trailer added ($25 charge), use code letter C instead.
D
= 13″ machine-ready reel. EIA-481 embossed plastic tape. Factory order only, not stocked (7500 per full reel).
2. Inductance tested at 1 MHz, 0.1 Vrms, 0 Adc.
3. DCR measured on a micro-ohmmeter.
4. SRF measured using Agilent/HP 4395A network analyzer or equivalent.
5. DC current at 25°C that causes the specified inductance drop from its value without current.
Click for temperature derating information.
6. Current that causes the specified temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum
ratings.
Click for temperature derating information.
7. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 633-1
Revised 10/09/17
© Coilcraft Inc. 2017
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
Document 633-2
Shielded Power Inductors – EPL3314 Series

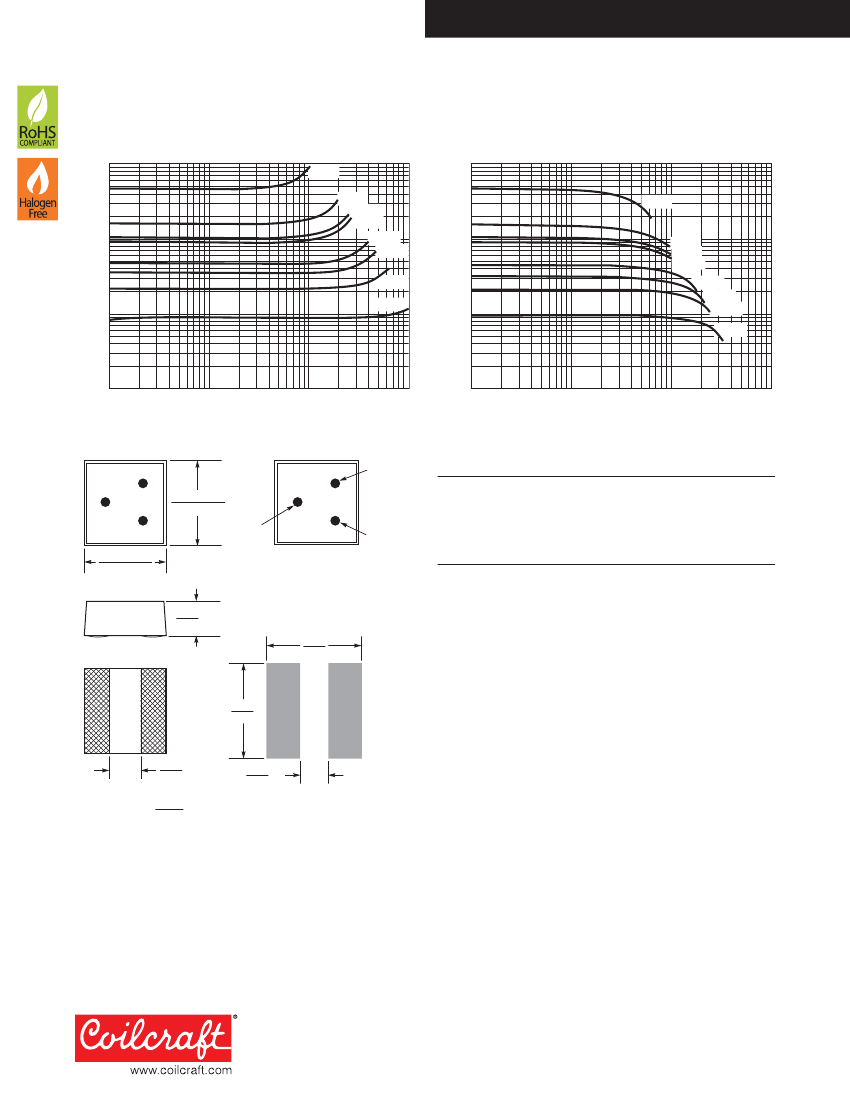

Typical L vs Frequency
100
47 µH
15 µH
10 µH
8.2 µH
100
Typical L vs Current
47 µH
Inductance (µH)
Inductance (µH)
10
4.7 µH
3.3 µH
2.2 µH
10
15 µH
10 µH
8.2 µH
4.7 µH
3.3 µH
2.2 µH
1.0 µH
1
1.0 µH
1
0.1
0.1
1
10
100
0.1
0.01
0.1
1
10
Frequency (MHz)
Part Marking
Current (A)
2nd
significant
digit
Part Marking
(Parts manufactured prior to Oct. 20, 2009 may not be marked.)
Part number
EPL3314-102
EPL3314-222
EPL3314-332
EPL3314-472
EPL3314-822
EPL3314-103
EPL3314-153
EPL3314-473
Value
1.0 µH
2.2 µH
3.3 µH
4.7 µH
8.2µH
10 µH
15 µH
47 µH
1st digit
Brown
Red
Orange
Yellow
Gray
Brown
Brown
Yellow
2nd digit
Black
Red
Orange
Violet
Red
Black
Green
Violet
Multiplier
Red
Red
Red
Red
Red
Orange
Orange
Orange
0.130 ±0.008
3,3 ±0,2
Multiplier
0.126 ±0.008
3,2 ±0,2
1st
significant
digit
Note: All marked parts have three dots. Black dot, used only on -102 and -103 as
second significant digit, may be very difficult to see.
0.057
max
1,45
Recommended
Land Pattern
0.146
3,7
0.146
3,7
0.049
min
1,24
0.043
min
1,1
Dimensions are in
inches
mm
Small surface blemishes are not unusual and do not adversely affect performance.
Wire may be visible inside the voids.
Acceptable void sizes:
Top: 0.01 in / 0,254 mm × 0.01 in / 0,254 mm
Sides: 0.02 in / 0,5 mm × 0.047 in / 1,2 mm
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 633-2
Revised 10/09/17
© Coilcraft Inc. 2017
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
