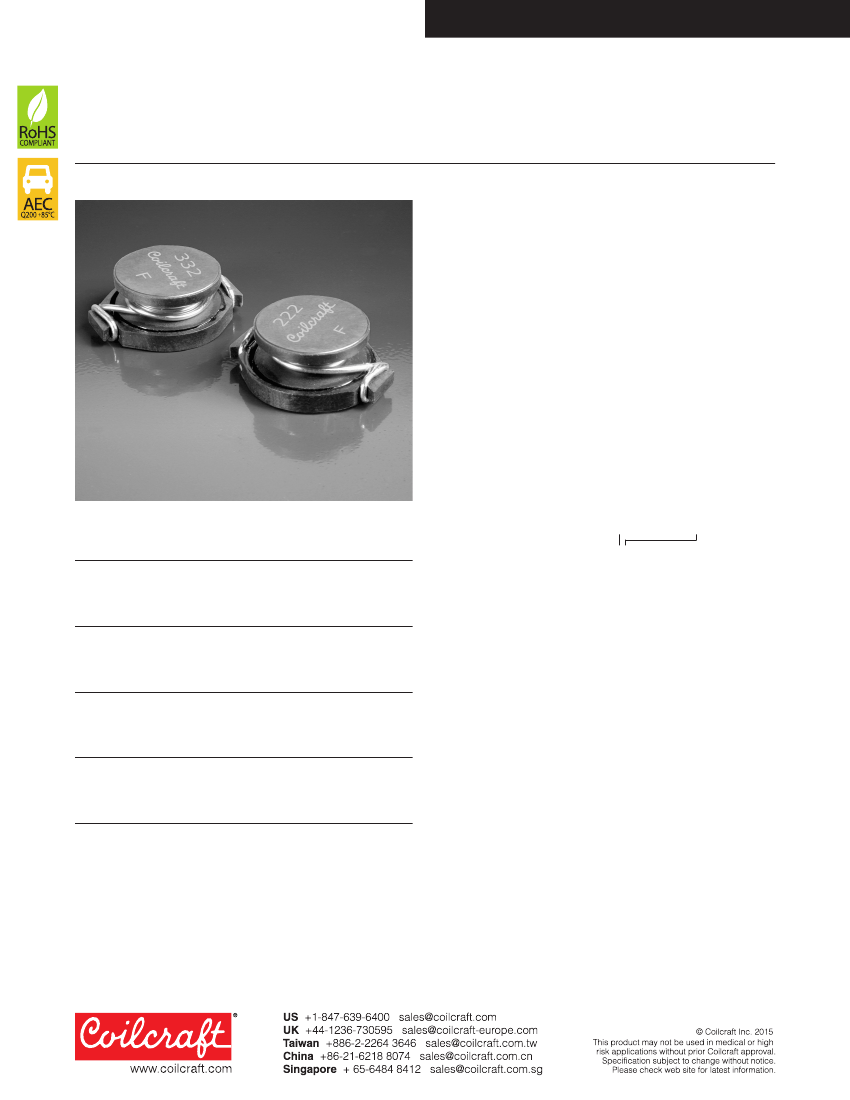

SMT Power Inductors - DO5010H Series
• Irms
ratings up to 15 A; saturation currents up to 30 A
• Heavy gauge wire for low DC resistance
Designer’s Kit C355
contains 3 of each part
Core material
Ferrite
Core and winding loss
See www.coilcraft.com/coreloss
Terminations
RoHS compliant tin-silver over copper. Other
terminations available at additional cost.
Weight
3.2 – 4.0 g
Ambient temperature
–40°C to +85°C with
Irms
current, +85°C to
+125°C with derated current
Storage temperature
Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332
Packaging
250 per 13″ reel Plastic tape: 32 mm wide,
0.38 mm thick, 24 mm pocket spacing, 7.8 mm pocket depth
PCB washing
Tested to MIL-STD-202 Method 215 plus an additional
aqueous wash. See
Doc787_PCB_Washing.pdf.
DCR
SRF
Inductance
2
max
typ
3
±20% (µH) (mOhm) (MHz)
0.78
2.6
156
1.5
4.0
100
2.2
6.1
75
3.3
8.6
60
3.9
10
55
4.7
14
40
6.0
17
35
7.8
18
35
10
26
28
12
28
26
15
32
20
22
47
20
33
66
15
47
86
9
68
130
8
100
190
7
150
250
6
220
380
5
330
560
4
470
850
3
680
1100
2.5
1000
1800
2.0
1. When ordering, please specify
termination
and
packaging
codes:
DO5010H-105MLD
Termination: L
= RoHS compliant tin-silver over copper.
Special order: T
= RoHS tin-silver-copper
(95.5/4/0.5) or
S
= non-RoHS tin-lead (63/37).
Packaging: D
= 13″ machine-ready reel. EIA-481 embossed plastic
tape.
B
= Less than full reel. In tape, but not machine ready.
To have a leader and trailer added ($25 charge),
use code letter D instead.
2. Inductance tested at 100 kHz, 0.1 Vrms using an Agilent/HP 4284A
LCR meter or equivalent.
3. SRF measured using Agilent/HP 8753D network analyzer.
4. DC current at which the inductance drops 10% (typ) from its value
without current.
5. Current that causes a 40°C temperature rise from 25°C ambient.
6. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
Part Number
1
DO5010H-781ML_
DO5010H-152ML_
DO5010H-222ML_
DO5010H-332ML_
DO5010H-392ML_
DO5010H-472ML_
DO5010H-602ML_
DO5010H-782ML_
DO5010H-103ML_
DO5010H-123ML_
DO5010H-153ML_
DO5010H-223ML_
DO5010H-333ML_
DO5010H-473ML_
DO5010H-683ML_
DO5010H-104ML_
DO5010H-154ML_
DO5010H-224ML_
DO5010H-334ML_
DO5010H-474ML_
DO5010H-684ML_
DO5010H-105ML_
Isat
4
(A)
30
25
20
17
15
13
12
11
10
8.5
8.0
7.0
5.5
4.5
3.5
3.0
2.6
2.4
1.9
1.4
1.2
1.0
Irms
5
(A)
15
15
12
10
9.0
8.4
7.5
7.5
6.0
5.2
4.4
3.5
3.0
2.6
2.3
1.8
1.5
1.2
1.0
0.82
0.72
0.56
