KP1836
www.vishay.com
Vishay Roederstein
AC and Pulse Film/Foil Capacitors
Radial Potted Type
FEATURES
• Material categorization:
For definitions of compliance please see
www.vishay.com/doc?99912
APPLICATIONS
• High voltage, very high current and high pulse
operations, deflection circuits in TV sets
(fly-back tuning)
• Electronic ballasts, protection circuits in SMPS’s
• Snubber and SCR commutating circuits
QUICK REFERENCE DATA
Capacitance range
Capacitance tolerances
Climatic testing class according to IEC 60068
Dielectric
Electrodes
Construction
Leads
Marking
Coating
Insulation resistance
Operating temperature range
Rated DC voltages
Permissible AC voltages (RMS) up to 60 Hz
Test voltages (electrode/electrode)
Temperature coefficient
Capacitance drift
Derating for DC and AC category voltage U
C
Self inductance
Pull test on leads
Reliability
100 pF to 0.22 μF
± 10 % (K), ± 5 % (J)
55/100/56
Polypropylene film
Aluminum foil
Extended aluminum foil, internal series connection, double-sided metallized,
polyester carrier film
Tinned wire
Manufacturer’s logo, type, C-value, rated voltage, tolerance, data of manufacture
Flame retardant plastic case (UL-class 94 V-0), epoxy resin sealed
Measured at 500 V
DC
after one minute
100 000 M minimum value (1000 G typical value)
- 55 °C to + 100 °C
630 V
DC
, 1000 V
DC
, 1250 V
DC
, 1600 V
DC
, 2000 V
DC
300 V
AC
, 350 V
AC
, 400 V
AC
, 500 V
AC
, 600 V
AC
2 x U
R
for 2 s
- 250 x 10
-6
/°C (typical value)
Up to + 40 °C, ± 0.5 % for a period of two years
At + 85 °C: U
C
= 1.0 U
R
At + 100 °C: U
C
= 0.7 U
R
~ 6 nH measured with 2 mm long leads
30 N in direction of leads according to IEC 60068-2-21
Operational life > 300 000 h
Failure rate < 1 FIT (0.5 x U
R
and 40 °C)
Note
• For further details, please refer to the general information available at
www.vishay.com/doc?26033
Revision: 21-Nov-13
Document Number: 26021
1
For technical questions, contact:
dc-film@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
KP1836
www.vishay.com
Vishay Roederstein
DIMENSIONS
in millimeters
L Max.
W Max.
Marking
H
Max.
0.6
± 0.4
PCM ± 0.4
Ød
6.0
-1
W
16
< 16
Ød
1.0
0.8
MAXIMUM PULSE RISE TIME
PCM
(mm)
15
22.5
27.5
37.5
630 V
DC
6500
2600
1800
1200
MAXIMUM PULSE RISE TIME dV/dt [V/μs]
1000 V
DC
1250 V
DC
1600 V
DC
8200
11 100
13 900
3200
4600
6000
2300
3100
4000
1500
1900
2400
2000 V
DC
13 900
9800
6000
3500
Note
• If the maximum pulse voltage is less than the rated voltage higher dV/dt values can be permitted.
DISSIPATION FACTOR tan
MEASURED AT
1 kHz
10 kHz
100 kHz
C
0.1 μF
0.3 x 10
-3
0.4 x 10
-3
1 x 10
-3
Maximum values
C > 1.0 μF
0.3 x 10
-3
0.4 x 10
-3
-
ELECTRICAL DATA
U
RDC
(V)
CAP.
(μF)
0.0027
0.0033
0.0039
0.0047
0.0056
0.0068
0.0082
0.010
0.012
0.015
0.018
0.022
0.027
0.033
0.039
0.047
0.056
0.068
0.082
0.10
0.12
0.15
0.18
0.22
CAPACITANCE
CODE
-227
-233
-239
-247
-256
-268
-282
-310
-312
-315
-318
-322
-327
-333
-339
-347
-356
-368
-382
-410
-412
-415
-418
-422
VOLTAGE
CODE
V
AC
DIMENSIONS
(W x H x L)
5.5 x 10.5 x 18.0
5.5 x 10.5 x 18.0
6.5 x 12.5 x 18.0
6.5 x 12.5 x 18.0
7.5 x 13.5 x 18.0
7.5 x 13.5 x 18.0
8.5 x 14.5 x 18.0
8.5 x 14.5 x 18.0
8.5 x 17.5 x 18.0
10.5 x 17.5 x 18.0
7.5 x 15.5 x 26.5
7.5 x 15.5 x 26.5
8.5 x 16.5 x 26.5
10.5 x 18.5 x 26.5
10.5 x 18.5 x 26.5
10.5 x 18.5 x 26.5
11.5 x 20.5 x 31.5
11.5 x 20.5 x 31.5
11.5 x 20.5 x 31.5
13.5 x 23.5 x 31.5
12.5 x 22.5 x 41.5
12.5 x 22.5 x 41.5
14.5 x 24.5 x 41.5
14.5 x 24.5 x 41.5
PCM
15
15
15
15
15
15
15
15
15
15
22.5
22.5
22.5
22.5
22.5
22.5
27.5
27.5
27.5
27.5
37.5
37.5
37.5
37.5
630
63
300
Revision: 21-Nov-13
Document Number: 26021
2
For technical questions, contact:
dc-film@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
KP1836
www.vishay.com
Vishay Roederstein
VOLTAGE
CODE
DIMENSIONS
(W x H x L)
5.5 x 10.5 x 18.0
5.5 x 10.5 x 18.0
6.5 x 12.5 x 18.0
6.5 x 12.5 x 18.0
6.5 x 14.5 x 26.5
6.5 x 14.5 x 26.5
6.5 x 14.5 x 26.5
6.5 x 14.5 x 26.5
7.5 x 15.5 x 26.5
7.5 x 15.5 x 26.5
8.5 x 16.5 x 26.5
8.5 x 16.5 x 26.5
10.5 x 18.5 x 26.5
10.5 x 18.5 x 26.5
11.5 x 20.5 x 31.5
11.5 x 20.5 x 31.5
11.5 x 20.5 x 31.5
11.5 x 20.5 x 31.5
13.5 x 23.5 x 31.5
13.5 x 23.5 x 31.5
12.5 x 22.5 x 41.5
12.5 x 22.5 x 41.5
14.5 x 24.5 x 41.5
14.5 x 24.5 x 41.5
16.0 x 28.5 x 41.5
16.0 x 28.5 x 41.5
5.5 x 10.5 x 18.0
5.5 x 10.5 x 18.0
5.5 x 10.5 x 18.0
5.5 x 10.5 x 18.0
5.5 x 10.5 x 18.0
5.5 x 10.5 x 18.0
6.5 x 14.5 x 26.5
6.5 x 14.5 x 26.5
6.5 x 14.5 x 26.5
6.5 x 14.5 x 26.5
6.5 x 14.5 x 26.5
7.5 x 15.5 x 26.5
7.5 x 15.5 x 26.5
10.5 x 18.5 x 26.5
10.5 x 18.5 x 26.5
10.5 x 18.5 x 26.5
11.5 x 20.5 x 31.5
11.5 x 20.5 x 31.5
11.5 x 20.5 x 31.5
13.5 x 23.5 x 31.5
13.5 x 23.5 x 31.5
15.0 x 24.5 x 31.5
15.0 x 24.5 x 31.5
14.5 x 24.5 x 41.5
14.5 x 24.5 x 41.5
16.0 x 28.5 x 41.5
16.0 x 28.5 x 41.5
ELECTRICAL DATA
U
RDC
(V)
CAP.
(μF)
0.00068
0.0010
0.0012
0.0015
0.0018
0.0022
0.0027
0.0033
0.0039
0.0047
0.0056
0.0068
0.0082
0.010
0.012
0.015
0.018
0.022
0.027
0.033
0.039
0.047
0.056
0.068
0.082
0.10
0.00010
0.00015
0.00022
0.00033
0.00047
0.00068
0.0010
0.0012
0.0015
0.0018
0.0022
0.0027
0.0033
0.0039
0.0047
0.0056
0.0068
0.0082
0.010
0.012
0.015
0.018
0.022
0.027
0.033
0.039
0.047
CAPACITANCE
CODE
-168
-210
-212
-215
-218
-222
-227
-233
-239
-247
-256
-268
-282
-310
-312
-315
-318
-322
-327
-333
-339
-347
-356
-368
-382
-410
-110
-115
-122
-133
-147
-168
-210
-212
-215
-218
-222
-227
-233
-239
-247
-256
-268
-282
-310
-312
-315
-318
-322
-327
-333
-339
-347
V
AC
PCM
15
15
15
15
22.5
22.5
22.5
22.5
22.5
22.5
22.5
22.5
22.5
22.5
27.5
27.5
27.5
27.5
27.5
27.5
37.5
37.5
37.5
37.5
37.5
37.5
15
15
15
15
15
15
22.5
22.5
22.5
22.5
22.5
22.5
22.5
22.5
22.5
22.5
27.5
27.5
27.5
27.5
27.5
27.5
27.5
37.5
37.5
37.5
37.5
1600
13
500
2000
20
600
Note
• Further C-values upon request.
Revision: 21-Nov-13
Document Number: 26021
4
For technical questions, contact:
dc-film@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
KP1836
www.vishay.com
Vishay Roederstein
REEL DIAMETER
(mm)
S
(1)
S
(1)
RECOMMENDED PACKAGING
LETTER
CODE
D
G
F
W
V
G
-
TYPE OF
PACKAGING
Ammo
Ammo
Reel
Reel
Reel
Ammo
Bulk
HEIGHT (H)
(mm)
16.5
18.5
16.5
18.5
18.5
18.5
-
ORDERING CODE
EXAMPLES
KP1836-168/205-D
KP1836-168/205-G
KP1836-168/205-F
KP1836-168/205-W
KP1836-310/134-V
KP1836-310/134-G
KP1836-310/134
PCM
15
x
x
x
x
x
-
x
PCM
22.5 TO 27.5
-
-
-
-
x
x
x
PCM
37.5
-
-
-
-
-
-
x
350
350
500
L
(2)
-
Notes
(1)
S = Box size 55 mm x 210 mm x 340 mm (W x H x L)
(2)
L = Box size 60 mm x 360 mm x 510 mm (W x H x L)

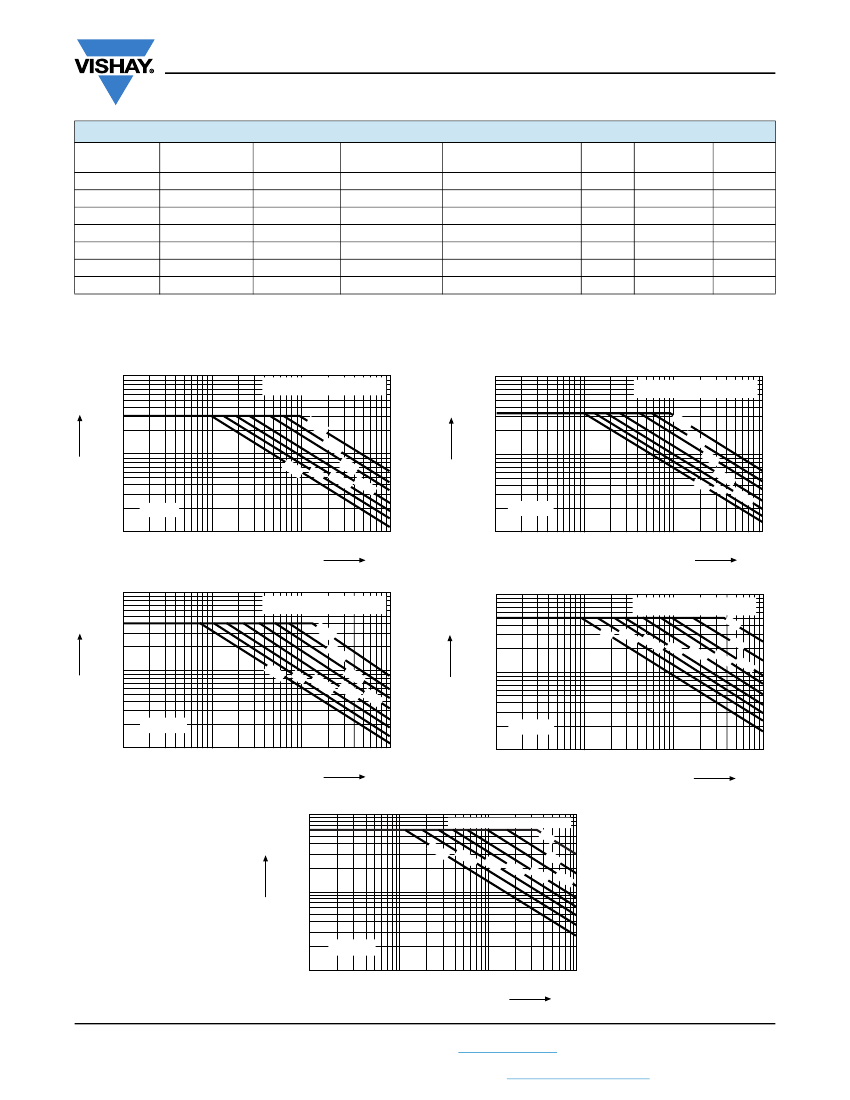

PERMISSIBLE AC VOLTAGE VS. FREQUENCY
V
RMS
V
RMS
1000
7
5
3
2
100
7
5
3
2
10
10
3
2
3
5 7 10
4
2
3
5 7 10
5
2
3
5 7 10
6
f [Hz]
630 V
DC
0.2
2
Capacitance in pF and µF
1000
7
5
3
2
Capacitance in pF and µF
22
00
47
00
27
00
47
0.1
00
0.0
1
100
7
5
3
2
10
10
3
1000 V
DC
5 7 10
4
5 7 10
5
0.0
47
0.0
27
0.0
1
0.0
22
0.2
2
0.1
0.
04
7
2
3
2
3
2
3
5 7 10
6
f [Hz]
V
RMS
V
RMS
1000
7
5
3
2
100
7
5
3
2
10
10
3
1250 V
DC
5 7 10
4
Capacitance in pF and µF
12
00
1000
7
5
3
2
100
Capacitance in pF and µF
0.1 0.0
47 0.
0
15
0
22 0
.01
47
00
47
0
22
00 10
00
22
00
47
00
0.0
22
0.
0
0.2
2
0 .1
0.0
47
1
7
5
3
2
1600 V
DC
10
3
5 7 10
4
5 7 10
5
5 7 10
6
f [Hz]
2
3
2
3
5 7 10
5
2
3
5 7 10
6
f [Hz]
10
2
3
2
3
2
3
V
RMS
1000
7
5
3
2
100
7
5
3
2
10
2000 V
DC
10
3
2
3
5 7 10
4
2
Capacitance in pF and µF
0.0
47
15
0
0.0
22
0.0
1
470
47
0
22
0
0
0
10
00
3
5 7 10
5
2
3
5 7 10
6
f [Hz]
Revision: 21-Nov-13
Document Number: 26021
5
For technical questions, contact:
dc-film@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
