ESMM421VSN681MA50T datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> ESMM421VSN681MA50T

PDF

ESMM421VSN681MA50T: DescriptionAluminum Electrolytic Capacitors - Snap In 680uF 420 Volt; CategoryPassive components; File Size306KB，5 Pages; ManufacturerUnited Chemi-Con (UCC); Environmental Compliance

Download Datasheet Parametric View All

ESMM421VSN681MA50T Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ESMM421VSN681MA50T	-	-	View	Buy Now

ESMM421VSN681MA50T Overview

Aluminum Electrolytic Capacitors - Snap In 680uF 420 Volt

ESMM421VSN681MA50T Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	United Chemi-Con (UCC)
Product Category	Aluminum Electrolytic Capacitors - Snap In
RoHS	Details
Product	General Purpose Electrolytic Capacitors
Termination Style	Snap In
Capacitance	680 uF
Voltage Rating DC	420 VDC
Tolerance	20 %
Minimum Operating Temperature	- 25 C
Maximum Operating Temperature	+ 85 C
Packaging	Bulk
Factory Pack Quantity	200

Preview

Download Datasheet

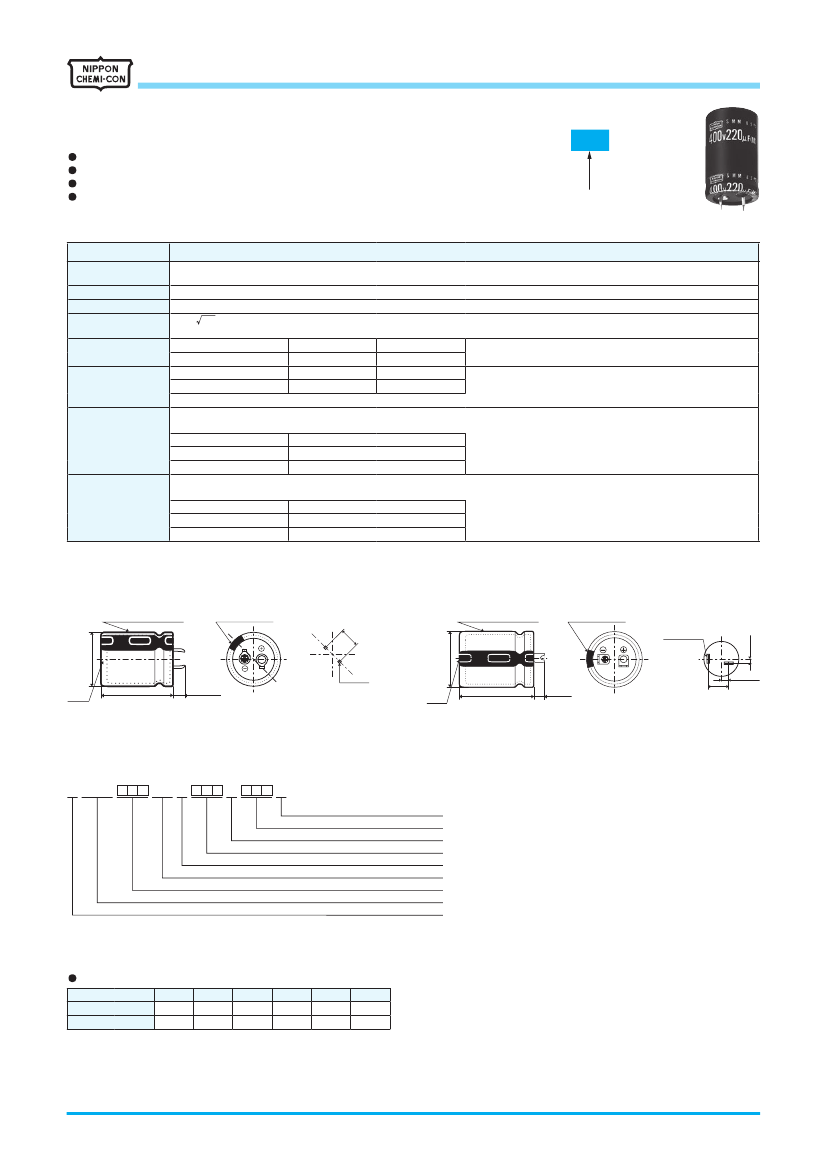

LARGE CAPACITANCE ALUMINUM ELECTROLYTIC CAPACITORS

Long life snap-ins, 85℃

SMM

Items

Category

Temperature Range

Rated Voltage Range

Capacitance Tolerance

Leakage Current

Dissipation Factor

(tanδ)

Low Temperature

Characteristics

(Max. Impedance Ratio)

Endurance

Series

SMM

Longer life

SMQ

・Longer

life from SMQ series

・Endurance

with ripple current : 3,000 hours at 85℃

・Non

solvent resistant type

・RoHS2

Compliant

◆SPECIFICATIONS

Characteristics

-25 to +85℃

160 to 450V

dc

±20%

(M)

I≦3 CV

Where, I : Max. leakage current (µA), C : Nominal capacitance (µF), V : Rated voltage (V)

Rated voltage (V

dc

)

160 to 400V

420 & 450V

tanδ (Max.)

0.15

0.20

Rated voltage (V

dc

)

160 to 400V

420 & 450V

Z(-25℃)/Z(+20℃)

4

8

(at 20℃, 120Hz)

(at 20℃ after 5 minutes)

(at 20℃, 120Hz)

Shelf Life

(at 120Hz)

The following speciﬁcations shall be satisﬁed when the capacitors are restored to 20℃ after subjected to DC voltage with the rated

ripple current is applied (the peak voltage shall not exceed the rated voltage) for 3,000 hours at 85℃.

Capacitance change

≦±20%

of the initial value

D.F. (tanδ)

≦200%

of the initial speciﬁed value

Leakage current

≦The

initial speciﬁed value

The following speciﬁcations shall be satisﬁed when the capacitors are restored to 20℃ after exposing them for 1,000 hours at 85℃ without

voltage applied. Before the measurement, the capacitor shall be preconditioned by applying voltage according to Item 4.1 of JIS C 5101-4.

Capacitance change

≦±15%

of the initial value

D.F. (tanδ)

≦150%

of the initial speciﬁed value

Leakage current

≦The

initial speciﬁed value

◆DIMENSIONS

[mm]

●

Terminal

Code : VS (

φ22

to

φ35)

: Standard

Negative mark

PC board pin-out

(View from Solder side)

●

Terminal

Code : LI (

φ35)

Negative mark

PC board pin-out

(View from Solder side)

2-1.2×6

4.2±0.5

5±0.5

14.2±1

Sleeve (PET : Black)

φD+1max.

Sleeve (PET : Black)

φD+1max.

Vent

L±2

*

4.0±0.5

2-φ2

10

Vent

L±2

4.5±1

*φD=35mm : 3.5±0.5mm

The standard design has no plastic disc.

◆PART

NUMBERING SYSTEM

E S MM

A A A

V S N

A A A

M

A A A

S

Supplement code

Size code

Capacitance tolerance code

Capacitance code (ex. 330µF:331, 3,300µF:332)

Dummy terminal code

Terminal code (VS, LI)

Voltage code (ex. 160V:161, 315V:3B1, 450V:451)

Series code

Category

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

Please refer to "Product code guide (snap-in type)"

◆RATED

RIPPLE CURRENT MULTIPLIERS

・Frequency

Multipliers

Frequency(Hz)

160 to 250V

dc

315 to 450V

dc

50

0.81

0.77

120

1.00

1.00

300

1.17

1.16

1k

1.32

1.30

10k

1.45

1.41

50k

1.50

1.43

The endurance of capacitors is reduced with internal heating produced by ripple current at the rate of halving the lifetime with every 5℃ rise.

When long life performance is required in actual use, the rms ripple current has to be reduced.

Product specifications in this catalog are subject to change without notice.Request our product specifications before purchase and/or use. Please use our products based on the information contained in this catalog and product specifications.

CAT. No. E1001S
