EMVE100ADA331MHA0G

Description
Aluminum Electrolytic Capacitors - SMD 10volts 330uF 8X10
CategoryPassive components
File Size356KB,3 Pages
ManufacturerUnited Chemi-Con (UCC)
Environmental Compliance
Download Datasheet Parametric View All

EMVE100ADA331MHA0G Online Shopping

Suppliers Part Number Price MOQ In stock
EMVE100ADA331MHA0G - - View Buy Now

EMVE100ADA331MHA0G Overview

Aluminum Electrolytic Capacitors - SMD 10volts 330uF 8X10

EMVE100ADA331MHA0G Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerUnited Chemi-Con (UCC)
Product CategoryAluminum Electrolytic Capacitors - SMD
RoHSDetails
ProductAluminum Electrolytic Capacitors
Capacitance330 uF
Voltage Rating DC10 VDC
Tolerance20 %
ESR-
Minimum Operating Temperature- 40 C
Maximum Operating Temperature+ 105 C
Diameter8 mm
Length10 mm
Width8.3 mm
Height8.3 mm
Life2000 Hour
Ripple Current290 mA
QualificationAEC-Q200
PackagingCut Tape
PackagingMouseReel
PackagingReel
Termination StyleSMD/SMT
TypeSMD Aluminum Electrolytic Capacitors
Leakage Current-
Factory Pack Quantity500

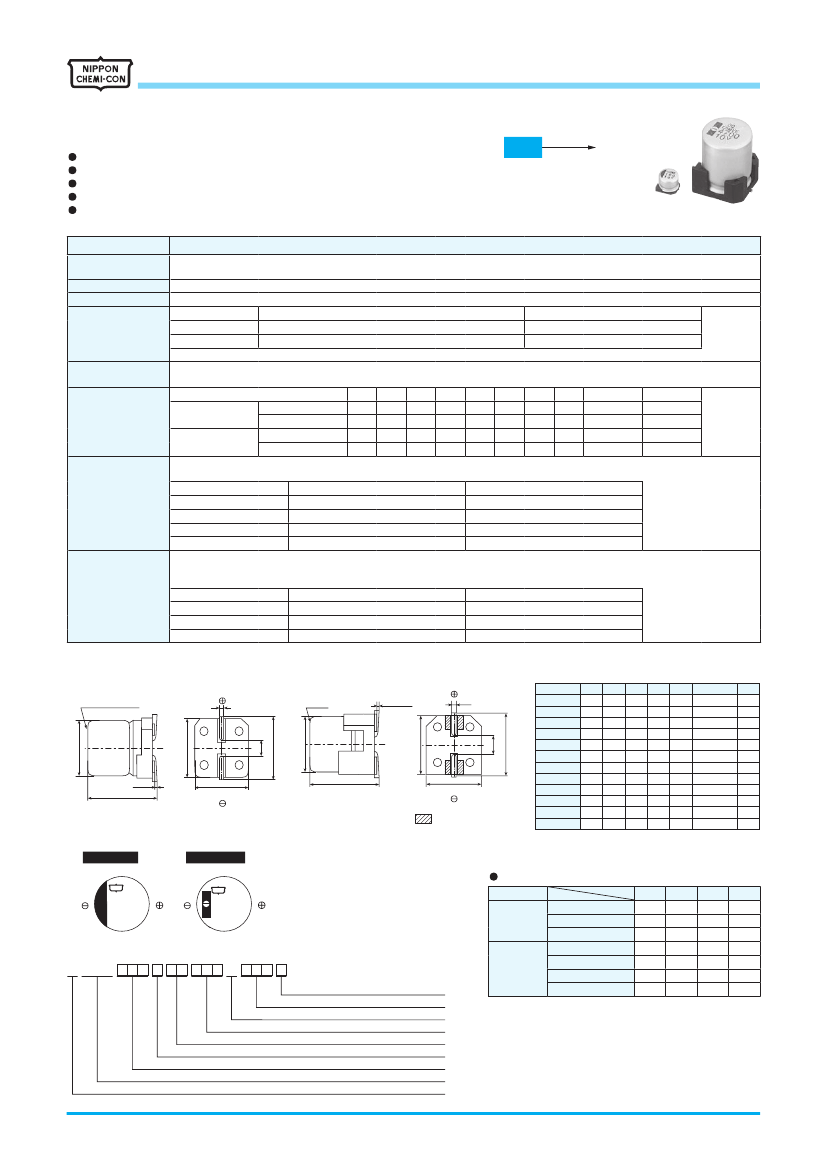

SURFACE MOUNT ALUMINUM ELECTROLYTIC CAPACITORS
Alchip
TM
Standard, 105℃
-
・Endurance
: 1,000 to 2,000 hours at 105℃
・Case
size range :φ4×5.2L to
φ18×21.5L
・Solvent
resistant type except 100 to 450V
dc
(see PRECAUTIONS AND GUIDELINES)
・RoHS2
Compliant
・AEC-Q200
compliant : Please contact Chemi-Con for more details, test data, information.
MVE
Series
MVE
Longer life
MVL
MVJ
◆SPECIFICATIONS
Items
Category
Temperature Range
Rated Voltage Range
Capacitance Tolerance
Leakage Current
Characteristics
-40 to +105℃
6.3 to 450V
dc
(at 20℃, 120Hz)
±20%(M)
Rated voltage (V
dc
)
6.3 to 100V
160 to 450V
D55 to JA0
I=0.01CV or 3μA, whichever is greater (2 minutes)
-
KE0 to MN0
I=0.03CV or 4μA, whichever is greater (1 minute)
I=0.04CV+100μA (1minute)
Where, I : Max. leakage current (μA), C : Nominal capacitance (μF), V : Rated voltage (V)
(at 20℃)
See STANDARD RATINGS
(at 20℃, 120Hz)
Rated voltage (V
dc
)
6.3V 10V 16V 25V 35V 50V 63V 100V 160 to 250V 400 to 450V
-
-
Z(-25℃)/Z(+20℃)
4
3
2
2
2
2
2
3
D55 to JA0
Z(-40℃)/Z(+20℃) 12
8
6
4
3
3
3
4
-
-
Z(-25℃)/Z(+20℃)
5
4
3
2
2
2
2
2
3
6
KE0 to MN0
(at 120Hz)
Z(-40℃)/Z(+20℃) 10
8
6
4
3
3
3
3
6
10
The following specifications shall be satisfied when the capacitors are restored to 20℃ after the rated voltage is applied for the specified
period of time at 105℃.
Size code
D55 to F80
HA0 to MN0
Time
1,000 hours
2,000 hours
Capacitance change
of the initial value
≦±30%
≦±20%
of the initial value
D.F. (tanδ)
≦300%
of the initial specified value
≦200%
of the initial specified value
Leakage current
≦The
initial specified value
≦The
initial specified value
The following specifications shall be satisfied when the capacitors are restored to 20℃ after exposing them for 1,000 hours (500 hours
for B55 to F80 size) at 105℃ without voltage applied. Before the measurement, the capacitor shall be preconditioned by applying voltage
according to Item 4.1 of JIS C 5101-4.
Size code
D55 to F80
HA0 to MN0
Capacitance change
≦±25%
of the initial value
≦±20%
of the initial value
D.F. (tanδ)
≦200%
of the initial specified value
≦200%
of the initial specified value
Leakage current
initial specified value
≦The
≦The
initial specified value
Terminal
Dissipation Factor
(tanδ)
Low Temperature
Characteristics
(Max. Impedance Ratio)
Endurance
Shelf Life
◆DIMENSIONS
[mm]
Code : A
Size code : D55 to MN0
Vent
(Except D55 to HA0)
φD
±
0.5
B
±
0.2
W
φD
±
0.5
P
C
±
0.2
B
±
0.2
P
C
±
0.2
Terminal
Code : G (Vibration resistant structure)
Size code
Size code : LH0 to MN0
Vent
0.3max.
W
D55
E55
F55
F80
HA0
JA0
KE0
KG5
LH0
LN0
MH0
MN0
0.3max.
L
±
0.3 (Note)
Note : L
±
0.5 for HA0 to MN0
A
±
0.2
L
±
0.5
A
±
0.2
: Dummy terminals
◆MARKING
D55 to JA0
Ex)16V22µF
7hE
D
4
5
6.3
6.3
8
10
12.5
12.5
16
16
18
18
L
5.2
5.2
5.2
7.7
10.0
10.0
13.5
16.0
16.5
21.5
16.5
21.5
A
4.3
5.3
6.6
6.6
8.3
10.3
13.0
13.0
17.0
17.0
19.0
19.0
B
4.3
5.3
6.6
6.6
8.3
10.3
13.0
13.0
17.0
17.0
19.0
19.0
C
5.1
5.9
7.2
7.2
9.0
11.0
13.7
13.7
18.0
18.0
20.0
20.0
W
0.5 to 0.8
0.5 to 0.8
0.5 to 0.8
0.5 to 0.8
0.7 to 1.1
0.7 to 1.1
1.0 to 1.3
1.0 to 1.3
1.0 to 1.3
1.0 to 1.3
1.0 to 1.3
1.0 to 1.3
P
1.0
1.4
1.9
1.9
3.1
4.5
4.2
4.2
6.5
6.5
6.5
6.5
KE0 to MN0
Ex)25V1,000µF
◆RATED
RIPPLE CURRENT MULTIPLIERS
・Frequency
Multipliers
Size code
D55 to JA0
Capacitance(µF)
Frequency(Hz)
22
16V
1
2
3
4
5
6
7
8
9
10
11
12
1000
25V
13
14
0V
MVE
◆PART
NUMBERING SYSTEM
E MV E
AAA A AA AAA
M
AAA N
Supplement code
Size code
Capacitance tolerance code
Capacitance code (ex. 4.7µF:4R7,100µF:101)
Taping·Tray code
Terminal code (A, G)
Voltage code (ex. 6.3V:6R3,100V:101,450V:451)
Series code
Category
15
16
17
18
KE0 to MN0
1.0
2.2 to 10
22 to 1,500
3.3 to 4.7
10 to 68
100 to 1,000
2,200 to 6,800
120
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1k
1.50
1.30
1.05
1.75
1.50
1.30
1.05
10k
1.75
1.40
1.08
2.30
1.75
1.40
1.08
100k
1.80
1.50
1.08
2.50
1.80
1.50
1.08
The endurance of capacitors is reduced with internal
heating produced by ripple current at the rate of halving
the lifetime with every 5℃ rise.
When long life performance is required in actual use, the
rms ripple current has to be reduced.
Please refer to "Product code guide (surface mount type)"
Product specifications in this catalog are subject to change without notice.Request our product specifications before purchase and/or use. Please use our products based on the information contained in this catalog and product specifications.
CAT. No. E1001S
