BPR58CR22J datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> BPR58CR22J

BPR58CR22J: DescriptionCurrent Sense Resistors - Through Hole 0.22 Ohm 5W 5% 350ppm; CategoryPassive components; File Size218KB，2 Pages; ManufacturerKOA Speer; Websitehttp://www.koaspeer.com/; Environmental Compliance

Download Datasheet Parametric View All

BPR58CR22J Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BPR58CR22J	-	-	View	Buy Now

BPR58CR22J Overview

Current Sense Resistors - Through Hole 0.22 Ohm 5W 5% 350ppm

BPR58CR22J Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	KOA Speer
Product Category	Current Sense Resistors - Through Hole
RoHS	Details
Resistance	220 mOhms
Power Rating	5 W
Tolerance	5 %
Temperature Coefficient	350 PPM / C
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 200 C
Length	14 mm
Width	5 mm
Height	18 mm
Termination Style	Radial
Packaging	Ammo Pack
Application	Current Sense
Features	Low Inductance
Operating Temperature Range	- 40 C to + 200 C
Product	Metal Element Current Sensing Resistors
Type	Rectangular Type Metal Plate Resistor
Mounting Style	PCB Mount
Lead Diameter	0.8 mm
Lead Spacing	9 mm
Factory Pack Quantity	1000
Unit Weight	0.116404 oz

Preview

Download Datasheet

View All

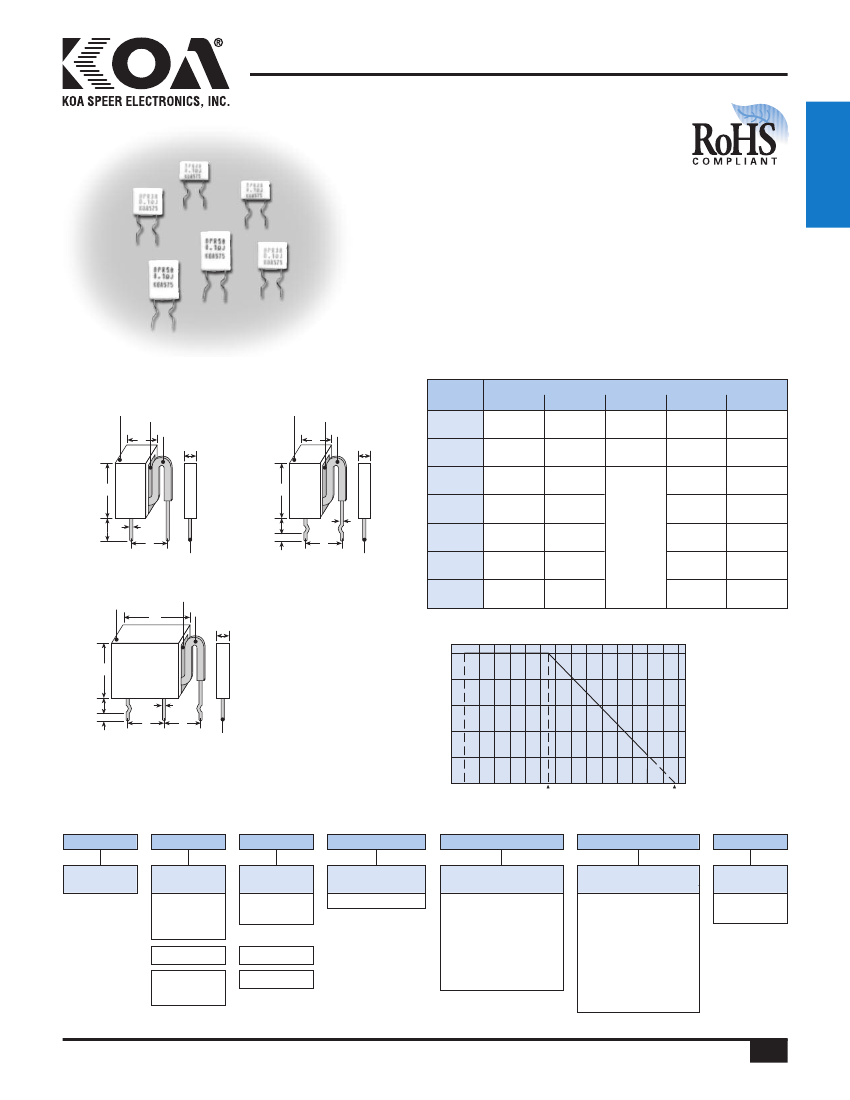

BPR

rectangular type metal plate resistors

features

•

Power type current detecting resistors

•

Flame retardant resistors in ceramic case

•

Automatic insertion for a 5mm pitch between

terminals is applicable (26 type, 58 type)

•

Low inductance

•

Space saving

•

Marking: Alpha/numeric marking

•

Products with lead-free terminations

meet EU RoHS requirements

dimensions and construction

Single Straight Style

Ceramic

Case

Cement

Resistive Element

Single Forming Style

Ceramic

Case

Cement

Resistive Element

Size

Code

BPR26

BPR28

BPR38

.335±.04

(8.5±1.0)

.335±.04

(8.5±1.0)

.512±.04

(13.0±1.0)

.709±.04

(18.0±1.0)

.669±.06

(17.0±1.5)

.669±.06

(17.0±1.5)

.787±.07

(20.0±1.8)

Dimensions

inches

(mm)

.512±.04

(13.0±1.0)

.512±.04

(13.0±1.0)

.551±.04

(14.0±1.0)

.551±.04

(14.0±1.0)

1.02±.06

(26.0±1.5)

1.02±.06

(26.0±1.5)

1.02±.06

(26.0±1.5)

.197±.04

(5.0±1.0)

.157±.04

(4.0±1.0)

.157±.04

(4.0±1.0)

.024±.04

(0.6±1.0)

.031±.04

(0.8±1.0)

.031±.04

(0.8±1.0)

.031±.04

(0.8±1.0)

.031±.04

(0.8±1.0)

.031±.04

(0.8±1.0)

.031±.04

(0.8±1.0)

.354±.04

(9.0±1.0)

.354±.04

(9.0±1.0)

.354±.04

(9.0±1.0)

.354±.04

(9.0±1.0)

.787±.04

(20.0±1.0)

.394±.04

(10.0±1.0)

.394±.04

(10.0±1.0)

BPR58

13±1mm

Lead Wire

8±1mm

5±1mm

Lead Wire

BPR108

BPR55

BPR77

Twin Style

Ceramic

Case

Cement

Resistive Element

Derating Curve

100

% Rated Power

8±1mm

5±1mm

Lead Wire

For resistors

operated at an ambient

temperature of 70°C or

above, a power rating

shall be derated in

accordance with the

above derating curve.

-40

120

160

Ambient Temperature

(°C)

200

240

235

ordering information

BPR

Type

Power

Rating

2: 2W

3: 3W

5: 5W

10: 10W

55: 5W+5W

77: 7W+7W

Lead Wire

Diameter

6: ø0.6mm

8: ø0.8mm

Termination

Material

C: SnCu

R10

Tolerance

J: ±5%

K: ±10%

Packaging

Blank: Straight lead

(9.0mm pitch)

F: Forming

(9.0mm pitch)

FT: Radial taping

(BPR26FT, BPR58FT

only, 5.0mm pitch)

8: ø0.8mm

Blank

For further information on packaging, please refer to Appendix C.

Nominal

Resistance

2 significant figures

+1 multiplier. “R”

indicates decimal on

value <10Ω.

All values less than

0.1Ω are expressed

in mΩ with “L” as

decimal.

Ex: 20mΩ - 20L

Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.

11/21/17

KOA Speer Electronics, Inc.

• 199 Bolivar Drive • Bradford, PA 16701 • USA • 814-362-5536 • Fax: 814-362-8883 • www.koaspeer.com

219
