M83513/10-B01NW: DescriptionD-Sub MIL Spec Connectors MICRO DCON PLG 15CNT .109"PC TAIL; CategoryThe connector The connector; File Size289KB，4 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

M83513/10-B01NW Overview

D-Sub MIL Spec Connectors MICRO DCON PLG 15CNT .109"PC TAIL

M83513/10-B01NW Parametric

Parameter Name	Attribute value
Maker	Glenair
Reach Compliance Code	compliant
Factory Lead Time	9 weeks
Samacsys Description	MIL-DTL-83513/28 Thru /33 Micro-D CBSnCondensed Straight PCB Terminated Connectors
Other features	STANDARD: MIL-DTL-83513, THREADED INSERTS
Board mount options	HOLE.096
body width	0.325 inch
subject depth	0.425 inch
body length	0.937 inch
Body/casing type	PLUG
Connector type	D MICROMINIATURE CONNECTOR
Contact arrangement	S15P0
Contact to complete cooperation	GOLD
Contact completed and terminated	TIN LEAD
Contact point gender	MALE
Contact material	BERYLLIUM COPPER
contact mode	STAGGERED
Contact resistance	8 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	600VAC V
Durability	500 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	2.78 N
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code	e0
MIL compliance	YES
Plug contact pitch	0.05 inch
Match contact row spacing	0.043 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	#2-56
Installation option 2	JACKPOST
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	3
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
Plating thickness	50u inch
Rated current (signal)	3 A
Guideline	MIL
reliability	MIL-C-83513
Shell surface	NICKEL
Shell material	METAL
Housing size	B
Terminal length	0.109 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	15
Evacuation force-minimum value	0.139 N

Preview

Download Datasheet

View All

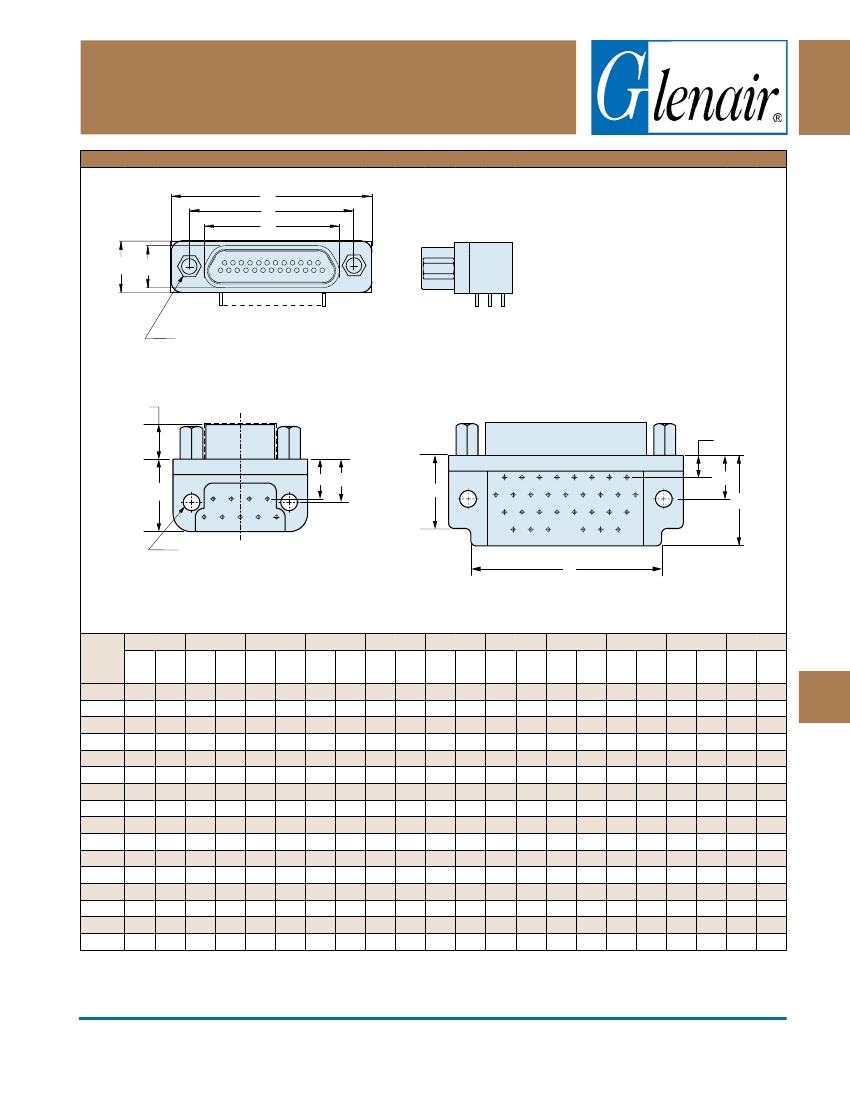

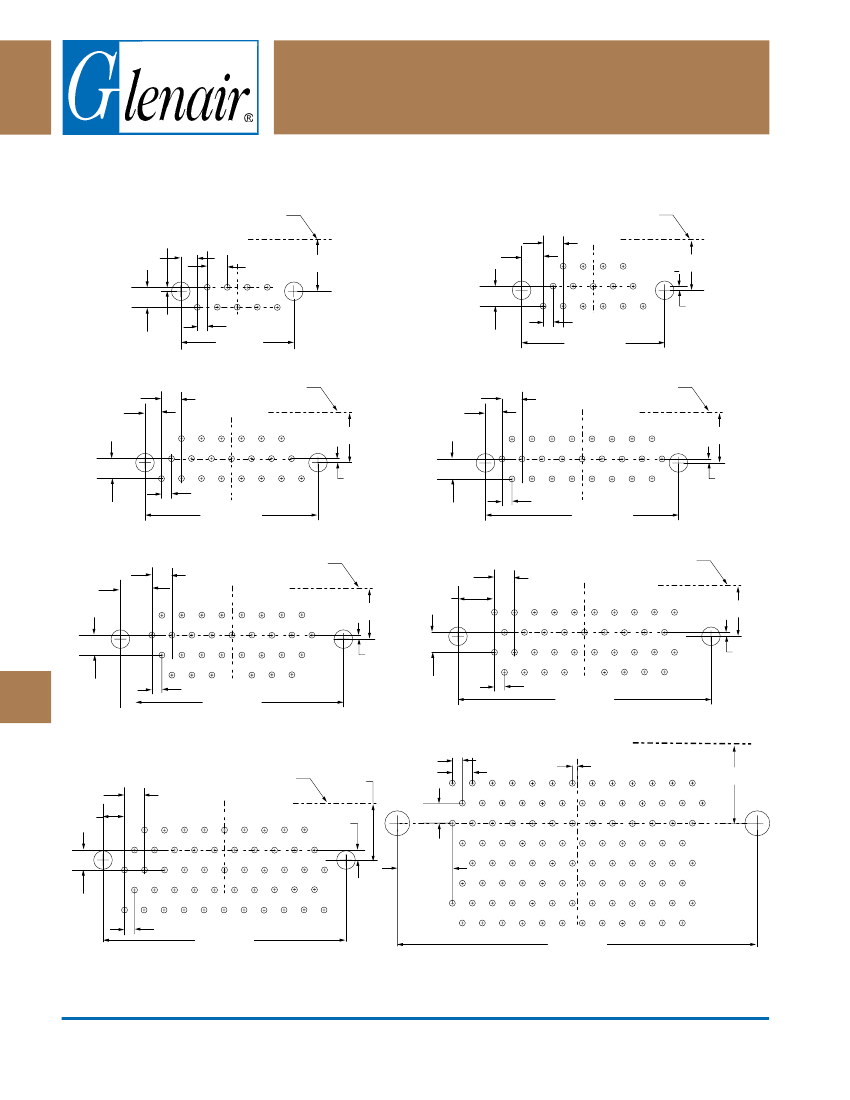

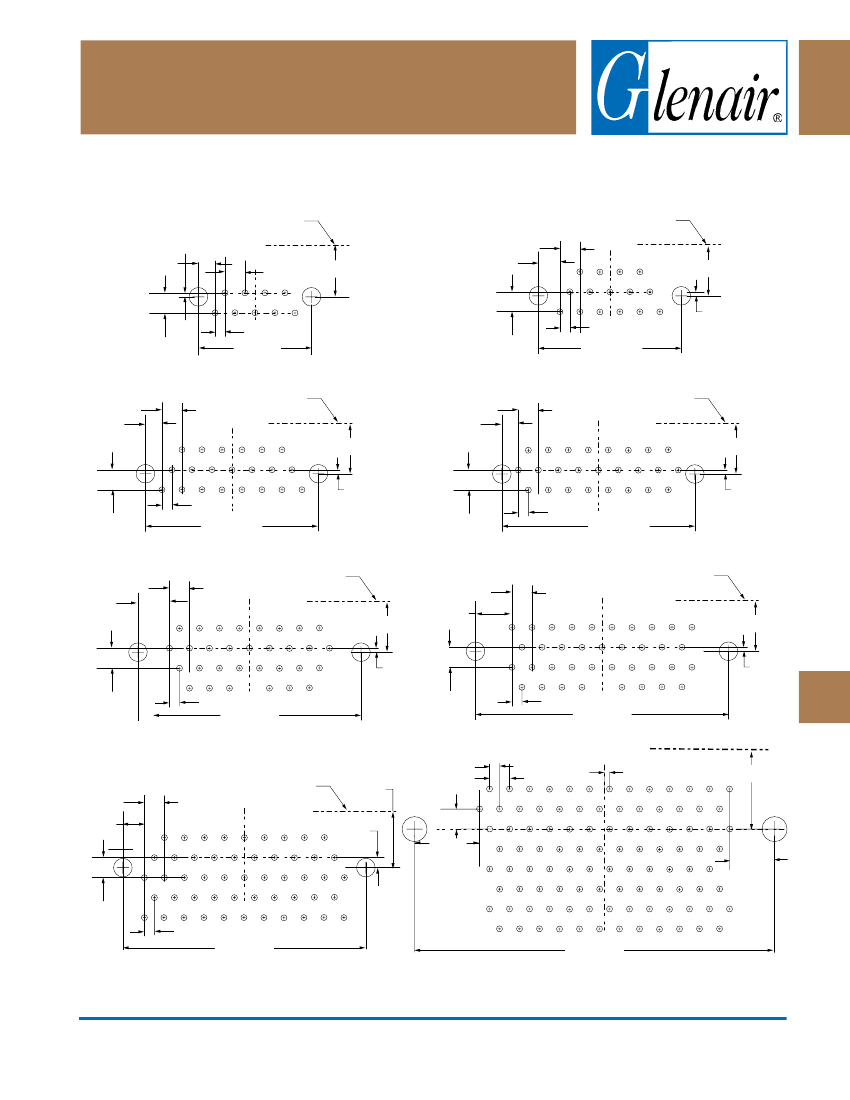

Micro-D

MIL-DTL-83513

MIL-DTL-83513/10 Thru /15 Micro-D CBR

Condensed Right Angle PCB Terminated

High Performance

These connectors feature gold-plated TwistPin contacts for best

performance. PC tails are .020 inch diameter. Specify nickel-plated shells

or cadmium plated shells for best availability.

Solder-Dipped

Terminals are coated with Sn60/Pb40 tin-lead solder for best

solderability.

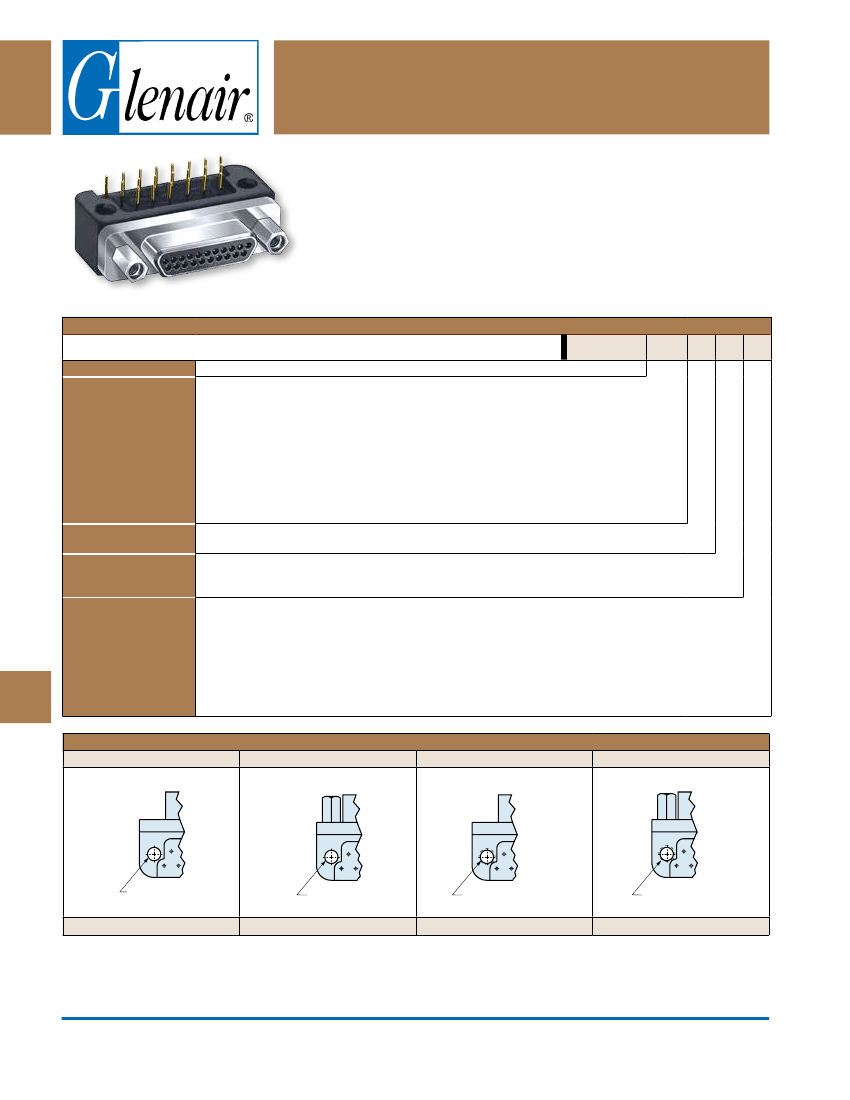

How To Order MIL-DTL-83513 Right Angle Micro-D Connectors

Sample Part Number

Base Part Number

M83513

Plug (Pin Contacts)

10–A

- 9 Contacts

10–B

- 15 Contacts

10–C

- 21 Contacts

10–D

- 25 Contacts

10–E

- 31 Contacts

10–F

- 37 Contacts

11–G

- 51 Contacts

12–H

- 100 Contacts

Receptacle (Socket Contacts)

13–A

- 9 Contacts

13–B

- 15 Contacts

13–C

- 21 Contacts

13–D

- 25 Contacts

13–E

- 31 Contacts

13–F

- 37 Contacts

14–G

- 51 Contacts

15–H

- 100 Contacts

INDEX

THRU HOLE

PC Tail Length

Shell Finish

m83513/

13-b

Slash Number-

Shell Sizes

(See Table II)

– .109 Inch (2.77 mm)

– .140 Inch (3.56 mm)

– .172 Inch (4.37 mm)

PC Tail Length ± .015 (0.38)

- Cadmium

- Electrodeposited Aluminum

- Electroless Nickel

- Zinc Nickel

- Passivated SST

- Nickel Fluorocarbon Polymer

- No Jackpost

- Jackposts Installed

Sizes 9-51

- Threaded Insert in Board Mount Hole (No Jackposts)

- Threaded Insert in Board Mount Hole and jackposts Installed

Shell Size 100 (H)

- #4-40 Threaded Insert

- #4-40 Threaded Insert & Jackpost

See "Hardware Options" below for Illustrations

(See Table I)

Table I: Hardware Options

T or U

W or Y

Hardware Options

THRU HOLE

2X THREADED INSERTS

Jackpost, Threaded Insert

No Jackpost

Jackpost

Threaded Insert

High Performance Micro-D Connectors and Cables

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com
