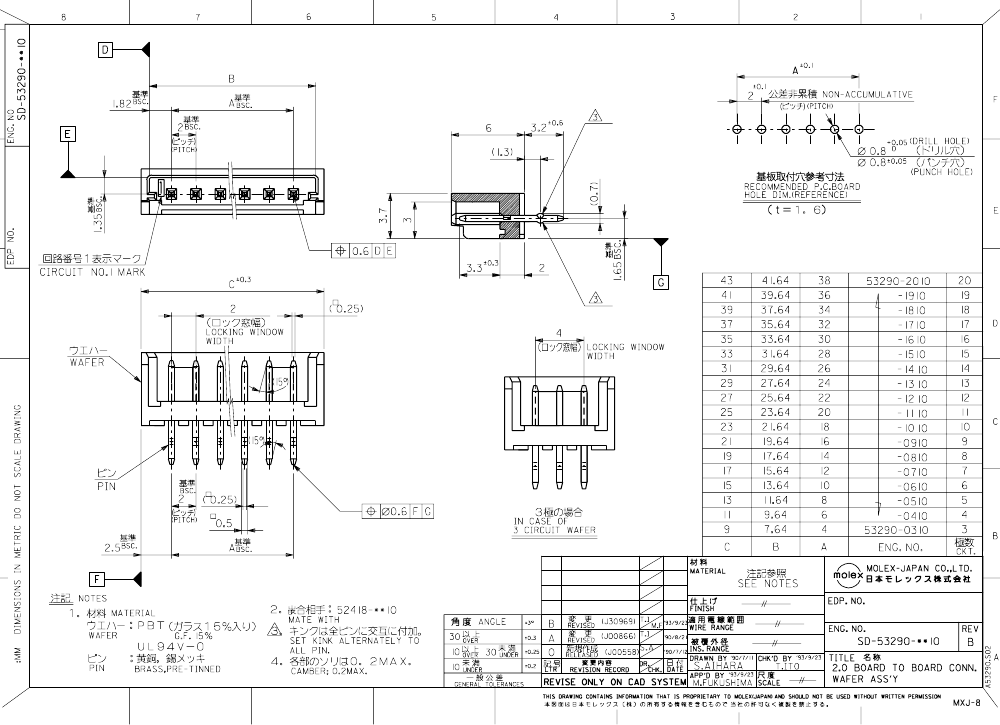

Board to Board & Mezzanine Connectors 2.00 MM BOARD-TO-BOA
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Molex |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Other features | NONE |
| body width | 0.148 inch |
| subject depth | 0.236 inch |
| body length | 0.748 inch |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED |
| Contact point gender | MALE |
| Contact material | NOT SPECIFIED |
| contact mode | RECTANGULAR |
| Contact resistance | 20 mΩ |
| Contact style | SQ PIN-SKT |
| DIN compliance | NO |
| Dielectric withstand voltage | 500VAC V |
| Filter function | NO |
| IEC compliance | NO |
| Insulation resistance | 1000000000 Ω |
| insulator material | GLASS FILLED POLYESTER |
| MIL compliance | NO |
| Manufacturer's serial number | 53290 |
| Plug contact pitch | 0.079 inch |
| Plug information | 52418-0810 |
| Mixed contacts | NO |
| Installation option 1 | DETENT |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 1 |
| Number of rows loaded | 1 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -40 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| polarization key | POLARIZED HOUSING |
| Rated current (signal) | 1.5 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal length | 0.126 inch |
| Terminal pitch | 2 mm |
| Termination type | SOLDER |
| Total number of contacts | 8 |
| UL Flammability Code | 94V-0 |
| Base Number Matches | 1 |
| 53290-0810 | 53290-2010 | 53290-0710 | 53290-0910 | 53290-1210 | 53290-0310 | 53290-0510 | 53290-1010 | 53290-1410 | |
|---|---|---|---|---|---|---|---|---|---|
| Description | Board to Board & Mezzanine Connectors 2.00 MM BOARD-TO-BOA | Board to Board & Mezzanine Connectors Obsolete | Board to Board & Mezzanine Connectors Obsolete | Board to Board & Mezzanine Connectors Obsolete | Board to Board & Mezzanine Connectors Obsolete | Board to Board & Mezzanine Connectors Obsolete | Board to Board & Mezzanine Connectors Obsolete | Board to Board & Mezzanine Connectors Obsolete | Board to Board & Mezzanine Connectors Obsolete |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| Maker | Molex | Molex | Molex | Molex | Molex | Molex | Molex | Molex | Molex |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Other features | NONE | NONE | NONE | NONE | NONE | NONE | NONE | NONE | NONE |
| body width | 0.148 inch | 0.148 inch | 0.148 inch | 0.148 inch | 0.148 inch | 0.148 inch | 0.148 inch | 0.148 inch | 0.148 inch |
| subject depth | 0.236 inch | 0.236 inch | 0.236 inch | 0.236 inch | 0.236 inch | 0.236 inch | 0.236 inch | 0.236 inch | 0.236 inch |
| body length | 0.748 inch | 1.693 inch | 0.669 inch | 0.827 inch | 1.063 inch | 0.354 inch | 0.512 inch | 0.906 inch | 1.22 inch |
| Body/casing type | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Contact point gender | MALE | MALE | MALE | MALE | MALE | MALE | MALE | MALE | MALE |
| Contact material | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| contact mode | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Contact resistance | 20 mΩ | 20 mΩ | 20 mΩ | 20 mΩ | 20 mΩ | 20 mΩ | 20 mΩ | 20 mΩ | 20 mΩ |
| Contact style | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT |
| DIN compliance | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| Dielectric withstand voltage | 500VAC V | 500VAC V | 500VAC V | 500VAC V | 500VAC V | 500VAC V | 500VAC V | 500VAC V | 500VAC V |
| Filter function | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| IEC compliance | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| Insulation resistance | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω |
| insulator material | GLASS FILLED POLYESTER | GLASS FILLED POLYESTER | GLASS FILLED POLYESTER | GLASS FILLED POLYESTER | GLASS FILLED POLYESTER | GLASS FILLED POLYESTER | GLASS FILLED POLYESTER | GLASS FILLED POLYESTER | GLASS FILLED POLYESTER |
| MIL compliance | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| Plug contact pitch | 0.079 inch | 0.079 inch | 0.079 inch | 0.079 inch | 0.079 inch | 0.079 inch | 0.079 inch | 0.079 inch | 0.079 inch |
| Plug information | 52418-0810 | 52418-2010 | 52418-0710 | 52418-0910 | 52418-1210 | 52418-0310 | 52418-0510 | 52418-1010 | 52418-1410 |
| Mixed contacts | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| Installation option 1 | DETENT | DETENT | DETENT | DETENT | DETENT | DETENT | DETENT | DETENT | DETENT |
| Installation method | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT |
| Installation type | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD |
| Number of connectors | ONE | ONE | ONE | ONE | ONE | ONE | ONE | ONE | ONE |
| PCB row number | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of rows loaded | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Maximum operating temperature | 105 °C | 105 °C | 105 °C | 105 °C | 105 °C | 105 °C | 105 °C | 105 °C | 105 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| polarization key | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING |
| Rated current (signal) | 1.5 A | 1.5 A | 1.5 A | 1.5 A | 1.5 A | 1.5 A | 1.5 A | 1.5 A | 1.5 A |
| Guideline | UL | UL | UL | UL | UL | UL | UL | UL | UL |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal length | 0.126 inch | 0.126 inch | 0.126 inch | 0.126 inch | 0.126 inch | 0.126 inch | 0.126 inch | 0.126 inch | 0.126 inch |
| Terminal pitch | 2 mm | 2 mm | 2 mm | 2 mm | 2 mm | 2 mm | 2 mm | 2 mm | 2 mm |
| Termination type | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER |
| Total number of contacts | 8 | 20 | 7 | 9 | 12 | 3 | 5 | 10 | 14 |
| UL Flammability Code | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 |
| Manufacturer's serial number | 53290 | 53290 | 53290 | 53290 | - | 53290 | 53290 | 53290 | 53290 |
| Base Number Matches | 1 | - | 1 | - | - | 1 | - | 1 | 1 |
