M80-7025122 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> M80-7025122

M80-7025122: DescriptionHeaders & Wire Housings 51 POS VERT MALE W/O J/S TIN/LEAD; CategoryThe connector The connector; File Size86KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/

Download Datasheet Parametric Compare View All

M80-7025122 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	M80-7025122	-	-	View	Buy Now

M80-7025122 Overview

Headers & Wire Housings 51 POS VERT MALE W/O J/S TIN/LEAD

M80-7025122 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Harwin
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	POLARIZED, SHROUDED
body width	0.358 inch
subject depth	0.244 inch
body length	1.854 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin/Lead (Sn/Pb)
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Durability	500 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	2.78 N
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	POLYAMIDE
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	M80-7
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Shell material	PLASTIC
Terminal length	0.13 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	51
UL Flammability Code	94V-0
Evacuation force-minimum value	.199882 N

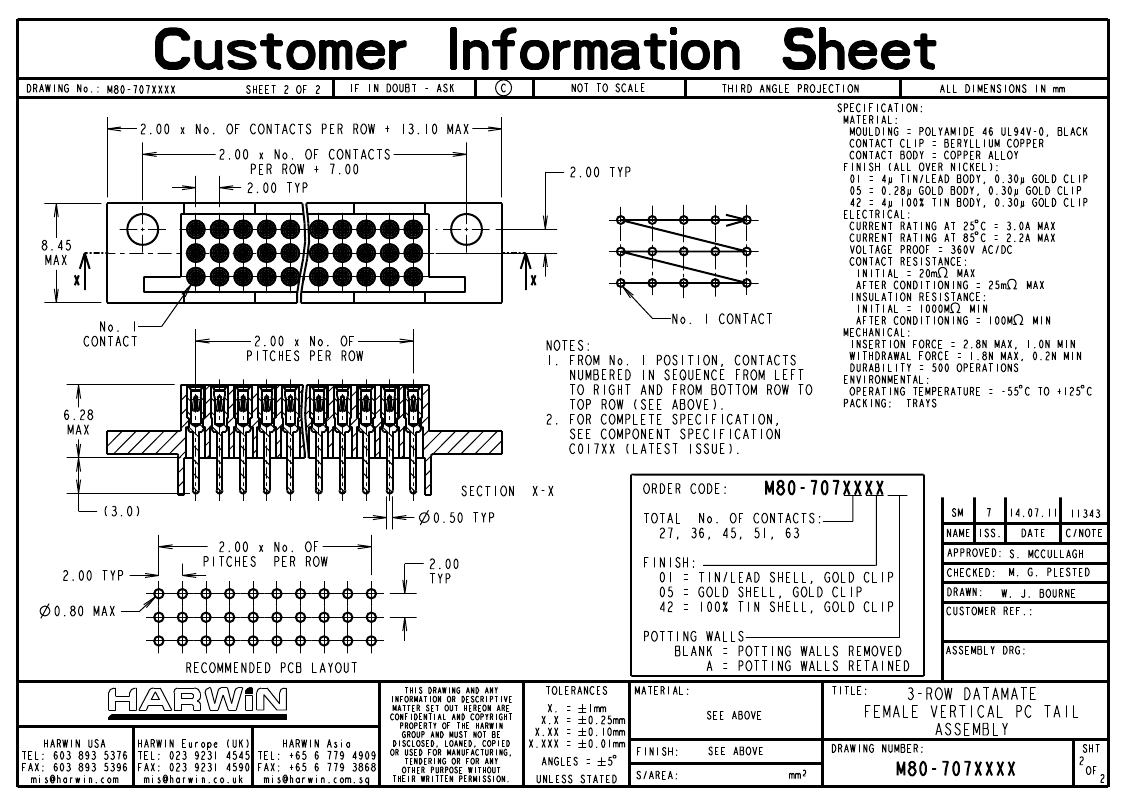

Preview

Download Datasheet

View All

M80-7025122 Related Products

	M80-7025122	M80-7076301	M80-7074501	M80-7073605	M80-7074505	M80-7023642	M80-7075101	M80-7072705
Description	Headers & Wire Housings 51 POS VERT MALE W/O J/S TIN/LEAD	Headers & Wire Housings 63 WAY VERT F/M CONN	Headers & Wire Housings 45 WAY VERT F/M CONN	Headers & Wire Housings 36 WAY VERT F/M CONN	Headers & Wire Housings 45 POS FEMALE VERTICAL W/JACKSCREW	Headers & Wire Housings 36 POS VERT MALE W/O J/S TIN	Headers & Wire Housings 51 WAY VERT F/M CONN	Headers & Wire Housings 21 POS FEMALE VERTICAL W/JACKSCREW
Is it lead-free?	Contains lead	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	incompatible	incompatible	incompatible	conform to	conform to	conform to	incompatible	conform to
Maker	Harwin	Harwin	Harwin	Harwin	Harwin	Harwin	Harwin	Harwin
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
body width	0.358 inch	0.332 inch	0.332 inch	0.332 inch	0.332 inch	0.358 inch	0.332 inch	0.332 inch
subject depth	0.244 inch	0.247 inch	0.247 inch	0.247 inch	0.247 inch	0.244 inch	0.247 inch	0.247 inch
body length	1.854 inch	2.169 inch	1.697 inch	1.461 inch	1.697 inch	1.461 inch	1.854 inch	1.224 inch
Body/casing type	RECEPTACLE	PLUG	PLUG	PLUG	PLUG	RECEPTACLE	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact completed and terminated	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Gold (Au)	Gold (Au)	Matte Tin (Sn)	Tin/Lead (Sn/Pb)	Gold (Au)
Contact point gender	MALE	FEMALE	FEMALE	FEMALE	FEMALE	MALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	25 mΩ	25 mΩ	25 mΩ	25 mΩ	25 mΩ	25 mΩ	25 mΩ	25 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Durability	500 Cycles	500 Cycles	500 Cycles	500 Cycles	500 Cycles	500 Cycles	500 Cycles	500 Cycles
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
maximum insertion force	2.78 N	2.78 N	2.78 N	2.78 N	2.78 N	2.78 N	2.78 N	2.78 N
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE
JESD-609 code	e0	e0	e0	e4	e4	e3	e0	e4
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Plug contact pitch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Match contact row spacing	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	3	3	3	3	3	3	3	3
Number of rows loaded	3	3	3	3	3	3	3	3
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2 mm	2.0066 mm	2.0066 mm	2.0066 mm
Plating thickness	30u inch	12u inch	12u inch	12u inch	12u inch	30u inch	12u inch	12u inch
Rated current (signal)	3 A	3 A	3 A	3 A	3 A	3 A	3 A	3 A
Guideline	UL	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.13 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.13 inch	0.118 inch	0.118 inch
Terminal pitch	2.0066 mm	2 mm	2 mm	2.0066 mm	2 mm	2 mm	2 mm	2.0066 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	51	63	45	36	45	36	51	27
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Evacuation force-minimum value	.199882 N	.199882 N	.199882 N	.199882 N	.199882 N	.199882 N	.199882 N	.199882 N
Other features	POLARIZED, SHROUDED	-	-	POLARIZED, SHROUDED	POLARIZED, SHROUDED	ROHS COMPLIANT	-	POLARIZED, SHROUDED
