33467-0006 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 33467-0006

33467-0006: DescriptionAutomotive Connectors MX64 RCPT Au 18/20 Reel of 9000; CategoryThe connector; File Size26KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

33467-0006 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	33467-0006	-	-	View	Buy Now

33467-0006 Overview

Automotive Connectors MX64 RCPT Au 18/20 Reel of 9000

33467-0006 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Molex
Product Category	Automotive Connectors
RoHS	Details
Product	Terminals
Number of Positions	-
Gender	Female
Mounting Style	Wire
Termination Style	Crimp
Contact Plating	Gold
Wire Gauge Range	20 AWG to 18 AWG
Packaging	Reel
Contact Type	Receptacle
Current Rating	11.3 A
Voltage Rating	14 V
Contact Material	Copper Alloy
Factory Pack Quantity	9000
Unit Weight	0.007937 oz

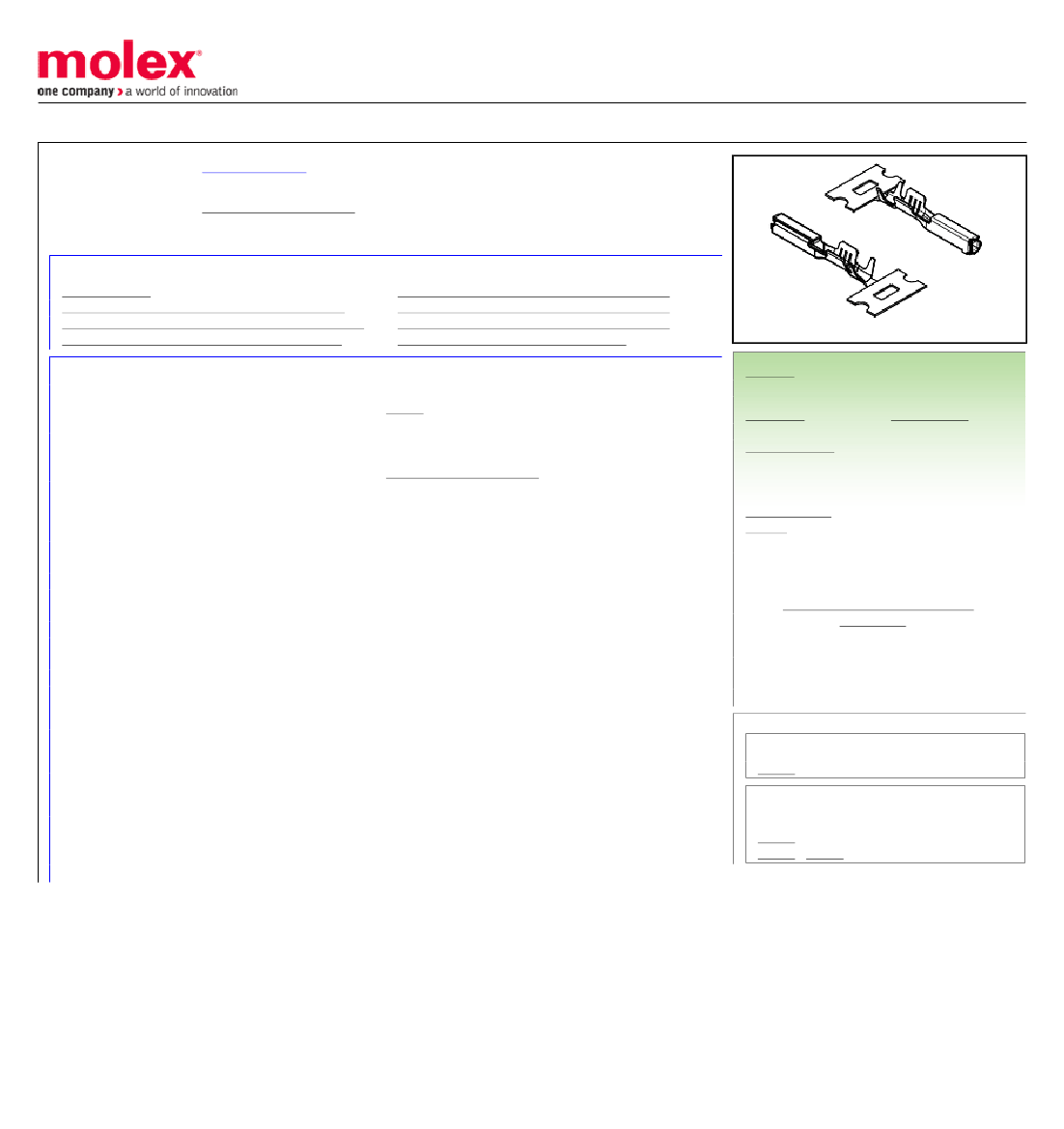

Preview

Download Datasheet

View All

This document was generated on 05/22/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0334670006

Active

MX64 Sealed Connectors

2.54mm Pitch MX64 Terminal, Gold (Au) Plating, 18-20 AWG, Left Reel Payoff, Also

used with MX123 Female Receptacle Housing

Documents:

Drawing (PDF)

Product Specification PS-33468-001-001 (PDF)

Application Specification AS-33468-001-001 (PDF)

Packaging Specification 313025040-000 (PDF)

General

Product Family

Series

Application

Comments

Crimp Quality Equipment

Overview

Product Name

UPC

Physical

Gender

Material - Metal

Material - Plating Mating

Net Weight

Packaging Type

Plating min - Mating

Termination Interface: Style

Wire Insulation Diameter

Wire Size AWG

Wire Size mm²

Solder Process Data

Lead-freeProcess Capability

Material Info

Reference - Drawing Numbers

Application Specification

Packaging Specification

Product Specification

Sales Drawing

Packaging Specification PK-30907-759 (PDF)

Packaging Specification PK-31300-516 (PDF)

Packaging Specification PK-31302-480 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

EU ELV

Compliant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per

-ED/01/2018 (15

January 2018)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Compliant

Not Contained

Crimp Terminals

33467

Power

Left Reel Payoff

Yes

MX64 Sealed Connectors

MX123, MX64

756054763391

Female

Copper

Gold

0.225/g

Reel

0.762µm

Crimp or Compression

1.50-2.06mm

18, 20

N/A

Search Parts in this Series

33467 Series

AS-33468-001-001

313025040-000, PK-30907-759, PK-31300-516,

PK-31302-480

PS-33468-001-001

SD-33468-001

Use With

MX64 Sealed Single Row Crimp Housing

31403 , MX123 Female Receptacle Housing

34566 , 34576

This document was generated on 05/22/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

33467-0006 Related Products

	33467-0006	33467-0006 (Mouser Reel)
Description	Automotive Connectors MX64 RCPT Au 18/20 Reel of 9000	Automotive Connectors MX64 RCPT Au 18/20 Reel of 1000
Product Attribute	Attribute Value	Attribute Value
Manufacturer	Molex	Molex
Product Category	Automotive Connectors	Automotive Connectors
RoHS	Details	Details
Product	Terminals	Terminals
Gender	Female	Female
Mounting Style	Wire	Wire
Termination Style	Crimp	Crimp
Contact Plating	Gold	Gold
Wire Gauge Range	20 AWG to 18 AWG	20 AWG to 18 AWG
Packaging	Reel	Reel
Contact Type	Receptacle	Receptacle
Current Rating	11.3 A	11.3 A
Voltage Rating	14 V	14 V
Contact Material	Copper Alloy	Copper Alloy
Factory Pack Quantity	9000	1000
Unit Weight	0.007937 oz	0.007937 oz
