09-52-1036 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 09-52-1036

09-52-1036: DescriptionHeaders & Wire Housings KK 156 PBC Assy RtAn 03 Ckt Tin; CategoryThe connector The connector; File Size43KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

09-52-1036 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	09-52-1036	-	-	View	Buy Now

09-52-1036 Overview

Headers & Wire Housings KK 156 PBC Assy RtAn 03 Ckt Tin

09-52-1036 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	POLARIZED
body width	0.25 inch
subject depth	0.45 inch
body length	0.464 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact arrangement	S0P3
Contact to complete cooperation	TIN (200) OVER COPPER
Contact completed and terminated	Tin (Sn)
Contact point gender	FEMALE
Contact material	BRASS/PHOSPHOR BRONZE
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Durability	25 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	15.568 N
Insulation resistance	1000000000 Ω
insulator material	NYLON
JESD-609 code	e3
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	1
Options	GENERAL PURPOSE
Plating thickness	60u inch
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.145 inch
Terminal pitch	3.96 mm
Termination type	SOLDER
Total number of contacts	3
UL Flammability Code	94V-2
Evacuation force-minimum value	1.7792 N
Base Number Matches	1

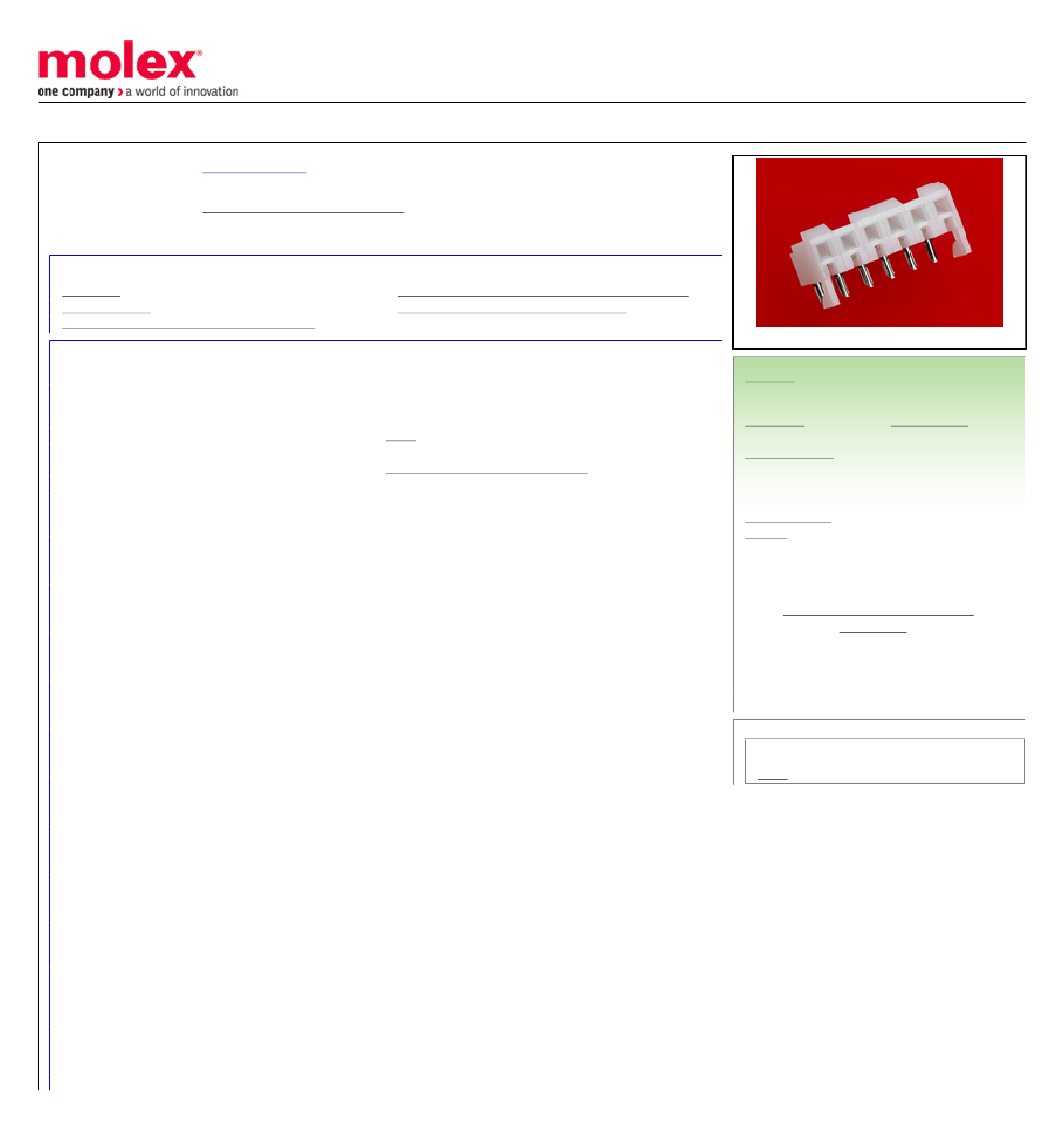

Preview

Download Datasheet

View All

This document was generated on 04/26/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0009521036

Active

KK® Interconnect System - Molex

KK® 396 PC Board Connector, Right Angle, Nylon Connector, 5.00µm Tin (Sn), 3

Circuits

Documents:

3D Model

Drawing (PDF)

Product Specification PS-08-50-001 (PDF)

Agency Certification

General

Product Family

Series

Application

Overview

Product Name

UPC

Physical

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Flammability

Glow-Wire Compliant

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Plating min - Mating

Plating min - Termination

Polarized to PCB

Temperature Range - Operating

Termination Interface: Style

Electrical

Current - Maximum per Contact

Voltage - Maximum

Solder Process Data

Duration at Max. Process Temperature (seconds)

Lead-freeProcess Capability

Max. Cycles at Max. Process Temperature

Process Temperature max. C

Packaging Specification PK-2145-001-000 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

E29179

PCB Receptacles

2145

Board-to-Board, Power

KK® Interconnect System - Molex

KK® 396

800754905428

Natural

94V-2

Yes

Phosphor Bronze

Tin

Nylon

0.930/g

Right Angle

3.68mm

Yes

0.80mm

Tray

3.96mm

5.080µm

Yes

See Product Specification

Through Hole

5.0A

250V

005

WAVE

001

235

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per

-ED/01/2017 (12

January 2017)

Halogen-Free

Status

Low-Halogen
