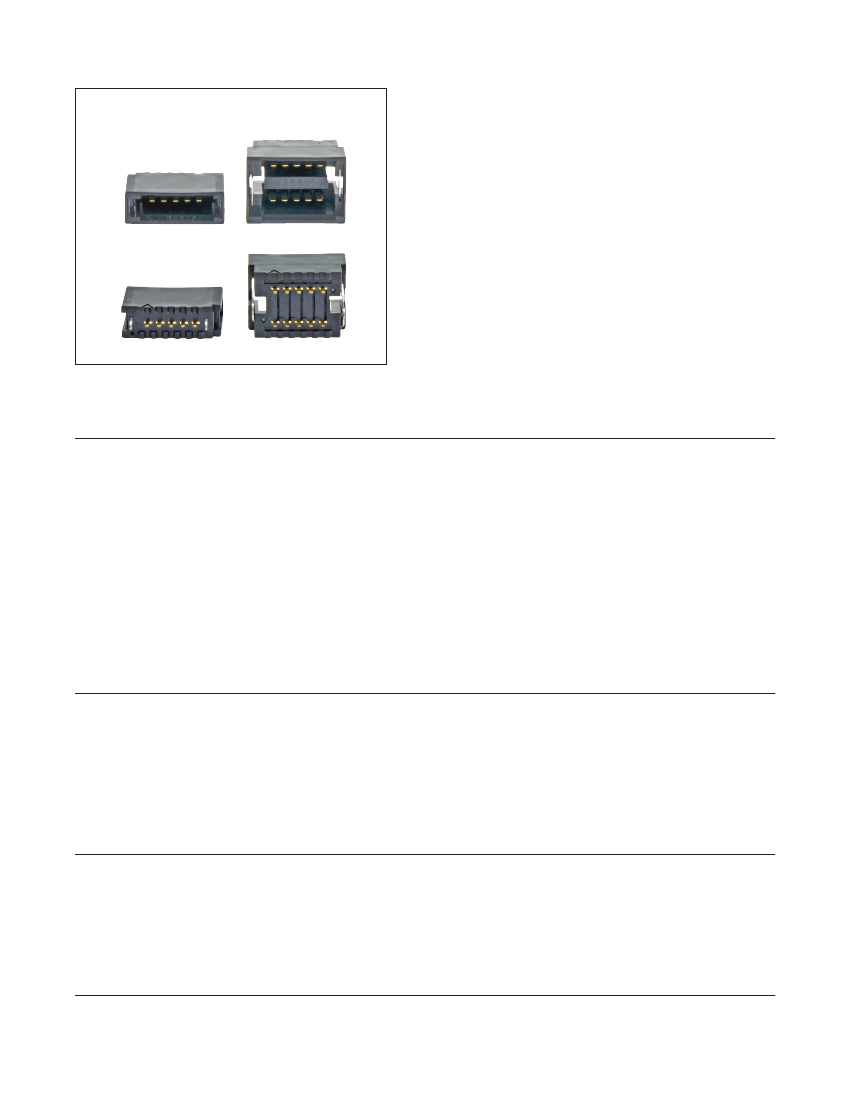

3M
™
Power Clamp Header
3 mm, Straight, 1 and 2 Row, 5 and 10 Contacts
• Accepts branch and terminator connectors
• Side to side stackable at 9 mm pitch on PCB
• Integrated press-fit board retention pins retain the connector to
the board during wave soldering
• Polarization of retention pins on two-row header and polarization
pin on one-row header prevent incorrect mounting.
• CC-Link Communication Interconnect Standard
• One touch latching mechanism maintains a reliable
interconnection in demanding field applications
• Keyed to prevent reverse insertion of sockets
• Polarization options ensures proper interconnection of mated
connectors
• RoHS Compliant. See paragraphs E1 and C1 of RoHS
Compliant. See the Regulatory Information Appendix (RIA) in
the "RoHS compliance" section of www.3M.com/Interconnects
for compliance information (RIA E1 & C1 apply).
Date Modified: December 20, 2009
TS-2274-C
Sheet 1 of 3
356 Series
• Accepts one or two Power Clamp Wiremount Sockets
Physical
Insulation:
Body Material:
Flammability:
Body Color:
Contact:
Material:
Plating:
Underplating:
Wiping Area:
Solder Tails
Mating Compatability:
1 Row - PBT, 2 Row - Nylon
UL 94V-0
Black
Copper Alloy
2.5 µm Ni minimum
0.5 µm Au minimum
Au Flash
355, 357, 35T series products (with same polarization)
Electrical
Current Rating:
18 AWG: 10A (1 contact/socket); 7A (2 - 5 contacts/socket)
20 AWG: 9A (1 contact/socket); 6A (2 - 5 contacts/socket)
Rating Conditions: 30° C maximum temperature rise
Voltage Rating:
250 V
Insulation Resistance:
10
3
MΩ min. at 600 V
DC
Withstanding Voltage:
1,000 V
RMS
for 1 minute
Environmental
Process Rating:
260°C maximum for wave solder process
390°C for 3 seconds maximum for soldering iron
Temperature Rating:
-20°C to +75°C ambient
UL Rating: 65° C
UL File No: E68080
3
Electronic Solutions Division
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Power Clamp Header
3 mm, Straight, 1 and 2 Row, 5 and 10 Contacts

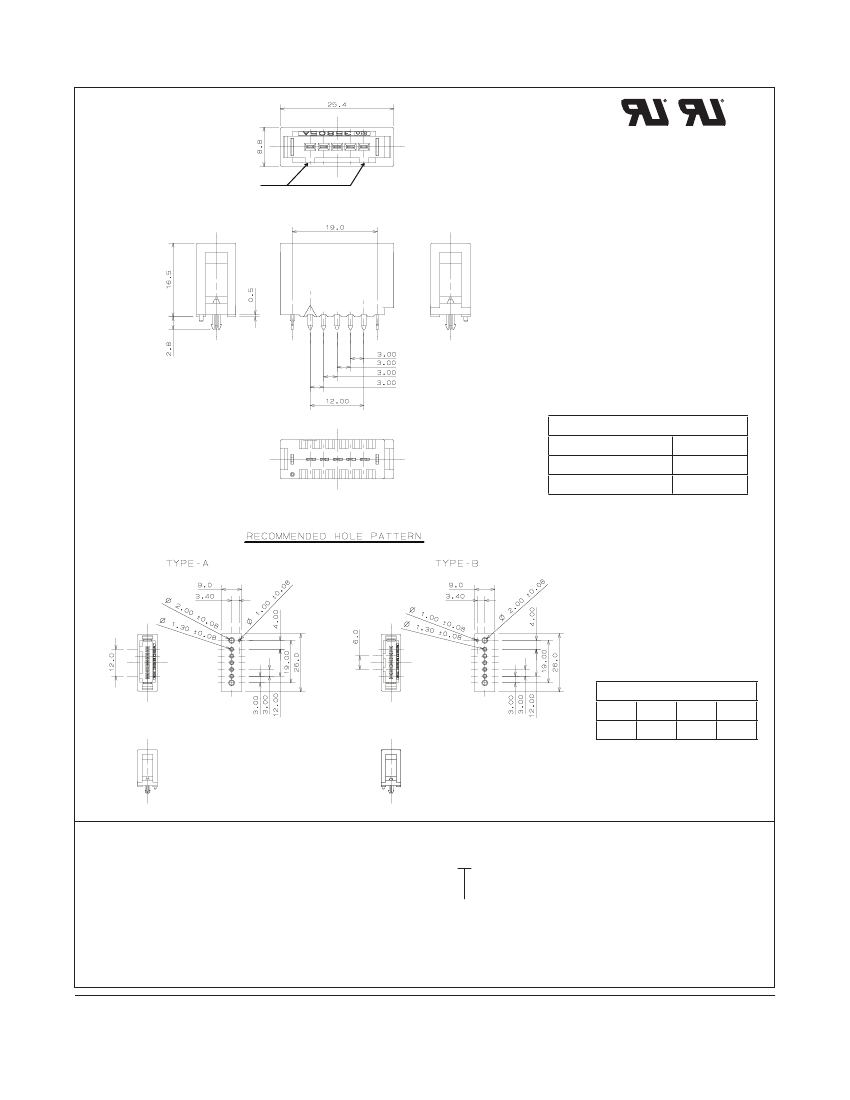

1-Row Header
C
356 Series
Connector
Polarization Key
Available Part Numbers
3M Part Number
35605-6114-A00 PE
35605-6114-B00 PE
Polarization
A
B
PCB
Polarization
Pin
PCB
Polarization
Pin
mm
[Inch]
Tolerance Unless Noted
.0
mm
±3
.00
±.13
.000
±.008
[ ] Dimensions for Reference Only
Ordering Information
35605 - 6114 - X00 PE
Polarization:
A: Type A (wide)
B: Type B (narrow)
(RIA E1 and C1 Apply)
TS-2274-C
Sheet 2 of 3
3
Electronic Solutions Division
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Power Clamp Header
3 mm, Straight, 1 and 2 Row, 5 and 10 Contacts

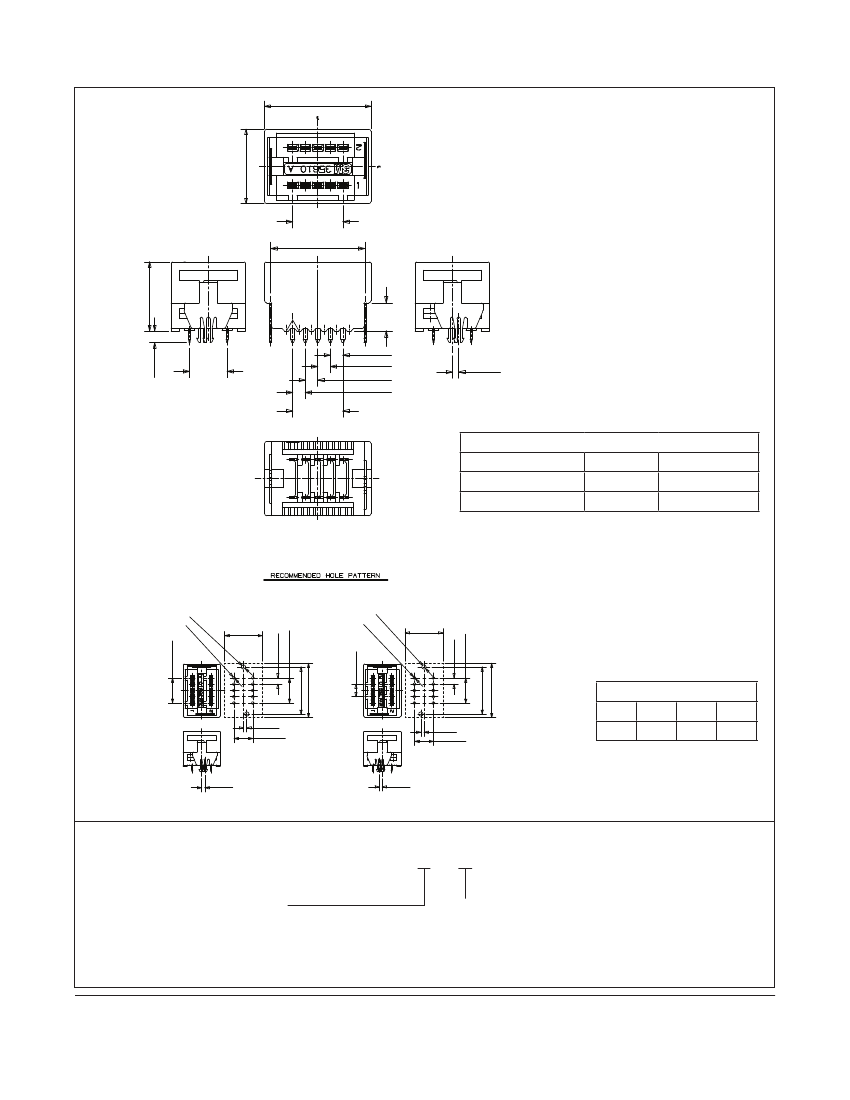

2-Row Header
25.4 [1.000]
356 Series
17.8
12.00 [0.472]
22.5 [0.886]
16.5
3.00 [0.118]
2.8
9.00
[0.354]
3.00 [0.118]
3.00 [0.118]
3.00 [0.118]
1.5 [0.059]
12.00 [0.472]
6.7
Available Part Numbers
3M Part Number
35610-6224-A00 PE
35610-6234-B00 PE
Polarization
A
B
PCB Mounting
2
3
Polarization Key: A
PCB Mounting Type: 2
Polarization Key: B
PCB Mounting Type: 3
12.00 [0.472]
2-
10
-
2
-
3.00 [0.118]
12.00 [0.472]
6.00 [0.236]
3.00 [0.118]
18.0[0.709]
12.00 [0.472]
2.0
0
1.3
0
18.0[0.709]
2.
00
1.3
0
10
-
22.5 [0.886]
22.5 [0.886]
26.00 [1.02]
26.00 [1.02]
mm
[Inch]
Tolerance Unless Noted
.0
mm
±3
.00
±.13
.000
±.008
1.50 [0.059]
9.0 [0.354]
1.50 [0.059]
9.0 [0.354]
[ ] Dimensions for Reference Only
1.5 [0.059]
1.5 [0.059]
Ordering Information
35610 - 62X4 - X00 PE
PCB Mounting Type:
2: Ø2.0 mm, +1.5 mm offset
3: Ø2.0 mm, -1.5 mm offset
Polarization:
A: Type A (wide)
B: Type B (narrow)
(RIA E1 and C1 Apply)
TS-2274-C
Sheet 3 of 3
3
Electronic Solutions Division
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Important Notice
