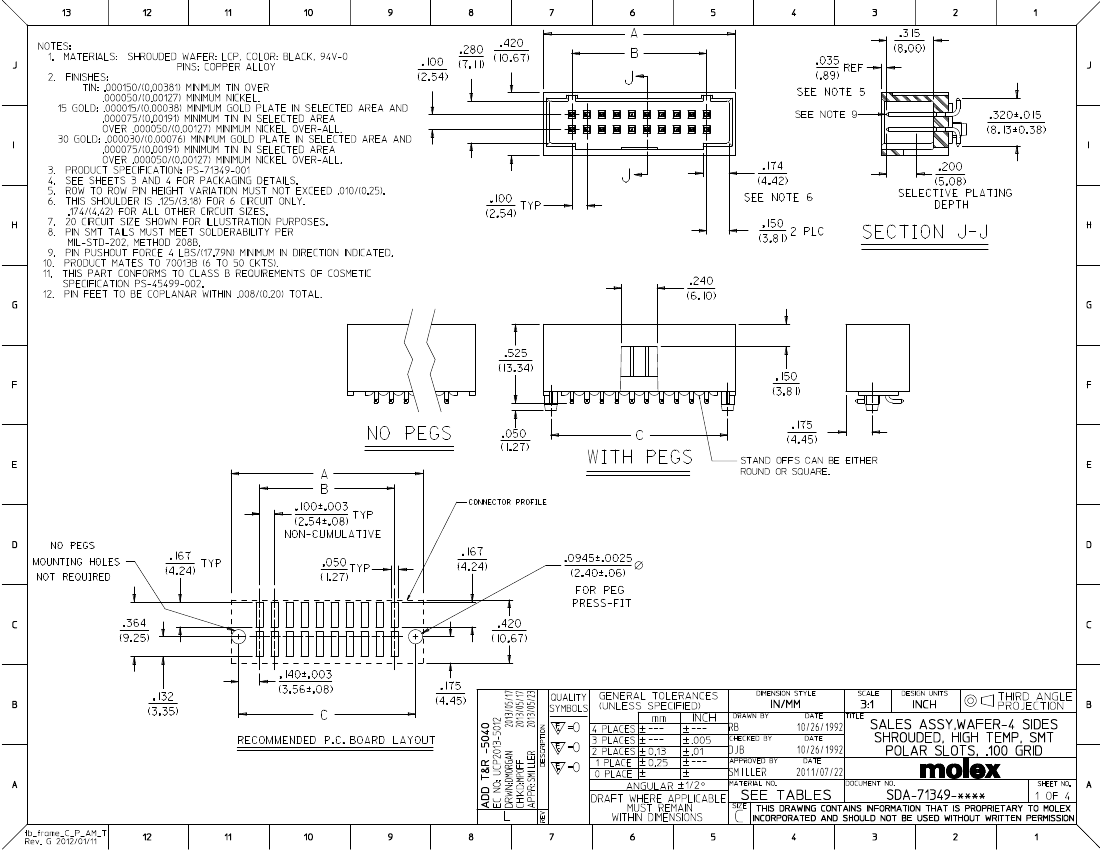

71349-0040: DescriptionHeaders & Wire Housings CGrid SMT Shd Hdr 15 Hdr 15 SAu 16Ckt T&R; CategoryThe connector The connector; File Size476KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

71349-0040 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	71349-0040	-	-	View	Buy Now

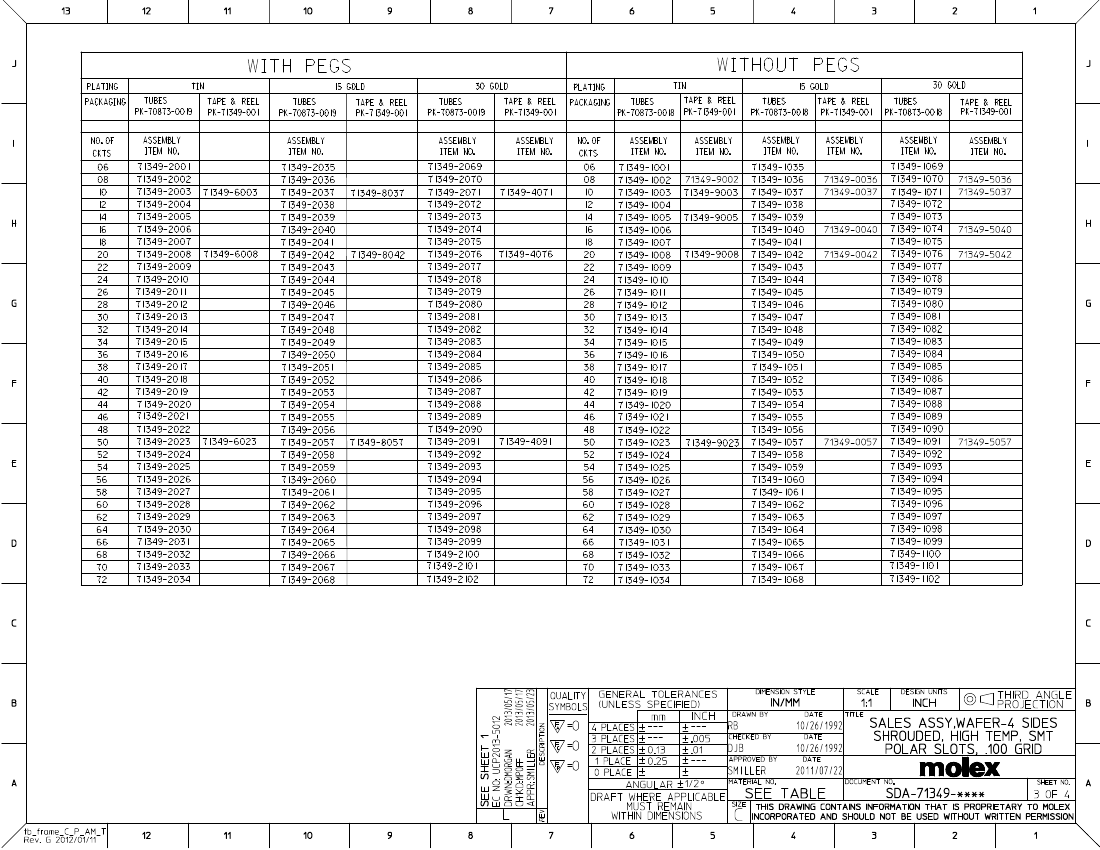

Headers & Wire Housings CGrid SMT Shd Hdr 15 Hdr 15 SAu 16Ckt T&R

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Factory Lead Time	9 weeks
Other features	ELV AND ROHS COMPLIANT

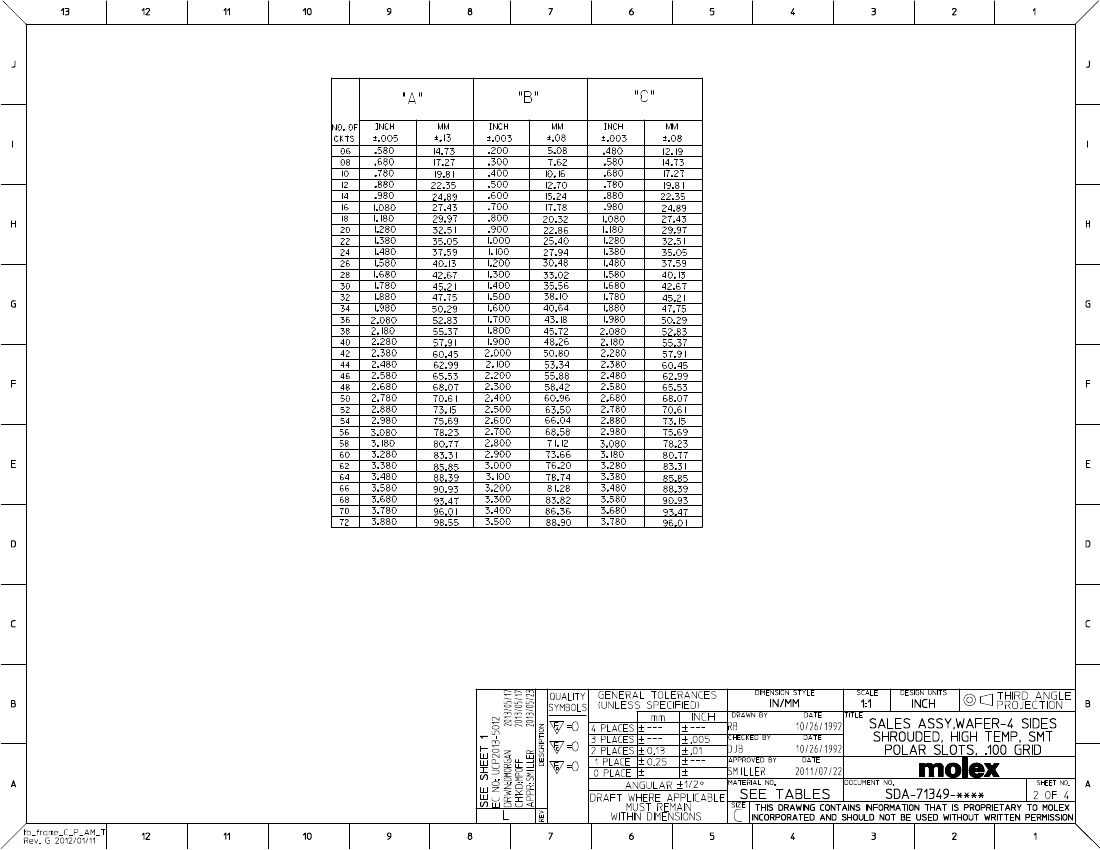

body width	0.42 inch
subject depth	0.525 inch
body length	1.048 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	15 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VDC V
Durability	50 Cycles
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	GUIDE SLOT
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.0038 mm
Plating thickness	15u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT

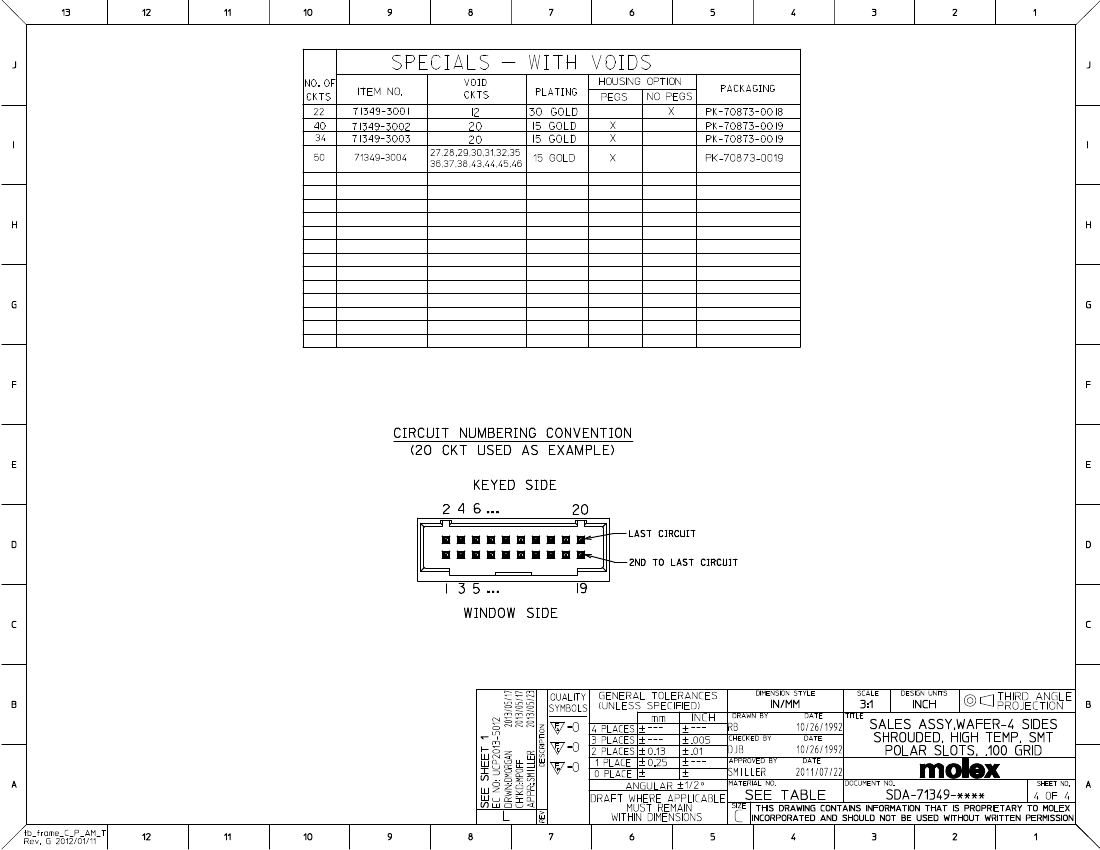

Total number of contacts	16

	71349-0040	M83401-23-M-1720-B-C
Description	Headers & Wire Housings CGrid SMT Shd Hdr 15 Hdr 15 SAu 16Ckt T&R	Array/Network Resistor, Bussed, Thin Film, 1.08W, 172ohm, 100V, 0.1% +/-Tol, 300ppm/Cel, Through Hole Mount, SIP-10
Is it Rohs certified?	conform to	conform to
Reach Compliance Code	unknown	compliant
ECCN code	EAR99	EAR99
Other features	ELV AND ROHS COMPLIANT	PRECISION
JESD-609 code	e3	e4
Maximum operating temperature	105 °C	125 °C
Minimum operating temperature	-40 °C	-65 °C
Guideline	UL	MIL-PRF-83401
