RJ45 10/100 Base-T Jack with Magnetic Module
ARJ11B
FEATURES:
•
Excellent EMI suppression
•
Meet IEEE 802.3 standards and FCC mechanical requirements
•
Low Cost, RoHS Compliant Reflow-able device
RoHS
Compliant
16.26 x 13.84 x 21.59mm
| | | | | | | | | | | | | |
|
APPLICATIONS:
•
LAN-on-Motherboard (LOM)
•
SOHO (ADSL modems), Hubs.
•
Suitable for CAT 5 & 6 Fast Ethernet Cable or better UTP

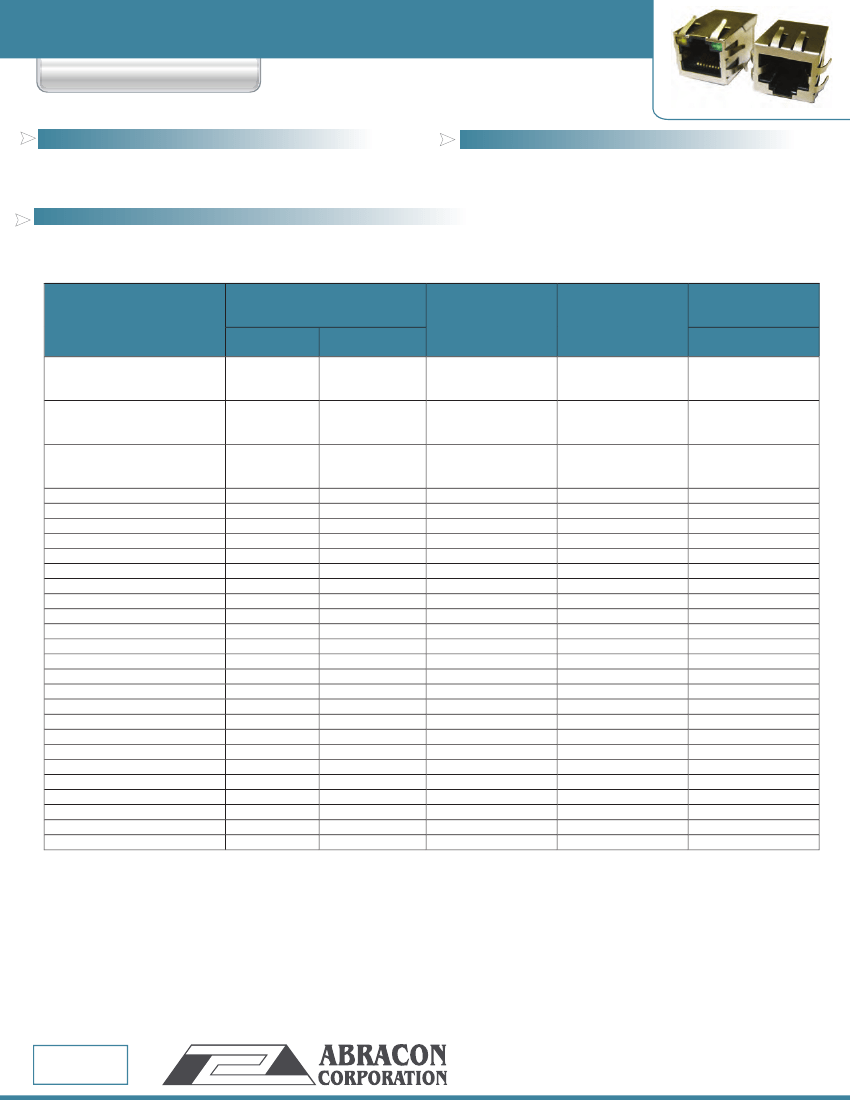

STANDARD SPECIFICATIONS:
Operating Temperature:
Storage Temperature:
- 0°C to + 70°C
- 40°C to +85°C
Turns Ratio ±5%
TX
ARJ11B-MASAA-MU2
to
ARJ11B-MASAI-MU2
ARJ11B-MASAJ-MU2
to
ARJ11B-MASAM-MU2
ARJ11B-MASAN-LU2
to
ARJ11B-MASBF-LU2
ARJ11B-MESCB-A-B-ELT2
ARJ11B-MASCB-LT2
ARJ11B-MBSCB-A-B-ELT2
ARJ11B-MDSBQ-MU2
ARJ11B-MESBQ-A-B-EMU2
ARJ11B-MASBQ-MU2
ARJ11B-MBSBQ-A-B-EMU2
ARJ11B-MFSBQ-A-A-EMU2
ARJ11B-MASAJ-MU2
ARJ11B-MASBR-QU2
ARJ11B-MFSBR-A-A-EQU2
ARJ11B-MDSAO-LU2
ARJ11B-MESAO-A-B-ELU2
ARJ11B-MESAO-A-A-ELU2
ARJ11B-MASAO-LU2
ARJ11B-MBSAO-A-B-ELU2
ARJ11B-MFSAO-A-A-ELU2
ARJ11B-MFSAO-BA-A-GLU2
ARJ11B-MBSAP-A-B-ELU2
ARJ11B-MASAC-MU2
ARJ11B-MASAD-OW2
ARJ11B-MBSAI-A-B-EMU2
ARJ11B-MASCC-MU2
ARJ11B-MESBW-B-A-EMU2
1CT:1CT
1CT:1CT
1CT:1
1CT:1
1CT:1
1CT:1
1CT:1CT
1CT:1CT
1CT:1CT
1CT:1CT
1CT:1CT
1CT:1CT
1CT:1.414CT
1CT:1.414CT
1CT:1
1CT:1
1CT:1
1CT:1
1CT:1
1CT:1
1CT:1
1CT:1
1CT:1CT
1CT;1.41CT
1CT:1CT
1CT:1CT
1CT:1CT
RX
1CT:1CT
1CT:1CT
1CT:1CT
1CT:1
1CT:1
1CT:1
1CT:1CT
1CT:1CT
1CT:1CT
1CT:1CT
1CT:1CT
1CT:1CT
1CT:1CT
1CT:1CT
1CT:1CT
1CT:1CT
1CT:1CT
1CT:1CT
1CT:1CT
1CT:1CT
1CT:1CT
1CT:1CT
1CT:1CT
1CT:1.41CT
1CT:1CT
1CT:1CT
1CT:1CT
Insertion
Loss
(dB max)
0.3-100
MHz
-1
-1
-1
-1
-1
-1
-1
-1
-1
-1
-1
-1
-1
-1
-1
-1
-1
-1
-1
-1
-1
-1
-1
---
-1
-1
-1
Part Number
EMI
Fingers
LED
(L/R)
YES
YES
YES
NO
YES
YES
NO
NO
YES
YES
YES
YES
YES
YES
NO
NO
NO
YES
YES
YES
YES
YES
YES
YES
YES
YES
NO
---
---
---
G/Y
---
G/Y
---
G/Y
---
G/Y
G/G
---
---
G/G
---
G/Y
G/G
---
G/Y
G/G
YG/G
G/Y
---
---
G/Y
---
Y/G
ABRACON IS
ISO 9001 / QS 9000
ISO 9001:2008
CE RTIFIED
Revised: 04.21.11
30332 Esperanza, Rancho Santa Margarita, California92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
RJ45 10/100 Base-T Jack with Magnetic Module
ARJ11B

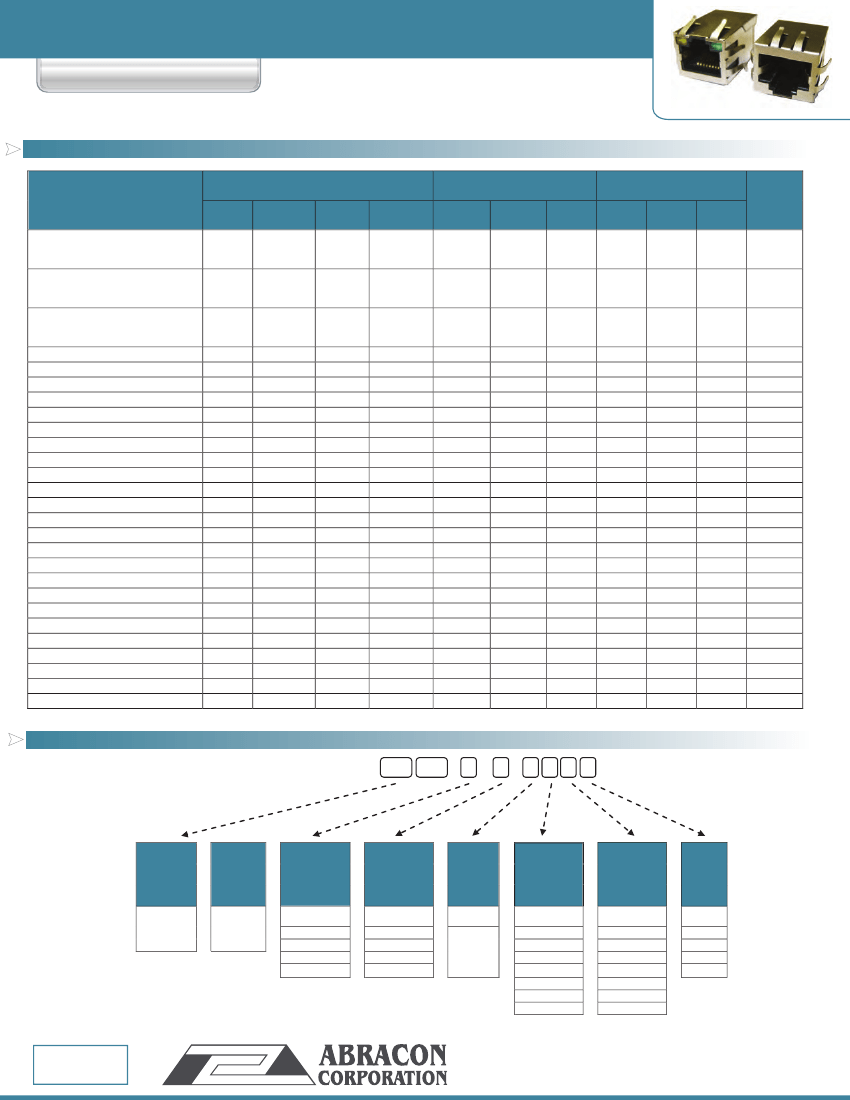

STANDARD SPECIFICATIONS:
25
o
C (contd)
Part Number
ARJ11B-MASAA-MU2
to
ARJ11B-MASAI-MU2
ARJ11B-MASAJ-MU2
to
ARJ11B-MASAM-MU2
ARJ11B-MASAN-LU2
to
ARJ11B-MASBF-LU2
ARJ11B-MESCB-A-B-ELT2
ARJ11B-MASCB-LT2
ARJ11B-MBSCB-A-B-ELT2
ARJ11B-MDSBQ-MU2
ARJ11B-MESBQ-A-B-EMU2
ARJ11B-MASBQ-MU2
ARJ11B-MBSBQ-A-B-EMU2
ARJ11B-MFSBQ-A-A-EMU2
ARJ11B-MASAJ-MU2
ARJ11B-MASBR-QU2
ARJ11B-MFSBR-A-A-EQU2
ARJ11B-MDSAO-LU2
ARJ11B-MESAO-A-B-ELU2
ARJ11B-MESAO-A-A-ELU2
ARJ11B-MASAO-LU2
ARJ11B-MBSAO-A-B-ELU2
ARJ11B-MFSAO-A-A-ELU2
ARJ11B-MFSAO-BA-A-GLU2
ARJ11B-MBSAP-A-B-ELU2
ARJ11B-MASAC-MU2
ARJ11B-MASAD-OW2
ARJ11B-MBSAI-A-B-EMU2
ARJ11B-MASCC-MU2
ARJ11B-MESBW-B-A-EMU2
RoHS
Compliant
16.26 x 13.84 x 21.59mm
| | | | | | | | | | | | | |
|
Return Loss (dB min @ 100Ω±15Ω)
1- 30
MHz
-18
-18
-18
-18
-18
-18
-18
-18
-18
-18
-18
-18
-18
-18
-18
-18
-18
-18
-18
-18
-18
-18
-18
--
-18
-18
-18
40
MHz
-16
-16
-16
-16
-16
-16
-16
-16
-16
-16
-16
-16
-16
-16
-16
-16
-16
-16
-16
-16
-16
-16
-16
--
-16
-16
-16
50
MHz
-14
-14
-14
-12
-12
-12
-12
-12
-12
-12
-12
-12
-12
-12
-12
-12
-12
-12
-12
-12
-12
-12
-12
--
-12
-12
-12
60-80
MHz
-12
-12
-12
-10
-10
-10
-10
-10
-10
-10
-10
-10
-10
-10
-10
-10
-10
-10
-10
-10
-10
-10
-10
--
-10
-10
-10
30
MHz
-45
-45
-45
-40
-40
-40
-40
-40
-40
-40
-40
-40
-40
-40
-40
-40
-40
-40
-40
-40
-40
-40
-40
-40
-40
-40
-40
Crosstalk
(dB min)
60
MHz
-40
-40
-40
-35
-35
-35
-35
-35
-35
-35
-35
-35
-35
-35
-35
-35
-35
-35
-35
-35
-35
-35
-35
-35
-35
-35
-35
100
MHz
-35
-35
-35
-30
-30
-30
-30
-30
-30
-30
-30
-30
-30
-30
-30
-30
-30
-30
-30
-30
-30
-30
-30
-30
-30
-30
-30
Common Mode
Rejection (dB min)
30
60
100
MHz
MHz
MHz
-35
-35
-35
-30
-30
-30
-30
-30
-30
-30
-30
-30
-30
-30
-30
-30
-30
-30
-30
-30
-30
-30
-30
-30
-30
-30
-30
-30
-30
-30
-20
-20
-20
-20
-20
-20
-20
-20
-20
-20
-20
-20
-20
-20
-20
-20
-20
-20
-20
-20
-20
-20
-20
-20
-25
-25
-25
-20
-20
-20
-20
-20
-20
-20
-20
-20
-20
-20
-20
-20
-20
-20
-20
-20
-20
-20
-20
-20
-20
-20
-20
Hipot
(Vrms)
1500
1500
1500
1500
1500
1500
1500
1500
1500
1500
1500
1500
1500
1500
1500
1500
1500
1500
1500
1500
1500
1500
1500
1500
1500
1500
1500
Contact Abracon for more custom configurations. See options to build a custom configuration.
OPTIONS & PART IDENTIFICATION:
ARJ11B -
-
-
-
Left LED color
Mechanical
Schematic
(e.g. B for
Yellow,
AB for Green-
Yellow)
Blank: No LED
A: Green
B: Yellow
C: Amber
D: Orange
Right LED
color
(e.g. B for
Yellow,
AB for Green-
Yellow)
Blank: No LED
A: Green
B: Yellow
C: Amber
D: Orange
LED
polarity
Blank: No
LED
E~J
(Please see
7.0 LED
polarity
section)
Turns Ratio
(Tx)
Turns Ratio
(Rx)
Gold
plating
MA ~ MF
(Please see
mechanical
section)
SAA ~ SCC
(Please see
schematic
section)
K: 1CT:1.41
L: 1CT:1
M: 1CT:1CT
N: 1.414:1CT
O: 1CT:1.41CT
P: 1:2CT
Q: 1:1.414CT
R: 1CT:2.5
S: 1CT:1.41
T: 1CT:1
U: 1CT:1CT
V: 1.414:1CT
W:1CT:1.41CT
X: 1:2CT
Y: 1:1.414CT
Z: 1CT:2.5
1: 3u “
2: 6u “
3: 15u “
4: 30u “
5: 50u “
ABRACON IS
ISO 9001 / QS 9000
ISO 9001:2008
CE RTIFIED
Revised: 04.21.11
30332 Esperanza, Rancho Santa Margarita, California92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
RJ45 10/100 Base-T Jack with Magnetic Module
ARJ11B

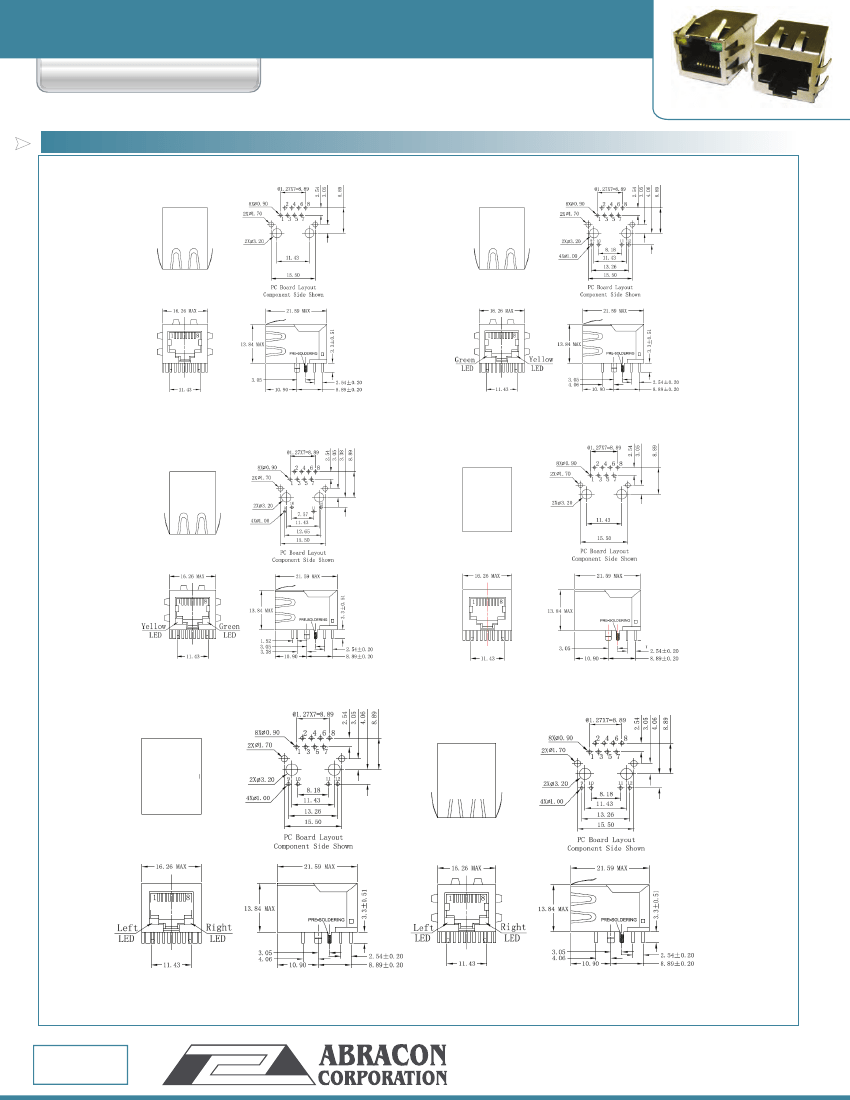

OUTLINE DRAWING:
MA
MB
RoHS
Compliant
16.26 x 13.84 x 21.59mm
| | | | | | | | | | | | | |
|
LED pins are parallel
MC
MD
LED pins are oblique
ME
MF
LED pins are parallel
LED pins are parallel
Dimensions: mm (Unless otherwise specified, tolerances are ± 0.25mm)
ABRACON IS
ISO 9001 / QS 9000
ISO 9001:2008
CE RTIFIED
Revised: 04.21.11
30332 Esperanza, Rancho Santa Margarita, California92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
RJ45 10/100 Base-T Jack with Magnetic Module
ARJ11B

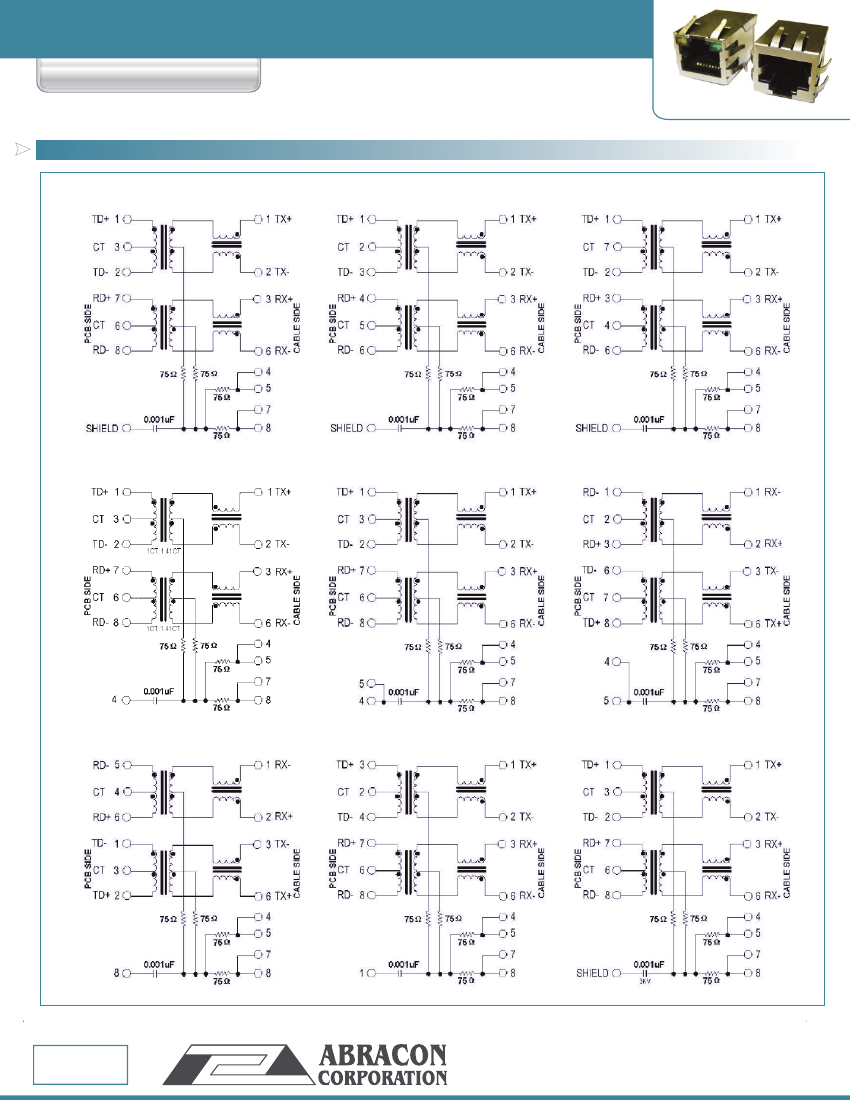

SCHEMATICS
SAA
SAB
SAC
RoHS
Compliant
16.26 x 13.84 x 21.59mm
| | | | | | | | | | | | | |
|
SAD
SAE
SAF
SG
SAG
SAH
SAI
ABRACON IS
ISO 9001 / QS 9000
ISO 9001:2008
CE RTIFIED
Revised: 04.21.11
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
RJ45 10/100 Base-T Jack with Magnetic Module
ARJ11B

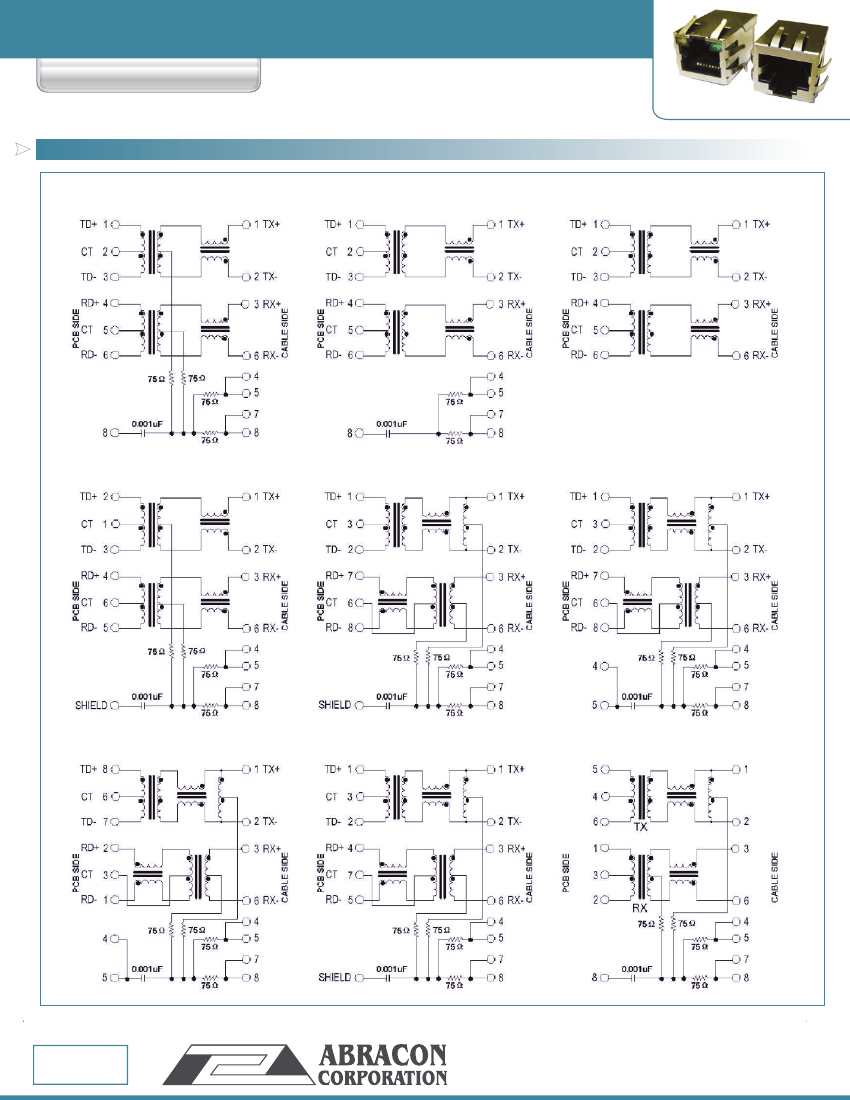

SCHEMATICS
