TECHNICAL CHARACTERISTICS
MATERIAL
INSULATOR: PA 66
FLAMABILITY RATING: UL94-V0
COLOR: GREEN
METAL HOUSING: STEEL ZINC PLATING
CONTACT PIN: BRASS (CuZn)
SURFACE OF SOLDER TAIL PLATING: TIN
TERMINAL SCREW: STEEL ZINC PLATING
TERMINAL SCREW SLOT TYPE: "+"
WIRE GUARD: STEEL ZINC PLATING
ENVIRONMENTAL
OPERATING TEMPERATURE: -40 UP TO 105°C
COMPLIANCE: LEAD FREE AND ROHS
ELECTRICAL
CURRENT RATING:
WORKING VOLTAGE:
WITHSTANDING VOLTAGE:
CONTACT RESISTANCE:
cULus
20A
300VAC
2.0KV
20 mOhm max
5
Ø4.1±0.06
A
1.50
4.60±0.10
Ø1.80±0.05
8.10±0.10
STANDARD
CERTIFIED E315414 / Model number 69112770
B
Pitch：5.00mm (0.197inch)
Poles A(mm) A(inch) Poles A(mm) A(inch)
2
3
4
5
6
7
8
9
10
11
12
13
14
RoHS Compliant
G
F
E
D
C
B
A
REV
17-JUL-14
27-NOV-12
20-JUN-12
DATE
DRAWING
Part N° (B add)
PDF
FILE
AS
QL
GG
BY
APPROVAL: RJ
PROJECTION:
12.50
17.50
22.50
27.50
32.50
37.50
42.50
47.50
52.50
57.50
62.50
67.50
72.50
0.492
0.689
0.886
1.083
1.280
1.476
1.673
1.870
2.067
2.264
2.461
2.657
2.854
15
16
17
18
19
20
21
22
23
24
77.50
82.50
87.50
92.50
97.50
102.50
107.50
112.50
117.50
122.50
3.051
3.248
3.445
3.642
3.839
4.035
4.232
4.429
4.626
4.823
MECHANICAL
SOLID WIRE:
STRANDED WIRE:
TORQUE:
WIRE STRIPE LENGTH: 9MM
PITCH: 5.00MM
PACKAGING: BOX
SERIE 127B
30-12 AWG / 0.05-3.3MM²
30-12 AWG / 0.05-3.3MM²
4.0Lb-In / 0.45Nm
C
GENERAL TOLERANCE
.X = +/- 0.2
.XX = +/- 0.15
UNIT: MM
SCALE:
SHEET: 1/1
DRAW: MARVIN

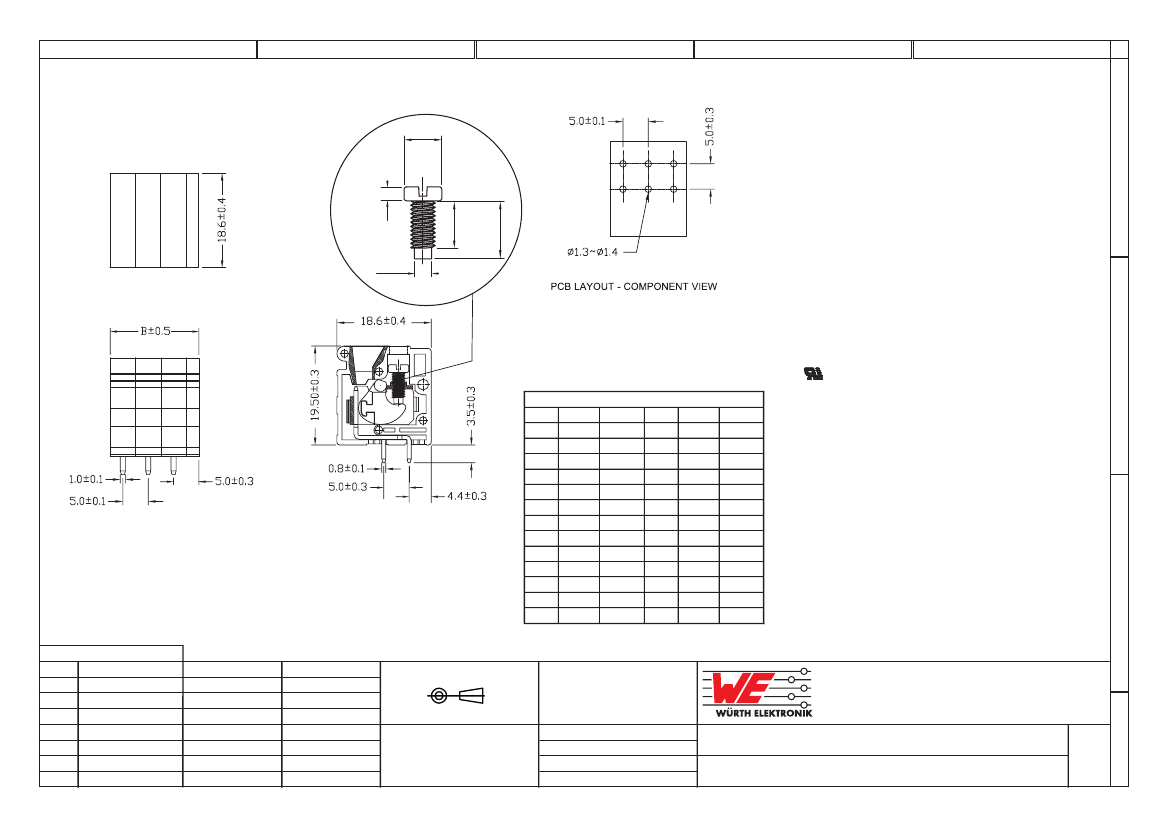

WERI PART NO: 691 127 700 0xx B
DESCRIPTION: SERIE 127B - 5,0mm Vertical Entry with Stamping Clamp
