Maximum 260°C, single pass, (profile per J-STD-020C)
Moisture Sensitivity Level:
1 (per J-STD-020C)
Notice:
Please be aware that the 3M PLCC products are tin plated on the contact wiping surface. This is necessary to ensure mated reliability since standard PLCC contacts are also tin plated. Since tin
whiskers are an inherent characteristic of tin and mechanically stressing the tin is a known driver of whisker growth, it is possible the PLCC and PLCC socket may exhibit tin whisker growth after
mating. 3M follows the iNEMI plating recommendations which include whisker mitigating tin plating chemistry to reduce the likelihood of tin whisker growth. Please consider whether a PLCC
socket is suitable for your particular needs after considering your product applications life span and environment including mechanical stresses, humidity, and thermal cycling all of which have
been shown to stimulate tin whisker growth.
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™

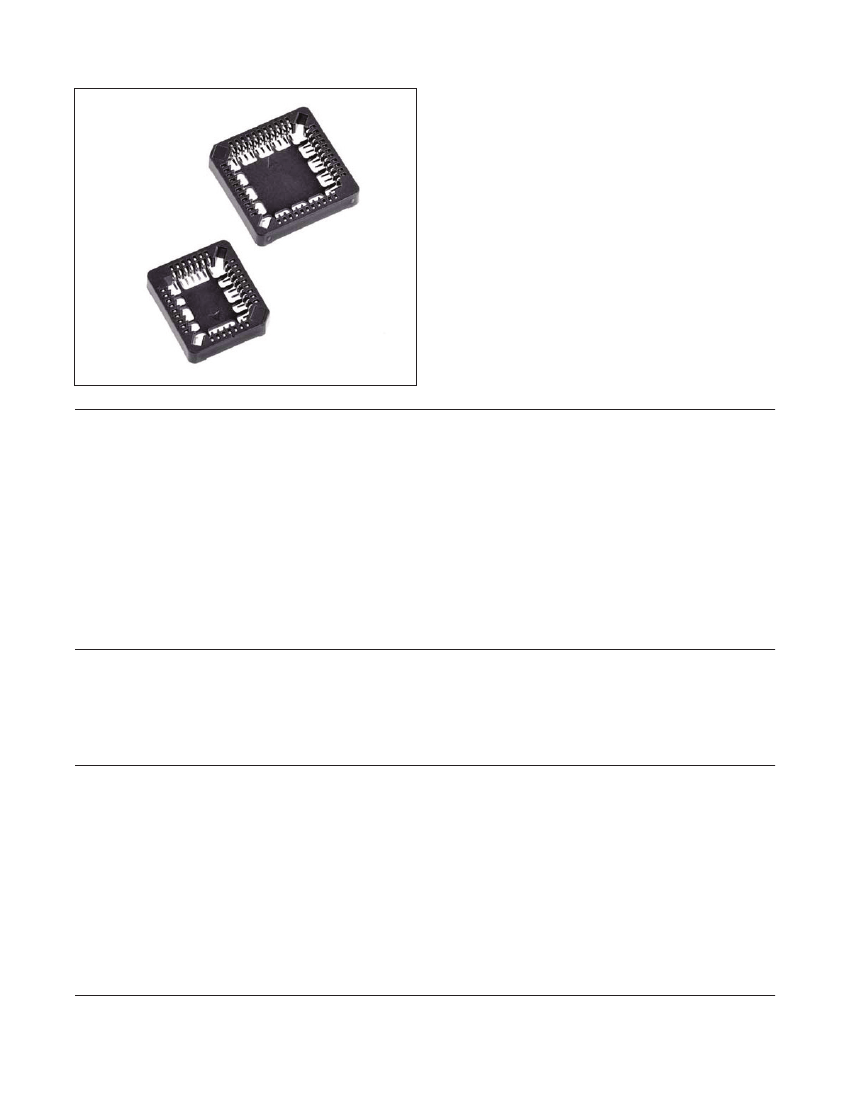

Chip Carrier Sockets
Surfacemount
8400 Series
Contact
Quantity
20
28
32
44
52
68
84
A
15.65 [0.616]
18.18 [0.716]
18.18 [0.716]
23.28 [0.917]
25.84 [1.017]
30.95 [1.219]
36.00 [1.417]
B
15.65 [0.616]
18.18 [0.716]
20.75 [0.817]
23.28 [0.917]
25.84 [1.017]
30.95 [1.219]
36.00 [1.417]
C
5.08 [0.200]
7.62 [0.300]
7.62 [0.300]
12.70 [0.500]
15.24 [0.600]
20.32 [0.800]
25.40 [1.000]
D
5.08 [0.200]
7.62 [0.300]
10.16 [0.400]
12.70 [0.500]
15.24 [0.600]
20.32 [0.800]
25.40 [1.000]
E
10.03 [0.395]
12.57 [0.495]
12.57 [0.495]
17.65 [0.695]
20.19 [0.795]
25.27 [0.995]
30.35 [1.195]
F
10.03 [0.395]
12.57 [0.495]
15.11 [0.595]
17.65 [0.695]
20.19 [0.795]
25.27 [0.995]
30.35 [1.195]
G
12.70 [0.500]
15.24 [0.600]
17.78 [0.700]
20.32 [0.800]
22.86 [0.900]
27.94 [1.100]
33.02 [1.300]
H
6.35 [0.250]
7.62 [0.300]
7.62 [0.300]
10.16 [0.400]
11.43 [0.450]
13.97 [0.550]
16.51 [0.650]
Note:
1. For Tape and Reel Packaging dimensions, contact 3M
customer service or your preferred 3M distributor.
mm
(Inch)
Tolerance Unless Noted
mm
[ ] Dimensions for
Reference Only
.0 .00
±.3 ±.20
.000
Ordering Information
84XX - 21X1 - RK - XX
Contact Quantity
(See Table)
Alignment Feature:
A = With Location Post (tube packaging only)
B = Without Location Post
Packaging:
TP = Tube Pack
TR = Tape and Reel (see note)
TS-2147-B
Sheet 2 of 2
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
