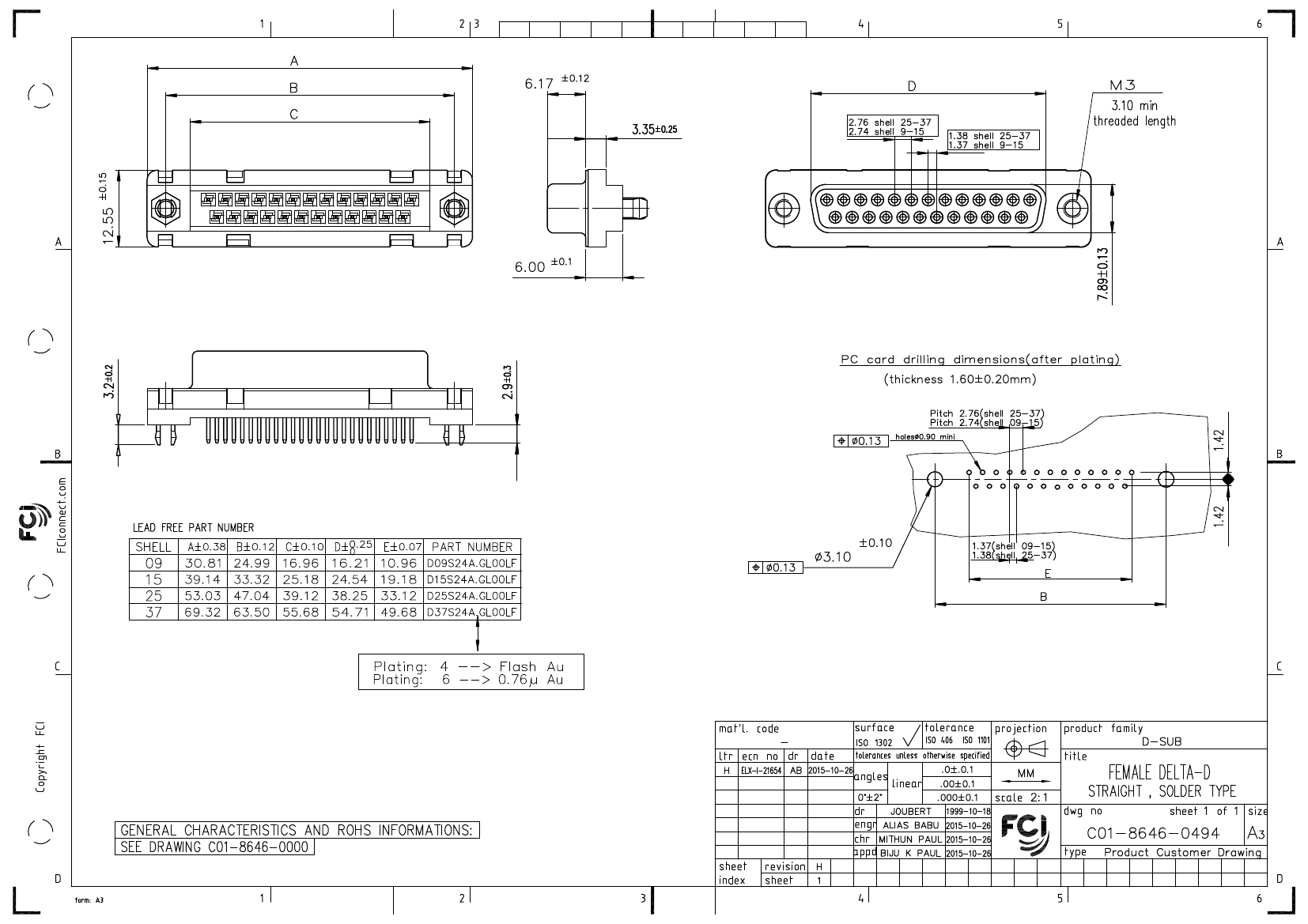

D25S24A4GL00LF: DescriptionD-Sub Standard Connectors 25P SKT STRT SOLDER SHELL SIZE B; CategoryThe connector; File Size52KB，1 Pages; ManufacturerFCI / Amphenol; Environmental Compliance

Download Datasheet Parametric Compare View All

D25S24A4GL00LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	D25S24A4GL00LF	-	-	View	Buy Now

D25S24A4GL00LF Overview

D-Sub Standard Connectors 25P SKT STRT SOLDER SHELL SIZE B

D25S24A4GL00LF Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	FCI / Amphenol
Product Category	D-Sub Standard Connectors
RoHS	Details
Number of Positions	25 Position
Contact Gender	Socket (Female)
Termination Style	Through Hole
Mounting Angle	Straight
Number of Rows	2 Row
Shell Size	3 (B)
Contact Plating	Gold
Packaging	Tray
Current Rating	5 A
Gender	Female
Type	Receptacle
Voltage Rating	300 V
Pitch	2.84 mm
Shell Plating	Bright Pure Tin over Nickel
Insert Arrangement	B25
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 55 C
Factory Pack Quantity	20

Preview

Download Datasheet

View All

PDS: Rev :H

STATUS:Released

Printed: Oct 26, 2015
