Part Number

Search

ELFB16230

Description
Pluggable Terminal Blocks Hor Board Mnt Plug .2 in 16 Pos.
CategoryThe connector    terminals
File Size10MB,135 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric View All

ELFB16230 Online Shopping

Suppliers Part Number Price MOQ In stock
ELFB16230 - - View Buy Now

ELFB16230 Overview

Pluggable Terminal Blocks Hor Board Mnt Plug .2 in 16 Pos.

ELFB16230 Parametric

Parameter NameAttribute value
MakerAmphenol
Reach Compliance Codeunknown
ECCN codeEAR99
Factory Lead Time6 weeks
Other featuresNYLON 46, UL: 94V-0
Fastening methodSOLDER
Manufacturer's serial numberELFB
Installation typeBOARD
Number of layers1
Rows2
Number of channels16
Rated current15 A
Rated voltage300 V
safety certificateUL; VDE; CSA
Terminal and terminal strip typesMODULAR TERMINAL BLOCK
Plug and Header Systems
3.5mm Pitch
3.5mm Pitch
.150" Pitch
.150" Pitch

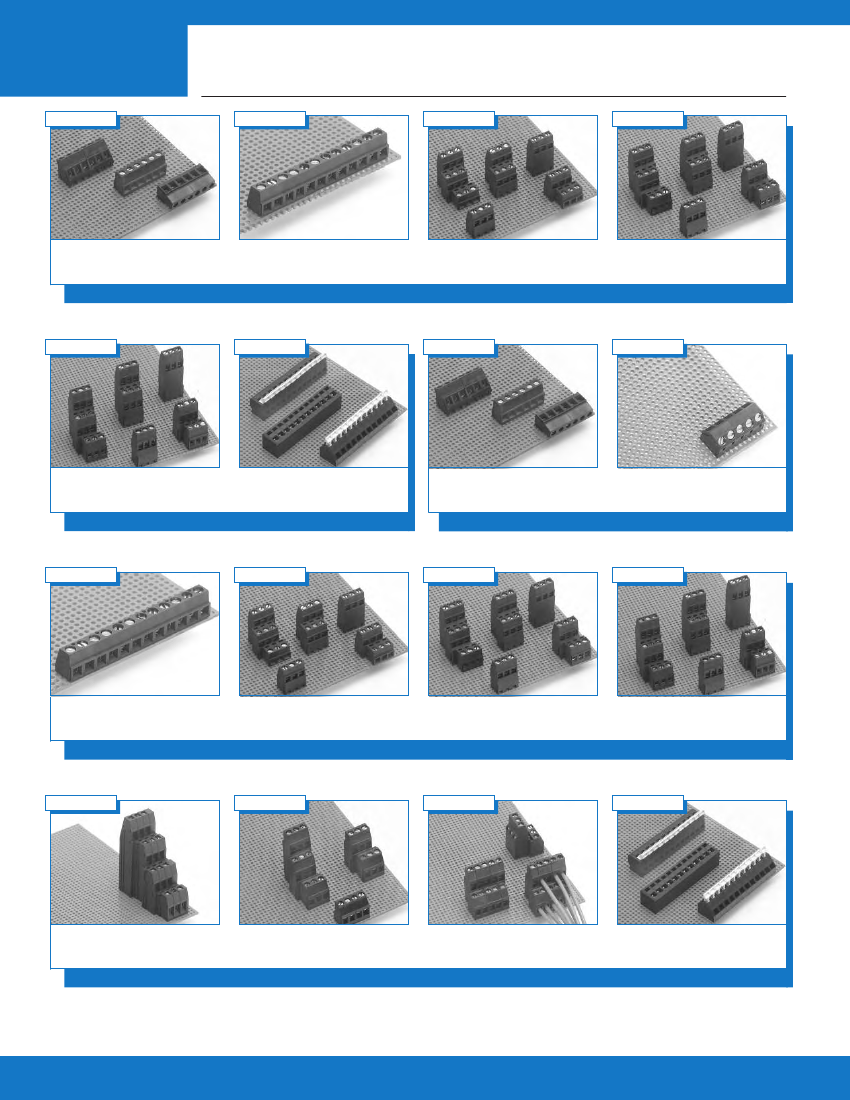

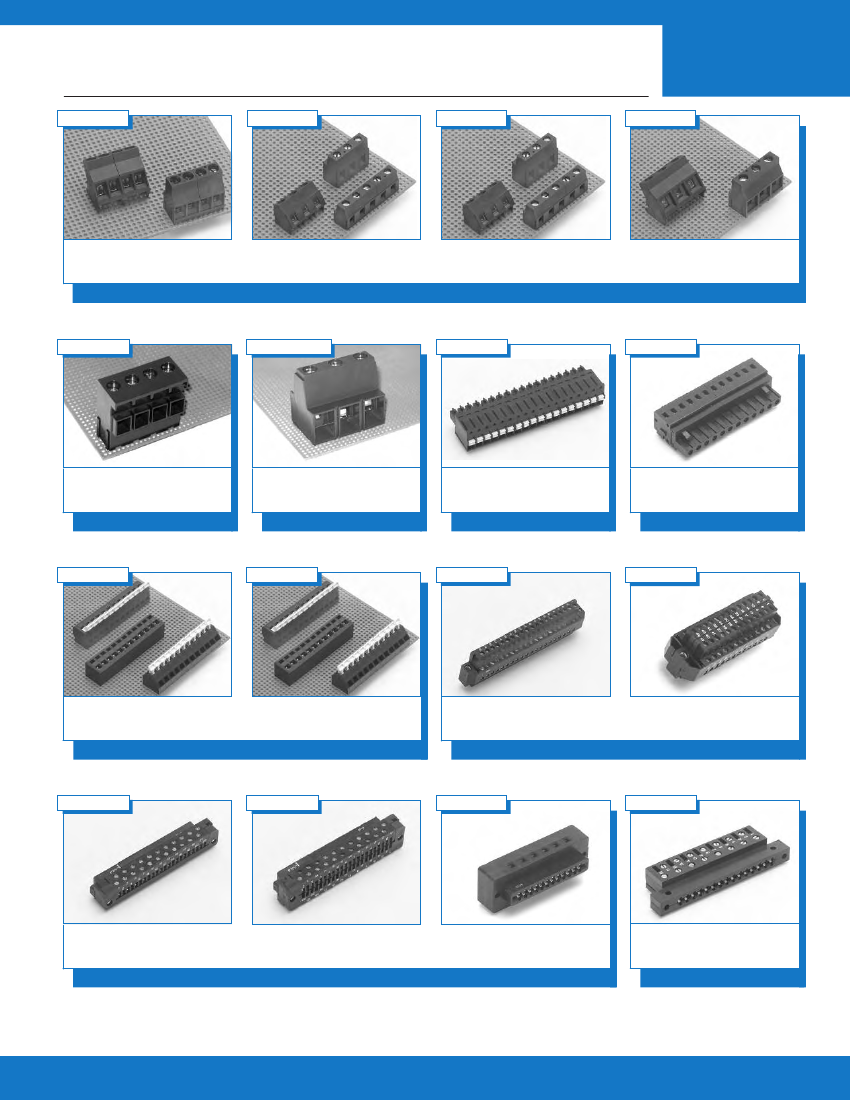

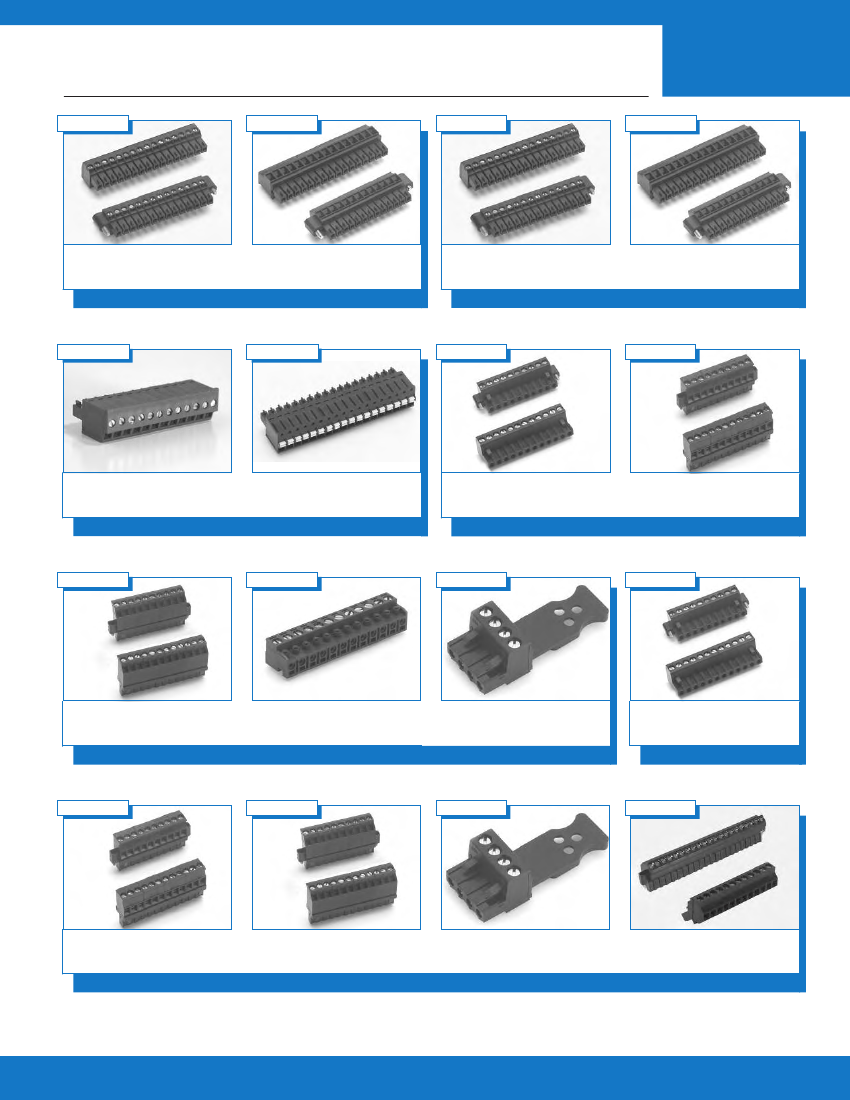

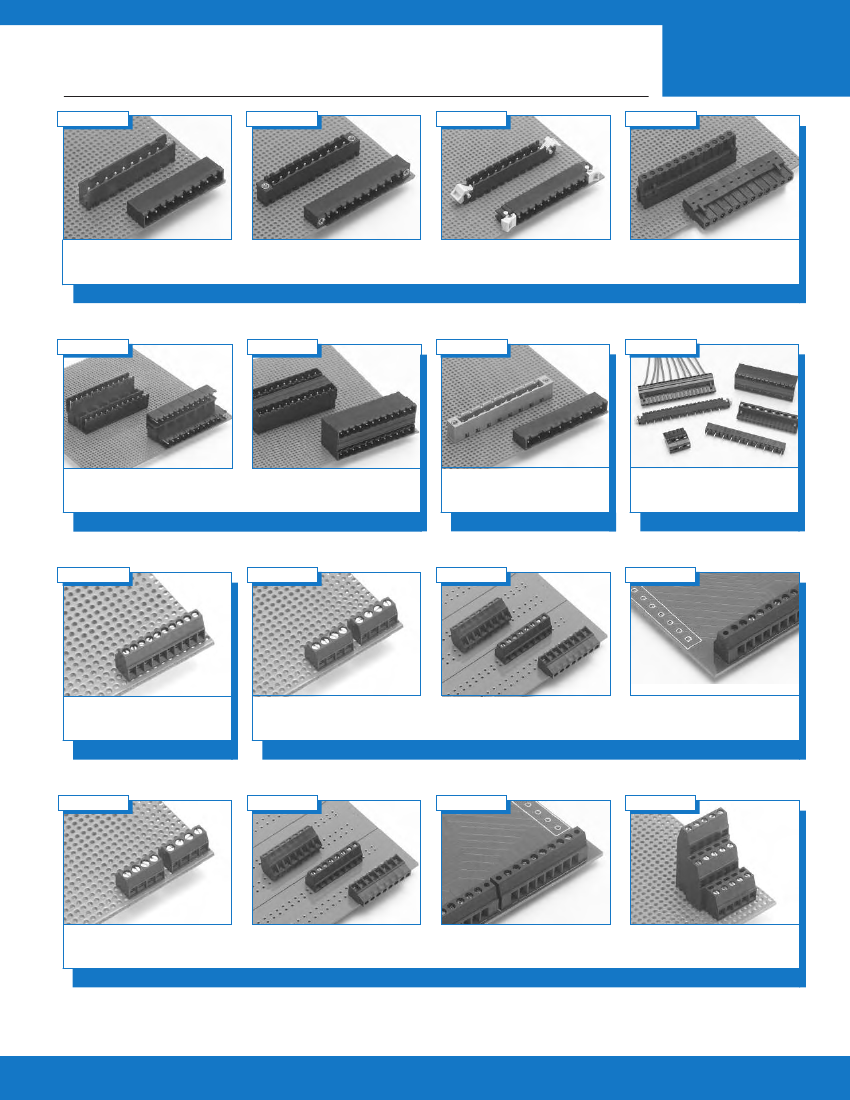

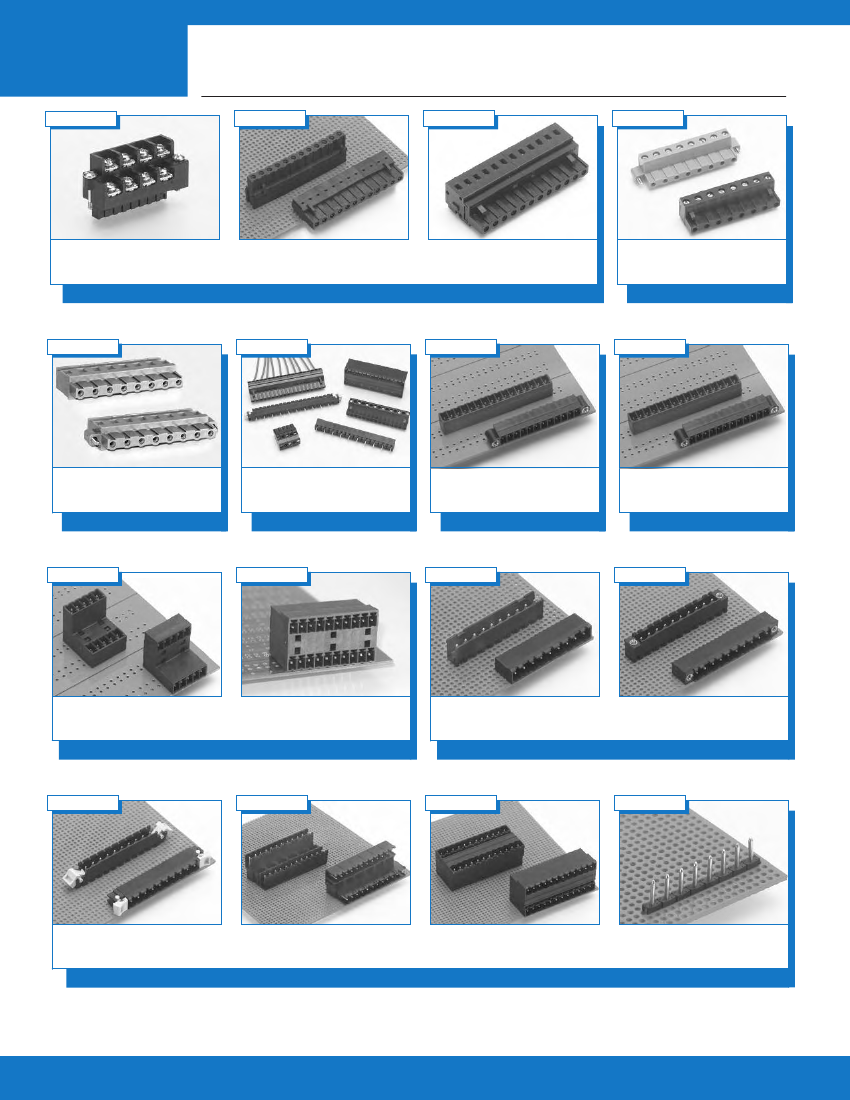

Index
ELXP Right Angle . . . . . . . . Page 15
ELXP with Locking Ears . . . Page 17
12A / 300V
ELXT Straight . . . . . . . . . . . Page 15
ELXT with Locking Ears . . . Page 17
12A / 300V
ELVP Right Angle . . . . . . . . Page 19
ELVP with Locking Ears . . . Page 21
12A / 300V
ELVT Straight . . . . . . . . . . . Page 17
ELVT—Locking Ears. . . . . . Page 19
12A / 300V
P
LUGS
3.5
MM
P
ITCH
P
LUGS
.150" P
ITCH
. . .
.150" Pitch
.150" Pitch
5.0mm Pitch
5.0mm Pitch
ELVF Front-Front . . . . . . . . Page 19
ELVF with Locking Ears . . . Page 21
12A / 300V
SCVF Spring Clamp . . . . . . Page 82
SCVF with Locking Ears . . . Page 83
12A / 300V
ELFP Right Angle . . . . . . . . Page 28
ELFP with Locking Ears . . . Page 30
15A / 300V
ELFT—Straight. . . . . . . . . . Page 28
ELFT with Locking Ears . . . Page 30
15A / 300V
. . . P
LUGS
.150" P
ITCH
P
LUGS
5.0
MM
P
ITCH
. . .
5.0mm Pitch
5.0mm Pitch
5.0mm Pitch
.200" Pitch
ELFF Front-Front. . . . . . . . . Page 29
ELFF with Locking Ears . . . Page 31
15A / 300V
ESZP Compact . . . . . . . . . . Page 37
12A / 250V
ELFP-P Wire Support Plug . Page 27
15A / 300V
ELFP Right Angle . . . . . . . . Page 38
ELFP with Locking Ears . . . Page 40
15A / 300V
. . . P
LUGS
5.0
MM
P
ITCH
P
LUGS
.200" P
ITCH
.200" Pitch
.200" Pitch
.200" Pitch
.200" Pitch
ELFT Straight . . . . . . . . . . . Page 38
ELFT with Locking Ears . . . Page 40
15A / 300V
ELFF—Standard . . . . . . . . . Page 39
ELFF—Locking Ears . . . . . . Page 41
15A / 300V
ELFP-P Wire Support Plug . Page 27
15A / 300V
ELFK 45° Angle . . . . . . . . . Page 39
ELFK w/ Locking Ears. . . . . Page 41
15A / 300V
. . . P
LUGS
.200" P
ITCH
. . .
Amphenol Pcd
Amphenol Pcd • 2 Technology Drive • Peabody, MA 01960 • www.amphenolpcd.com • 800.333.4723 • info@amphenolpcd.com
