General Purpose Metallized Polyester Film Capacitors
R82, Radial, 5 mm Lead Spacing, 50 – 400 VDC
(Automotive Grade)
Overview
The R82 is constructed of metallized polyester film (wound
or stacked technology) with radial leads of tinned wire.
Radial leads are electrically welded to the contact metal
layer on the ends of the capacitor winding. The capacitor is
encapsulated with thermosetting resin in a box of material
meeting the UL 94V–0 requirements.
Automotive grade devices meet the demanding Automotive
Electronics Council's AEC–Q200 qualification requirements.
Applications
Typical applications include blocking, coupling, decoupling,
timing and oscillator circuits. Not suitable for across-the-
line application (see Suppressor Capacitors).
Benefits
• Voltage range: 50 – 400 VDC
• Capacitance range: 0.001 µF – 4.7 µF
• Lead Spacing: 5 mm
• Capacitance tolerance: ±5%, ±10%, ±20%
• Climatic category: 55/105/56
• Operating temperature range of −55°C to +105°C
• RoHS compliance and lead-free terminations
• Tape and reel packaging in accordance with IEC 60286–2
• Self-healing
• Automotive grade (AEC–Q200)
Click image above for interactive 3D content
Open PDF in Adobe Reader for full functionality
Part Number System
R82
Series
Metallized
Polyester
D
Rated Voltage
(VDC)
C = 50
D = 63
E = 100
I = 250
M = 400
C
Length (mm)
C = 5.0
3470
Capacitance
Code (pF)
The last three
digits represent
significant figures.
First digit specifies
the number of zeros
to be added.
AA
Packaging
See Ordering
Options Table
60
Internal Use
30
50
60
70
J
Capacitance
Tolerance
J = ±5%
K = ±10%
M = ±20%
One world. One KEMET
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3101_R82 • 5/3/2018
1
Film Through-Hole Capacitors – General Purpose Metallized Polyester Film Capacitors
R82, Radial, 5 mm Lead Spacing, 50 – 400 VDC (Automotive Grade)
Ordering Options Table
Lead Spacing
Nominal
(mm)
Type of Leads and Packaging
Standard Lead and Packaging Options
Bulk (Bag) – Short leads
Ammo Pack
Other Lead and Packaging Options
Tape & Reel (Standard Reel Ø 355 mm)
Bulk (Bag) – Short leads
Bulk (Bag) – Short leads
Bulk (Bag) – Short leads
Bulk (Bag) – Short leads
Bulk (Bag) – Short leads
Bulk (Bag) – Long leads
4 +1.5/−0
H
0
= 18.5 ±0.5
H
0
= 18.5 ±0.5
2.7 +0.5/−0
3.5 +0.5/−0
10 ±1
4.0 +0.5/−0
3.2 +0.3/−0.2
17 +1/−2
AA
DQ
CK
JA
JB
JC
JE
JH
Z3
LL Lead Length
(mm)
Lead and
Packaging
Code
5
Dimensions – Millimeters
FRONT VIEW
L
SIDE VIEW
B
H
d
p
LL
0.5
p
Nominal
5.0
5.0
5.0
5.0
5.0
5.0
Tolerance
±0.4
±0.4
±0.4
±0.4
±0.4
±0.4
Nominal
2.5
3.5
4.5
5.0
6.0
7.2
B
Tolerance
+0.1
+0.1
+0.1
+0.1
+0.1
+0.1
Nominal
6.5
7.5
9.5
10.0
11.0
13.0
H
Tolerance
+0.1
+0.1
+0.1
+0.1
+0.1
+0.1
Nominal
7.2
7.2
7.2
7.2
7.2
7.2
L
Tolerance
+0.2
+0.2
+0.3
+0.3
+0.3
+0.3
Nominal
0.5
0.5
0.5
0.5
0.5
0.6
d
Tolerance
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
Note: See Ordering Options Table for lead length (LL/H
0
) options.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3101_R82 • 5/3/2018
2
Film Through-Hole Capacitors – General Purpose Metallized Polyester Film Capacitors
R82, Radial, 5 mm Lead Spacing, 50 – 400 VDC (Automotive Grade)
Performance Characteristics
Dielectric
Plates
Winding
Leads
Protection
Related Documents
Rated Voltage V
R
(VDC)
Rated Voltage V
R
(VAC)
Capacitance Range (µF)
Capacitance Values
Capacitance Tolerance
Operating Temperature
Range
Rated Temperature T
R
Voltage Derating
Climatic Category
Polyester film (polyethylene terephthalate).
Metal layer deposited by evaporation under vacum.
Non-inductive type.
Tinned wire.
Plastic case, thermosetting resin filled. Box material is solvent resistant and flame retardant according to
UL94.
IEC 60384–2
50
30
2.2 – 4.7
63
40
0.1 – 1.5
100
63
0.001 – 1
250
140
0.022 –
0.22
250
160
0.0068 –
0.15
400
160
0.0068 –
0.068
400
200
0.001 –
0.047
E6 (IEC 60063) measured at 1 kHz and +20 ±1°C
±5%, ±10%, ±20%
−55°C to 105°C
+85°C
Above +85°C DC and AC voltage derating is 1.25%/°C
55/105/56 IEC 60068–1
Storage time: ≤ 24 months from the date marked on the label package
Average relative humidity per year ≤ 70%
Storage Conditions
RH ≤ 85% for 30 days randomly distributed throughout the year
Dew is absent
Temperature: −40 to 80°C (see "Maximum Humidity in Storage Conditions" graph below)
Test Voltage
Capacitance Drift
Reliability
(Reference MIL-HDBK-217)
1.4 x V
R
VDC for 2 seconds (between terminations) at +25°C ±5°C
Maximum 3% after a 2 year storage period at a temperature of +10°C to +40°C and a relative humidity of 40%
to 60%
Operational life > 200,000 hours
Failure rate ≤ 1 FIT, T = +40°C, V = 0.5 x V
R
Failure criteria: open or short circuit, cap. change > 10%, DF 2 times the catalog limits, IR < 0.005 x initial limit
dV/dt according to Table 1. For peak to peak voltages lower than rated voltage (Vpp <V
R
), the specified dv/dt
can be multiplied by the factor V
R
/Vpp
+400 (±200) ppm/°C at 1 kHz
Approximately 7 nH. Maximum 1nH per 1 mm lead and capacitor length.
Maximum Pulse Steepness
Temperature Coefficient
Self Inductance
(Lead Length ~ 2 mm)
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3101_R82 • 5/3/2018
3
Film Through-Hole Capacitors – General Purpose Metallized Polyester Film Capacitors
R82, Radial, 5 mm Lead Spacing, 50 – 400 VDC (Automotive Grade)
Performance Characteristics cont'd
Maximum Values at 25°C ±5°C
Frequency
Dissipation Factor tanδ
1 kHz
10 kHz
100 kHz
C ≤ 0.1 μF
0.80%
1.20%
2.50%
Measured at +25°C ±5°C, according to IEC 60384–2
Minimum Values Between Terminals
Insulation Resistance
Voltage charge/time
50 VDC for V
R
≤ 100 VDC
1 minute
100 VDC for V
R
> 100 VDC
1 minute
C ≤ 0.33 μF
≥ 15,000 MΩ
0.33 µF < C ≤ 1.0 μF
≥ 5,000 MΩ • µF
≥ 30,000 MΩ
C > 1.0 μF
≥ 1,000 MΩ • µF
C > 1 µF
0.80%
1.20%
–
Maximum Humidity in Storage Conditions
100
90
80
70
60
50
40
30
20
10
0
−40
Relative Humidity (%)
30 Days
Annual Average
−20
0
20
40
60
80
Temperature (°C)
Qualification
Automotive grade products meet or exceed the requirements outlined by the Automotive Electronics Council. Details
regarding test methods and conditions are referenced in document AEC–Q200, Stress Test Qualification for Passive
Components. For additional information regarding the Automotive Electronics Council and AEC–Q200, please visit their
website at www.aecouncil.com.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3101_R82 • 5/3/2018
4
Film Through-Hole Capacitors – General Purpose Metallized Polyester Film Capacitors
R82, Radial, 5 mm Lead Spacing, 50 – 400 VDC (Automotive Grade)

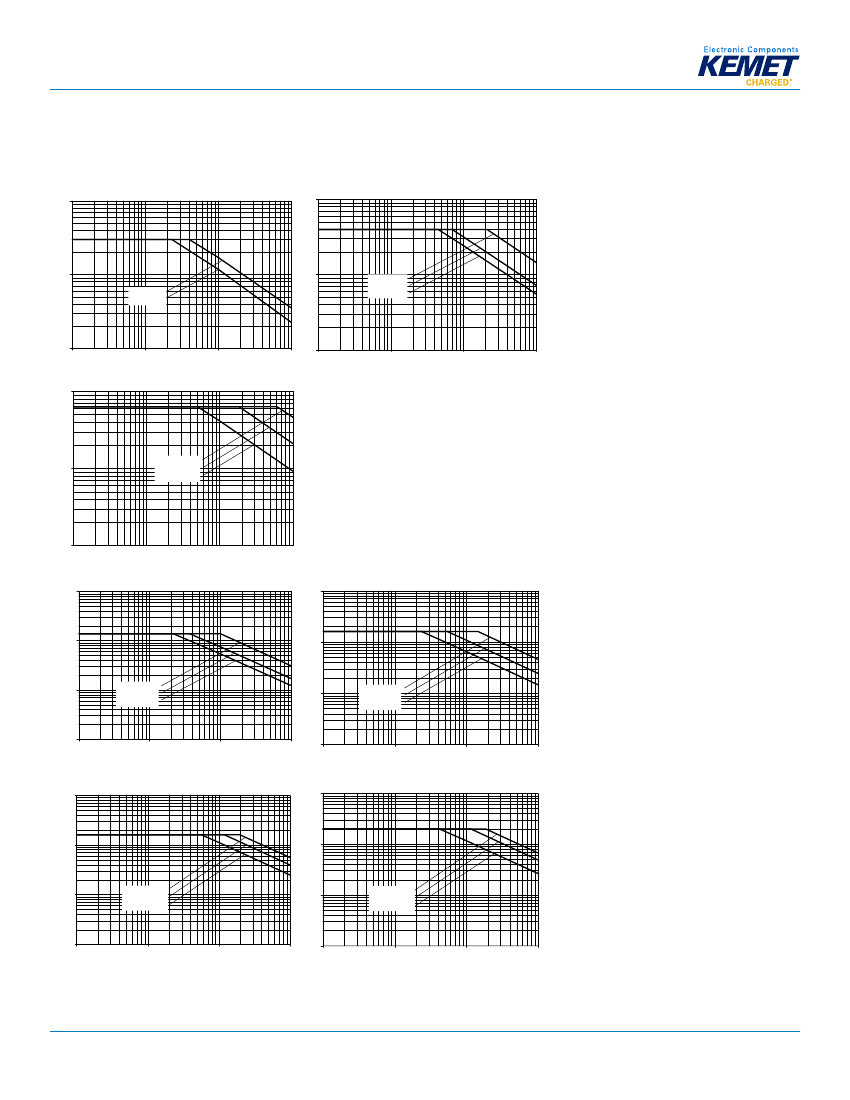

Maximum Voltage (V
rms
) vs. Frequency (Sinusoidal Waveform/Th ≤ 40°C)
Lead Spacing 5 mm
50 VDC/30 VAC
100
100
63 VDC/40 VAC
V
rms
[V]
10
2.2 µF p = 5
4.7 µF p = 5
V
rms
[V]
10
0.1 µF p = 5
0.47 µF p = 5
1 µF p = 5
1
0.1
1
f [kHz]
10
100
1
0.1
1
f [kHz]
10
100
100 VDC/63 VAC
100
V
rms
[V]
10
0.01 µF p = 5
0.047 µF p = 5
0.33 µF p = 5
1
0.1
1
f [kHz]
10
100
250 VDC/140 VAC - Reduced Sizes
1000
1000
250 VDC/160 VAC
100
100
V
rms
[V]
10
0.022 µF p = 5
0.1 µF p = 5
0.22 µF p = 5
V
rms
[V]
10
0.01 µF p = 5
0.047 µF p = 5
0.15 µF p = 5
1
0.1
1
f [kHz]
10
100
1
0.1
1
f [kHz]
10
100
400 Vdc / 160 Vac
1000
- Reduced Sizes
1000
400 VDC/200 VAC
100
100
V
rms
[V]
V
rms
[V]
10
0.0068 µF p = 5
0.015 µF p = 5
0.047 µF p = 5
10
0.0047 µF p = 5
0.01 µF p = 5
0.047 µF p = 5
1
0.1
1
f [kHz]
10
100
1
0.1
1
f [kHz]
10
100
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3101_R82 • 5/3/2018
5
