AISC-0402-1N0JT datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> inductor> AISC-0402-1N0JT

Preview

AISC-0402-1N0JT: DescriptionGeneral Purpose Inductor, 0.001uH, 5%, 1 Element, Ceramic-Core, SMD, 0402, CHIP, 0402, ROHS COMPLIANT; CategoryPassive components inductor; File Size2MB，3 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

AISC-0402-1N0JT Overview

General Purpose Inductor, 0.001uH, 5%, 1 Element, Ceramic-Core, SMD, 0402, CHIP, 0402, ROHS COMPLIANT

AISC-0402-1N0JT Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	0503
Reach Compliance Code	compli
ECCN code	EAR99
uppercase and lowercase codes	0503
structure	Wirewound
core material	Ceramic
DC Resistance	0.045 Ω
Nominal inductance(L)	0.001 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e4
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package height	0.66 mm
Package length	1.19 mm
Package form	SMT
Package width	0.64 mm
method of packing	TR, 7 Inch
Minimum quality factor (at nominal inductance)	13
Maximum rated current	1.36 A
self resonant frequency	12700 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal surface	Gold (Au) - with Nickel (Ni) barrie
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Test frequency	250 MHz
Tolerance	5%
Base Number Matches	1

Preview

Download Datasheet

View All

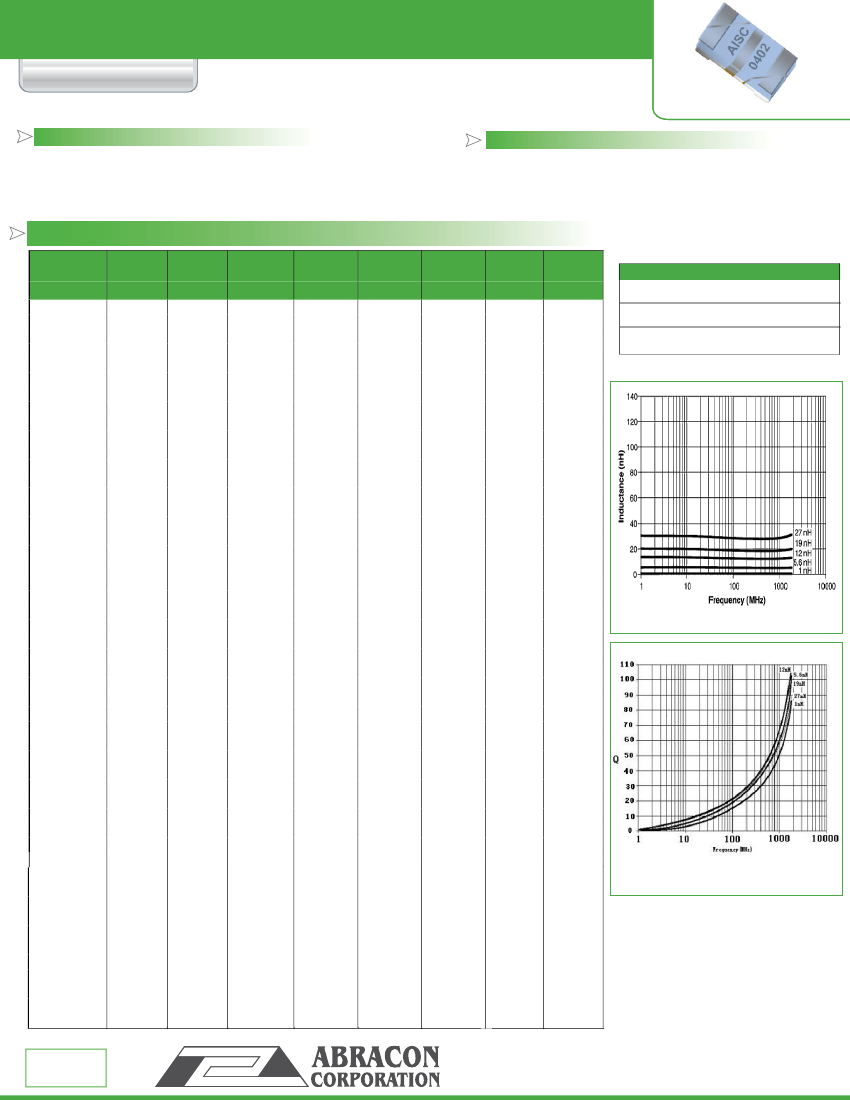

SMD CERAMIC WIRE-WOUND CHIP INDUCTORS

AISC-0402-xxx

FEATURES:

• Ceramic construction assures the utmost thermal stablity & high SRF

• Exceptionally high Q compared to non-wirewound inductors,

especially at high frequencies

• Inductance options from 1.0nH to150nH available

RoHS

Compliant

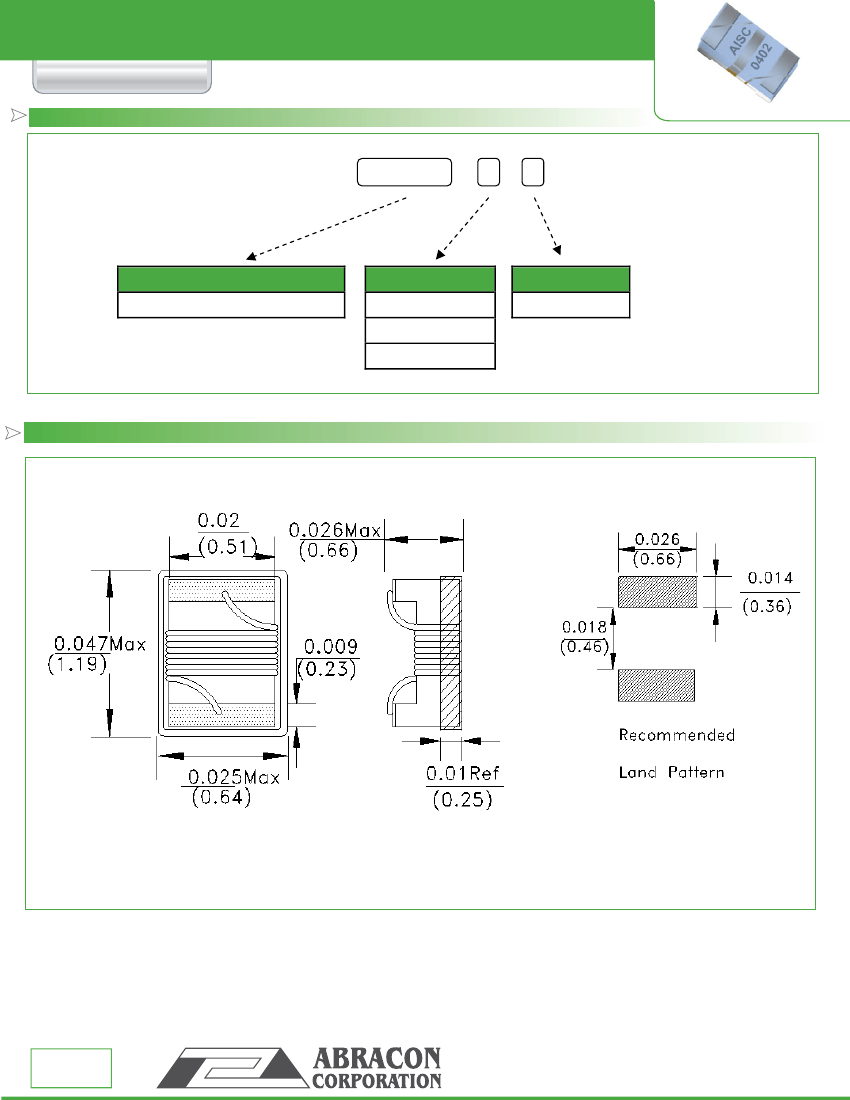

1.19 x 0.51 x 0.66 mm

| | | | | | | | | | | |

| | |

APPLICATIONS:

• Widely applied in VCO, SAW circuit for GSM, & CDMA

communication

• Used in hard disk, notebook computers & other electronic equipment

ELECTRICAL SPECIFICATIONS:

Part

Number

AISC-0402-

1N0

1N2

1N8

1N9

2N0

2N2

2N4

2N7

3N3

3N6

3N9

4N3

4N7

5N1

5N6

6N2

6N8

7N5

8N2

8N7

9N0

9N5

10N

11N

12N

13N

15N

16N

18N

19N

20N

22N

23N

24N

27N

30N

33N

36N

39N

40N

43N

47N

51N

56N

62N

68N

82N

R10

R12

R15

ABRACON IS

ISO9001:2008

CE RTIFIED

L (nH)

1.0

1.2

1.8

1.9

2.0

2.2

2.4

2.7

3.3

3.6

3.9

4.3

4.7

5.1

5.6

6.2

6.8

7.5

8.2

8.7

9.0

9.5

10

11

12

13

15

16

18

19

20

22

23

24

27

30

33

36

39

40

43

47

51

56

62

68

82

100

120

150

L. Test

Freq

(MHz)

250

Tolerance

J,K

G,

J, K

G,

J, K

G,

J, K

G,

J, K

G,

J, K

G,

J, K

G,

J, K

G,

J, K

G,

J, K

G,

J, K

G,

J, K

G,

J, K

G,

J, K

G,

J, K

G,

J, K

G,

J, K

G,

J, K

G,

J, K

G,

J, K

G,

J, K

G,

J, K

G,

J, K

G,

J, K

G,

J, K

G,

J, K

G,

J, K

G,

J, K

G,

J, K

G,

J, K

G,

J, K

G,

J, K

G,

J, K

G,

J, K

G,

J, K

G,

J, K

G,

J, K

G,

J, K

G,

J, K

G,

J, K

G,

J, K

G,

J, K

G,

J, K

Q

Min

13

16

18

20

23

20

25

21

26

25

26

25

26

25

20

25

Q Test

Freq

(MHz)

250

SRF

Min

(MHz)

12700

12000

11500

11300

11100

10800

10500

10400

7000

6800

6000

4775

5800

4400

4200

4160

4000

3900

3680

3600

3450

3280

3100

3040

3000

2800

2720

2700

2480

2350

2320

2100

2240

2030

2100

1750

1760

1700

1620

1520

1200

R

DC

Max

0.045

0.060

0.070

0.068

0.120

0.066

0.091

0.130

0.083

0.100

0.162

0.200

0.120

0.185

0.170

0.220

0.230

0.200

0.250

0.300

0.350

0.400

0.500

0.550

0.700

0.750

0.820

0.970

1.250

2.000

2.700

2.900

I

DC

Max

(mA)

1360

1300

1040

960

640

840

700

800

760

680

600

480

640

600

560

480

420

400

320

200

150

100

90

80

PARAMETERS

ABRACON P/N: AISC-0402-xxx Series

Operating temperature:-40°C to + 125°C

Storage temperatur e: -10°C to + 40°C, 70% RH max.

L vs Frequency

Q vs Frequency

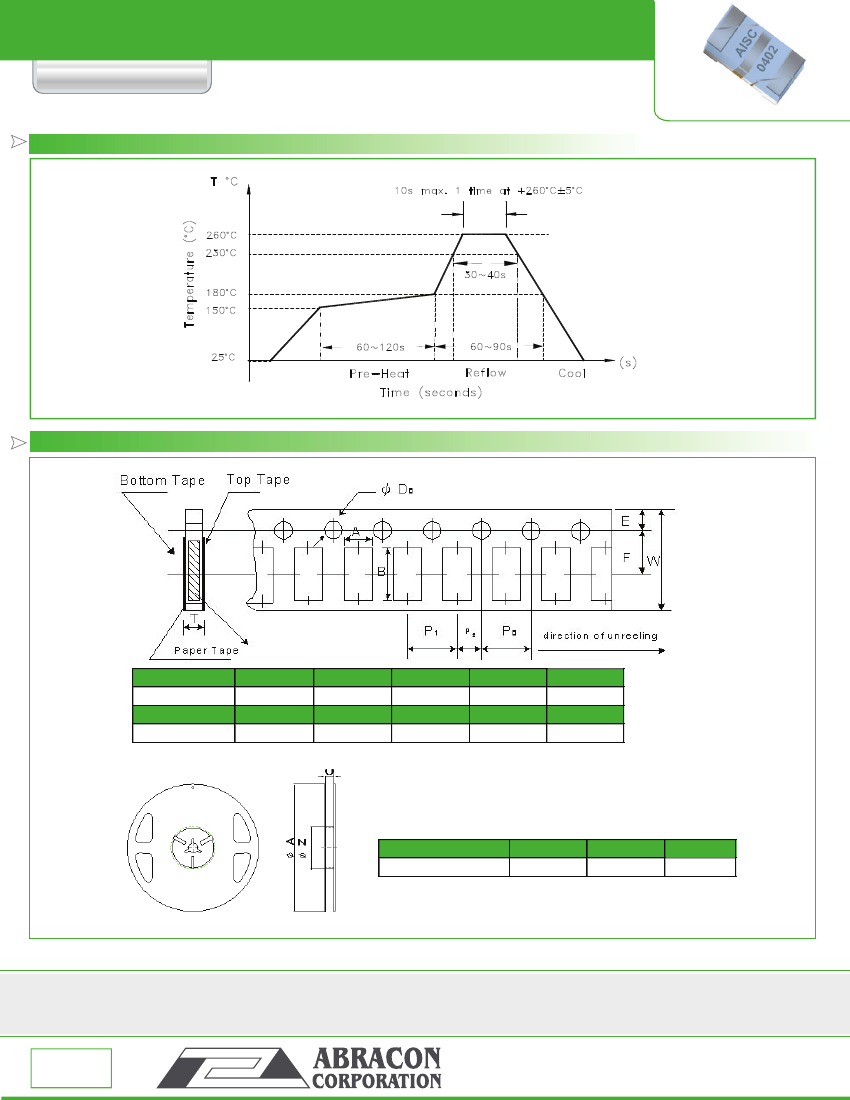

Revised: 04.14.11

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

|

fax 949-546-8001

|

www.abracon.com

Visit www.abracon.com for Terms & Conditions of Sale
