4302R-391G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> 4302R-391G

4302R-391G: DescriptionFixed Inductors .39uH 2% .22ohm Temp Stable SMT; CategoryPassive components inductor; File Size2MB，1 Pages; ManufacturerAPI Delevan; Websitehttp://www.delevan.com/; Environmental Compliance

Download Datasheet Parametric View All

4302R-391G Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	4302R-391G	-	-	View	Buy Now

4302R-391G Overview

Fixed Inductors .39uH 2% .22ohm Temp Stable SMT

4302R-391G Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	API Delevan
package instruction	1110
Reach Compliance Code	compliant
ECCN code	EAR99
uppercase and lowercase codes	1110
structure	Rectangular
core material	IRON
DC Resistance	0.22 Ω
Nominal inductance(L)	0.39 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e1
Manufacturer's serial number	4302R
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	2.16 mm
Package length	2.665 mm
Package form	SMT
Package width	2.41 mm
method of packing	TR, 7/13 Inch
Minimum quality factor (at nominal inductance)	40
Maximum rated current	0.825 A
self resonant frequency	160 MHz
series	4302
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal surface	Tin/Silver/Copper (Sn96.5Ag3.0Cu0.5)
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	25 MHz
Tolerance	2%
Base Number Matches	1

Preview

Download Datasheet

View All

SERIES

4302R

4302

±1

(µ

TI )

RA A

T (m

EN UM

RR IM

CU X

AN )

ST S

SI HM

RE M (O

)

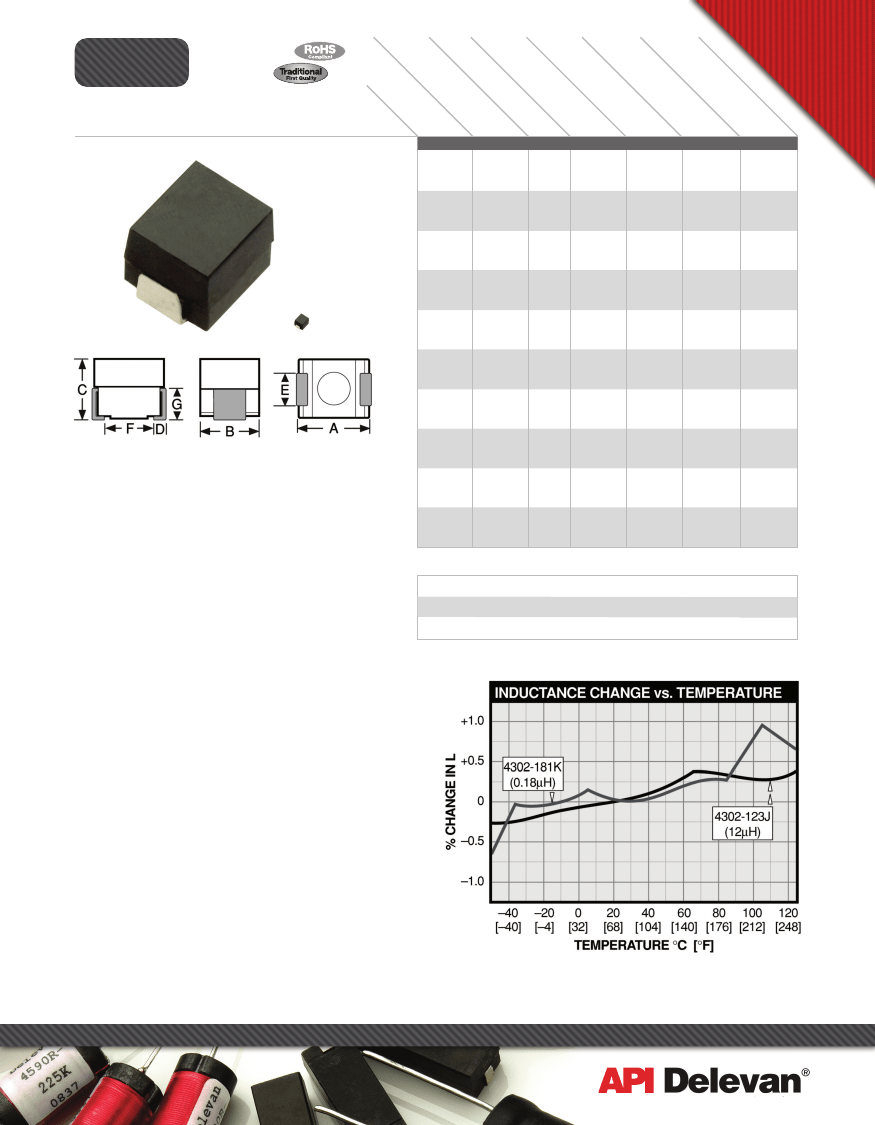

Temperature Stable (1008 size)

Surface Mount Inductors

Actual Size

Temperature Stable for critical conditions

Physical Parameters

Inches

Millimeters

0.095 to 0.115

2.41 to 2.92

0.085 to 0.105

2.16 to 2.66

0.075 to 0.095

1.91 to 2.41

0.010 to 0.030

0.26 to 0.76

0.040 to 0.060

1.02 to 1.52

0.060 (Ref. only)

1.52 (Ref. only)

0.045 (Ref. only)

1.14 (Ref. only)

Dimensions “A” and “C” are over terminals.

Weight Max.

(Grams) 0.1

Operating Temperature Range

–55°C to +125°C

Current Rating at 90°C Ambient

35°C Rise

Maximum Power Dissipation at 90°C

0.208 W

Note

For applications requiring improved characteristics

over typical ferrite core inductors of the same size. See

1008 Series for values lower

than 0.12µH.

Marking

Delevan; dash number; date code (YYWWL).

Note: An R before the date code indicates a RoHS

component.

Example: 4302-272K

DELEVAN

272

0422B

Packaging

Tape & reel (8mm): 7" reel, 2000 pieces max.;

13" reel, 7000 pieces max.

Made In the U.S.A.

-121K

-151K

-181K

-221K

-271K

-331K

-391K

-471K

-561K

-681K

-821K

-102K

-122K

-152K

-182K

-222K

-272K

-332K

-392K

-472K

-562K

-682K

-822K

-103K

-123K

-153K

-183K

-223K

-273K

SERIES 4302 POWDERED IRON CORE

0.12

25.0

400

0.130

0.15

25.0

375

0.150

0.18

25.0

325

0.165

0.22

25.0

270

0.175

0.27

25.0

240

0.190

0.33

25.0

180

0.200

0.39

25.0

160

0.220

0.47

25.0

130

0.240

0.56

25.0

115

0.295

0.68

25.0

105

0.320

0.82

25.0

0.510

1.0

7.9

0.550

1.2

7.9

0.600

1.5

7.9

0.730

1.8

7.9

0.800

2.2

7.9

1.25

2.7

7.9

1.60

3.3

7.9

1.85

3.9

7.9

2.10

4.7

7.9

2.30

5.6

7.9

3.00

6.8

7.9

3.50

8.2

7.9

4.00

10.0

7.9

4.50

12.0

2.5

7.50

15.0

2.5

9.00

18.0

2.5

11.00

22.0

2.5

12.00

27.0

2.5

13.00

Optional Tolerances: J = 5% H = 3% G = 2% F = 1%

*Complete part # must include series # PLUS the dash #

For surface ﬁnish information, refer to www.delevanﬁnishes.com

For more detailed graphs, contact factory

270 Quaker Rd., East Aurora NY 14052 • Phone 716-652-3600 • Fax 716-652-4814 • E-mail: apisales@delevan.com • www.delevan.com

1075

1000

955

925

890

865

825

790

710

685

540

520

500

455

430

345

305

285

265

255

225

205

195

180

140

125

115

110

105

3/2018
