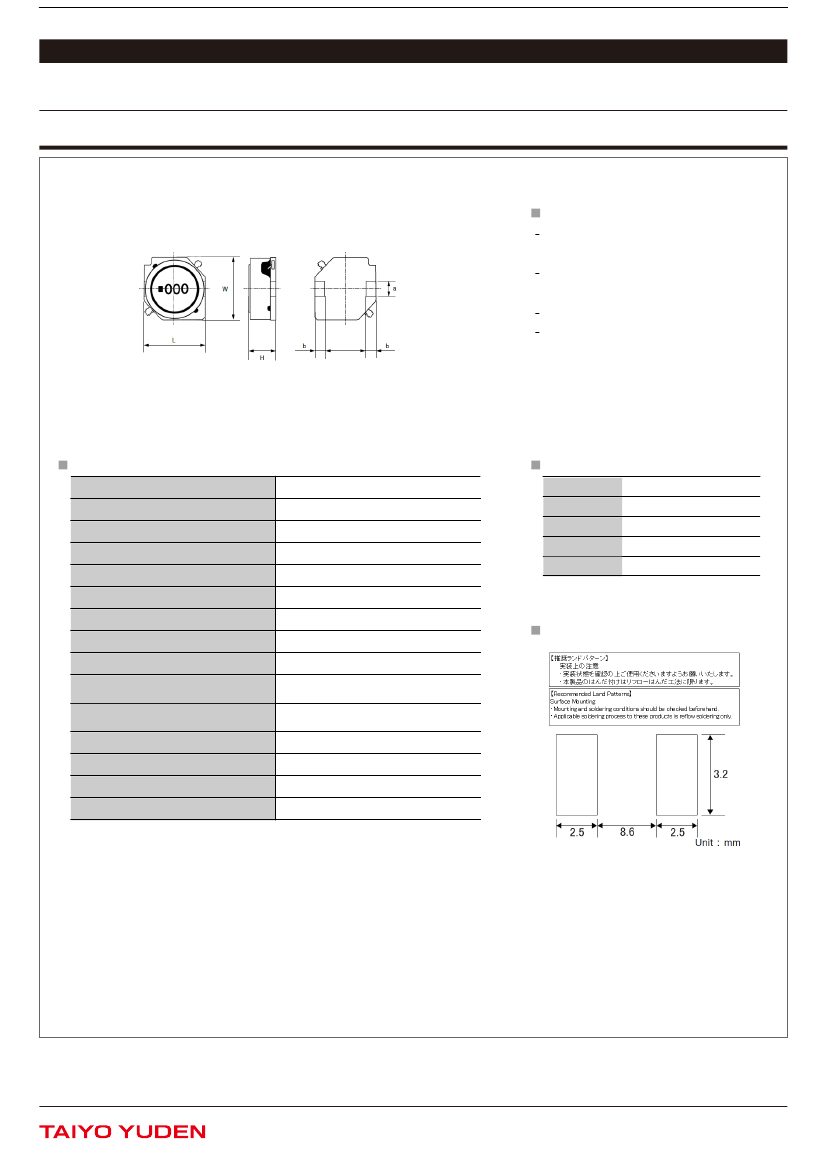

SMD Power Inductors for Automotive / Industrial Applications (NS series)
NS12575T680MNV
Features
Item Summary
68uH±20%, 2.1A, 12.5x12.5x7.5mm
Lifecycle Stage
Mass Production
AEC-Q200 qualified
Standard packaging quantity (minimum)
Taping Embossed 2000pcs(500pcs*4reel)
Products characteristics table
Inductance
Case Size (mm)
Rated Current (max)
Saturation Current (max)
Temperature Rise Current (max)
DC Resistance (max)
DC Resistance (typ)
LQ Measuring Frequency
Self Resonant Frequency (min)
Operating Temp. Range
Temperature characteristic
(Inductance change)
RoHS2 Compliance (10 subst.)
REACH Compliance (181 subst.)
Halogen Free
Soldering
Yes
Yes
Yes
Reflow
68 uH ± 20 %
12.5x12.5
2.1 A
2.78 A
2.1 A
108 mΩ
90 mΩ
100 kHz
5.3 MHz
-40 to +125 ℃
(Including-self-generated heat)
± 15 %
External Dimensions
Dimension L
Dimension W
Dimension H
Dimension a
Dimension b
12.5 ±0.3 mm
12.5 ±0.3 mm
7.5 ±0.35 mm
3.0 ±0.1 mm
2.0 ±0.15 mm
Recommended Land Patterns
2018.05.13
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
http://www.ty-top.com
