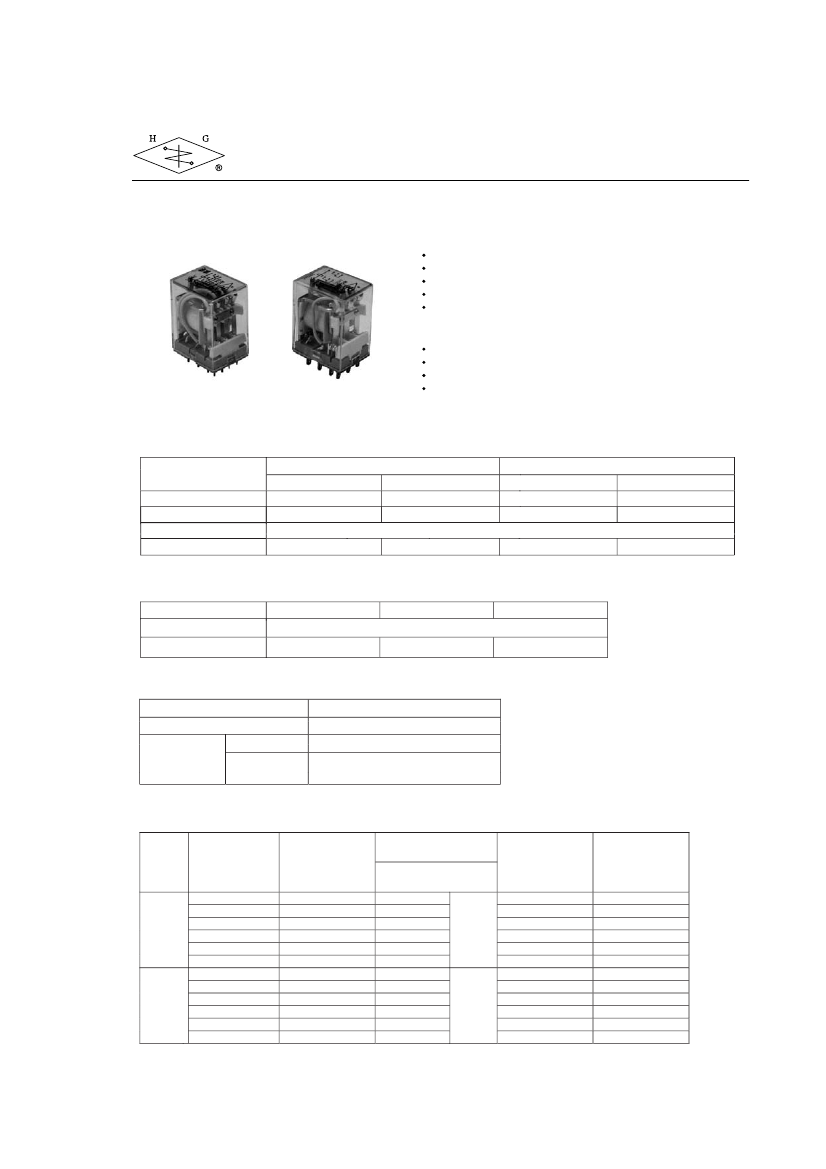

HG4104

FEATURES

Miniature type, general purpose applications

2 to 4 poles contact form

DC and AC coil available

Various mounting options include socket, PCB and flange

UL, CUR approved

TYPICAL APPLICATIONS

Machine tools

Medical equipment

Industrial control

Transportation

CONTACT RATING

Form

Rated Load

Max. Switching Current

Max. Switching Voltage

Max. Switching Power

2 Form C (2Z), 3 Form C (3Z)

Standard

5A, 220VAC/30VDC

1100VA/150W

4 Form C (4Z)

Heavy Duty

5A, 220VAC/30VDC

1100VA /150W

Heavy Duty

Standard

7A, 220VAC/30VDC

3A, 220VAC/30VDC

250VAC/125VDC

1540VA /210W

660VA/90W

UL/CUR RATING

Form

General Use

Resistive

7A, 250VAC/30VDC

2 Form C (2Z)

3 Form C (3Z)

3A, 240VAC/30VDC

5A, 250VAC/30VDC

4 Form C (4Z)

CONTACT DATA

Material

Initial Contact Resistance

Mechanical

Service Life

Electrical

AgCe

50 mΩ max. at 1A, 30VDC

2 x 10

ops.

2 x 10

ops. for standard version

ops. for heavy duty version

COIL DATA

Nominal Voltage

(VDC/VAC)

110

120

220/240

Resistance (Ω) ±10%

Power Consumption

27.5

160

650

2600*

11000*

11.5

184

735

4550*

14400*

Must Operate

Voltage max.

(VDC/ VAC)

4.0

4.8

9.6

19.2

38.4

88.0

4.8

9.6

19.2

38.4

96.0

176.0

Must Release

Voltage min.

(VDC / VAC)

0.5

0.6

1.2

2.4

4.8

11.0

1.8

3.6

7.2

14.4

36.0

66.0

Type

Coil Voltage Code

005

006

012

024

048

110

006A

012A

024A

048A

120A

220A/240A

0.9W

1.2VA

HG4104

1/4

HG4104

CHARACTERISTICS

Operate Time

Release Time

Insulation Resistance

Dielectric Strength

Shock Resistance

Vibration Resistance

Ambient Temperature

Weight

25 ms.

1000 MΩ, at 500 VDC, 50%RH

1500 Vrms, 1 min. between coil and contacts

1000 Vrms, 1 min. between open contacts

10 g, 11ms. functional; 100 g, destructive

DA 1.5 mm, 10 - 55 Hz

-55ºC to 70ºC

37 g, approx.

ORDERING DESIGNATION

Example:

Model

Coil Voltage Code

DC/AC

Nil: DC Coil; A: AC Coil

Contact Form

2Z: 2 Form C

3Z: 3 Form C

4Z: 4 Form C

Version

Nil: Solder Lug

4: PCB

6: Top Flange

6A: Bottom Flange

6B: Lateral Flange

Indicator

Nil: Without LED; D: With LED

Contact Material

C: AgCe; S: AgSnOInO

Duty Version

Nil: Standard; H: Heavy Duty

HG4104 /

012

A-

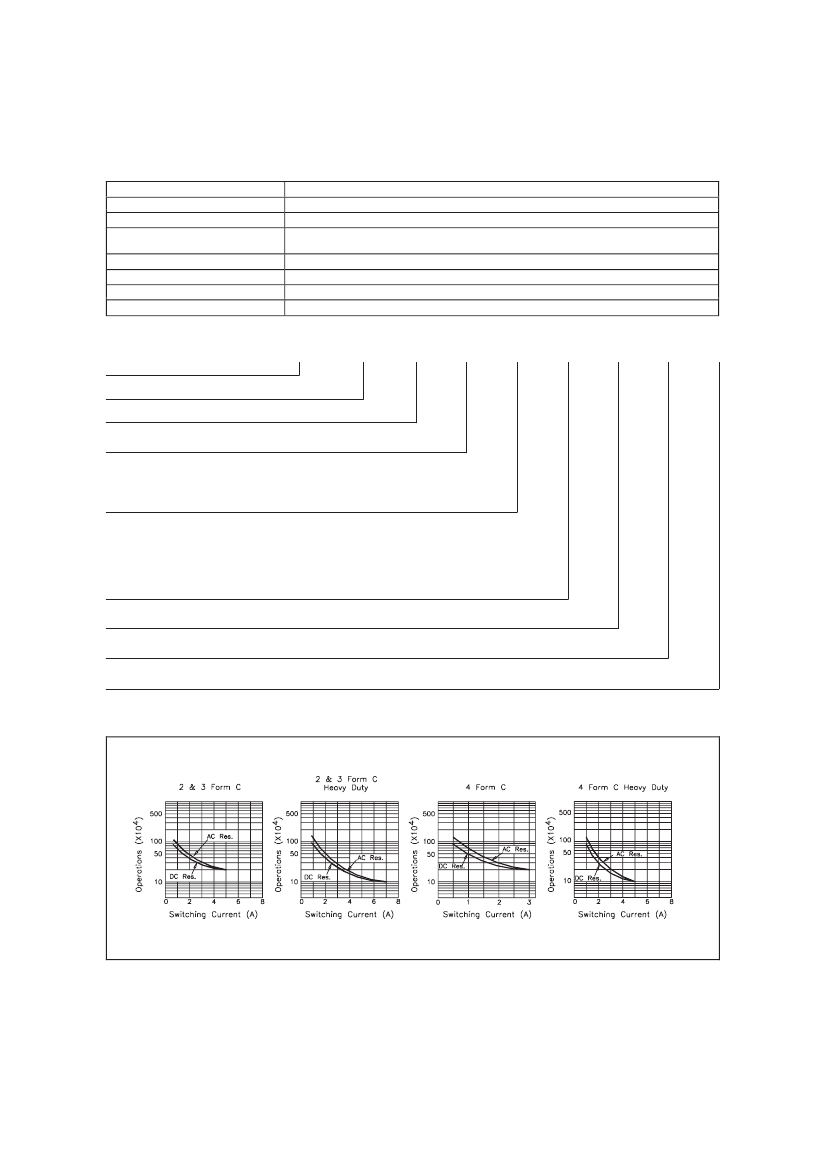

REFERENCE CURVES

Life Expectancy

HG4104

2/4

HG4104

OVERALL DIMENSIONS, MOUNTING HOLES AND WIRING DIAGRAMS (mm)

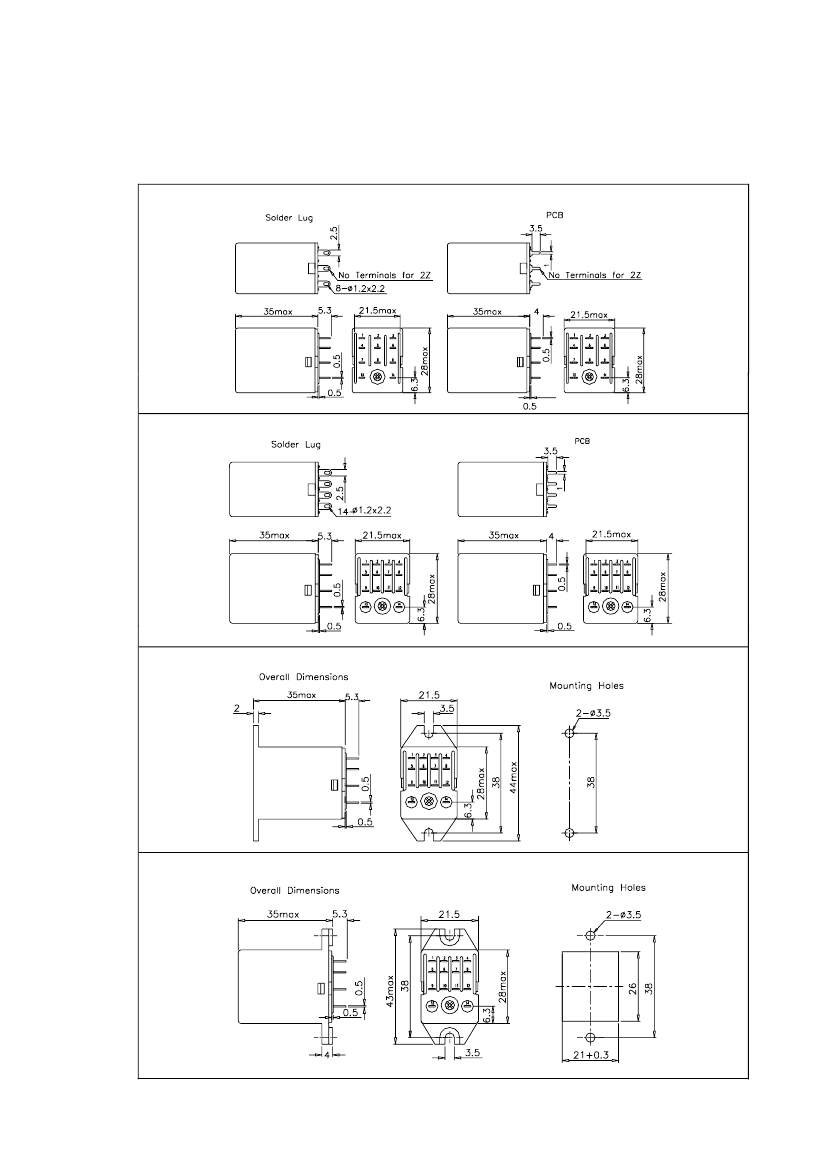

Overall Dimensions, Solder Lug & PCB Version, 2 & 3 Form C

Overall Dimensions, Solder Lug & PCB Version, 4 Form C

Overall Dimensions and Mounting Holes, Top Flange Version

Overall Dimensions and Mounting Holes, Bottom Flange Version

HG4104

3/4

HG4104

Overall Dimensions and Mounting Holes, Lateral Flange Version

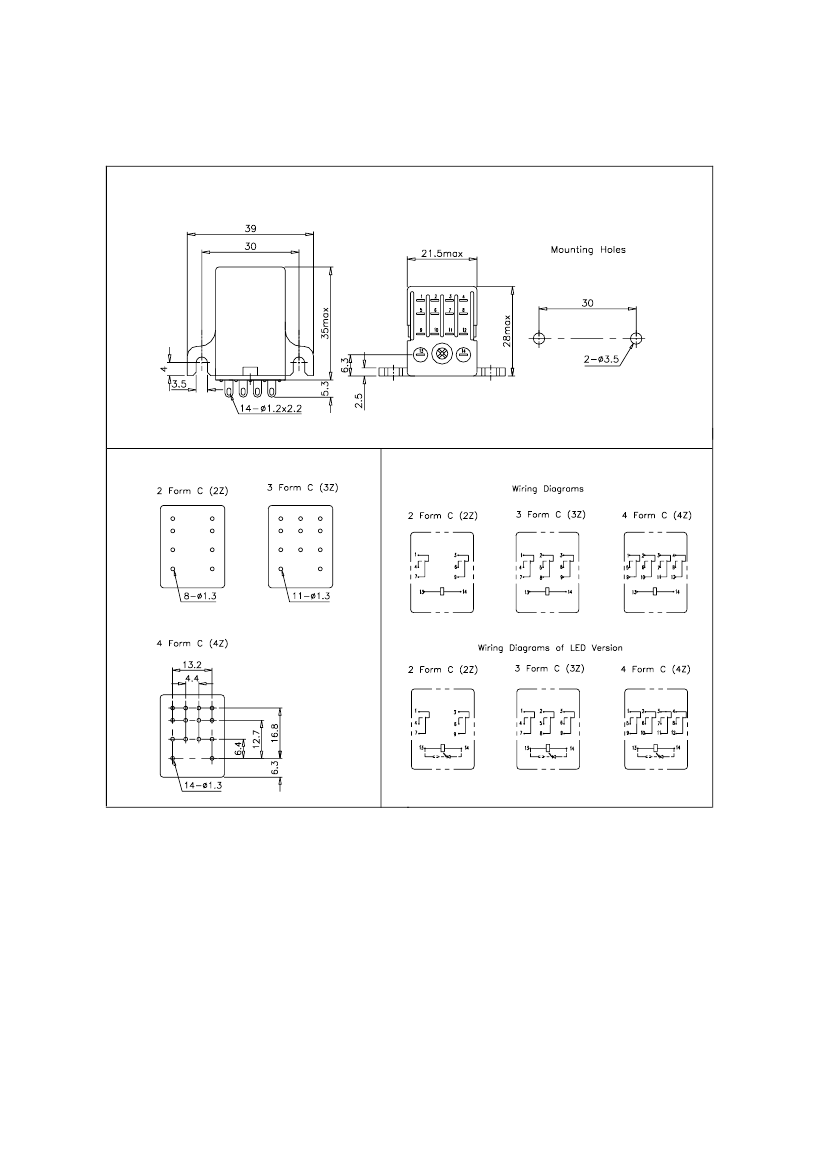

Mounting Holes PCB Version (Bottom View)

Wiring Diagrams (Bottom View)

NOTES

All parameters, unless otherwise specified, are measured at ambient temperature 23ºC.

Coil resistance with * mark is ±15%.

Custom-made services available with operational quantity. Please let us know your special requirements.

Specifications subject to change without prior notice.

HG4104

4/4
