Electrical Specifications @ 25°C - Operating Temperature -40°C to +125°C
Part
Number
B8101
B8102
B8103
B8104
B8106
B8107
B8176
BX8266L
BX8267L
Inductance
(2-5) (mH)
20 kHz, 0.1 Vac
0 mAdc TYP
7.0
9.35
4.0 (Note 1)
9.35
7.0
9.35
4.0
32 (Note 2)
16 (Note 2)
DC Resistance
(each winding)
(W MAX)
11.0
13.6
10.0
32.0
14.1
26.0
10.0
15
15
Isolation Voltage
(between windings)
(Vac)
1000
1000
1000
1000
1000
1000
1000
600 (Note 3)
600 (Note 3)
Mounting
THT
THT
SMT
THT
THT
THT
THT
SMT
SMT
Notes:
1.) pins 2-6 (applies to B8103) 2.) pins 1-5 with pins 4 & 8 shorted @ 0 mA (applies to BX8266L and BX8267L) 3.) AC applied for 1 second

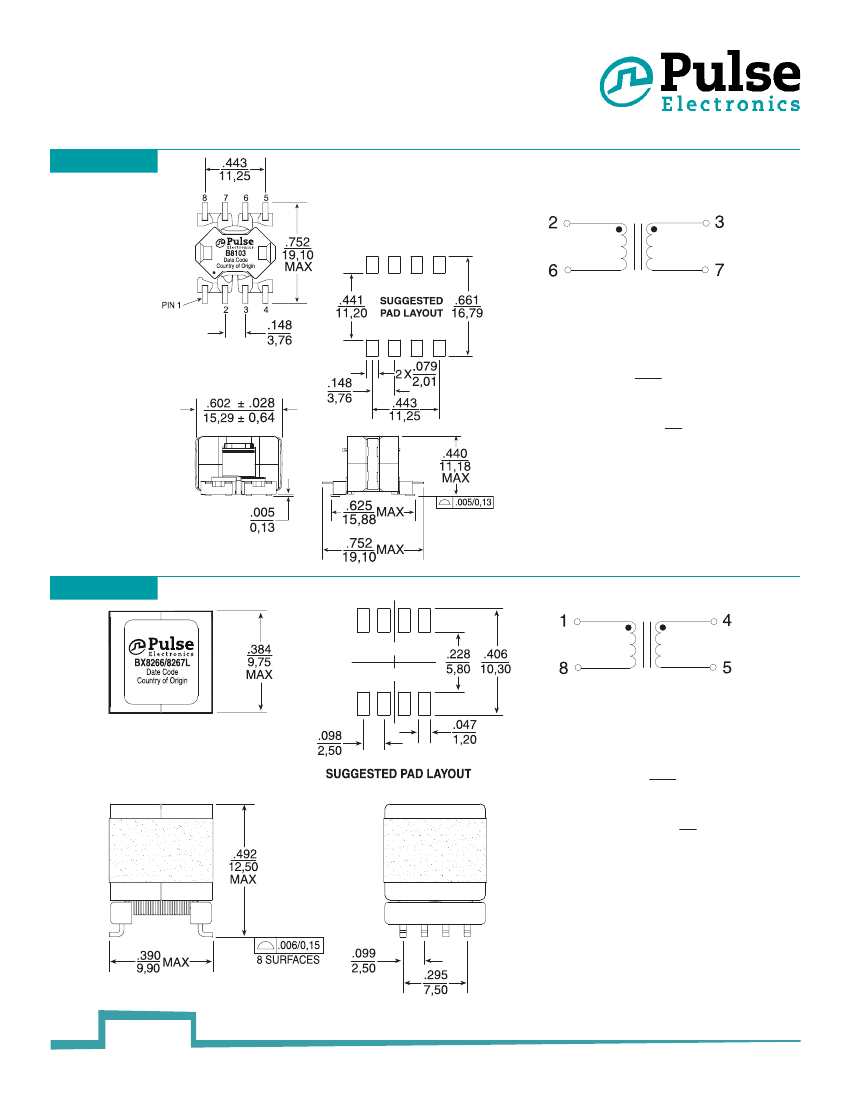

Mechanical

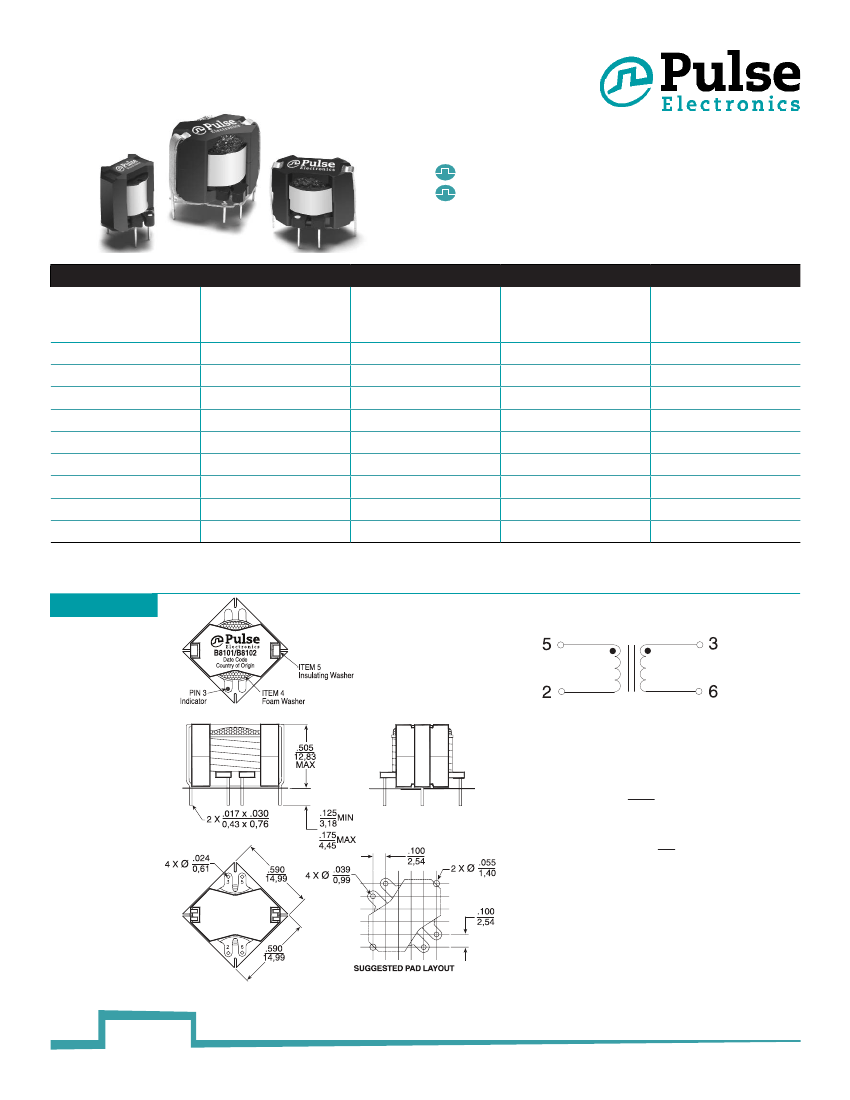

B8101 / B8102
Schematic
Weight
......................7.5 grams
Tray
.............................100/tray
Inches
Dimensions:
mm
Unless otherwise specified,
all tolerances are
±
.010
0,25
USA 858 674 8100
1
Germany 49 7032 7806 0
Singapore 65 6287 8998
Shanghai 86 21 62787060
China 86 755 33966678
Taiwan 886 3 4356768
B804.D (02/12)
pulseelectronics.com
Legerity Splitter
Inductors
Mechanicals
B8103
Schematics
Weight
......................25 grams
Tray
...........................60/tray
Inches
Dimensions:
mm
Unless otherwise specified,
all tolerances are
±
.010
0,25
BX8266L / BX8267L
Weight
..................3.4 grams
Tray
...........................90/tray
Inches
Dimensions:
mm
Unless otherwise specified,
all tolerances are
±
.010
0,25
2
pulseelectronics.com
B804.D (02/12)
Legerity Splitter
Inductors
Mechanicals

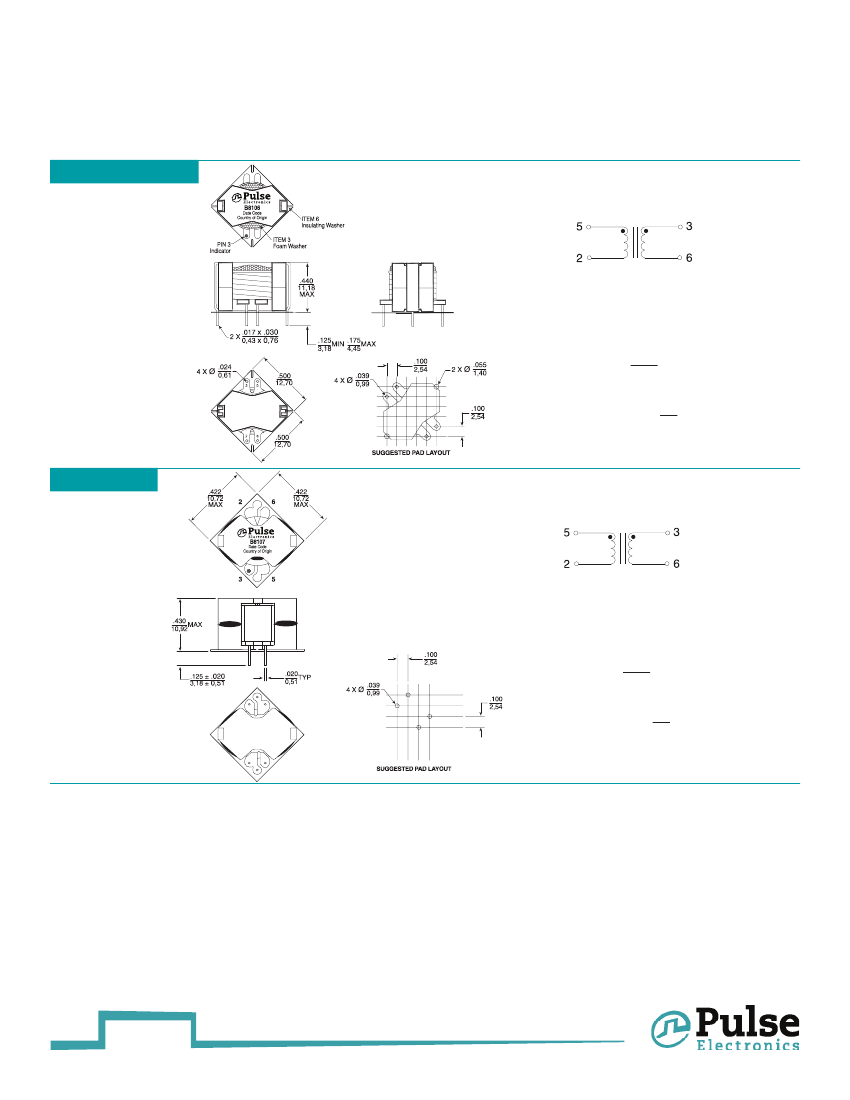

B8106 / B8104 / B8176
Schematics
Weight
..................2.5 grams
Tray
...........................80/tray
Inches
Dimensions:
mm
Unless otherwise specified,
all tolerances are
±
.010
0,25
B8107
Weight
..................3.0 grams
Tray
...........................75/tray
Inches
Dimensions:
mm
Unless otherwise specified,
all tolerances are
±
.010
0,25
For More Information
Pulse China Headquarters
Pulse North China
Pulse South Asia
Pulse North Asia
B402, Shenzhen Academy of
Room 2704/2705
135 Joo Seng Road
3F, No. 198
Aerospace Technol-
Super Ocean Finance
#03-02
Zhongyuan Road
ogy Bldg.
Ctr.
PM Industrial Bldg.
Zhongli City
10th Kejinan Road
2067 Yan An Road
Singapore 368363
Taoyuan County 320
High-Tech Zone
West
Taiwan R. O. C.
Nanshan District
Shanghai 200336
Tel: 886 3 4356768
Shenzen, PR China
China
Tel: 65 6287 8998
Fax: 886 3 4356823 (Pulse)
Tel: 858 674 8100
Tel: 49 7032 78060
518057
Fax: 65 6287 8998
Fax: 886 3 4356820 (FRE)
Fax: 858 674 8262
Fax: 49 7032 7806 135
Tel: 86 755 33966678
Tel: 86 21 62787060
Fax: 86 755 33966700
Fax: 86 2162786973
Performance warranty of products offered on this data sheet is limited to the parameters specified. Data is subject to change without notice. Other brand and product names mentioned herein may be
