Sensor/Actuator cable - SAC-4P-MST/ 15,0-PUR/FST SCO - 1413530
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

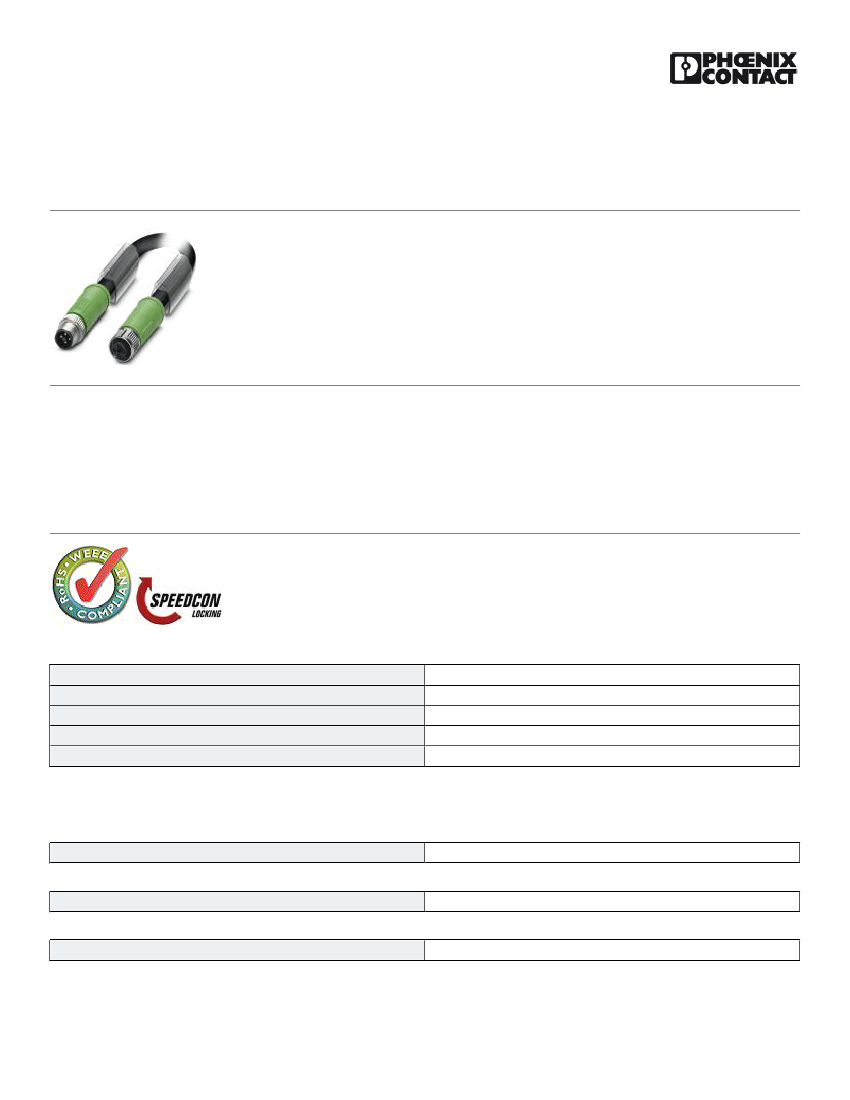

Sensor/Actuator cable, 4-position, PUR halogen-free, black-gray RAL 7021, Plug straight M12 SPEEDCON, T-
coded, on Socket straight M12 SPEEDCON, T-coded, Cable length: 15 m, for direct current up to 12 A/60 V
Why buy this product
■
■
■
■
■
Easy and safe: 100% electrically tested plug-in components
High-performance: DC connectors for up to 12 A and 60 V DC
Protection against incorrect connection using special T-coding
Save time, thanks to installation with SPEEDCON fast locking system
Our standard: robust halogen-free PUR cable
Key Commercial Data
Packing unit
Minimum order quantity
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 STK
25 STK
1620.0 g
85444290
Germany
Technical data
Dimensions
Length of cable
15 m
Ambient conditions
Ambient temperature (operation)
-25 °C ... 85 °C (Plug / socket)
General
Rated current at 40°C
12 A
08/11/2016 Page 1 / 5
https://www.phoenixcontact.com/us/products/1413530
Sensor/Actuator cable - SAC-4P-MST/ 15,0-PUR/FST SCO - 1413530
Technical data
General
Rated voltage
Number of positions
Insulation resistance
Coding
Status display
Protective circuit/component
Overvoltage category
Degree of pollution
Insertion/withdrawal cycles
60 V
4
≥ 10 GΩ
T power
No
Unwired
III
3
> 100
Material
Flammability rating according to UL 94
Contact material
Contact surface material
Contact carrier material
Material of grip body
Material, knurls
V0
CuZn
Au
PA
TPU, hardly inflammable, self-extinguishing
Zinc die-cast, nickel-plated
Standards and Regulations
Flammability rating according to UL 94
V0
Cable
Cable type
Cable type (abbreviation)
Cable abbreviation
UL AWM style
Conductor cross section
AWG power supply
Conductor structure, voltage supply
Core diameter including insulation
Thickness, insulation
Wire colors
Overall twist
Length of twist, overall twist
External sheath, color
Outer sheath thickness
External cable diameter D
Minimum bending radius, fixed installation
Minimum bending radius, flexible installation
PUR halogen-free black
PUR
Li9YV1-11Y
20233 / 10493 (80°C/300 V)
4x 1.5 mm²
16
78x 0.15 mm
2.35 mm ±0.05 mm
≥ 0.25 mm
brown, white, blue, black
4 wires, twisted
90 mm
black-gray RAL 7021
approx. 1.3 mm
8.4 mm ±0.25 mm
5xD
10 x D
08/11/2016 Page 2 / 5
https://www.phoenixcontact.com/us/products/1413530
Sensor/Actuator cable - SAC-4P-MST/ 15,0-PUR/FST SCO - 1413530
Technical data
Cable
Number of bending cycles
Minimum bending radius, drag chain applications
Traversing path
Traversing rate
Acceleration
Cable weight
Outer sheath, material
Material conductor insulation
Conductor material
Insulation resistance
Conductor resistance
Nominal voltage, cable
Test voltage, cable
Flame resistance
4000000
10 x D
10 m
3 m/s
10 m/s²
109 kg/km
PUR
PP
Bare Cu litz wires
≥ 1 GΩ*km (at 20 °C)
≤ 13 Ω/km (at 20 °C)
≤ 300 V AC
≥ 3000 V AC (Spark test)
According to UL 758/1581 (Cable Flame)
According to UL 758/1581 FT1
According to DIN EN 60332-1-2
Halogen-free
Resistance to oil
Other resistance
in accordance with DIN VDE 0472 part 815
in accordance with DIN EN 50267-2-1
According to DIN EN 60811-2-1, 168 h at 100°C
According to UL 758, 168 h at 60°C
Hydrolysis and microbe resistant as per VDE 0282 section 10
Low adhesion
abrasion-resistant
Resistant to salt water
Ambient temperature (operation)
-50 °C ... 80 °C (cable, fixed installation)
-30 °C ... 80 °C (cable, flexible installation)

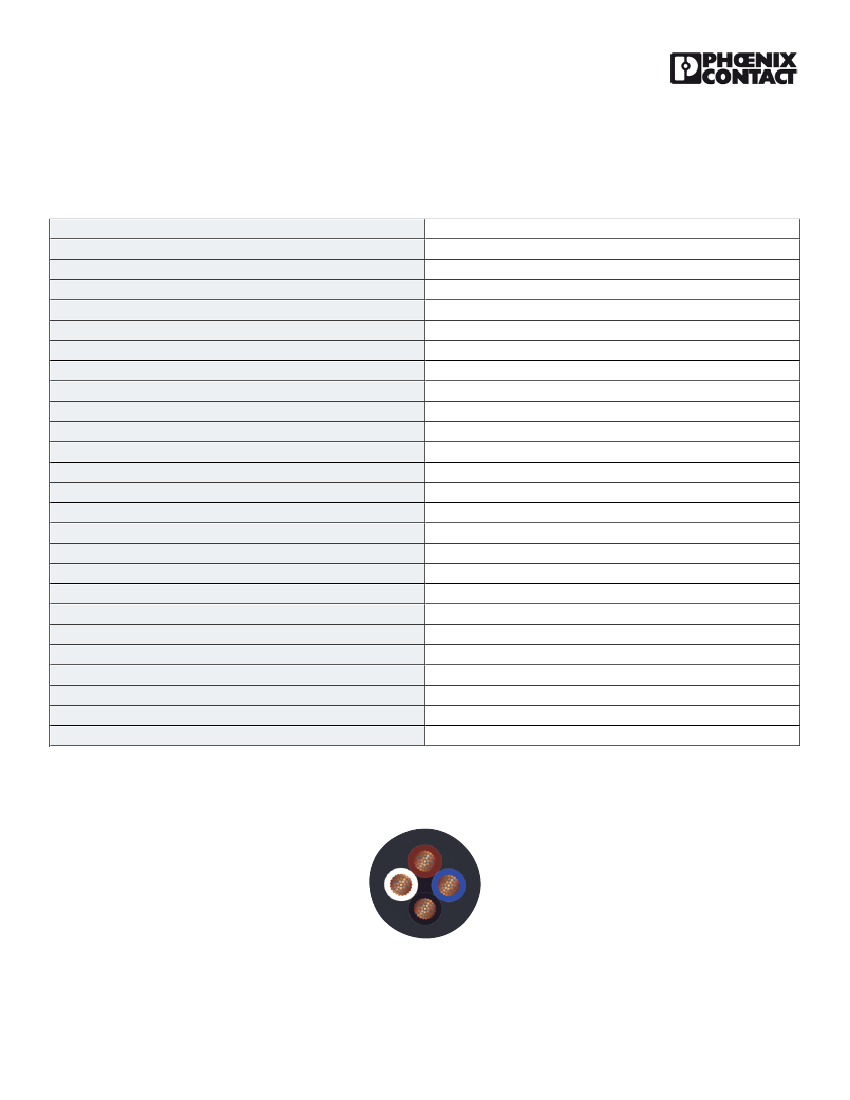

Drawings
Cable cross section
PUR halogen-free black [PUR]
08/11/2016 Page 3 / 5
https://www.phoenixcontact.com/us/products/1413530
Sensor/Actuator cable - SAC-4P-MST/ 15,0-PUR/FST SCO - 1413530
Classifications
eCl@ss
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 8.0
eCl@ss 9.0
27143423
27143423
27279218
27060311
ETIM
ETIM 4.0
ETIM 5.0
EC001855
EC001855
Approvals
Approvals
Approvals
UL Listed / cUL Listed / cULus Listed
Ex Approvals
Approvals submitted
Approval details
UL Listed
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
16
12 A
63 V
cUL Listed
mm²/AWG/kcmil
Nominal current IN
16
12 A
08/11/2016 Page 4 / 5
https://www.phoenixcontact.com/us/products/1413530
Sensor/Actuator cable - SAC-4P-MST/ 15,0-PUR/FST SCO - 1413530
Approvals
Nominal voltage UN
63 V
cULus Listed
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
08/11/2016 Page 5 / 5
