5202UE 009U1000

Description
Multi-Conductor Cables 16AWG 2C STRAND 1000ft BOX WHITE
CategoryWire/cable
File Size187KB,3 Pages
ManufacturerBelden Wire & Cable
Environmental Compliance
Download Datasheet Parametric Compare View All

5202UE 009U1000 Overview

Multi-Conductor Cables 16AWG 2C STRAND 1000ft BOX WHITE

5202UE 009U1000 Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerBelden Wire & Cable
Product CategoryMulti-Conductor Cables
Shipping RestrictionsDue to size or weight of the product, your shipping charge may increase.
RoHSDetails
TypeSound, Security and Alarm
Number of Conductors4 Conductor
Length1000 ft
Wire Gauge - AWG16 AWG
Jacket ColorWhite
Outside Diameter4.98 mm
Jacket MaterialPolyvinyl Chloride (PVC)
ShieldingUnshielded
Conductor MaterialCopper
FeaturesApplications include data circuits, monitors, control and initiation circuits
Insulation MaterialPolyvinyl Chloride (PVC)
PackagingBulk
Stranding19 x 29
Voltage Rating300 V
Factory Pack Quantity1
Unit Weight42 lbs
Part Number:
5202UE
Security & Sound, #16-4c, BC, CMR

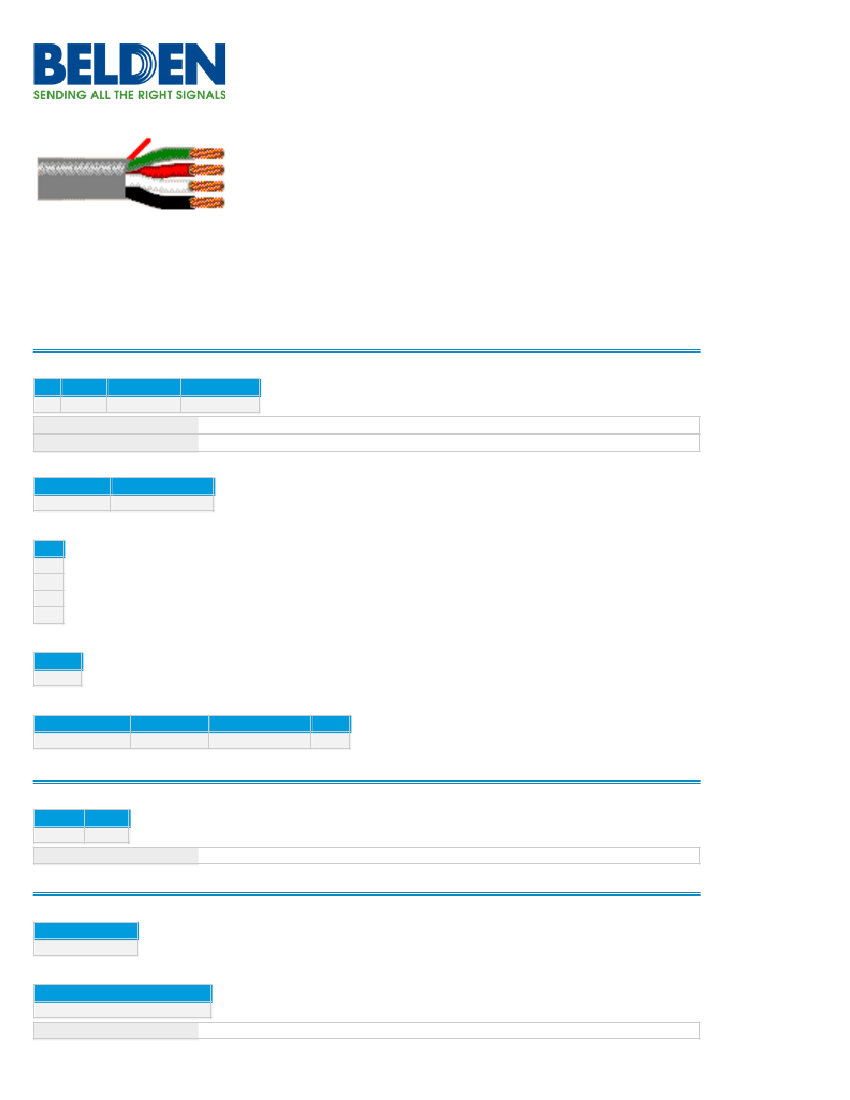

Product Description
Security & Sound Cable, Riser-CMR, 4-16 AWG stranded bare copper conductors with polyolefin insulation, PVC jacket with ripcord
Technical Specifications
Physical Characteristics (Overall)
Conductor
AWG Stranding
16
19x29
Material
No. of Conductors
BC - Bare Copper 4
4
16 AWG
Conductor Count:
Conductor Size:
Insulation
Material
Nominal Wall Thickness
PP - Polypropylene 0.008 in
Color Chart
Color
Black
Red
White
Green
Outer Shield Material
Material
Unshielded
Outer Jacket Material
Material
Nominal Diameter Nominal Wall Thickness Ripcord
0.017 in
Yes
PVC - Polyvinyl Chloride 0.21 in
Construction and Dimensions
Cabling
Lay Length
3.5 in
Print Legend:
Twists
3.4 twist/ft
NEW GENERATION(R) BY BELDEN-M 5202UE CMR 75C 4C16 (UL) E108998 OR C(UL) CMG (2 FT., 7 DIGIT SEQUENTIAL) FEET
Electrical Characteristics
Conductor DCR
Nominal Conductor DCR
4.2 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor
23 pF/ft
Shielding:
Unshielded

5202UE 009U1000 Related Products

5202UE 009U1000 5202UE 008U500
Description Multi-Conductor Cables 16AWG 2C STRAND 1000ft BOX WHITE Multi-Conductor Cables 16AWG 2C STRAND 500ft BOX GRAY
Product Attribute Attribute Value Attribute Value
Manufacturer Belden Wire & Cable Belden Wire & Cable
Product Category Multi-Conductor Cables Multi-Conductor Cables
Shipping Restrictions Due to size or weight of the product, your shipping charge may increase. Due to size or weight of the product, your shipping charge may increase.
RoHS Details Details
Type Sound, Security and Alarm Sound, Security and Alarm
Number of Conductors 4 Conductor 4 Conductor
Length 1000 ft 500 ft
Wire Gauge - AWG 16 AWG 16 AWG
Jacket Color White Gray
Outside Diameter 4.98 mm 4.98 mm
Jacket Material Polyvinyl Chloride (PVC) Polyvinyl Chloride (PVC)
Shielding Unshielded Unshielded
Conductor Material Copper Copper
Features Applications include data circuits, monitors, control and initiation circuits Applications include data circuits, monitors, control and initiation circuits
Insulation Material Polyvinyl Chloride (PVC) Polyvinyl Chloride (PVC)
Packaging Bulk Bulk
Stranding 19 x 29 19 x 29
Voltage Rating 300 V 300 V
Factory Pack Quantity 1 1
Unit Weight 42 lbs 22 lbs
