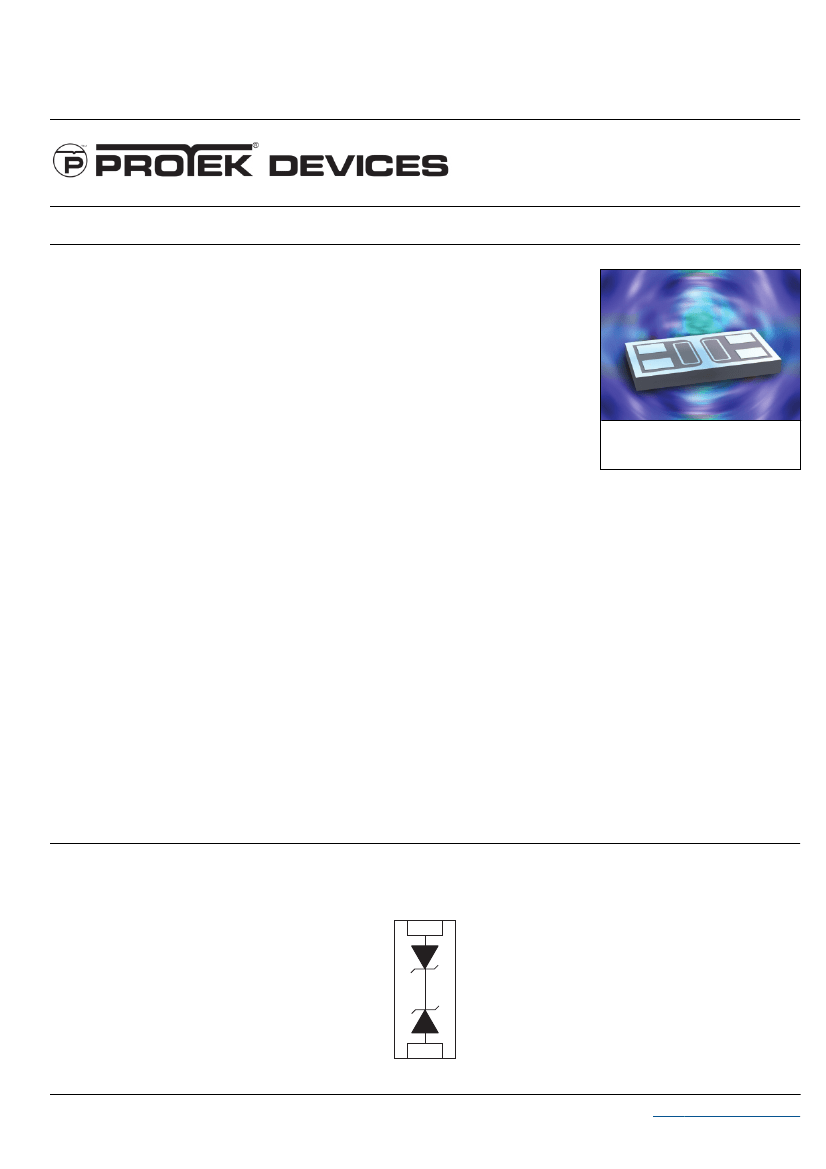

05192
ULLC0402FC3.3C*
thru
Only One Name Means ProT
ek’Tion™
ULLC0402FC24C*
UNBUMPED LOW CAPACIT
ANCE FLIP CHIP ARRA
Y
APPLICA
TIONS
✔
Cellular Phones
✔
Personal Digital Assistant (PDA)
✔
Notebook Computers
✔
SMART Cards
IEC COMPA
TIBILITY
(EN61000-4)
✔
61000-4-2 (ESD): Air - 15kV, Contact - 8kV
✔
61000-4-4 (EFT): 40A - 5/50ns
FEA
TURES
✔
ESD Protection > 25 kilovolts
✔
Available in Six Voltage Types Ranging From 3.3V to 24V
✔
Low ESD Overshoot Voltage
✔
Bidirectional Configuration & Monolithic Structure
✔
Protects 1 Line
✔
LOW CAPACITANCE: 6pF
✔
LOW LEAKAGE CURRENT
MECHANICAL CHARACTERISTICS
✔
Standard EIA Chip Size: 0402
✔
Weight 0.73 milligrams (Approximate)
✔
Flammability Rating UL 94V-0
✔
8mm Plastic & Paper Tape and Reel Per EIA Standard 481
✔
Device Marking On Reel
U0402
PIN CONFIGURA
TION
*PA
TENT PENDING
05192.R0 8/03
1
www.protekdevices.com
ULLC0402FC3.3C*
thru
ULLC0402FC24C*
DEVICE CHARACTERISTICS
MAXIMUM RATINGS @ 25°C Unless Otherwise Specified
PARAMETER
Operating Temperature
Storage Temperature
SYMBOL
T
J
T
STG
VALUE
-55°C to 150°C
-55°C to 150°C
UNITS
°C
°C
ELECTRICAL CHARACTERISTICS PER LINE @ 25°C Unless Otherwise Specified
PART
NUMBER
(See Note 1)
RATED
STAND-OFF
VOLTAGE
MINIMUM
BREAKDOWN
VOLTAGE
MAXIMUM
LEAKAGE
CURRENT
TYPICAL
CAPACITANCE
V
WM
VOLTS
ULLC0402FC3.3C
ULLC0402FC05C
ULLC0402FC08C
ULLC0402FC12C
ULLC0402FC15C
ULLC0402FC24C
Note 1:
All devices are bidirectional.
@ 1mA
V
(BR)
VOLTS
4.0
6.0
8.5
13.3
16.7
26.7
@V
WM
I
D
µA
75
1.0
0.1
0.1
0.1
0.1
@0V, 1 MHz
C
pF
6
6
6
6
6
6
3.3
5.0
8.0
12.0
15.0
24.0
FIGURE 1
REFLOW SOLDER PROFILE
225°C
5-10 sec
200°C
Instantaneous
to 200°C
1-2 Minutes
to 150°C
100°C
1-2 Minutes to 25°C
Pre-Heat
Time
Soldering
Time
Cool Down
Time
Note:
This reflow profile does not take into account the printed circuit board (PCB) material
heating time. Additional time may be required for the preheat time and cool down time upon the
PCB or board material.
*PA
TENT PENDING
05192.R0 8/03
2
www.protekdevices.com
ULLC0402FC3.3C*
thru
ULLC0402FC24C*
GRAPHS
FIGURE 2
OVERSHOOT & CLAMPING VOLTAGE FOR ULLC0402FC05C
35
25
5 Volts per Division
15
5
-5
ESD Test Pulse - 25 kilovolt, 1/30ns (waveshape)
FIGURE 3
CAPACITANCE VS REVERSE VOLTAGE FOR ULLC0402FC05C
10
8
C
j
- Capacitance - pF
6
4
2
0
0
1
2
3
4
5
6
V
R
- Reverse Voltage - Volts
*PA
TENT PENDING
05192.R0 8/03
3
www.protekdevices.com
ULLC0402FC3.3C*
thru
ULLC0402FC24C*

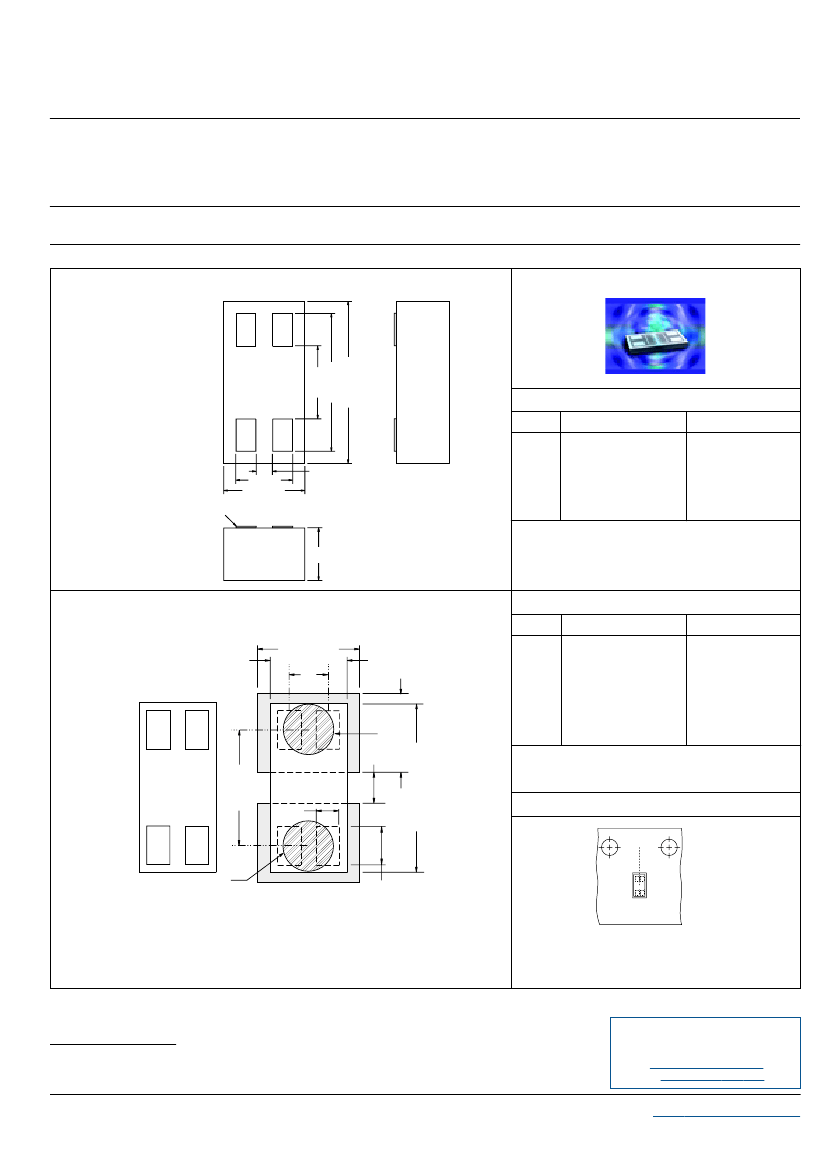

PACKAGE OUTLINE & DIMENSIONS
PACKAGE OUTLINE
U0402
TOP
SIDE
A
C
B
PACKAGE DIMENSIONS
DIM
A
B
C
D
E
F
I
MILLIMETERS
0.46 NOM
0.86 NOM
0.99 ± 0.0254
0.10 NOM
0.35 NOM
0.483 ± 0.0254
0.406 NOM
INCHES
0.018 NOM
0.034 NOM
0.039 ± 0.001
0.004 NOM
0.014 NOM
0.019 ± 0.001
0.016 NOM
E
F
Metalized Die Contacts
D
END
I
NOTES:
1. Controlling dimensions in inches.
2. Decimal tolerances for mounting pad and outline:
.xxx ± 0.05mm (± 0.002”).
3. Maximum chip size: 1.02 (0.040”) by 0.51(0.020”).
MOUNTING PAD
DIM
C
B
A
D
PAD DIMENSIONS
MILLIMETERS
0.23
0.48
0.69
0.46
0.99
0.20
0.20
0.66
0.13
INCHES
0.009
0.019
0.027
0.018
0.039
0.008
0.008
0.026
0.005
SOLDER PAD
DIE
CONTACTS
A
B
C
D
E
F
G
H
I
DIE
H
E
NOTE:
1. Top view of tape. Metal contacts are face down in tape
package.
F
I
T
APE & REEL ORIENT TION
A
SOLDER PRINT
DIAMETER 0.010” -
0.012”
G
Single Die - 0402
TAPE & REEL ORDERING NOMENCLATURE
1. Surface mount product is taped and reeled in accordance with EIA 481.
2.
8mm Plastic Tape:
7 Inch Reels - 5,000 pieces per reel. Ordering Suffix: -T75-1 (i.e., ULLC0402FC05C-T75-1).
3.
8mm Paper Tape:
7 Inch Reels -10,000 pieces per reel. Ordering Suffix: -T710-2 (i.e., ULLC0402FC05C-T710-2).
NOTE:
1.
Preferred:
Using 0.1mm (0.004”) stencil.
Outline & Dimensions: Rev 3 - 11/02, 06020
COPYRIGHT © ProTek Devices 2003
SPECIFICATIONS: ProTek reserves the right to change the electrical and or mechanical characteristics described herein without notice (except JEDEC).
DESIGN CHANGES: ProTek reserves the right to discontinue product lines without notice, and that the final judgement concerning selection and
specifications is the buyer’s and that in furnishing engineering and technical assistance, ProTek assumes no responsibility with respect to the selection or
specifications of such products.
ProTek Devices
2929 South Fair Lane, Tempe, AZ 85282
Tel: 602-431-8101 Fax: 602-431-2288
E-Mail:
sales@protekdevices.com
Web Site:
www.protekdevices.com
*PA
TENT PENDING
05192.R0 8/03
4
www.protekdevices.com
