Part Number

Search

5-174584-5

Description
26 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER
CategoryThe connector
File Size184KB,5 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance

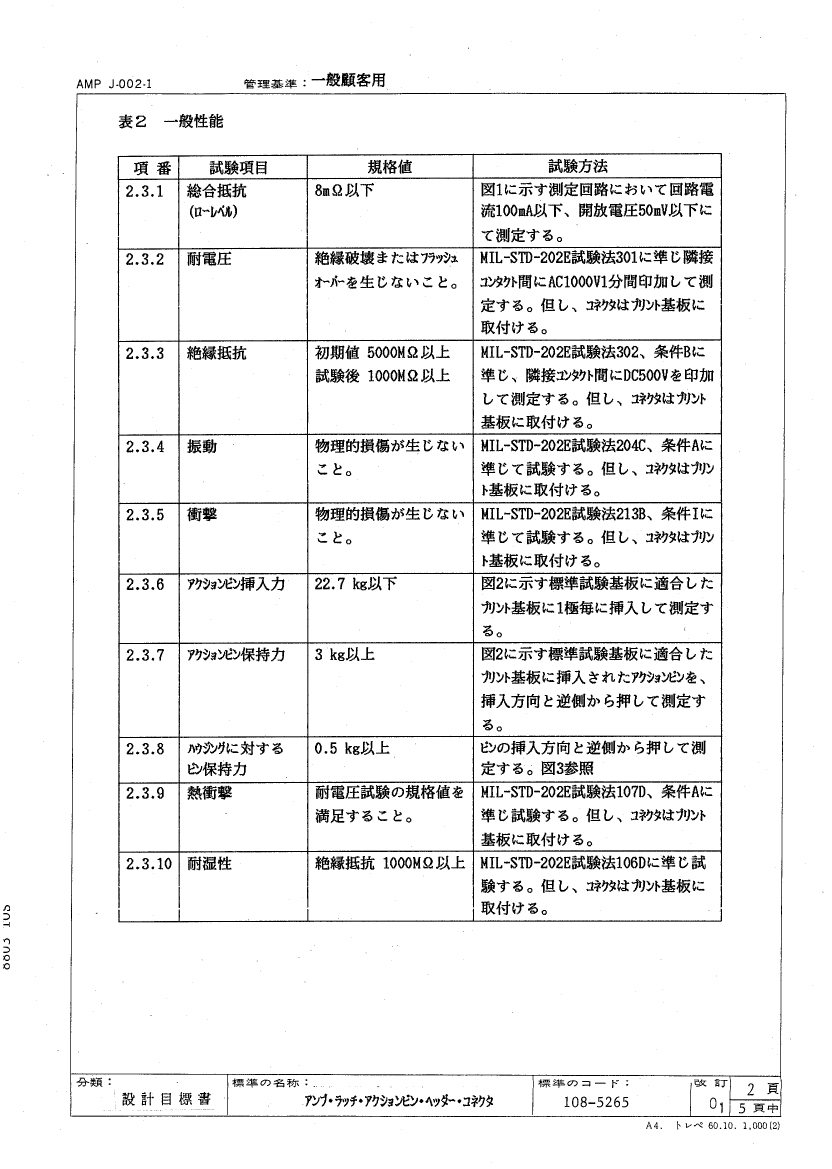

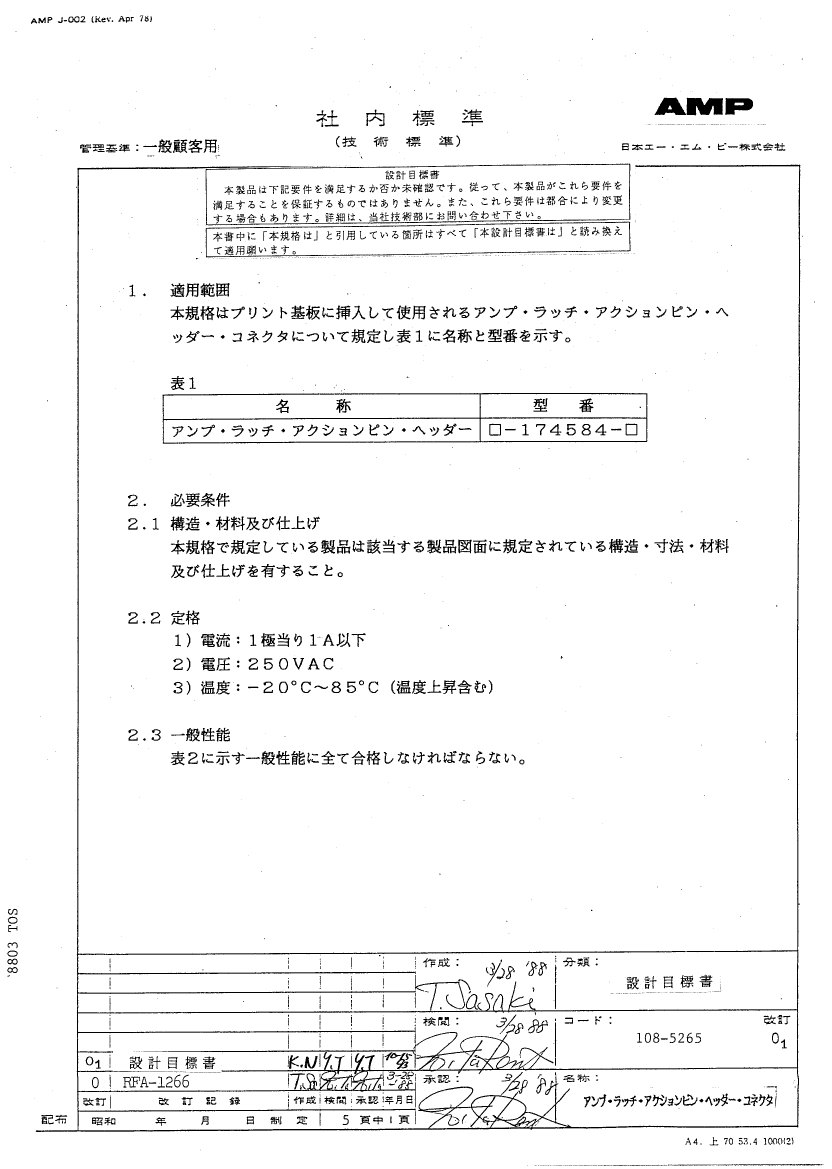

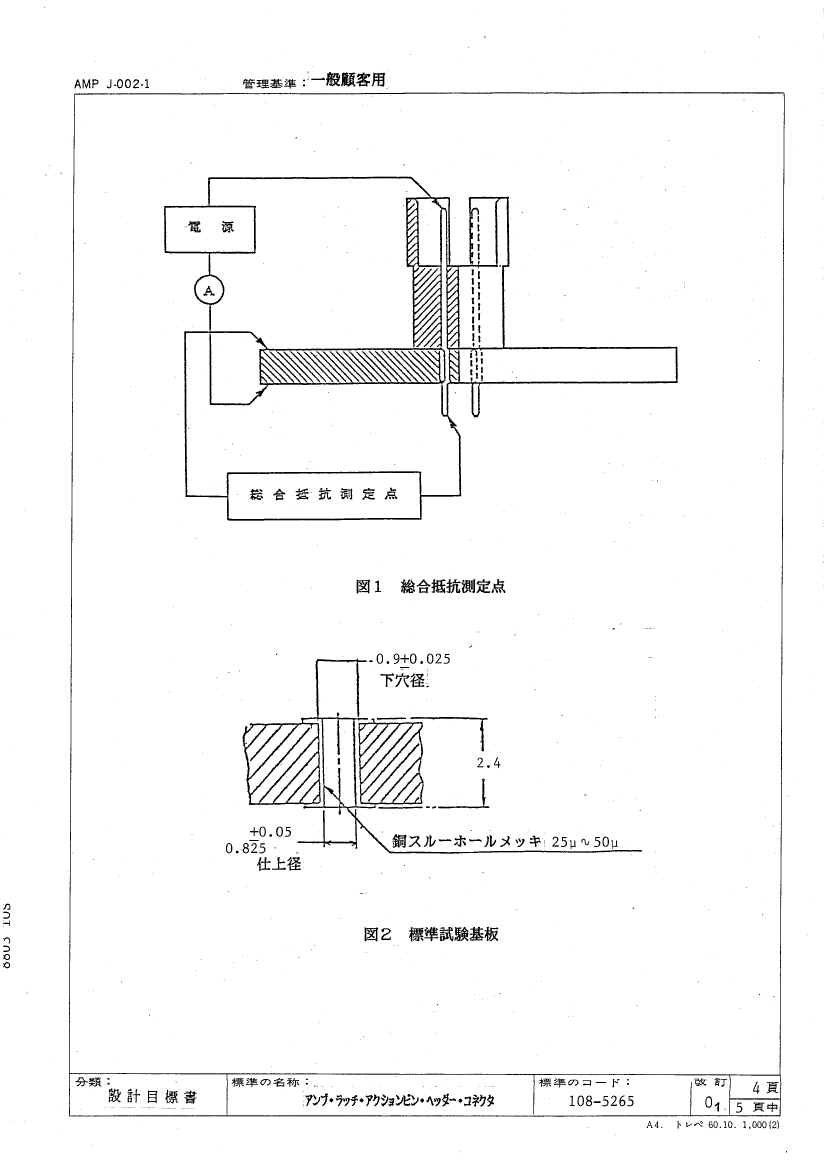

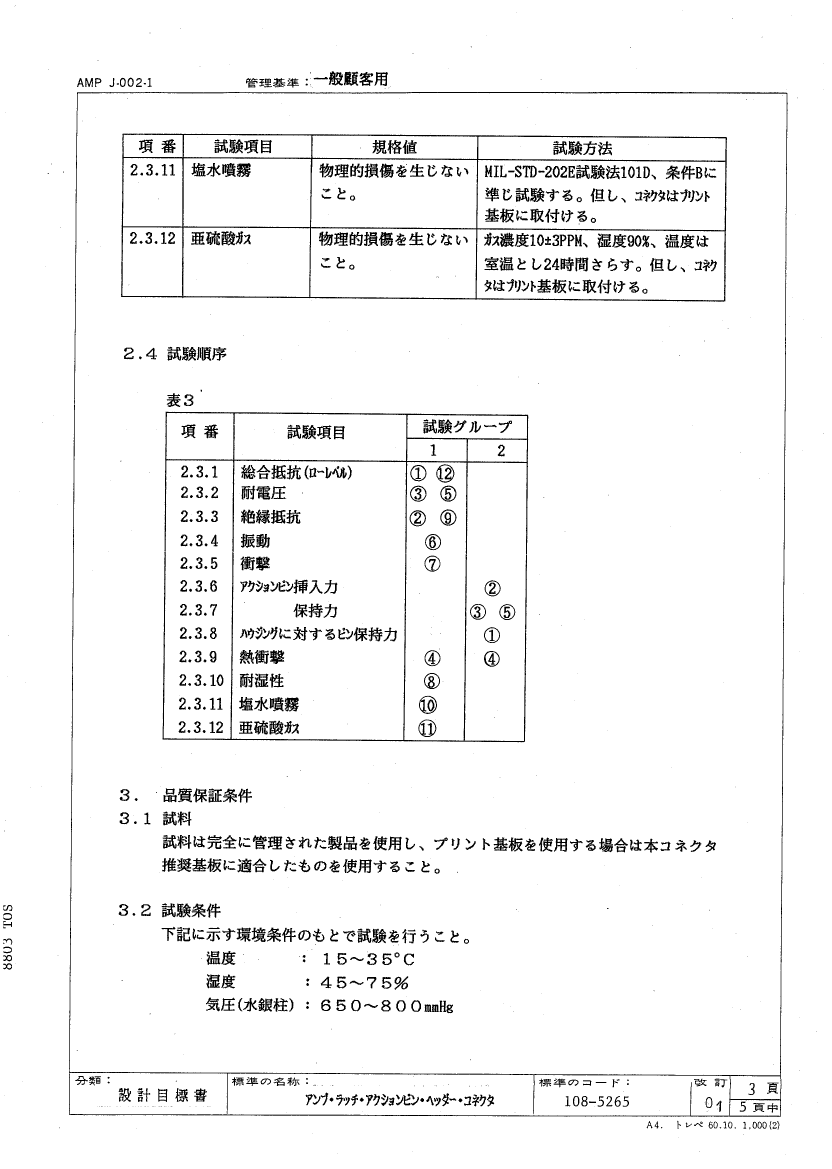

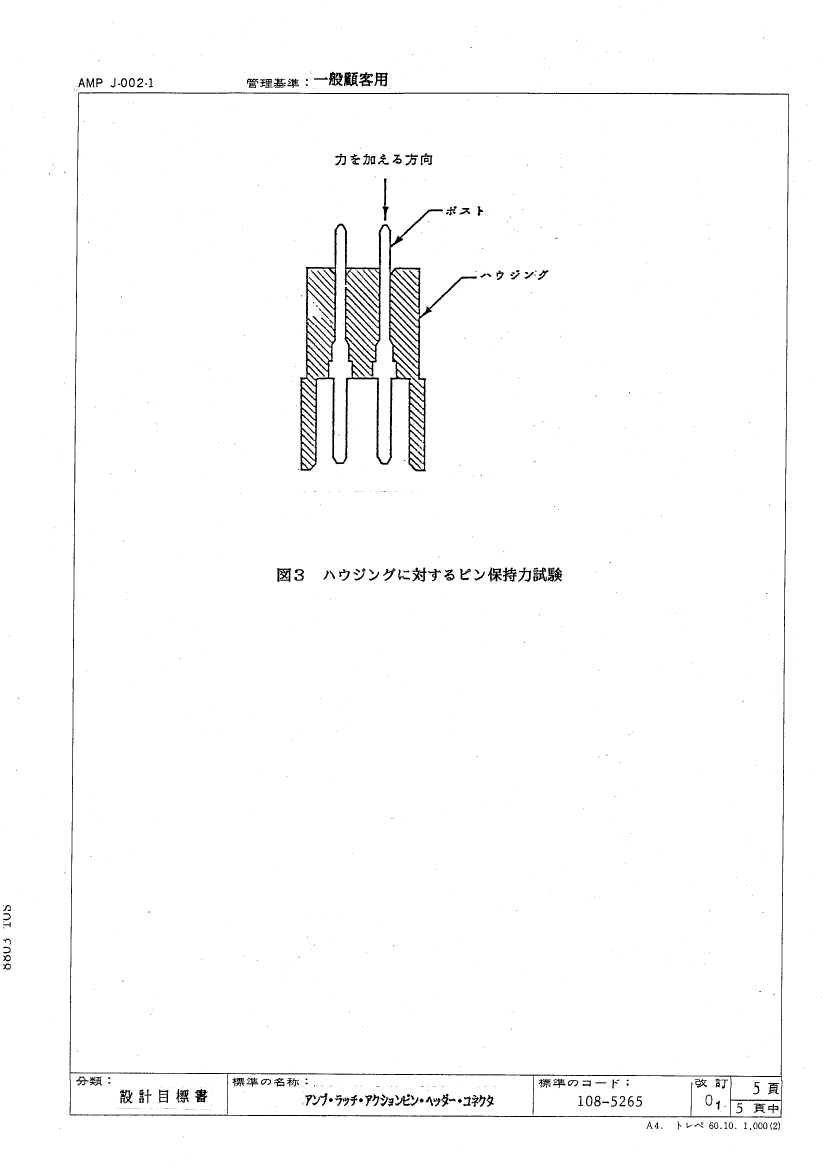

Download Datasheet Parametric Compare View All

5-174584-5 Overview

26 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER

5-174584-5 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerTE Connectivity
Reach Compliance Codecompliant
Is SamacsysN
Board mount optionsHOLE .099-.111
subject depth0.543 inch
body length2.059 inch
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
DIN complianceNO
Dielectric withstand voltage1000VAC V
Filter functionNO
IEC complianceNO
Insulation resistance1000000000 Ω
Insulator colorBLACK
insulator materialTHERMOPLASTIC
MIL complianceNO
Manufacturer's serial number5-174584-5
Plug contact pitch0.1 inch
Match contact row spacing0.1 inch
Mixed contactsNO
Installation option 1LATCH & EJECT
Installation option 2LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature85 °C
Minimum operating temperature-20 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing2.54 mm
Plating thickness30u inch
polarization keyPOLARIZED HOUSING
Rated current (signal)1 A
reliabilityCOMMERCIAL
Terminal length0.175 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts26
Base Number Matches1

5-174584-5 Related Products

5-174584-5 2-174584-3 2-174584-2
Description 26 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER 50 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, PRESS FIT HEADER CONNECTOR,PCB MNT,40 CONTACTS,PIN,0.1 PITCH,COMPLIANT FIT TERMINAL,LATCH & EJECT,BLACK
Reach Compliance Code compliant compli unknow
Board mount options HOLE .099-.111 HOLE .099-.111 HOLE .099-.111
subject depth 0.543 inch 0.543 inch 0.543 inch
body length 2.059 inch 3.26 inch 2.76 inch
Connector type BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR
Contact to complete cooperation NOT SPECIFIED GOLD FLASH AU ON NI
Contact point gender MALE MALE MALE
Contact material NOT SPECIFIED NOT SPECIFIED COPPER ALLOY
contact mode RECTANGULAR RECTANGULAR RECTANGULAR
Contact style SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT
Dielectric withstand voltage 1000VAC V 1000VAC V 1000VAC V
Insulation resistance 1000000000 Ω 1000000000 Ω 1000000000 Ω
Insulator color BLACK BLACK BLACK
insulator material THERMOPLASTIC THERMOPLASTIC THERMOPLASTIC
Manufacturer's serial number 5-174584-5 174584 174584
Plug contact pitch 0.1 inch 0.1 inch 0.1 inch
Match contact row spacing 0.1 inch 0.1 inch 0.1 inch
Installation option 1 LATCH & EJECT LATCH & EJECT LATCH & EJECT
Installation option 2 LOCKING LOCKING LOCKING
Installation method STRAIGHT STRAIGHT STRAIGHT
Installation type BOARD BOARD BOARD
Number of connectors ONE ONE ONE
PCB row number 2 2 2
Number of rows loaded 2 2 2
Maximum operating temperature 85 °C 85 °C 85 °C
Minimum operating temperature -20 °C -20 °C -20 °C
PCB contact pattern RECTANGULAR RECTANGULAR RECTANGULAR
PCB contact row spacing 2.54 mm 2.54 mm 2.54 mm
Plating thickness 30u inch 8u inch 8u inch
polarization key POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING
Rated current (signal) 1 A 1 A 1 A
reliability COMMERCIAL COMMERCIAL COMMERCIAL
Terminal length 0.175 inch 0.175 inch 0.175 inch
Terminal pitch 2.54 mm 2.54 mm 2.54 mm
Termination type SOLDER PRESS FIT PRESS FIT
Total number of contacts 26 50 40
Base Number Matches 1 1 1
Is it Rohs certified? conform to conform to -
DIN compliance NO NO -
Filter function NO NO -
IEC compliance NO NO -
MIL compliance NO NO -
Mixed contacts NO NO -
Options GENERAL PURPOSE GENERAL PURPOSE -
