Switches

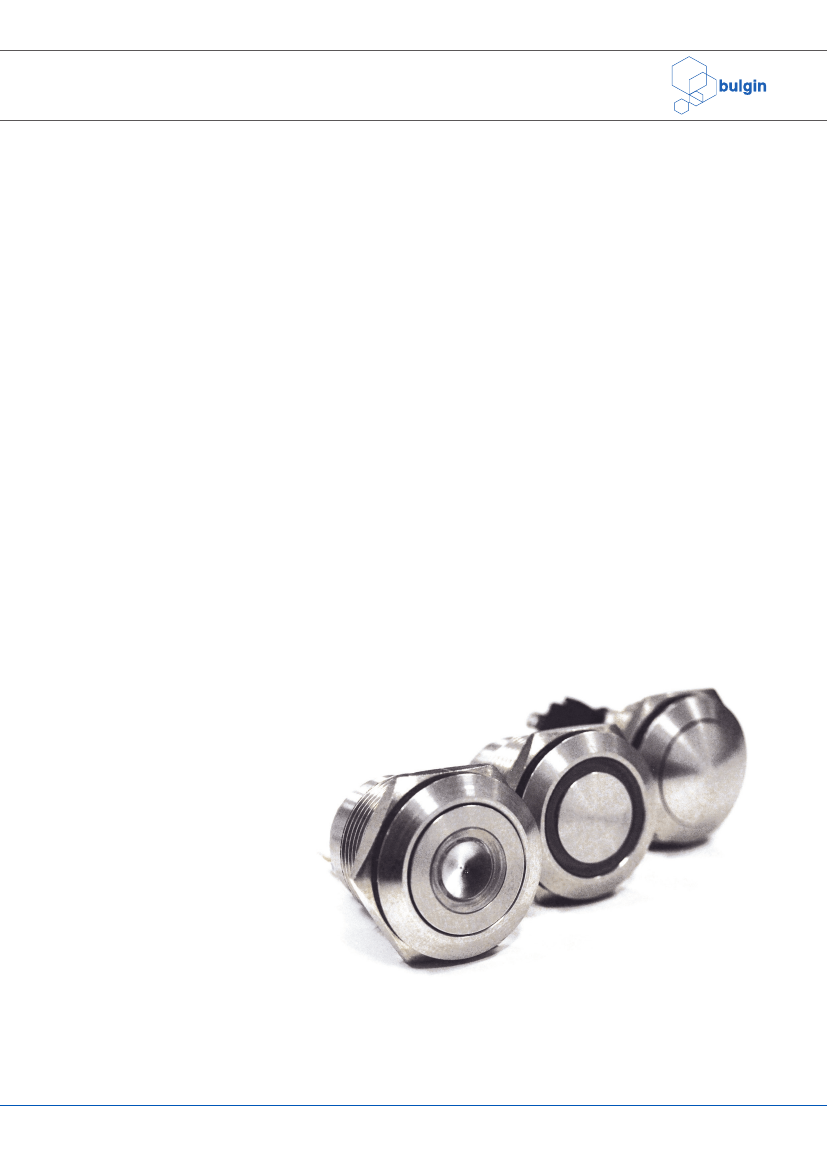

Introduction
Manufactured
from
Stainless Steel,
Bulgin’s
extensive range
of vandal resistant security
switches are designed with a
high resistance
to wear and tear, corrosion and harsh use in
potentially hostile environments such as access
control applications.
The front and rear panel mounted versions have three profiles –prominent, domed and low profile – with a choice
of switching and IP66 & IP68 front panel sealing which combined together to meet the ergonomic, electrical and
environmental demands of switch panel design.
And where the ultimate strength of steel is not needed, there is a brass, chrome plated alternative. The low profile
style switches are now also available with a latching, push on - push off, action.
The illuminated versions are available in dot and ring LED indication and a variety of illumination colours including
bi-colour LED’s. Newer versions also feature LED illumination driven by 6V, 12V & 24V together with rear of panel
sealing, these options will add that extra dimension to control panel layouts and functionality.
Vandal Resistant
Push Button
Voltage Selectors
Piezo
12mm Switches
Rocker Switches
Toggle Switches
Refrigerator Switches
Slide Switches
153-172
173-182
183
184-189
190-195
196-222
223-227
228-233
234-238
152 Switches

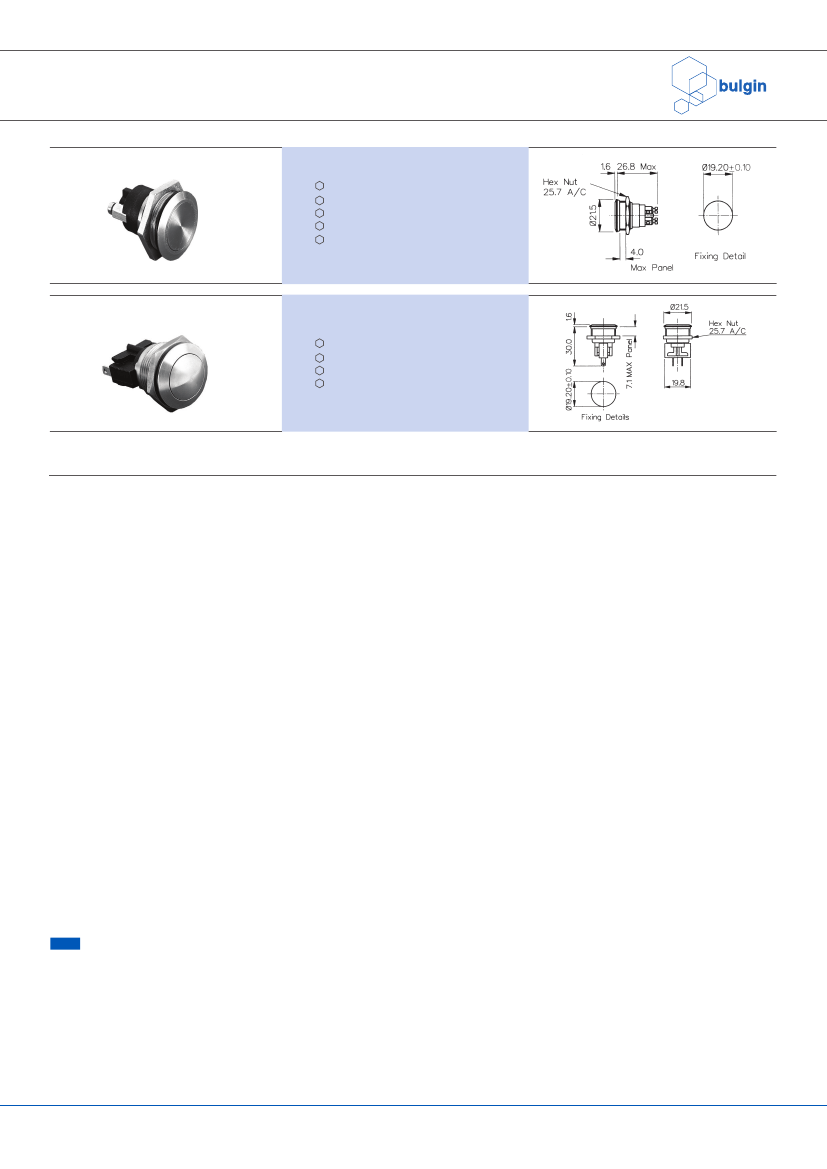

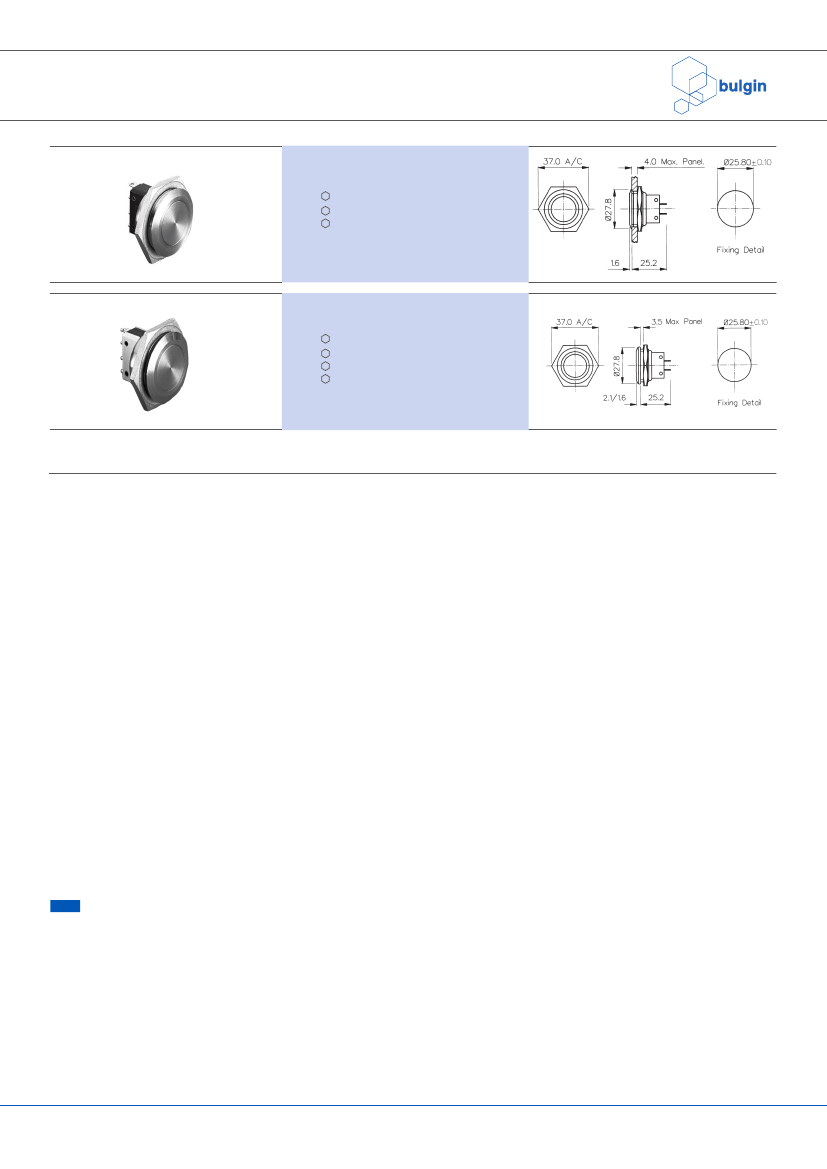

Stainless Steel Low Profile Vandal Resistant
Momentary
Front Panel Mounting
28mm diameter
S.P.C.O. Microswitch
5A, 250Vac
Switches
MP0027
Front Panel Mounting
Front Panel Sealed to IP66
28mm diameter
S.P.C.O. Microswitch
5A, 250Vac
MP0038
Sealed to IP66
Specifications
Terminations:
Switching:
Max. Rating:
Contact Resistance:
Insulation Resistance:
Dielectric Strength:
Operating Temp. Range:
Sealing
(Front of panel only):
Operations
Mechanical:
Electrical:
Operating Pressure:
Rear Nut Fixing Torque:
Materials
Mouldings:
Tags/Terminations:
Switch Body & Button:
Contacts:
Thread size:
RoHS
1,000,000 (min)
35,000 (min)
7.5N (typ)
2.5Nm
Glass Filled Nylon
Brass, Tin Plated
Stainless Steel
Fine Silver
1.0” x 26TPI
Compliant
MP0027
Solder Tags
S.P.C.O. Momentary Action
(Microswitch)
5A, 250Vac
2A, 28Vdc
<10mΩ
>10³ MΩ
>2.0kVac
–20°C to +70°C
MP0038
Solder Tags
S.P.C.O. Momentary Action
(Microswitch)
5A, 250Vac
2A, 28Vdc
<10mΩ
>10³ MΩ
>2.0kVac
–20°C to +70°C
Protection Classification:
IP66 EN60529-1:1992 + A2:2013.
(Micro switch not sealed)
1,000,000 (min)
35,000 (min)
12.5N (typ)
1.13Nm
Glass Filled Nylon
Brass, Tin Plated
Stainless Steel
Fine Silver
1.0” x 26TPI
Compliant
Switches 153
Stainless Steel Low Profile Vandal Resistant
Momentary
Front Panel Mounting
Front Panel Sealed to IP68
21.5mm diameter
S.P. Push to Make
1A, 50Vac/dc
Industry Standard Size
MP0037
Sealed to IP68
Front Panel Mounting
Front Panel Sealed to IP66
21.5mm diameter
S.P.C.O. Microswitch
5A, 250Vac
MP0031
Sealed to IP66
Specifications
Terminations:
Switching:
Max. Rating:
Contact Resistance:
Insulation Resistance:
Dielectric Strength:
Operating Temp. Range:
Sealing
(Front of panel only):
IP68 rating
10M for 2 weeks test:
Operations
Mechanical:
Electrical:
Operating Pressure:
Rear Nut Fixing Torque:
Materials
Mouldings:
Tags/Terminations:
Switch Body & Button:
Contacts:
Thread size:
RoHS
Switches
MP0037
Screw Terminals
S.P. Push to make
Momentary action
1A, 50Vac/dc
<10mΩ
>10⁵ MΩ
>1.0kVac
–20°C to +70°C
Protection Classification: IP68 EN
60529:1992+A2:2013
(Micro switch not sealed)
MP0031
Solder Tags
S.P.C.O. Momentary Action
(Microswitch)
5A, 250Vac
2A, 28Vdc
<10mΩ
>10³ MΩ
>2.0kVac
–20°C to +70°C
Protection Classification:
IP66 EN60529-1:1992 + A2:2013.
(Micro switch not sealed)
Passed
1,000,000 (min)
30,000 (min)
7.5N (typ)
0.57Nm
Glass Filled Nylon
Brass, Silver Plated
Stainless Steel
Brass, Silver Plated, Silver
0.747” x 26TPI
Compliant
1,000,000 (min)
35,000 (min)
4.7N (typ)
0.57Nm
Glass Filled Nylon
Brass, Tin Plated
Stainless Steel
Fine Silver
0.747” x 26TPI
Compliant
154 Switches

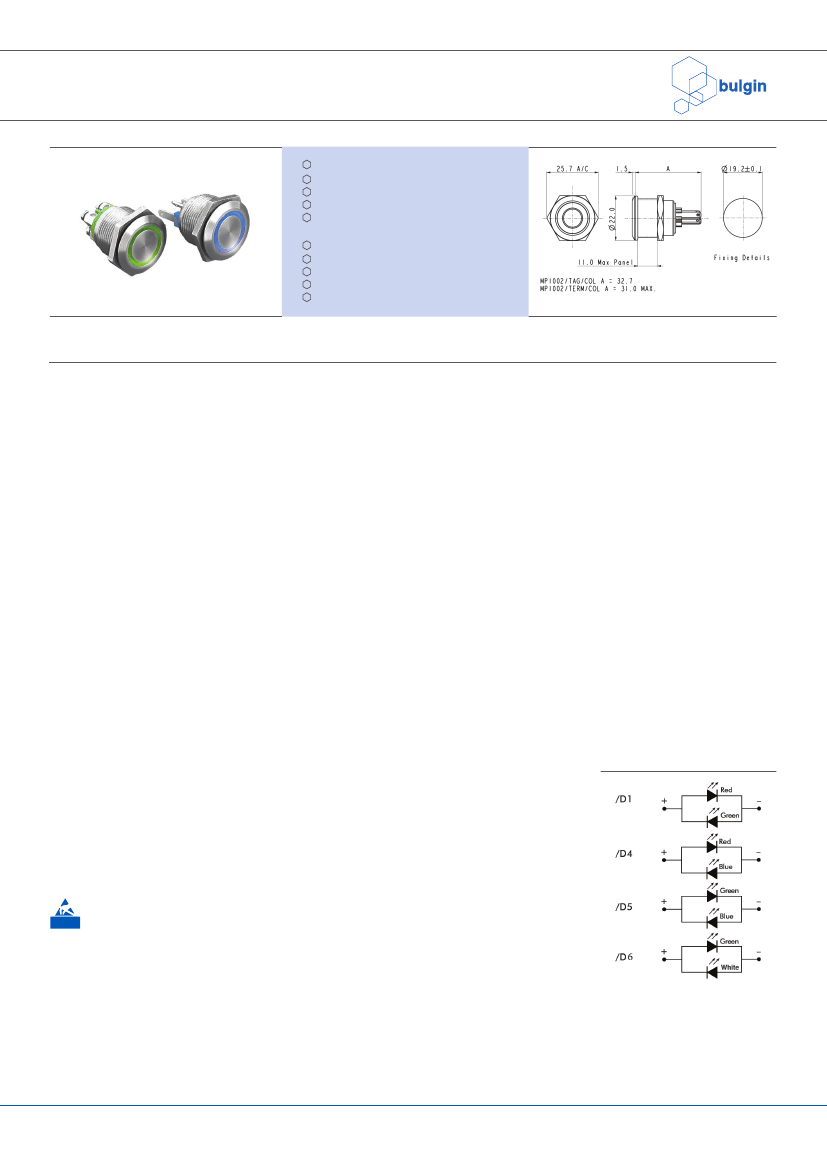

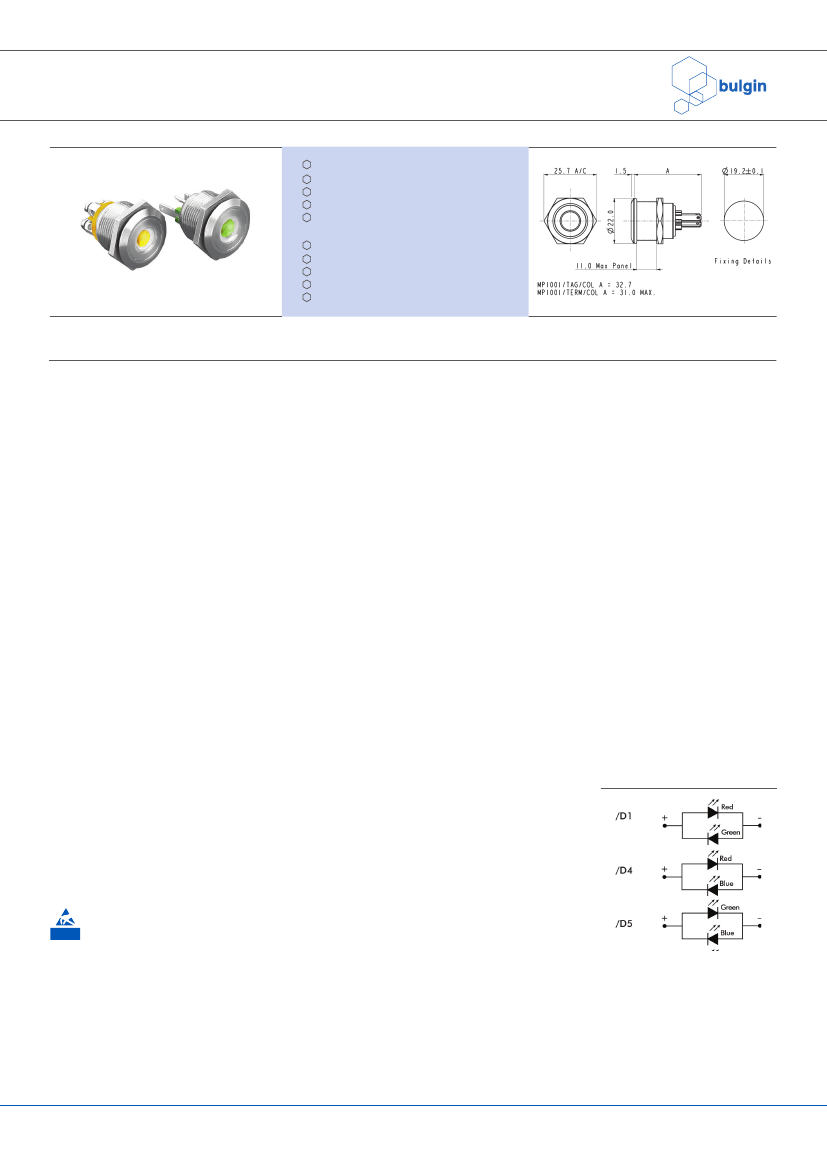

Stainless Steel Illuminated Vandal Resistant
LED
Front Panel Mounting
Dot illumination
22mm diameter
Single pole push to make
50mA, 24Vdc contact rating
Red, Green, Amber, Blue, White or
dual colour illumination
Bright daylight LEDs
Independent LED terminals
Front panel seal to IP66
Integral supply resistors
TVS protection
Switches
MPI001- front panel seal to IP66
Specifications
Illumination style:
Terminations:
Switching:
Max. Switch Rating:
LEDs (ratings @ 20mA)
Part No.
Colours
Luminous Intensity
Forward Voltage
Forward Current
Moulding Colour
Illumination Voltage:
MPI001/Termination/Colour/Voltage
Dot
/28 (2.8mm tabs),
/TERM or /TE (screw terminals)
Single pole, push to make, tactile (momentary action)
50mA, 24Vdc
/RD
Red
900mcd
1.85V
20mA
Red
/GN
Green
2500mcd
3.5V
20mA
Green
/AM
Amber
900mcd
2.3V
20mA
Amber
/BL
Blue
1500mcd
3.5V
20mA
Blue
/WH
White
900mcd
3.6V
20mA
White
/D1
Red/Green
2500mcd/5000mcd
2.05V/3.6V
20mA
Black
/D4
Red/Blue
2000mcd/850mcd
2.0V/3.6V
20mA
Black
/D5
Green/Blue
4000mcd/2000mcd
3.6V/3.6V
20mA
Black
Contact Resistance:
Insulation Resistance:
Dielectric Strength:
Operating Temp. Range:
Sealing
(Front of panel only):
Operations
Mechanical:
Electrical:
Operating Pressure:
Rear Nut Fixing Torque:
Screw Terminal Torque
Materials
Switch assembly:
Tags:
Terminals:
Switch Body & Button:
Lens and Lens Body:
O ring:
Internal seal:
Contact Plate:
Thread size:
RoHS
/no suffix No resistor fitted.
An appropriate resistor must be series connected by the user.
Voltages as above.
/6
6Vdc
/12
12Vdc
/24
24Vdc
<100mΩ
>10³ MΩ
Contact to Panel >2.0kV
Contact to Contact 1500
–30°C to +70°C
Protection Classification: IP66 EN60529-1:1992 + A2:2013. (Micro switch not sealed)
750,000 (min)
35,000 (min)
12N
0.57Nm
0.2Nm Max
UL94V-0 rated Polyamide (Nylon)
Copper Alloy
Copper Alloy
Stainless Steel
Polycarbonate
Nitrile
Silicone
Gold Plated
18.97mm x 26TPI
ESD Handling precautions must be taken
Compliant
Dual Colour LED Configuration
Switches 155
Stainless Steel Illuminated Vandal Resistant
LED
Front Panel Mounting
Ring illumination
22mm diameter
Single pole push to make
50mA, 24Vdc contact rating
Red, Green, Amber, Blue, White or
dual colour illumination
Bright daylight LEDs
Independent LED terminals
Front panel seal to IP66
Integral supply resistors
TVS protection
Switches
MPI002- front panel seal to IP66
Specifications
Illumination style:
Terminations:
Switching:
Max. Switch Rating:
LEDs (ratings @ 20mA)
Part No.
Colours
Luminous Intensity
Forward Voltage
Forward Current
Moulding Colour
MPI002/Termination/Colour/Voltage
Ring
/28 (2.8mm tabs),
/TERM or /TE (screw terminals)
Single pole, push to make, tactile (momentary action)
50mA, 24Vdc
/RD
Red
900mcd
1.85V
20mA
Red
/GN
Green
2500mcd
3.5V
20mA
Green
/AM
Amber
900mcd
2.3V
20mA
Amber
/BL
Blue
1500mcd
3.5V
20mA
Blue
/WH
White
900mcd
3.6V
20mA
White
/D1
Red/Green
2500mcd/5000mcd
2.05V/3.6V
20mA
Black
/D4
Red/Blue
2000mcd/850mcd
2.0V/3.6V
20mA
Black
/D5
Green/Blue
4000mcd/2000mcd
3.6V/3.6V
20mA
Black
/D6
Green/White
178mcd/450mcd
3.4V/3.2V
20mA
Black
Illumination Voltage:
Contact Resistance:
Insulation Resistance:
Dielectric Strength:
Operating Temp. Range:
Sealing
(Front of panel only):
Operations
Mechanical:
Electrical:
Operating Pressure:
Rear Nut Fixing Torque:
Screw Terminal Torque
Materials
Switch assembly:
Tags:
Terminals:
Switch Body & Button:
Lens and Lens Body:
O ring:
Internal seal:
Contact Plate:
Thread size:
RoHS
/no suffix No resistor fitted.
An appropriate resistor must be series connected by the user.
Voltages as above.
/6
6Vdc
/12
12Vdc
/24
24Vdc
<100mΩ
>10³ MΩ
Contact to Panel >2.0kV
Contact to Contact 1500
–30°C to +70°C
Protection Classification: IP66 EN60529-1:1992 + A2:2013. (Micro switch not sealed)
750,000 (min)
35,000 (min)
12N
0.57Nm
0.2Nm Max
UL94V-0 rated Polyamide (Nylon)
Copper Alloy
Copper Alloy
Stainless Steel
Polycarbonate
Nitrile
Silicone
Gold Plated
18.97mm x 26TPI
ESD Handling precautions must be taken
Compliant
Dual Colour LED Configuration
156 Switches
