0395282032 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> 0395282032

0395282032: DescriptionStrip Terminal Block; CategoryThe connector terminals; File Size39KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

0395282032 Overview

Strip Terminal Block

0395282032 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknow
ECCN code	EAR99
Manufacturer's serial number	39528
Terminal and terminal strip types	STRIP TERMINAL BLOCK
Base Number Matches	1

Preview

Download Datasheet

View All

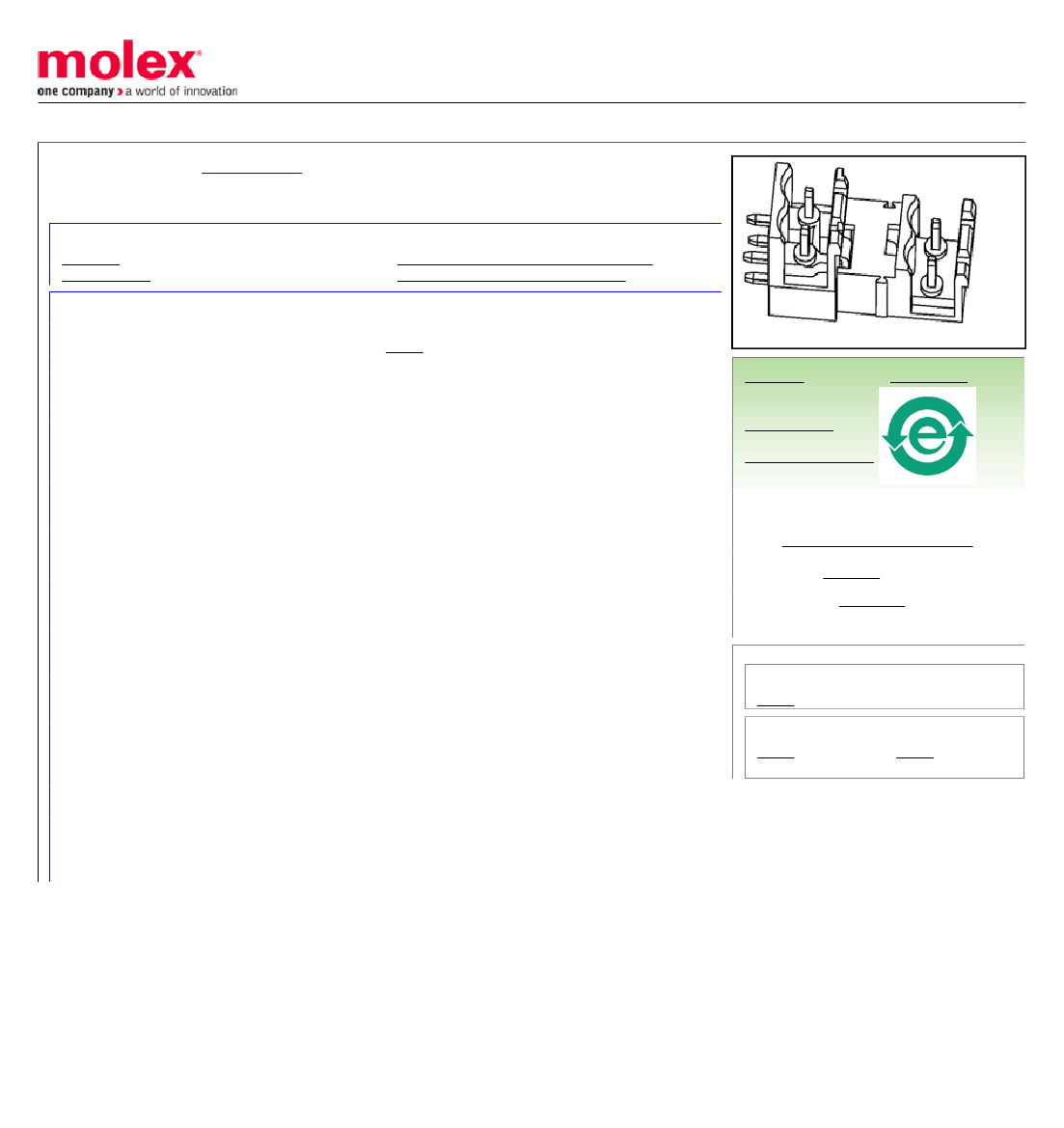

This document was generated on 09/02/2013

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

Documents:

3D Model

Drawing (PDF)

39528-2032

Active

5.00mm Pitch Eurostyle™ Vertical PCB Dual Level Header, Open Ends, 32 Circuits

Product Specification PS-39500-001 (PDF)

RoHS Certificate of Compliance (PDF)

General

Product Family

Series

Application

Component Type

Product Name

Type

UPC

Terminal Blocks

39528

N/A

PCB Header

ESE, Eurostyle™Pluggable

Euro Block

822350826969

image - Reference only

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Low-Halogen Status

Not Reviewed

China RoHS

Series

Physical

Circuits (Loaded)

Entry Angle

Lock to Mating Part

Number of Rows

Orientation

PC Tail Length

PCB Thickness - Recommended

Panel Mount

Pitch - Mating Interface

Pitch - Termination Interface

Polarized to Mating Part

Shrouded

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Wire Size AWG

N/A

Yes

Vertical

5.00mm

3.05mm

5.00mm

Yes

Open Ends

Yes

N/A

-40°C to +105°C

N/A

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Search Parts in this Series

39528Series

Mates With

39520 Horizontal Plug, 39523 Vertical Plug,

Most 5.00mm Pitch Industry Standard Plugs

Electrical

Current - Maximum per Contact

Voltage - Maximum

15A

300V

Material Info

Reference - Drawing Numbers

Product Specification

Sales Drawing

PS-39500-001

SD-39528-003

This document was generated on 09/02/2013

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
