S1008-393K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> S1008-393K

S1008-393K: DescriptionFixed Inductors 39uH 10%; CategoryPassive components inductor; File Size1MB，1 Pages; ManufacturerAPI Delevan; Websitehttp://www.delevan.com/

Download Datasheet Parametric View All

S1008-393K Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	S1008-393K	-	-	View	Buy Now

S1008-393K Overview

Fixed Inductors 39uH 10%

S1008-393K Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
package instruction	1008
Reach Compliance Code	compliant
ECCN code	EAR99
uppercase and lowercase codes	1008
structure	Shield
core material	FERRITE
DC Resistance	8 Ω
Nominal inductance(L)	39 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e0
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	2.41 mm
Package length	2.92 mm
Package form	SMT
Package width	2.66 mm
method of packing	TR, 13 Inch
Minimum quality factor (at nominal inductance)	30
Maximum rated current	0.12 A
self resonant frequency	10 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal surface	Tin/Lead (Sn63Pb37)
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	2.5 MHz
Tolerance	10%
Base Number Matches	1

Preview

Download Datasheet

View All

±1

(µ

SERIES

S1008R

S1008

TI )

RA A

T (m

EN UM

RR IM

CU X

AN )

ST S

SI HM

RE M (O

)

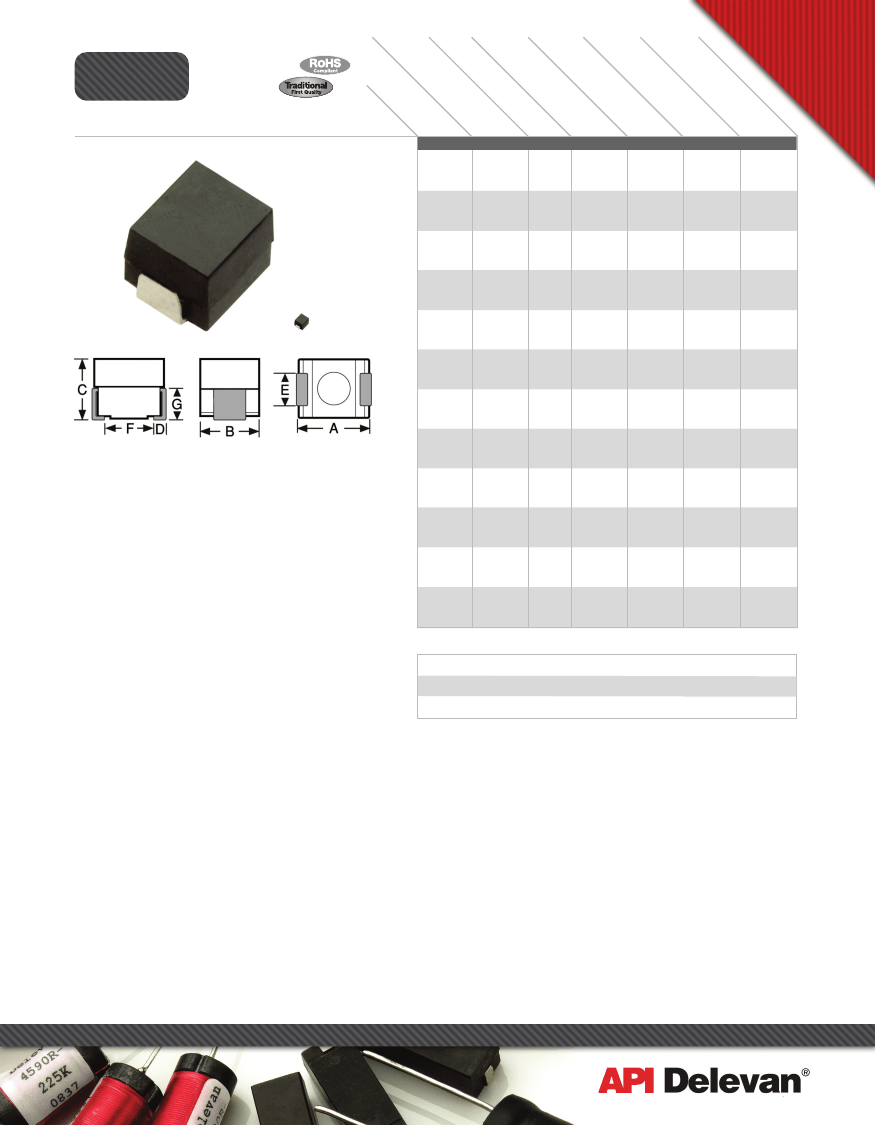

Shielded Surface Mount Inductors

Actual Size

Physical Parameters

Inches

Millimeters

0.095 to 0.115

2.41 to 2.92

0.085 to 0.105

2.16 to 2.66

0.075 to 0.095

1.91 to 2.41

0.010 to 0.030

0.26 to 0.76

0.040 to 0.060

1.02 to 1.52

0.060 (Ref. only) 1.52 (Ref. only)

0.045 (Ref. only) 1.14 (Ref. only)

Dimensions “A” and “C” are over terminals.

Weight Max.

(Grams) 0.1

Operating Temperature Range

–55°C to +125°C

Current Rating at 90°C Ambient

35°C Rise

Maximum Power Dissipation at 90°C

0.157 W

Marking

Delevan; dash number followed by a S;

date code (YYWWL). Note: An R before the date code

indicates a RoHS component.

Example: S1008-471H

DELEVAN

471S

0912A

Packaging

Tape & reel (8mm): 7" reel, 2000 pieces max.;

13" reel, 7000 pieces max.

Made In the U.S.A.

-101K

-121K

-151K

-181K

-221K

-271K

-331K

-391K

-471K

-561K

-621K

-681K

-751K

-821K

-911K

-102K

-122K

-152K

-182K

-222K

-272K

-332K

-392K

-472K

-562K

-682K

-822K

-103K

-123K

-153K

-183K

-223K

-273K

-333K

-393K

-473K

0.10

0.12

0.15

0.18

0.22

0.27

0.33

0.39

0.47

0.56

0.62

0.68

0.75

0.82

0.91

1.0

1.2

1.5

1.8

2.2

2.7

3.3

3.9

4.7

5.6

6.8

8.2

SERIES S1008 FERRITE CORE

383

368

353

338

323

308

293

278

255

232

200

186

163

140

130

7.9

120

7.9

2.5

0.09

0.10

0.11

0.12

0.13

0.14

0.15

0.16

0.17

0.18

0.19

0.20

0.21

0.22

0.24

0.25

0.29

0.42

0.60

0.80

0.85

0.90

1.00

1.20

1.30

1.80

1.90

2.10

3.50

4.00

5.00

6.00

7.00

7.40

8.00

9.00

1120

1060

1015

970

930

900

865

840

815

790

770

750

735

715

685

670

625

545

435

375

365

355

335

305

295

250

240

230

220

210

200

170

160

125

120

110

Optional Tolerances: J = 5% H = 3% G = 2% F = 1%

*Complete part # must include series # PLUS the dash #

For surface ﬁnish information, refer to www.delevanﬁnishes.com

270 Quaker Rd., East Aurora NY 14052 • Phone 716-652-3600 • Fax 716-652-4814 • E-mail: apisales@delevan.com • www.delevan.com

3/2018
