54-874-011 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> 54-874-011

54-874-011: DescriptionEMI Feedthrough Filters 100PF; CategoryAnalog mixed-signal IC filter; File Size125KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

54-874-011 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	54-874-011	-	-	View	Buy Now

54-874-011 Overview

EMI Feedthrough Filters 100PF

54-874-011 Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	C-TYPE CIRCUIT
capacitance	39 µF
Maximum DC resistance	0.005 Ω
diameter	2.67 mm
filter type	FEED THROUGH CAPACITOR
high	3.56 mm
Minimum insulation resistance	1000 MΩ
JESD-609 code	e4
Installation type	THROUGH HOLE MOUNT
Number of functions	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
method of packing	BAG
physical size	D2.67XH3.56 (mm)/D0.105XH0.14 (inch)
Rated current	5 A
Rated voltage	50 V
Terminal surface	GOLD
Base Number Matches	1

Preview

Download Datasheet

View All

Spec Spin Filters

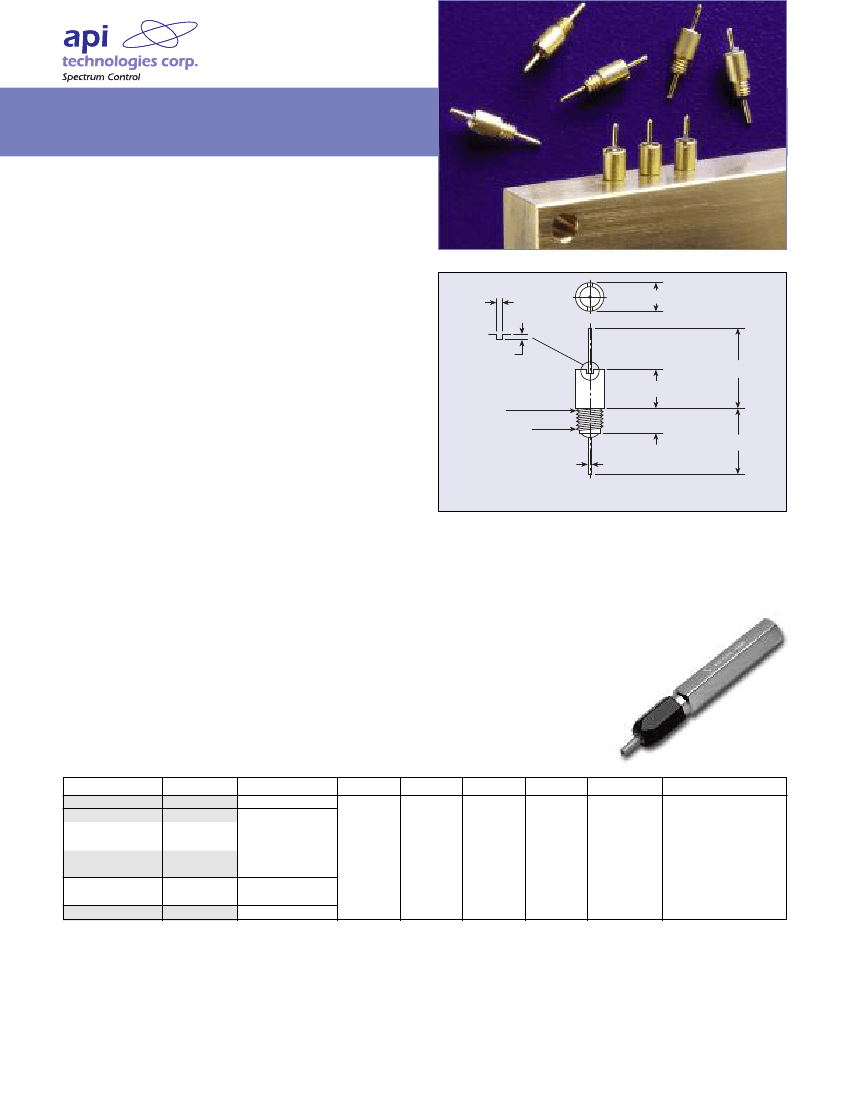

API Technologies’ Spectrum Control brand introduces

the new space saving #2-56 threaded miniature EMI

spanner filter. This new threaded filter is designed

without a hex and does not require soldering for

installation. These features make it an excellent

selection for applications that require many lines to

be filtered in close proximity. The easy swap out also

allows for flexibility in filter replacement and capacitance

substitution. Easy filter substitution also allows for

flexibility in filter placement. Custom design queries

are always welcome.

.020

(0.51)

ø.105

.005

(2.67)

.020

(0.51)

.290

(7.36)

.140

(3.57)

.081

(2.06)

.240

(6.11)

.024

(0.61)

Built and tested in accordance with MIL-F-15733.

Dimensions in inches

(mm)

Applications

API’s Spectrum Control brand spanner filter offers

superior insertion loss over a broad frequency range

when compared to surface mount components. The filter

is available in capacitance values up to 10,000 pF, and

is featured in a microcircuit package used in microwave

applications such as frequency synthesizers, power

amplifiers, MMW radio, and is ideal for commercial

and high-reliability applications.

1-1/2 Imperfect

Threads

#2-56 Unc-2A

Electrical Specifications

Operating Temperature

. . . . -55°C to +125°C

Voltage Rating

. . . . . . . . . . 50 VDC

Current Rating

. . . . . . . . . . 5 A

Effective Filtering From

. . . . 1 MHz to 10 GHz

Capacitance

. . . . . . . . . . . . to 10,000 pF

Dielectric Withstanding

Voltage . . . . . . . . . . . . . .

. . . 125 VDC

Mechanical Specifications

Center Spacing

. . . . . . . . . . .0.110"

Lead Finish

. . . . . . . . . . . . . Gold

Bushing Finish

. . . . . . . . . . Gold

Tightening Torque

. . . . . . . . 14 oz-in (± 2)

(0.11Nm)

Insertion Tool

Part Number: 54-874-020

Part Number*

54-874-010

54-874-011

54-874-012

54-874-013

54-874-014

54-874-015

54-874-016

54-874-017

54-874-018

Cap (pF)

100

390

1,000

2,000

3,300

4,700

10,000

Max. Tolerance

+0%/-20%

+50%/-20%

Circuit

Current

Voltage

DWV

I.R.

Temperature Range

50 VDC

125 VDC

1,000 MΩ

-55°C to +125°C

+100%/-0%

+80%/-20%

Note: Parts are RoHS Compliant

API TECHNOLOGIES

• 8061 Avonia Rd. • Fairview, PA 16415 • Ph: 814-474-1571 • Fax: 814-474-3110 • eis.apitech.com

API TECHNOLOGIES’ SPECTRUM CONTROL GmbH

• Hansastrasse 6 • 91126 Schwabach, Germany • Phone: (49)-9122-795-0 • Fax: (49)-9122-795-58

LP11

54-874-011 Related Products

	54-874-011	54-874-013	54-874-016	54-874-015
Description	EMI Feedthrough Filters 100PF	EMI Feedthrough Filters 390PF 50V 5A	EMI Feedthrough Filters 3300PF 50V 5A	EMI Feedthrough Filters 2000PF 50V 5A
